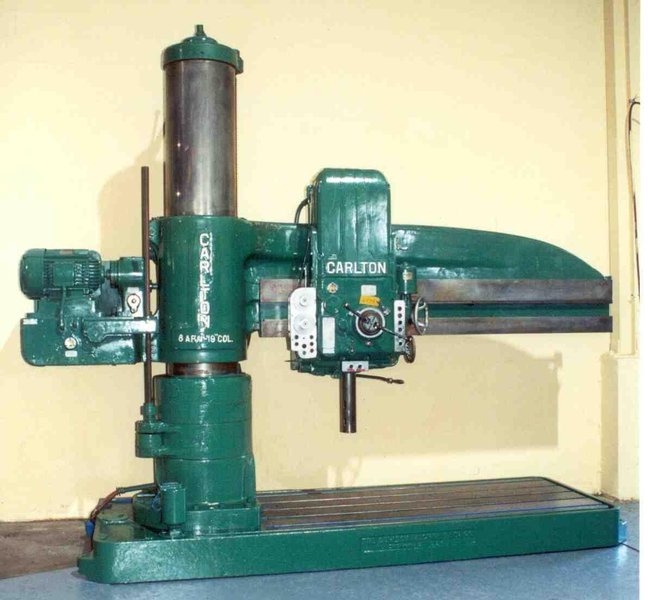

8' X 19' CARLTON RADIAL DRILL: STOCK #5629
Brand
Not specified
Category
Type
Model
08 X 19
Stock #
5629
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL ............................... 4A-4317 SPINDLE SPEEDS ....................... (36) 15 TO 1500 RPM FEEDS ................................ (18) .004 TO .125 IPR THREADS .............................. 8, 11-1/2, 14, 18 TPI SPINDLE TRAVEL ....................... 20" DIAMETER OF SPINDLE .................. 4" TAPER IN SPINDLE ..................... #6 MT DISTANCE SPINDLE TO COLUMN ........... 13-1/4" MIN. / 96" MAX. DISTANCE SPINDLE TO FLOOR ............ 52" MIN. / 94" MAX. TRAVEL OF HEAD ON ARM ................ 82-3/4" TRAVEL OF ARM ON COLUMN .............. 43-1/2" POWER CLAMPING TO HEAD AND COLUMN POWER HEAD TRAVERSE POWER ARM ELEVATION 40 HORSEPOWER SPINDLE DRIVE MOTOR |
