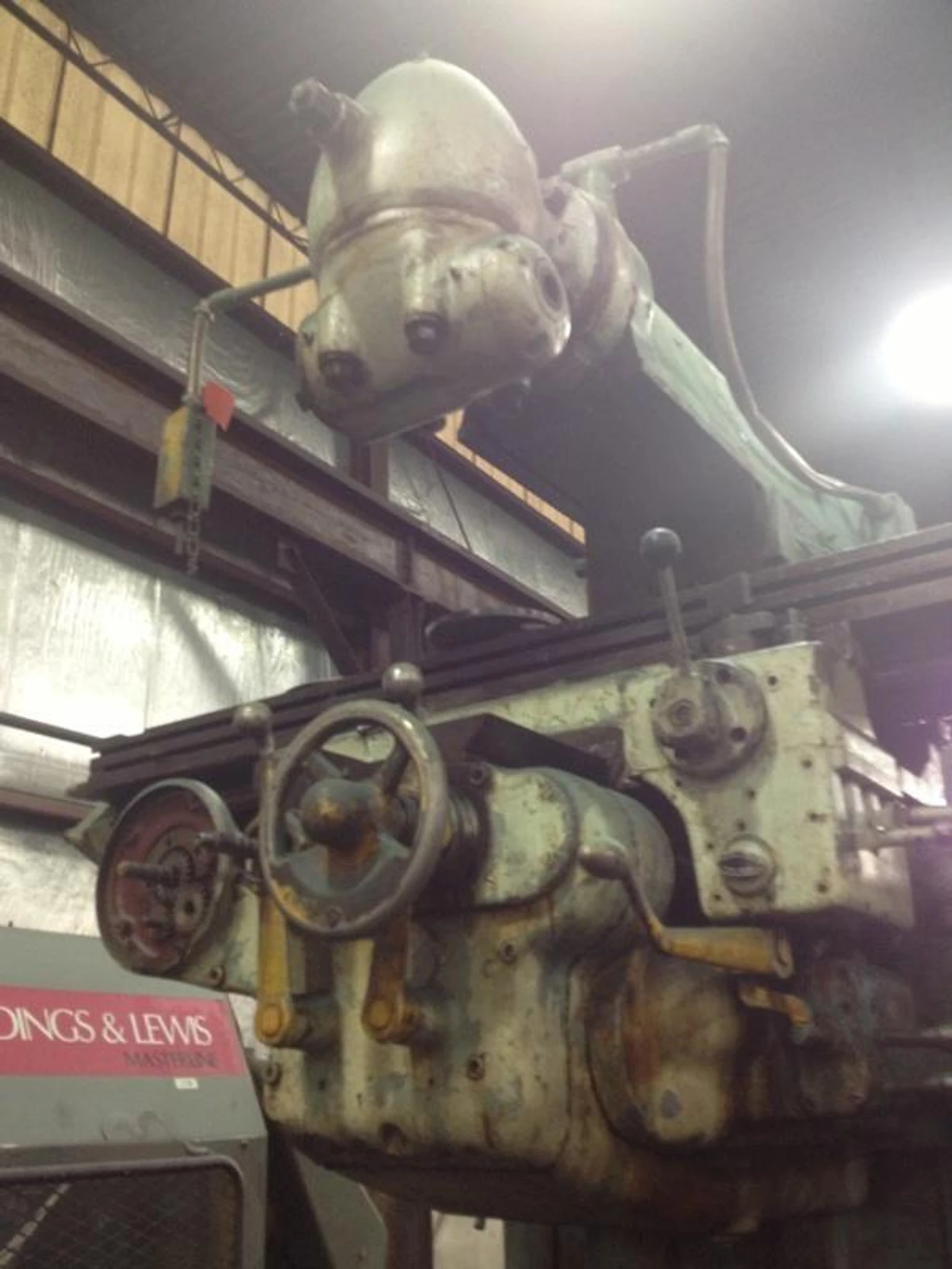

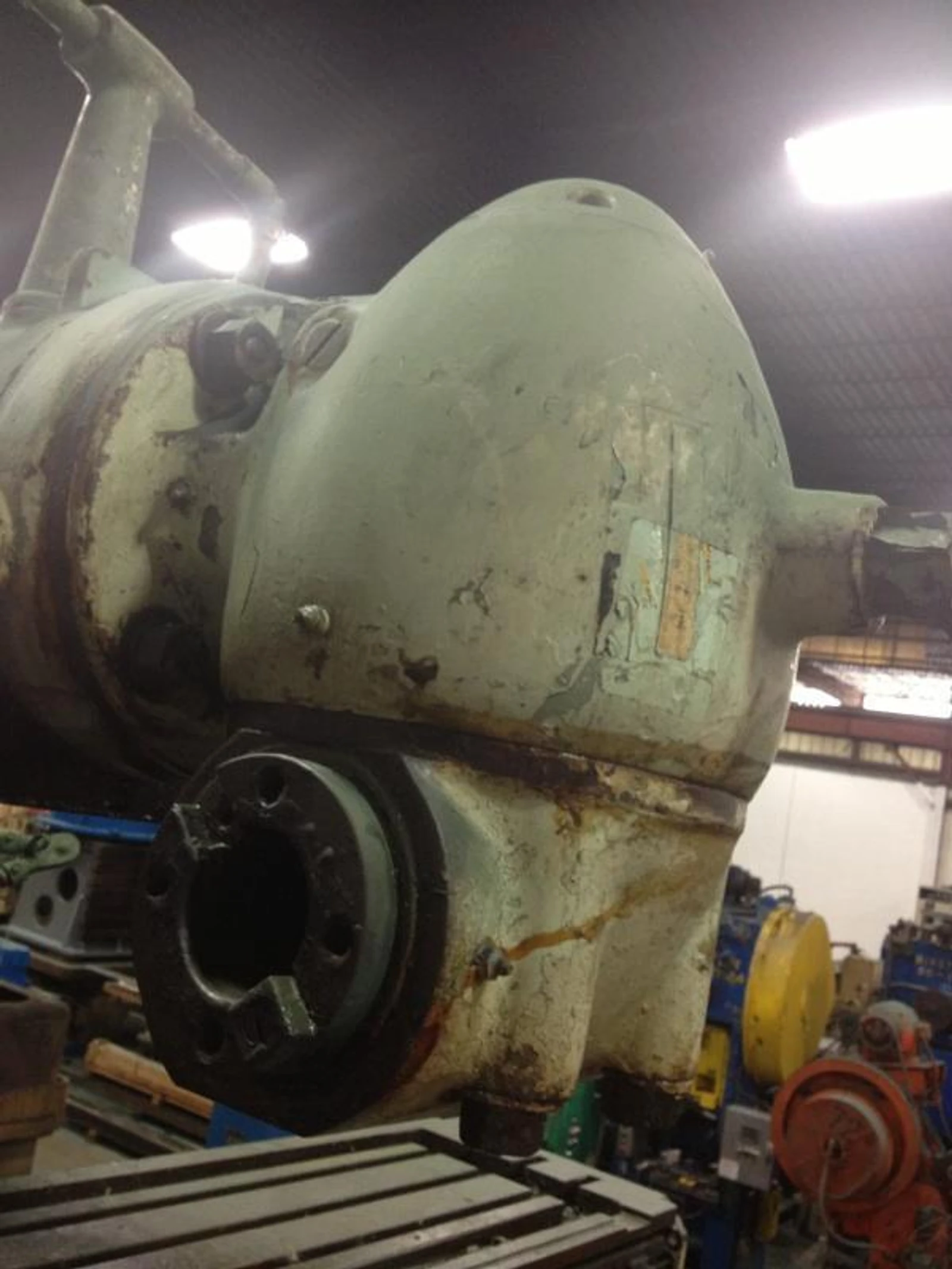

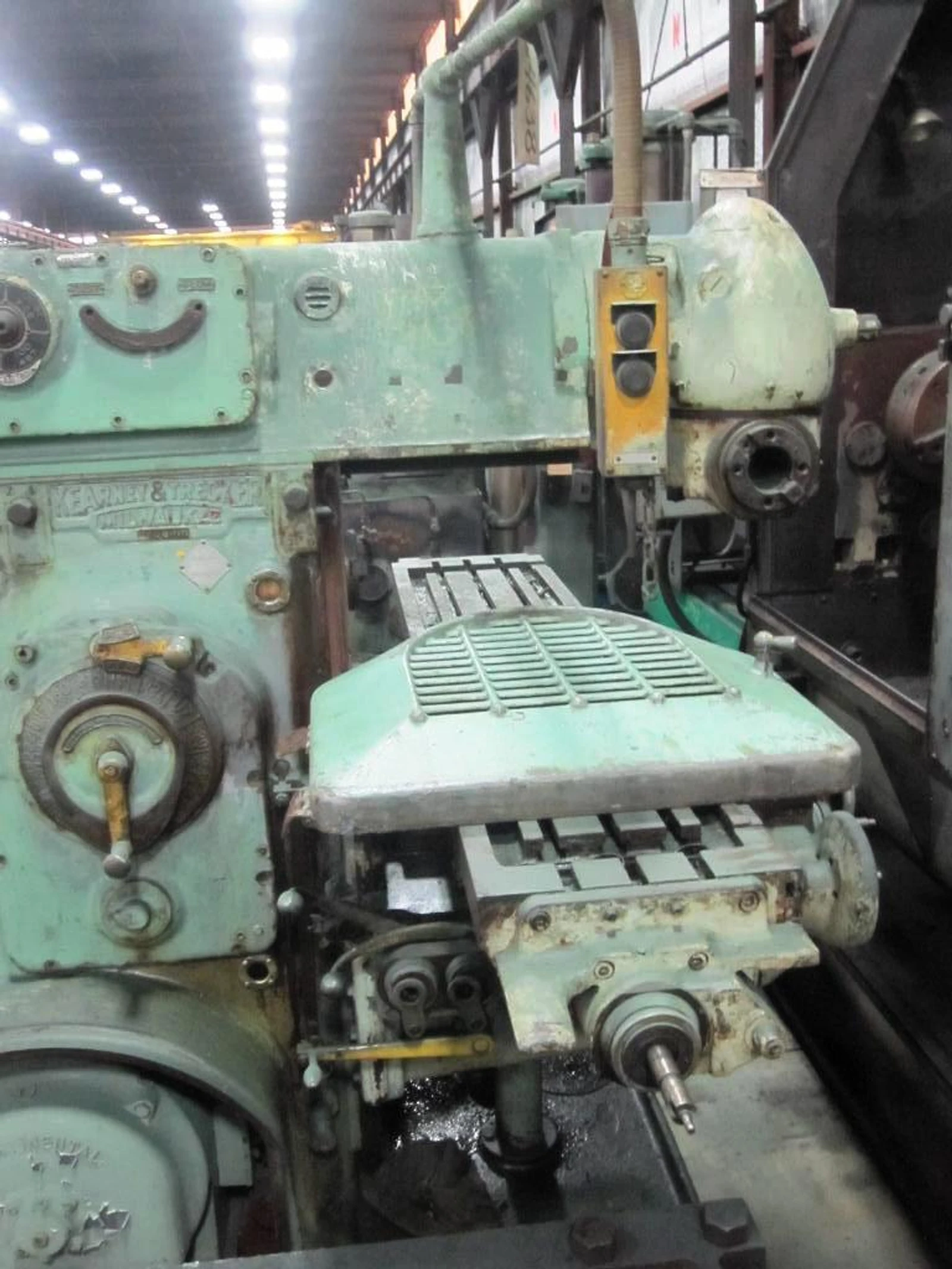

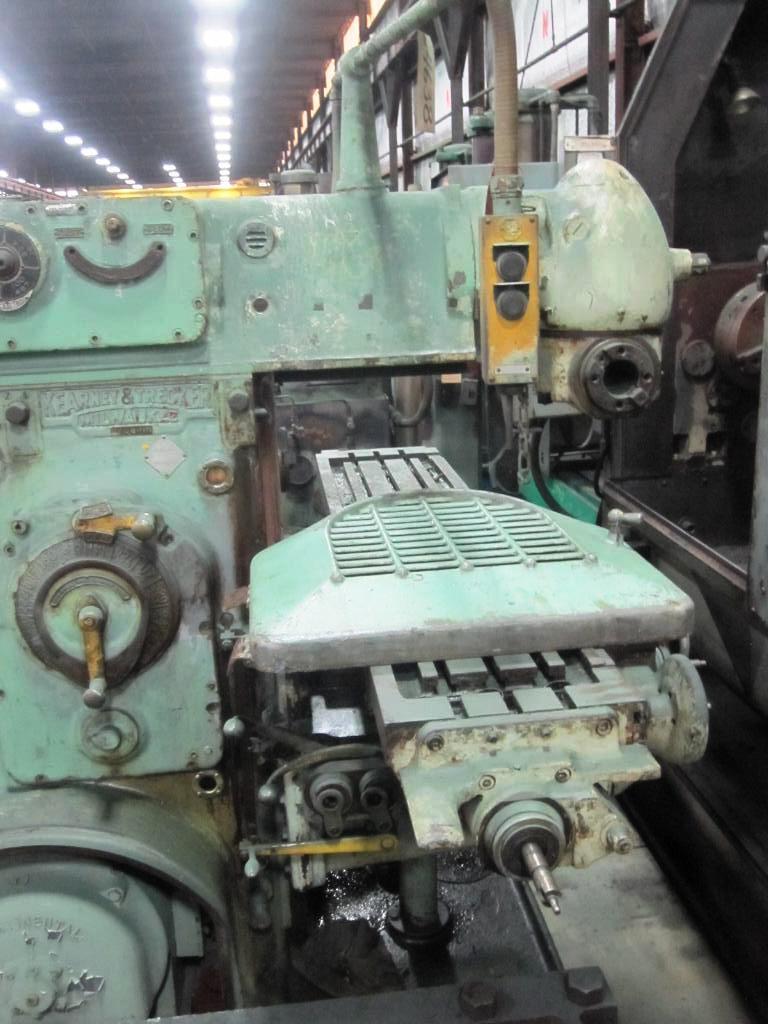

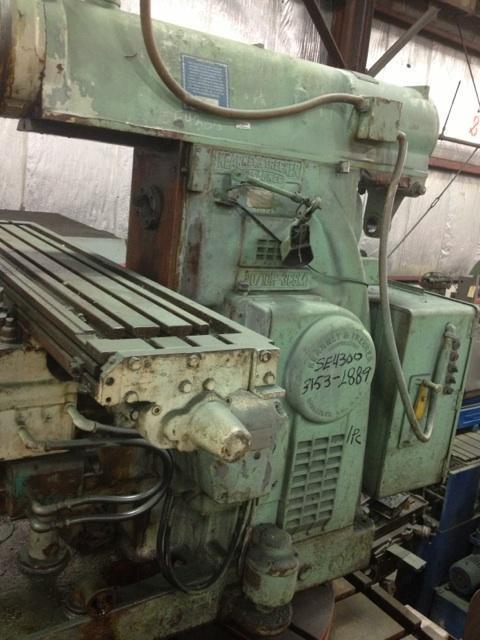

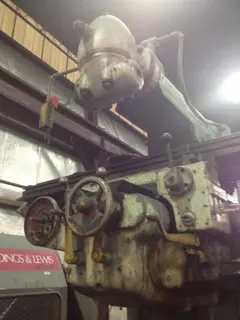

#3 KEARNEY & TRECKER HORIZONTAL MILL W/TOOLMAKER'S OVERARM: STK #4638
Brand
Not specified
Category
Model
3CSM
Stock #
4638
Year
Not specified
Condition
Not specified
Location
Ohio
|
SERIAL #6-7374 MODEL #3CSM WORKING SURFACE OF TABLE ................... 64" X 13-1/2" SPINDLE SPEEDS ............................. (16) 25 TO 1250 RPM VERTICAL SPINDLE SPEEDS .................... 100 TO 1600 RPM LONGITUDINAL AND CROSS FEEDS ............... (32) 3/8 TO 90 IPM VERTICAL FEEDS ............................. (32) 3/16 TO 45 IPM LONGITUDINAL TRAVEL ........................ 34" CROSS TABLE TRAVEL ......................... 12" VERTICAL KNEE TRAVEL ....................... 17" LONG AND CROSS POWER RAPID TRAVERSE ........ 150 IPM VERTICAL POWER RAPID TRAVERSE .............. 75 IPM EQUIPPED WITH INDEPENDENT OVERARM VERTICAL HEAD OVERARM SUPPORT 20 HORSEPOWER SPINDLE MOTOR |
