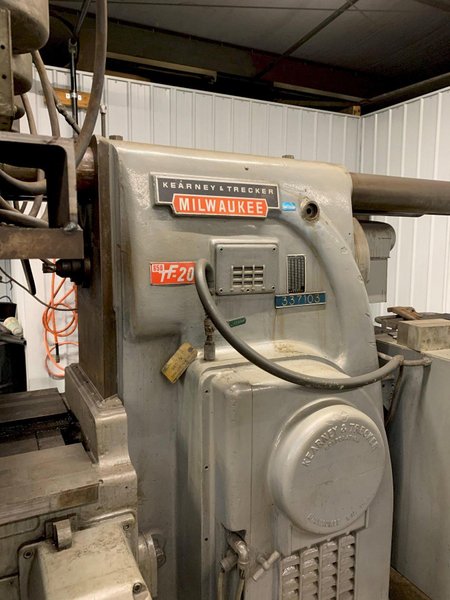

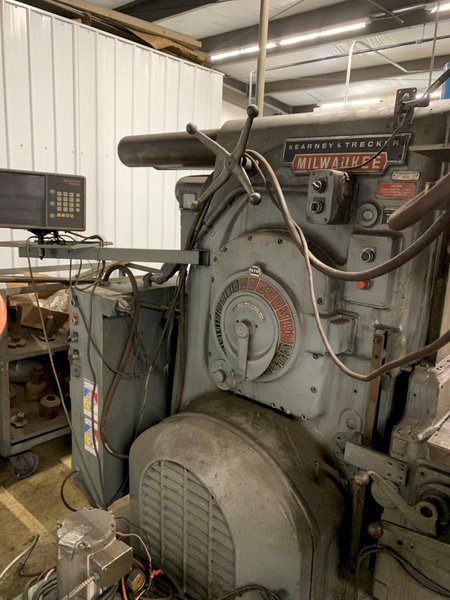

KEARNEY & TRECKER 650TF-20 HORIZONTAL MILLING MACHINE. STOCK # 0952220
Brand
Category
Model
650TF-20
Stock #
0952220
Year
Not specified
Condition
Excellent
Location
Ohio
|
MODEL ......................... 650TF-20
AREA OF TABLE ................. 108" X 25"
SPINDLE SPEEDS ................ (24) 54 TO 1300 RPM
LONGITUDINAL & CROSS FEEDS .... (32) 3/8 TO 90 IPM
VERTICAL HEAD ................. (32) 3/16 TO 45 IPM
VERTICAL KNEE FEEDS ........... (32) 1/8" TO 30 IPM
LONGITUDINAL TABLE TRAVEL ..... 50"
CROSS TABLE TRAVEL ............ 16"
VERTICAL TRAVEL OF KNEE ....... 18"
VERTICAL TRAVEL OF HEAD ....... 8"
DISTANCE SPINDLE TO TABLE ..... 0" MINIMUM TO 23" MAXIMUM
SPINDLE TAPER ................. #50NS
THROAT ........................ 21"
RAPID TRAVERSE ................ 150 IPM
POWER DRAWBAR ................. YES
COOLANT ....................... YES
MOTOR ......................... 50 HORSEPOWER
FEED MOTOR .................... 5 HORSEPOWER BRIDGEPORT HEADS WILL BE REMOVED FROM MACHINE. MACHINE IS COMPLETELY OPERATIONAL WITH DRO |
