Max Width of Workpiece | 48 inches |
Max Thickness of Workpiece | 0.078 inches |

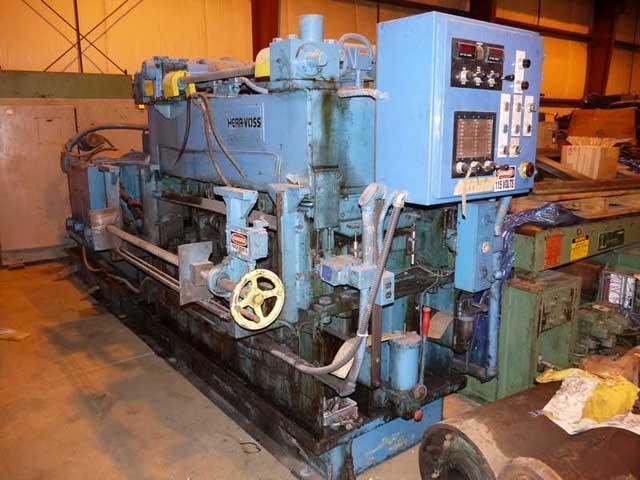

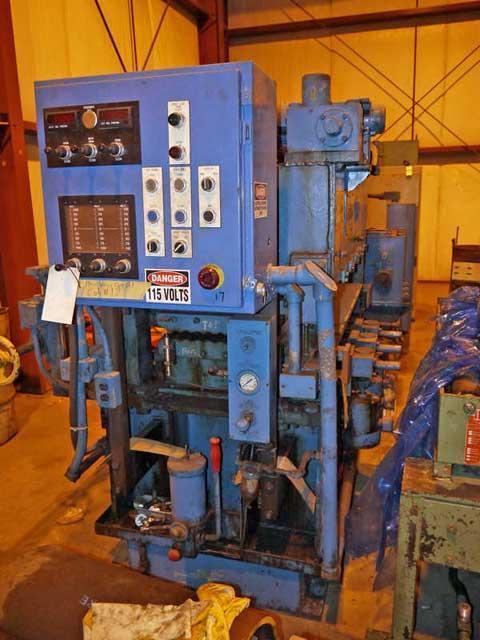

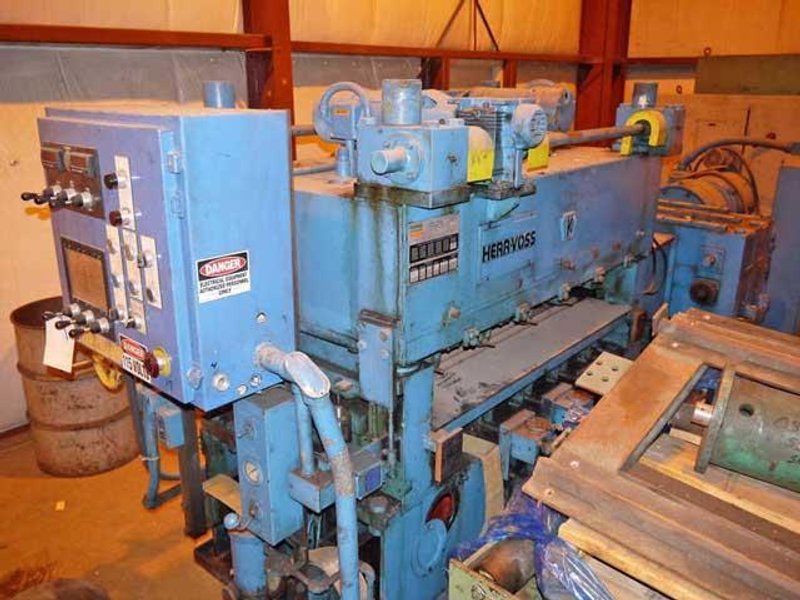

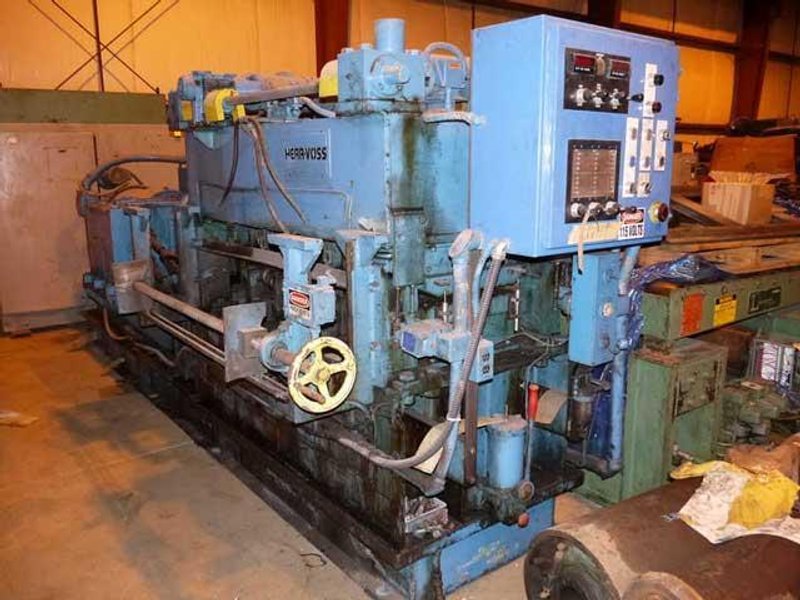

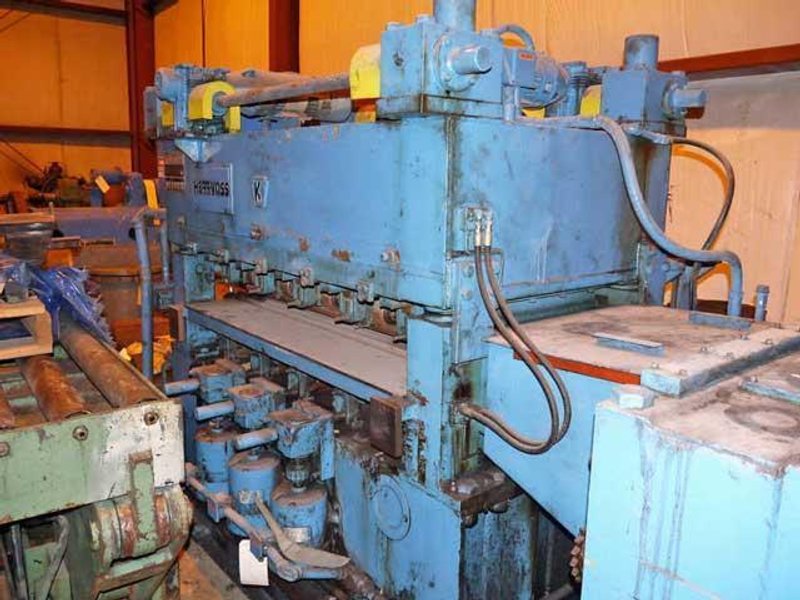

48" (1219mm) x .075" (2mm) HERR VOSS LEVELER (13779)
MACHINE #13779
SPECIFICATIONS:
Manufacturer: Herr Voss

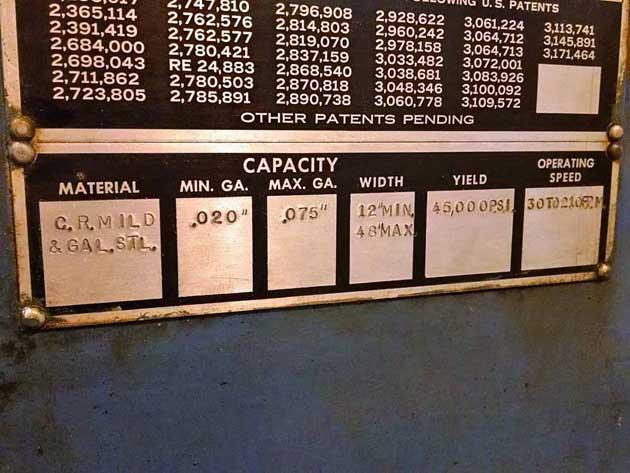

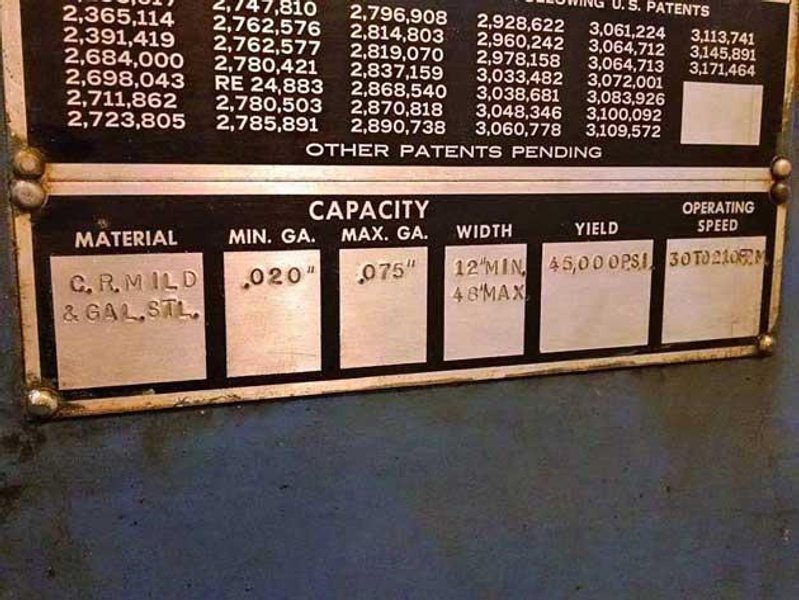

Capacity: 48" x 0.020" - 0.075"
Material: 45,000 psi Yield Strength

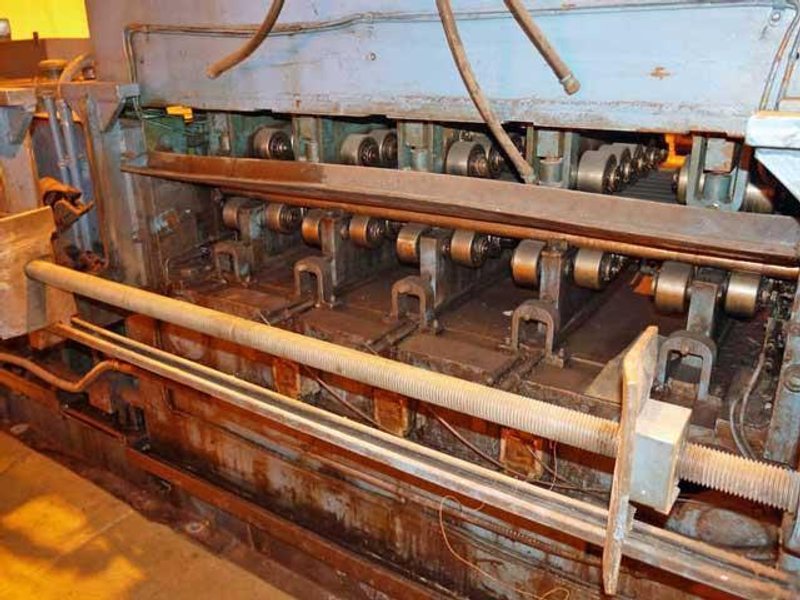

17 Rolls
1.5" Dia. x 54" Face Rolls
5 Flights of Backups
3 Flights motorized
Line Speed: 30 - 210 FPM

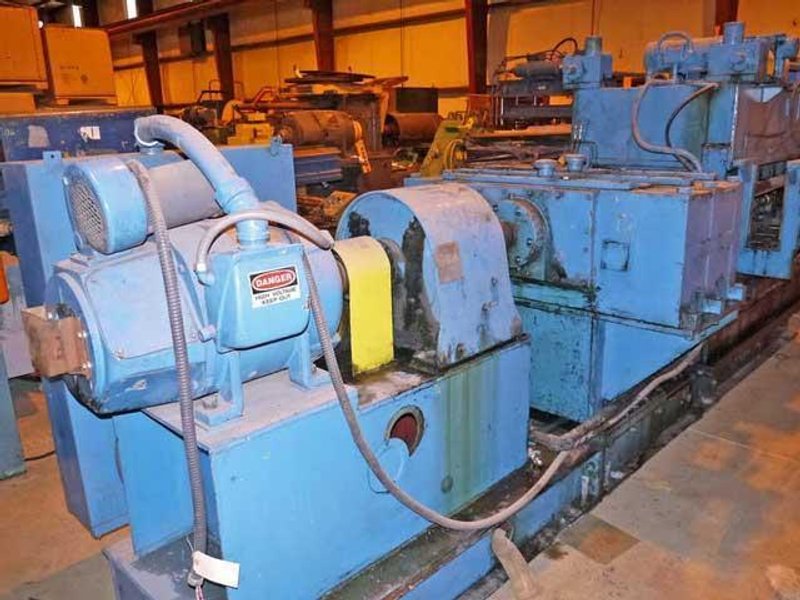

Drive Motor: 40 HP Westinghouse DC, 1750/1950 RPM, 240 V with blower
Falk Reducer with 3.339:1 Ratio
Passline Height: 42"
Overall Size: 207" L x 66" W x 78" High x 18,000 Lbs.
Line Direction: Left to Right
** CATALOG SPECIFICATIONS NOT VERIFIED BY SELLER **
** TEMPORARY SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **
** SPECIFICATIONS SUBJECT TO REVISIONS **
** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
