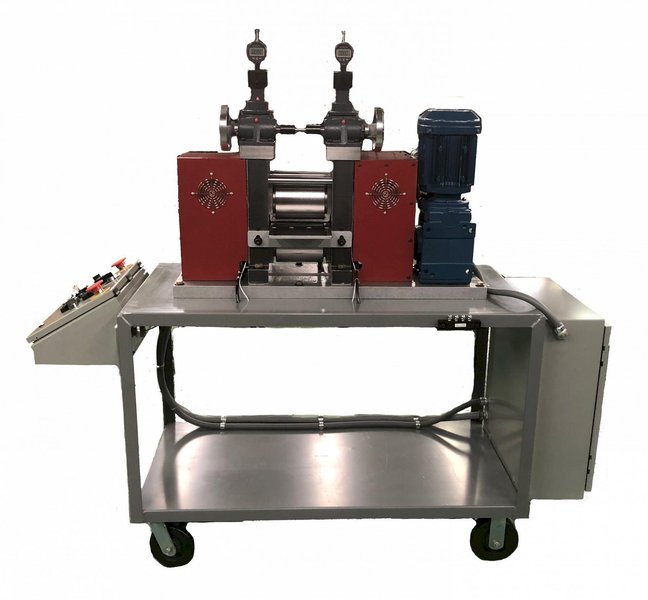

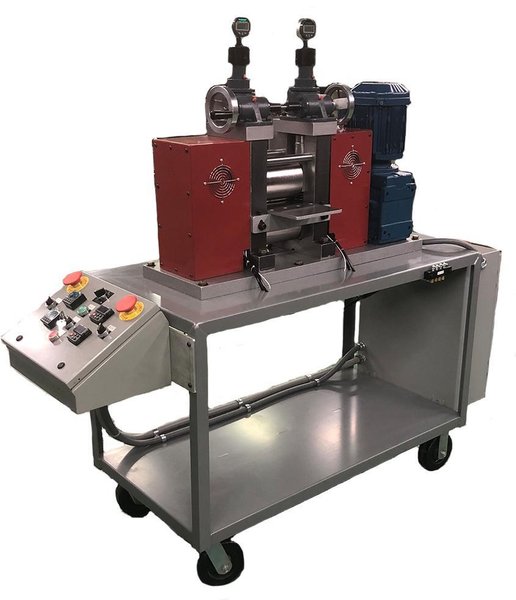

New IRM Model #5060 5" X 6" 2Hi Hot Lab Rolling Mill
Brand
Category
Type
Model
5060H
Stock #
3
Year
Not specified
Condition
New
Location
Rhode Island
| ROLL DIAMETER | 5.000 inches |
| ROLL WIDTH | 6.000 inches |
| ROLL MATERIAL | D2 |
| ROLL HARDNESS | APPROXIMATELY 60 - 62 ROCKWELL C |
| ROLL FINISH | SATIN 2RA |
| ROLL ADJUSTMENT | ROLL GAP IS ADJUSTABLE SIMULTANEOUSLY OR INDEPENDENTLY. DIGITAL INDICATORS WILL BE INSTALLED TO READ ROLL GAP IN THOUSANDTHS OF AN INCH OR MM. |
| MILL SEPARATING FORCE | APPROXIMATELY 40,000 LBS |
| MILL POWER | 2HP AC GEARMOTOR |
| MILL VOLTAGE | 220V |
| MILL PHASE | THREE PHASE |
| MILL SPEED | 0 - 17 RPM |
| MILL CONTROLLER | VARIABLE SPEED AC INVERTER |

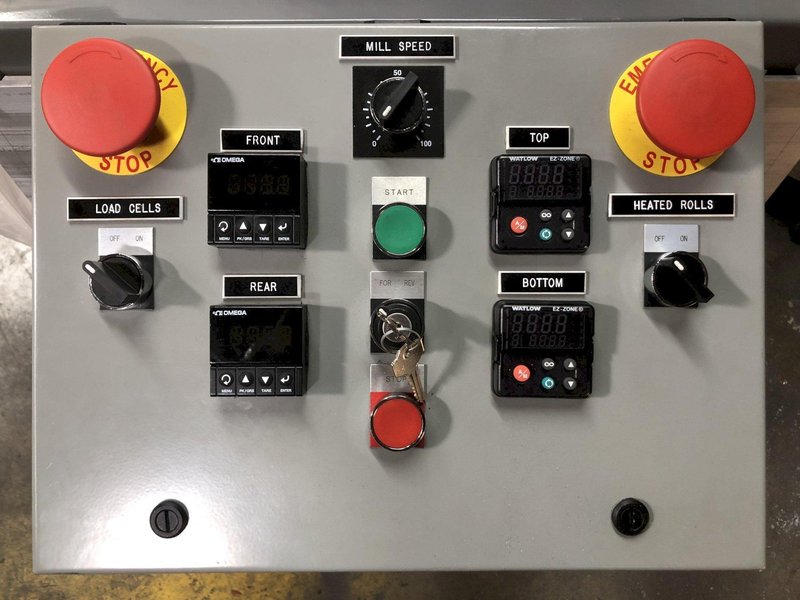

| MILL OPERATOR CONTROLS | WILL BE CENTRALLY LOCATED |
| MILL FUNCTIONS | START, STOP, FORWARD, REVERSE, E-STOPS, AND SPEED POT |
| MILL TABLES | WILL BE INSTALLED ON THE ENTRY AND EXIT OF THE MILL |
| MILL GUARDING | ALL MOVING PARTS WILL BE GUARDED |
| MILL DIMENSIONS | APPROXIMATELY 66" L X 24" W X 60" H |
| MILL WEIGHT | APPROXIMATELY 1,000 LBS |
|
HEATED ROLL PACKAGE:
MAX ROLL TEMPERATURE 450°F. EACH ROLL WILL BE BORED TO ACCEPT CARTRIDGE HEATERS. EACH ROLL WILL BE CONTROLLED BY A DIGITAL HEAT CONTROLLER LOCATED IN CENTRAL OPERATING STATION WITH J TYPE THERMOCOUPLES INSTALLED. LOAD CELL PACKAGE:
20,000 LBS LOAD CELLS WILL BE INSTALLED INTO EACH HEAD. TWO DIGITAL READOUT METERS WILL BE LOCATED IN A CENTRAL OPERATING STATION. |
|
