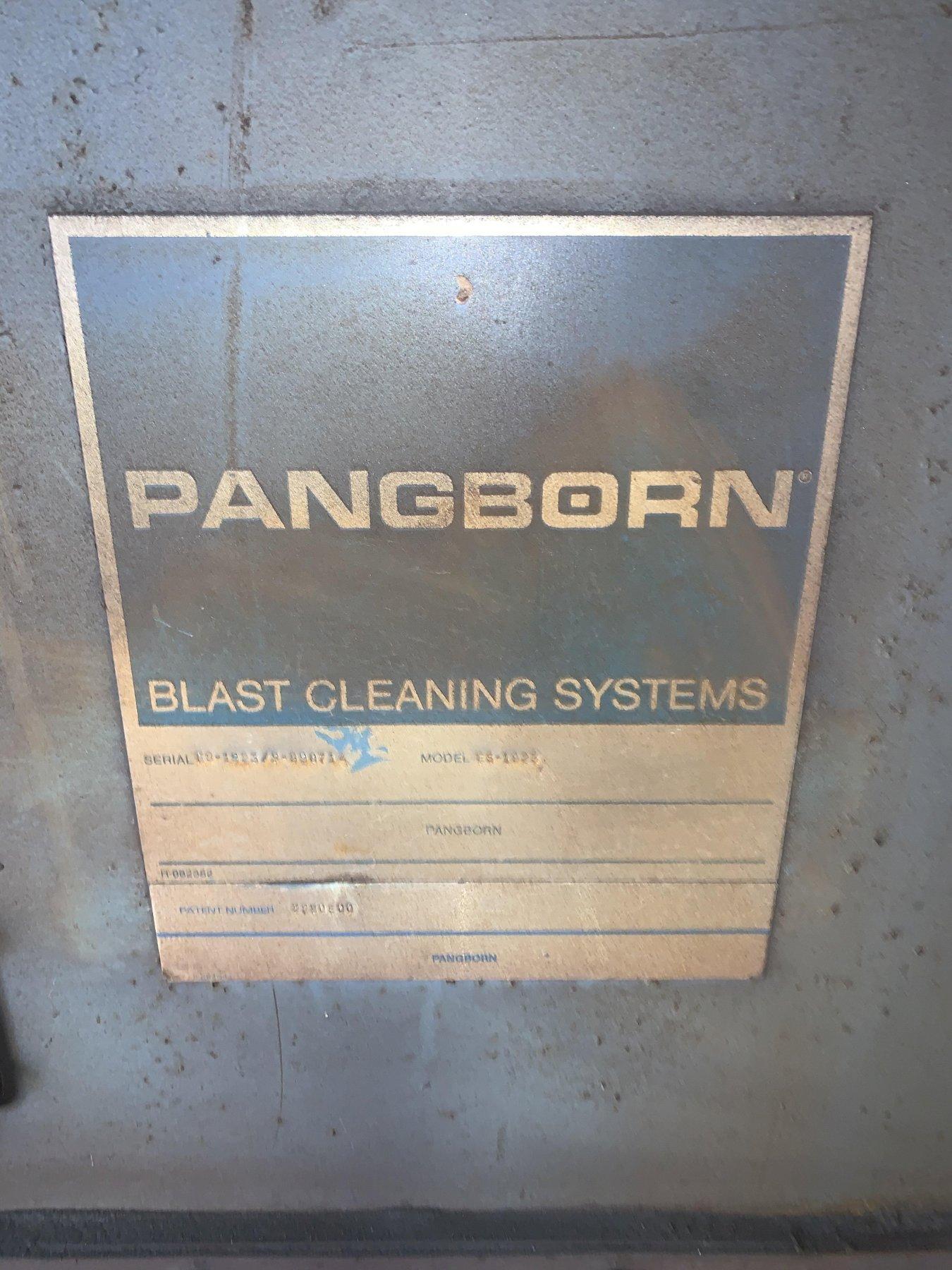

162" WIDE X 6 WHEEL PANGBORN SHOT ROTOBLAST MODEL #ES-1923 TOP & BOTTOM PLATE BLAST CLEANING SYSTEM: STOCK #13319
Brand
Type
Model
Not specified
Stock #
13319
Year
Not specified
Condition
Good
Location
Ohio
|

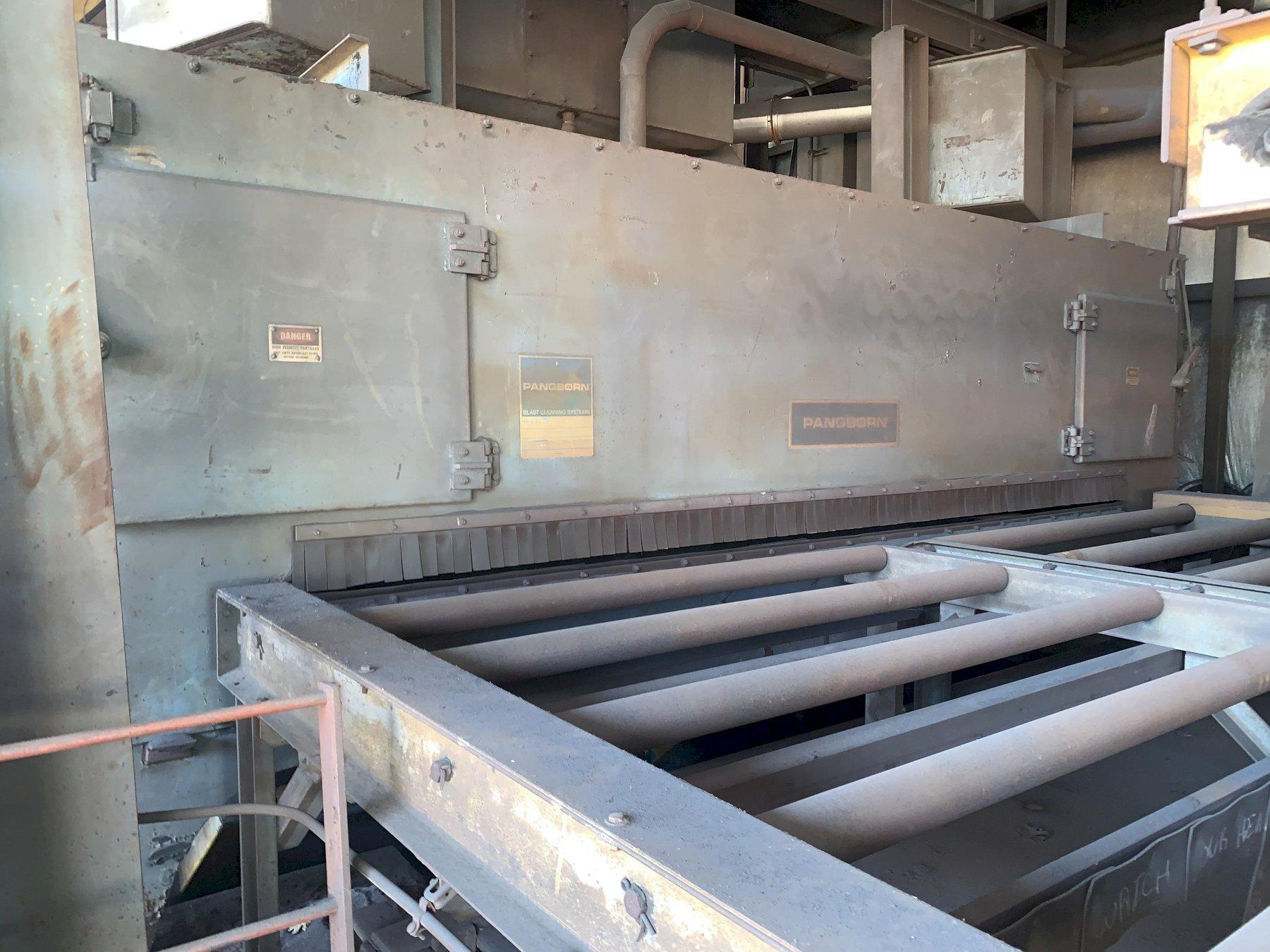

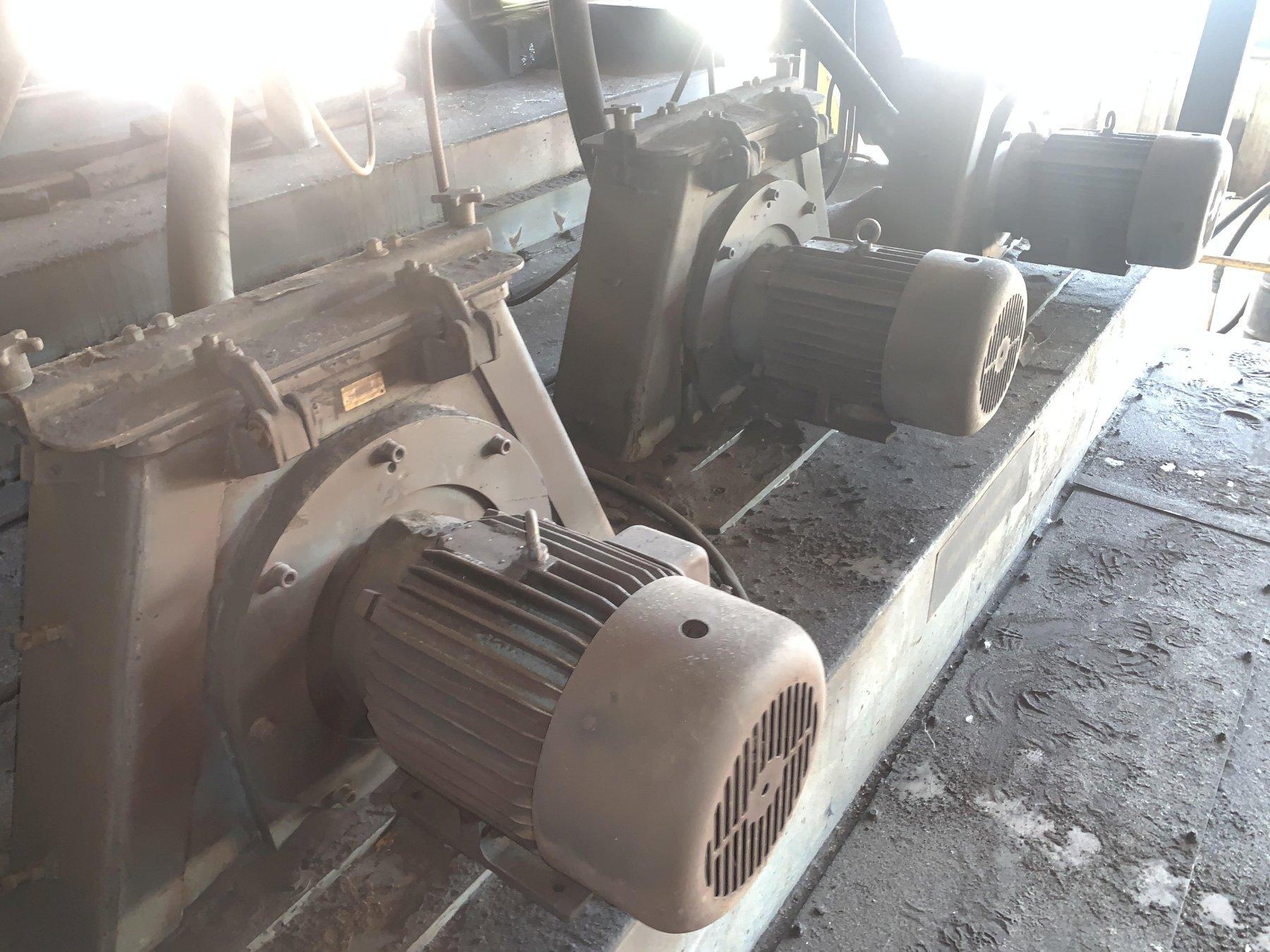

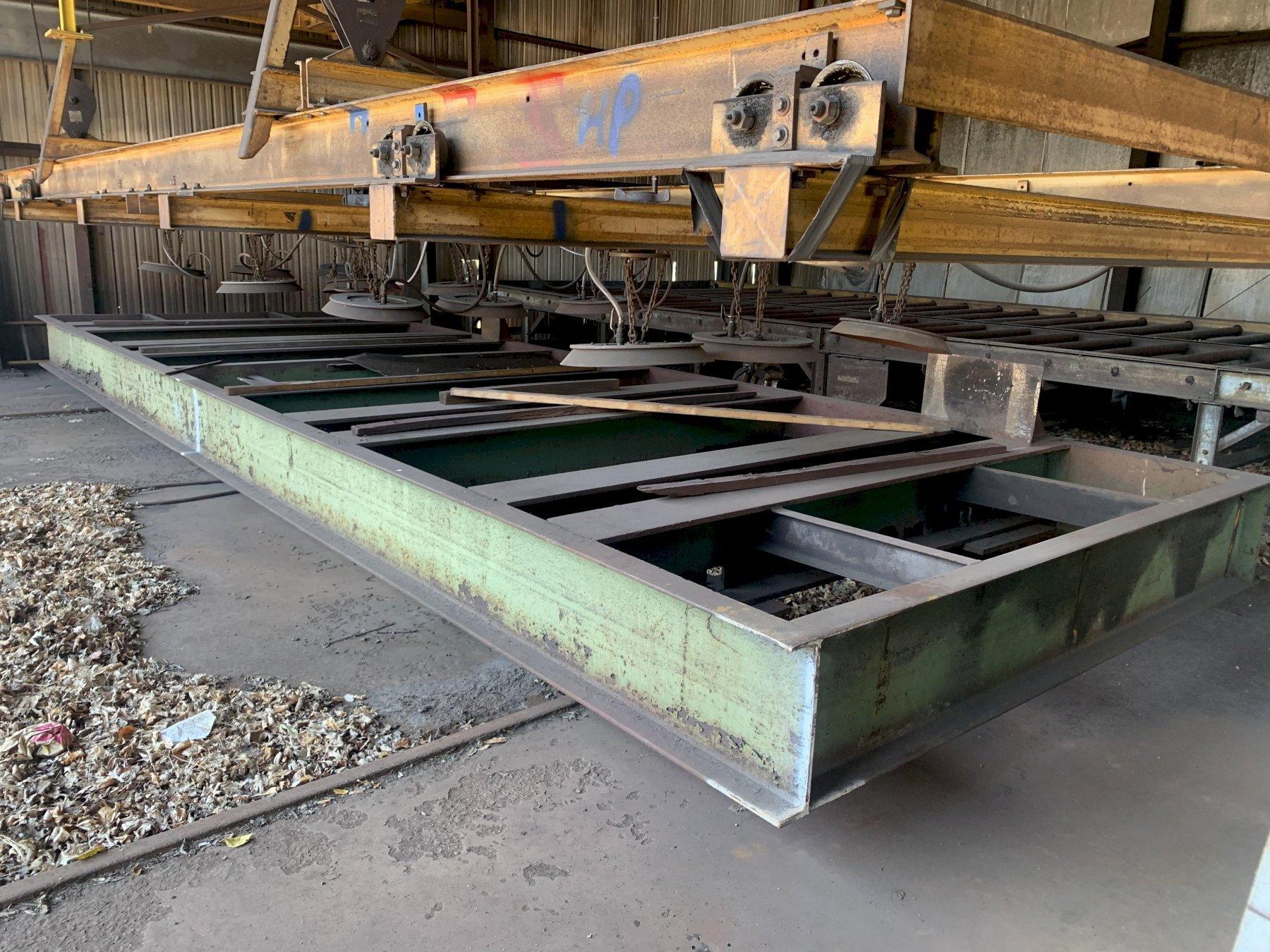

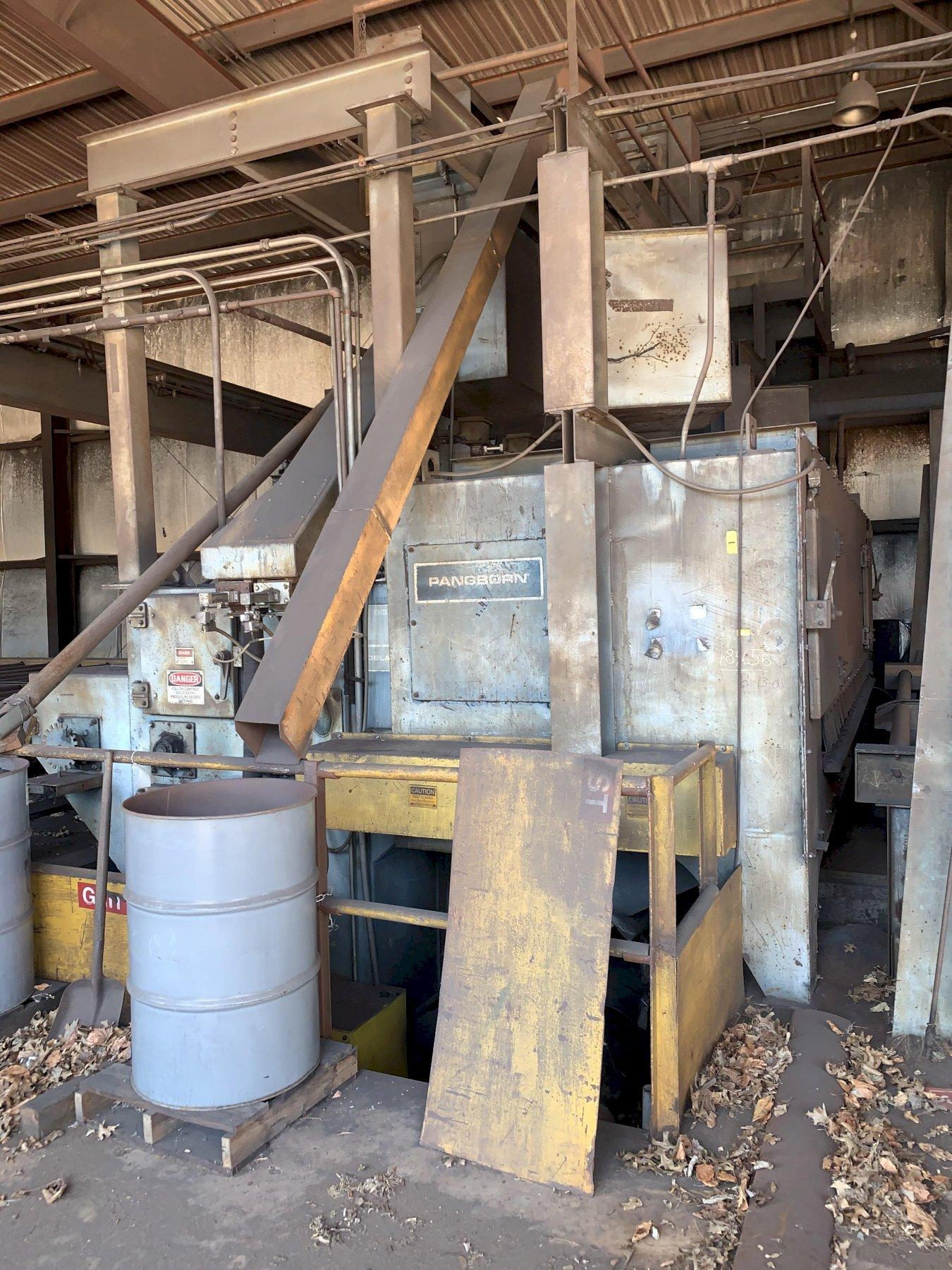

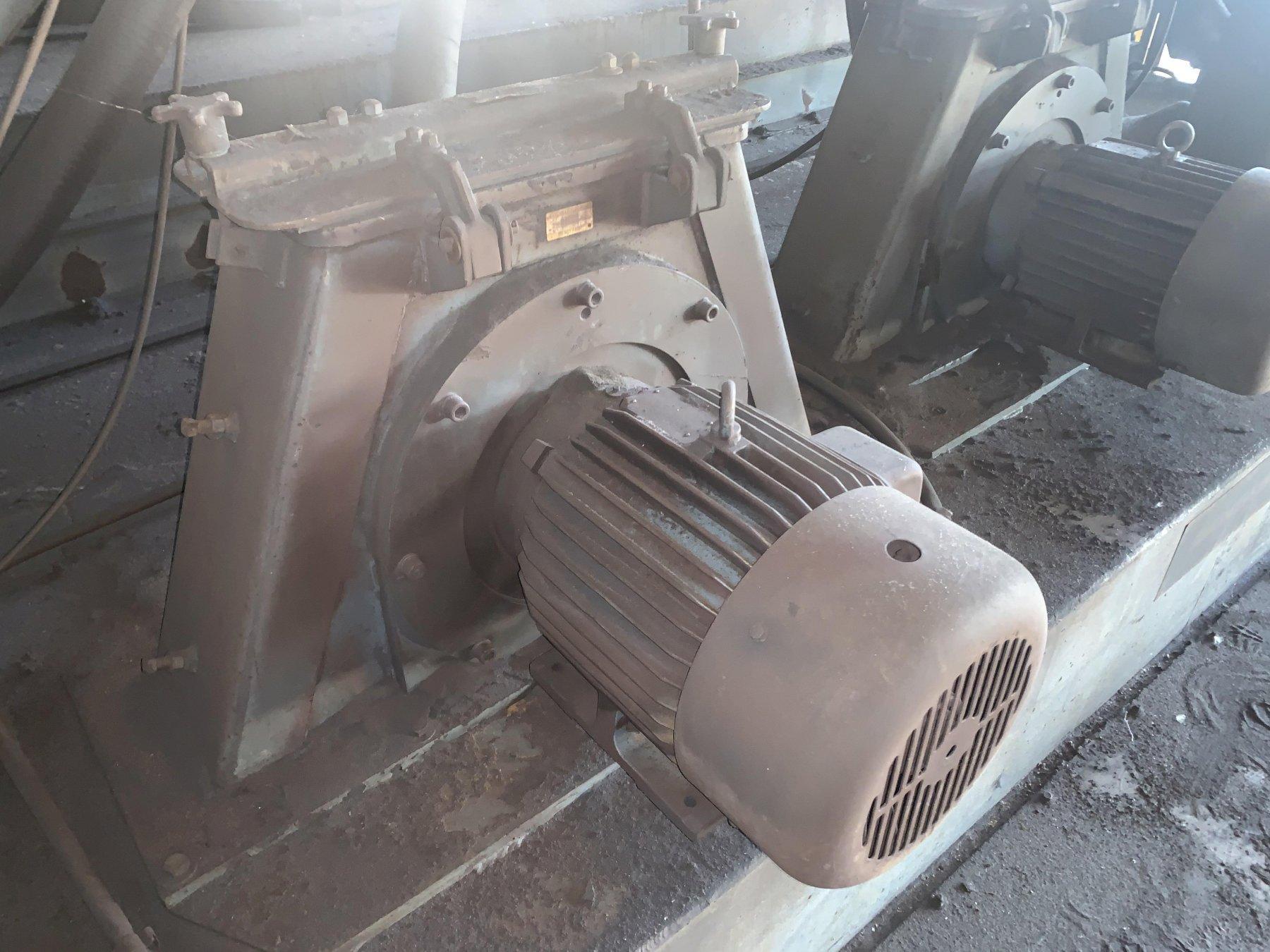

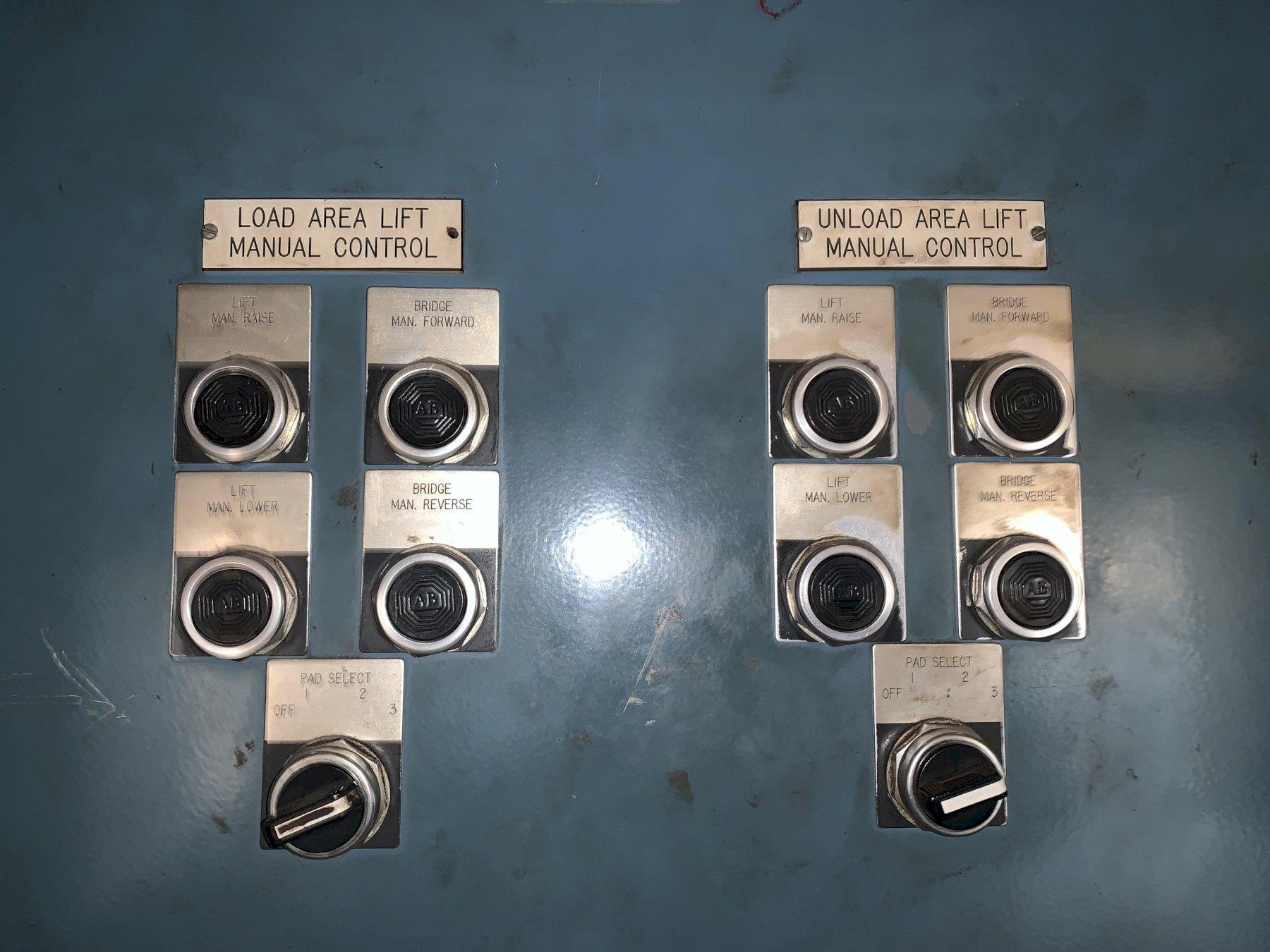

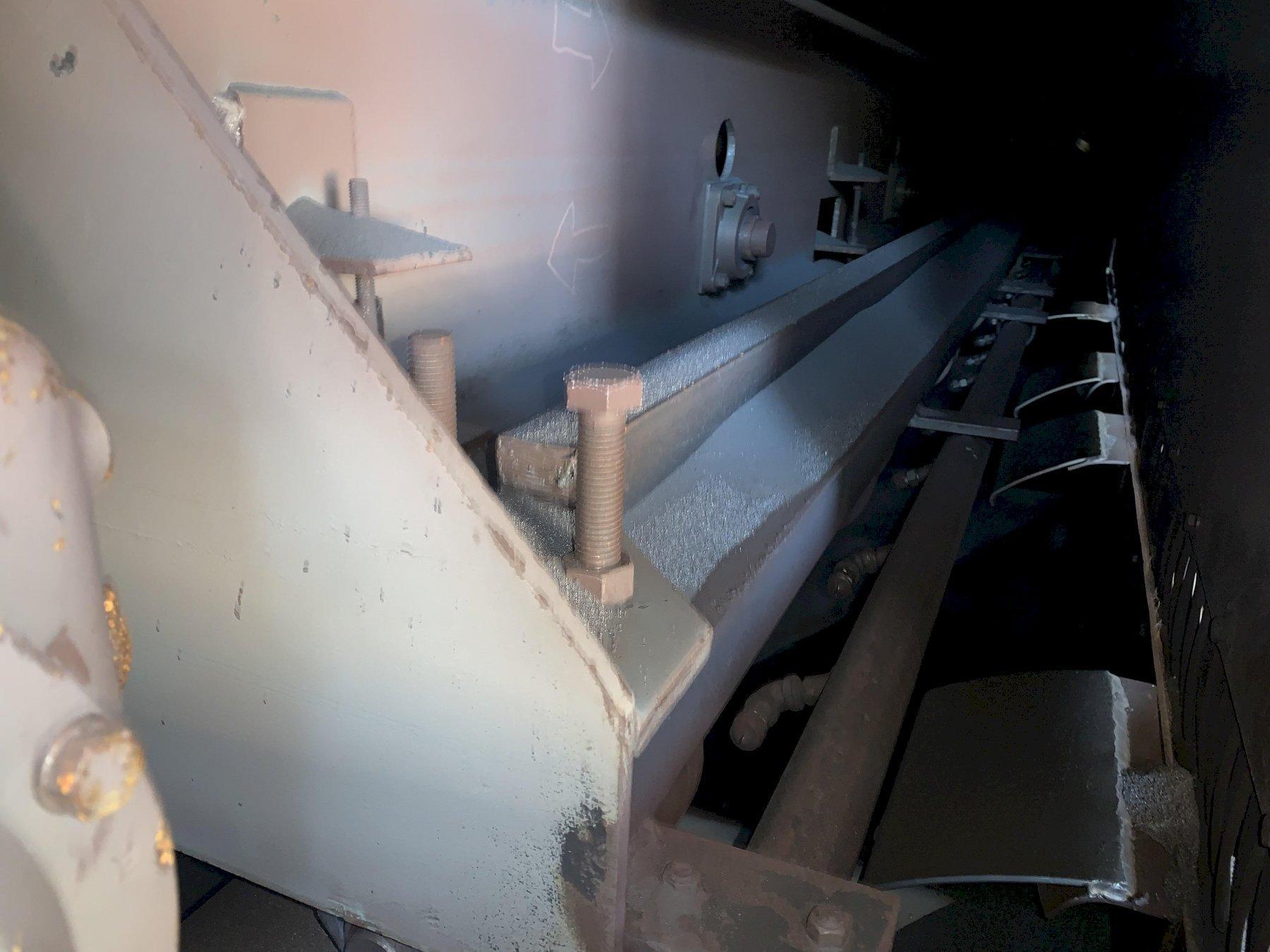

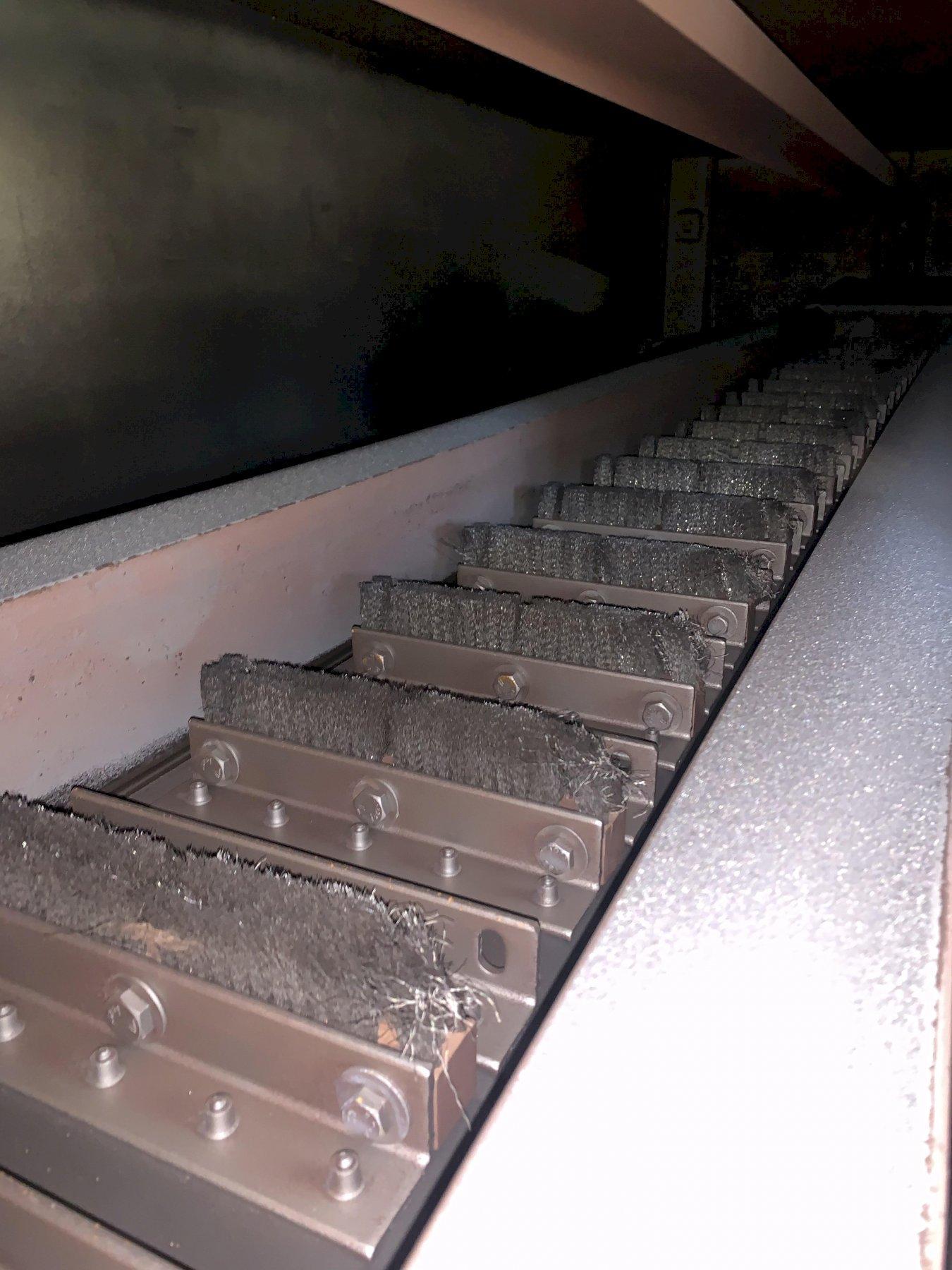

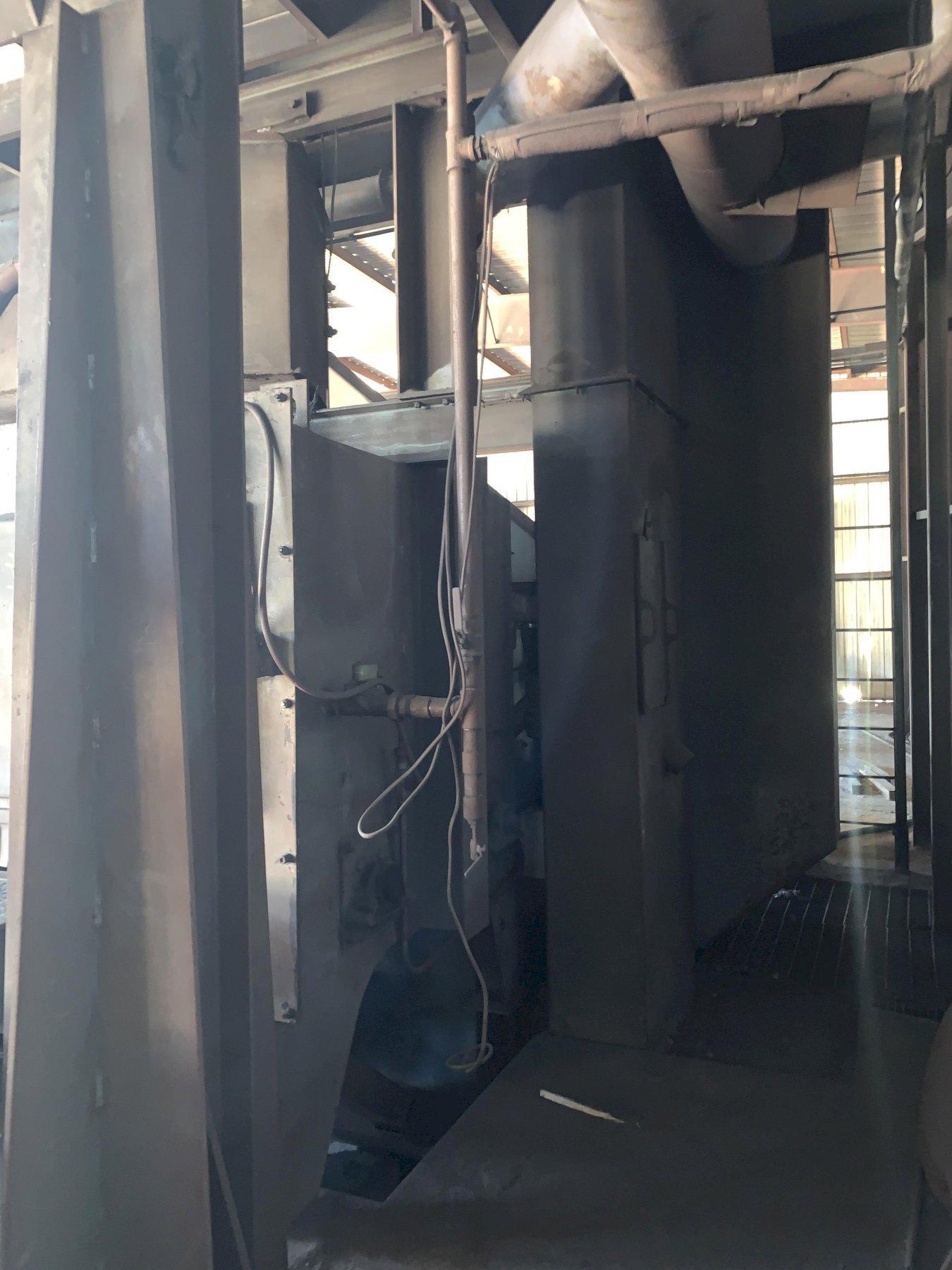

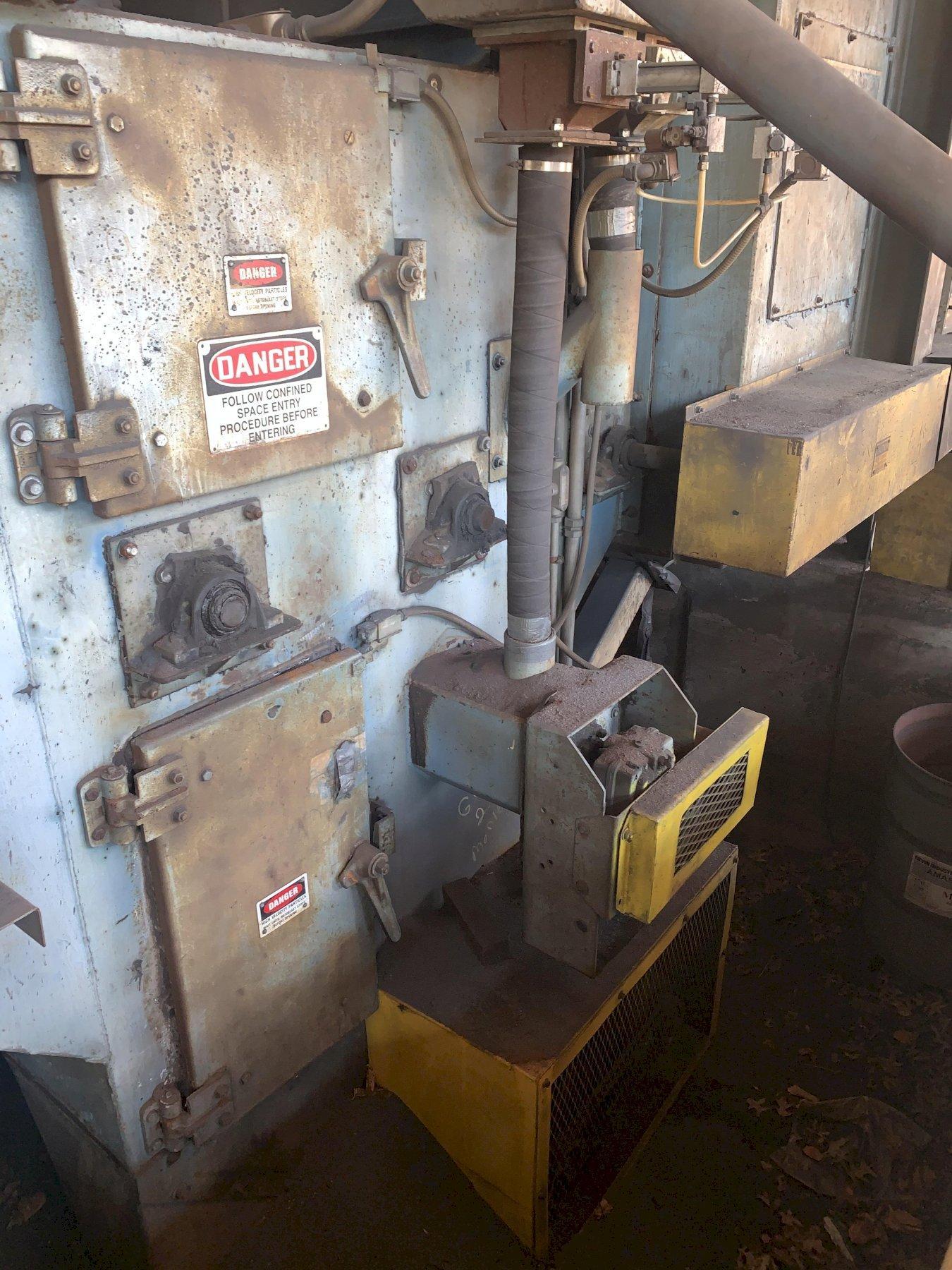

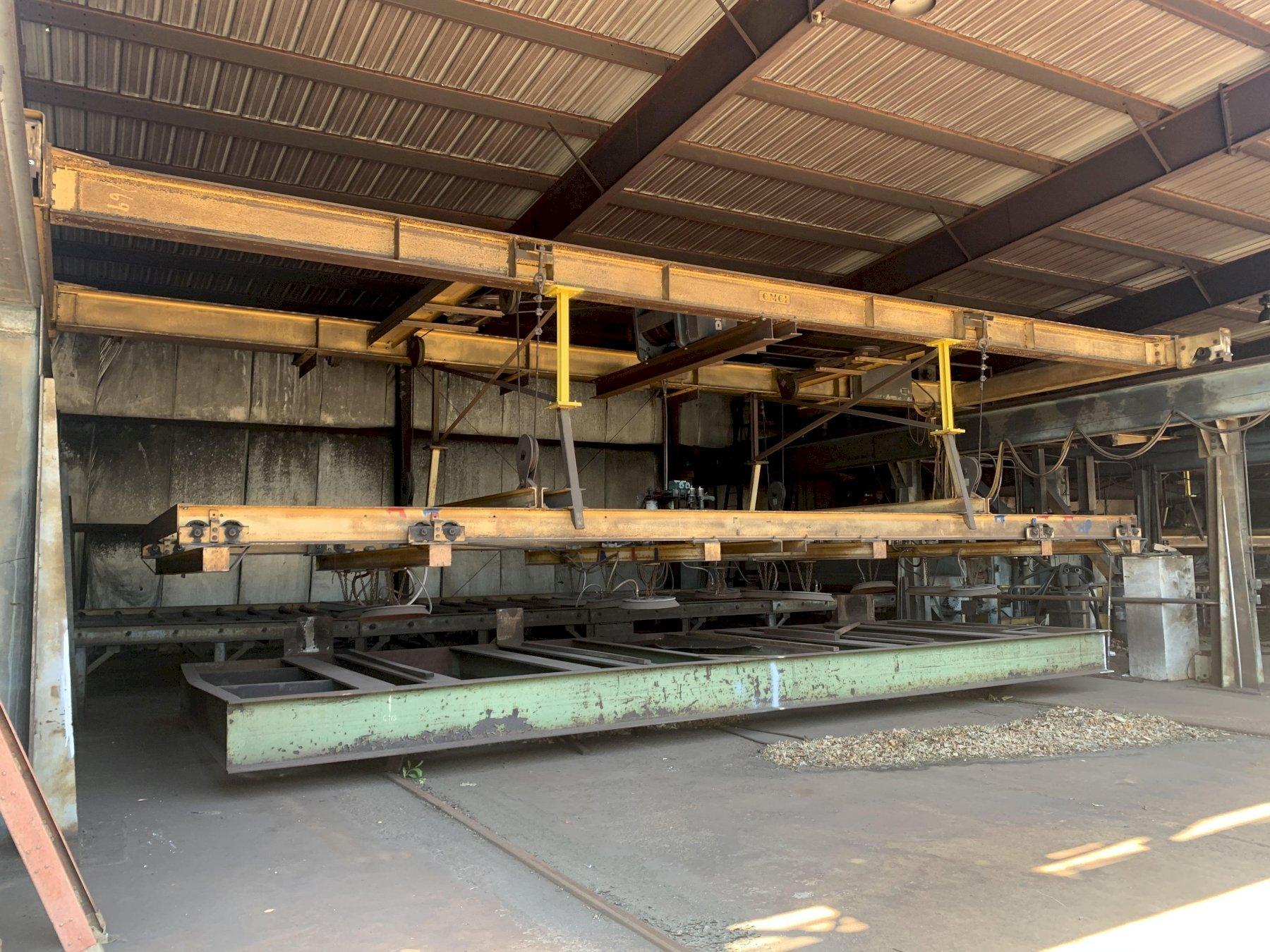

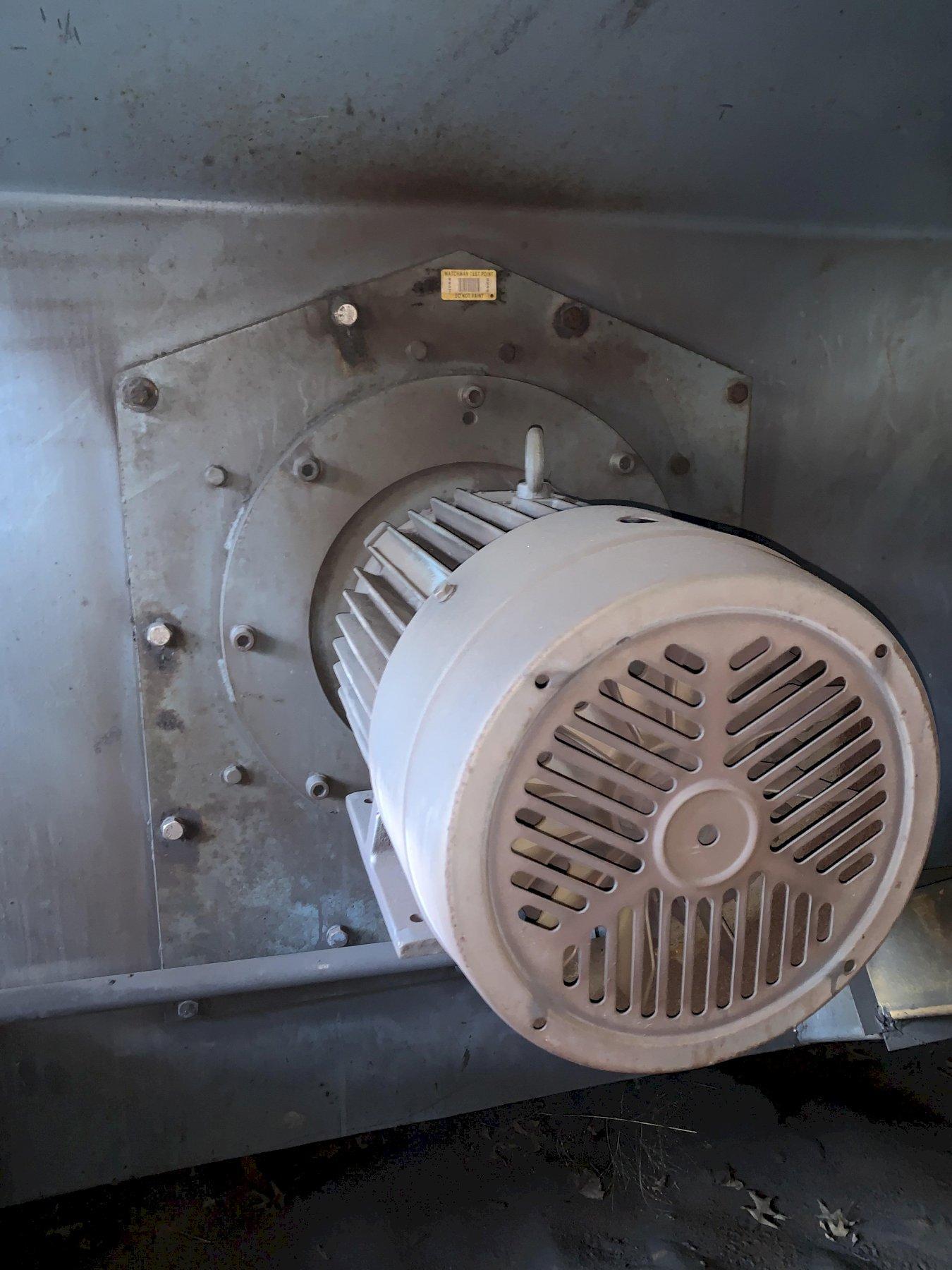

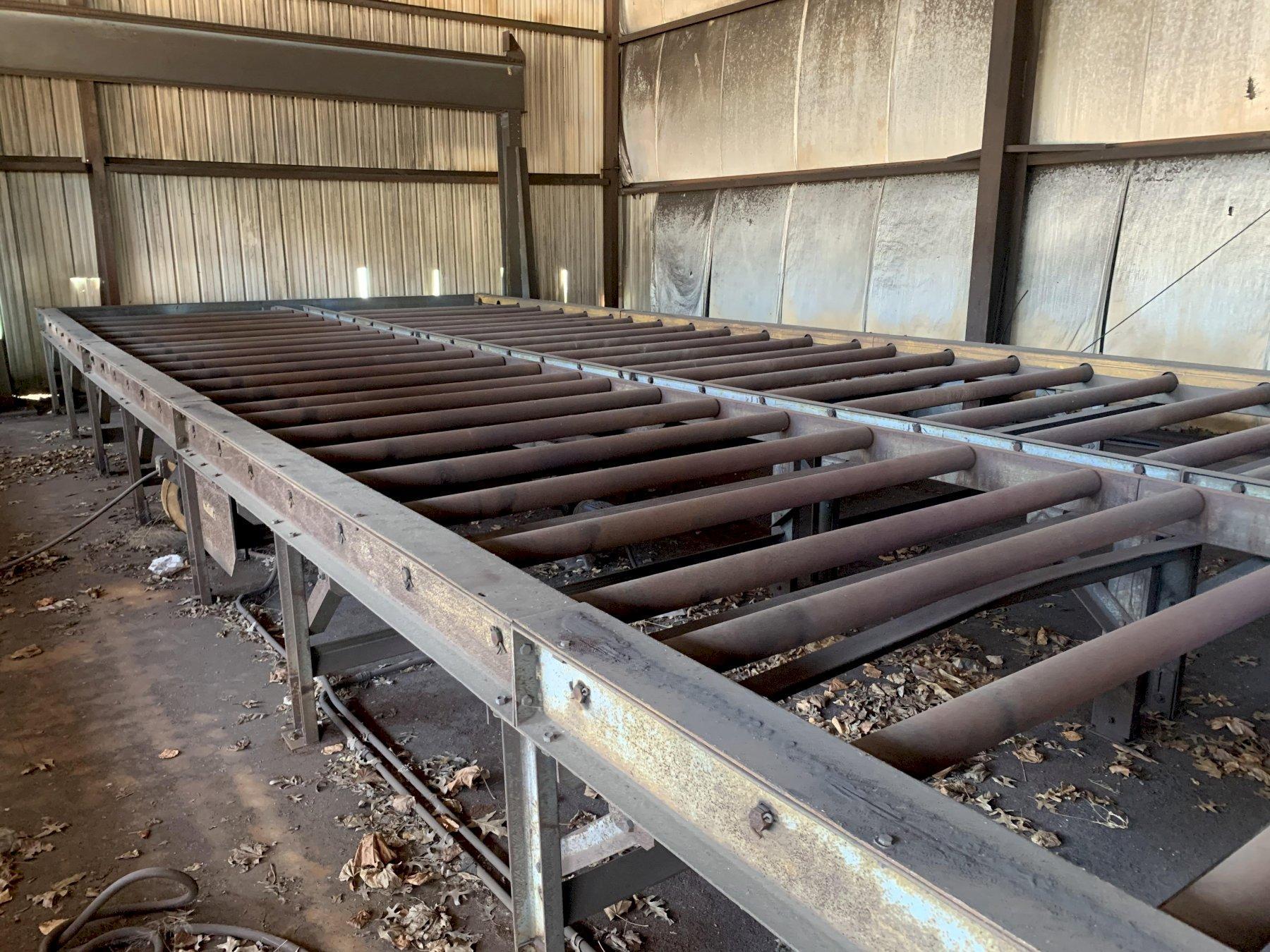

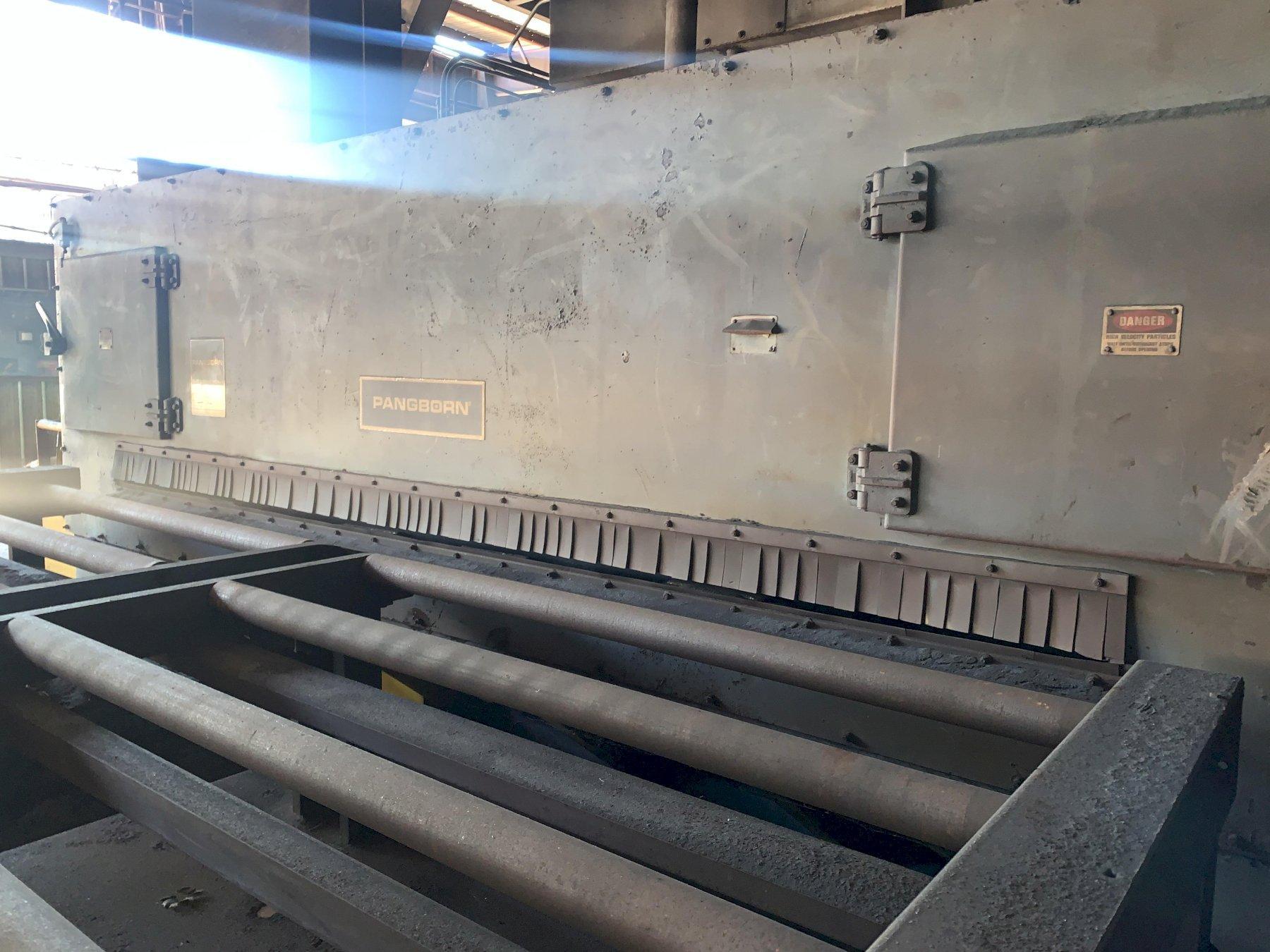

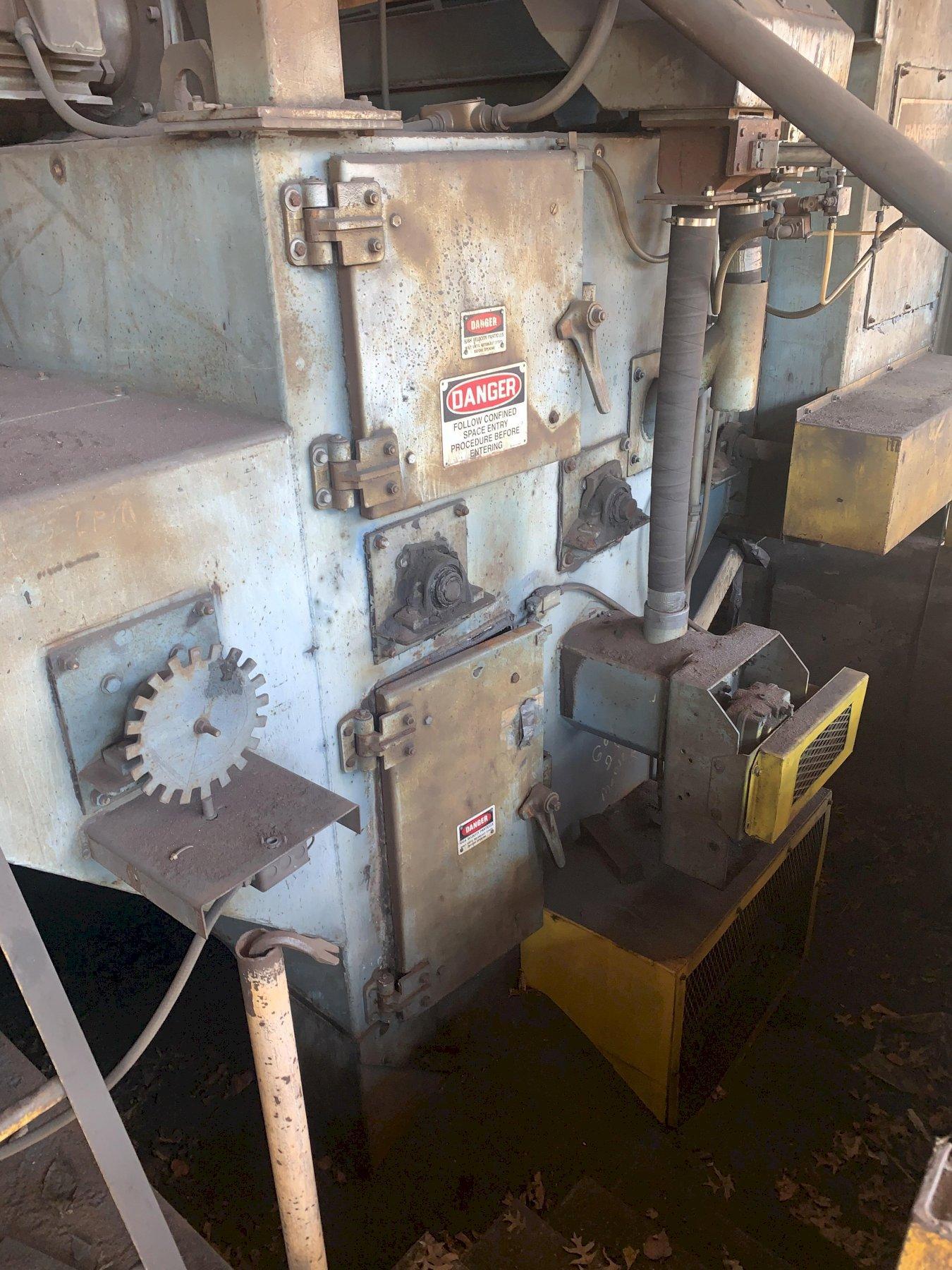

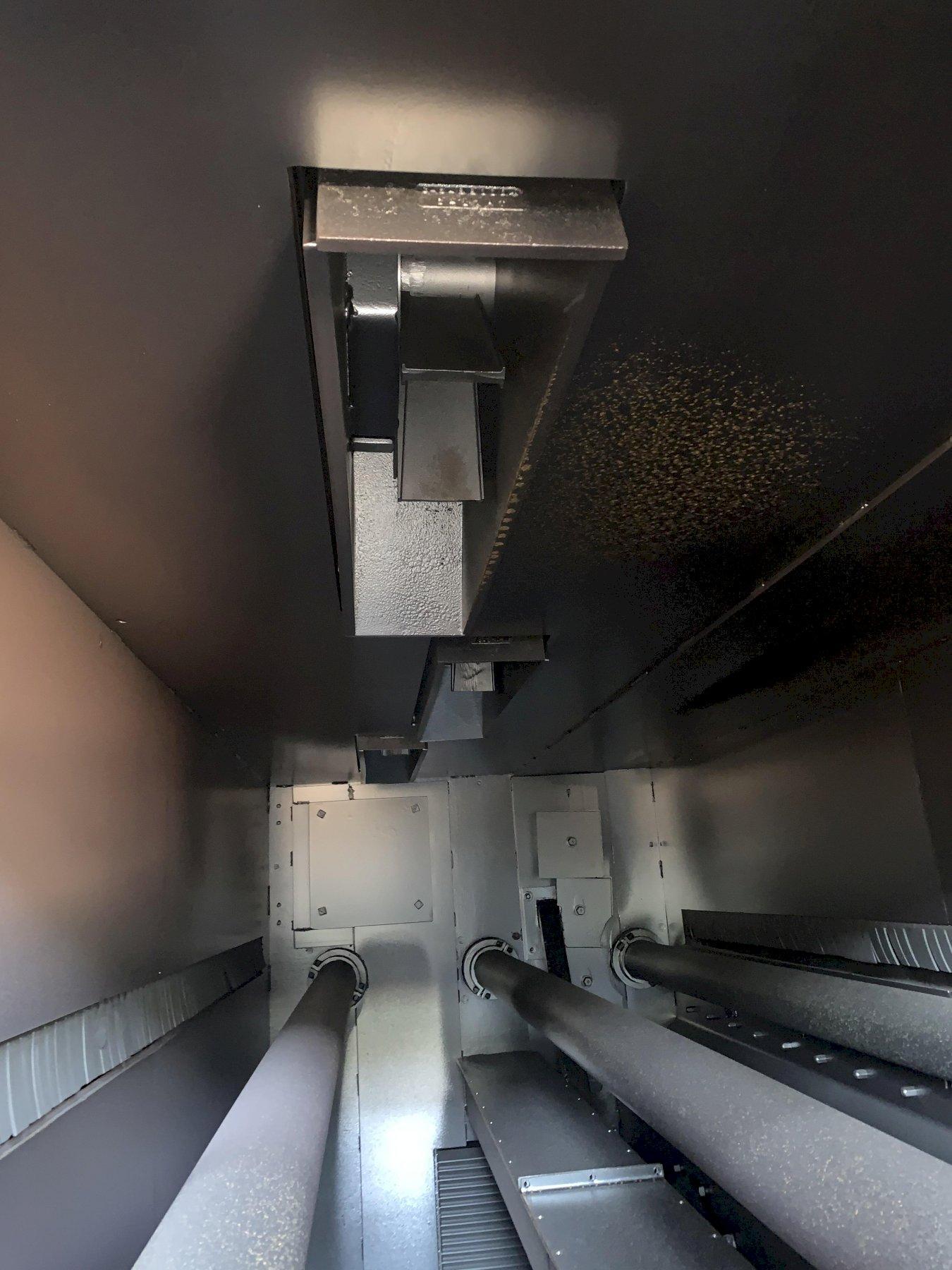

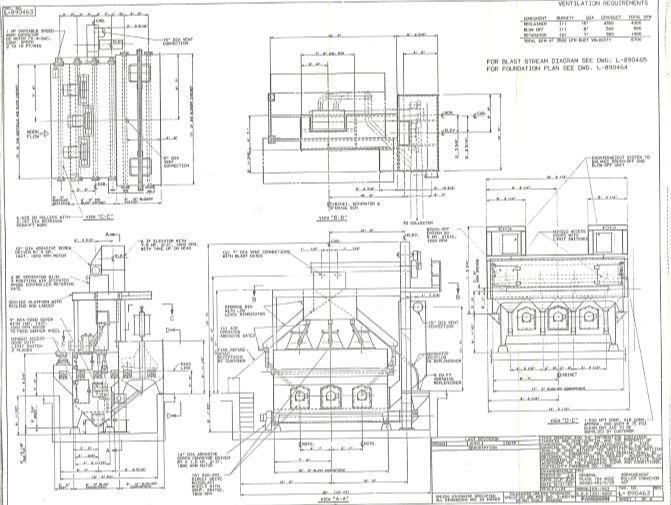

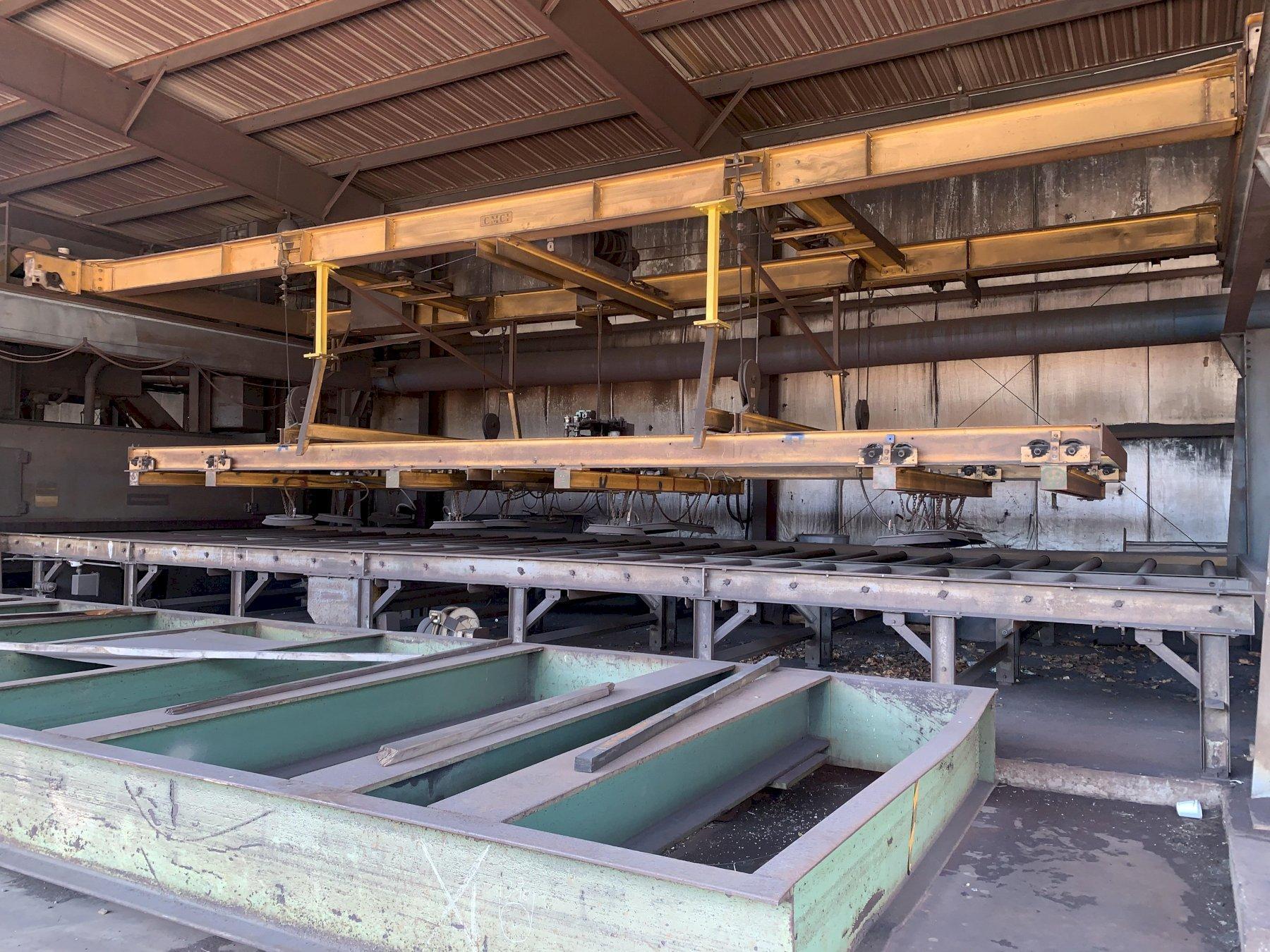

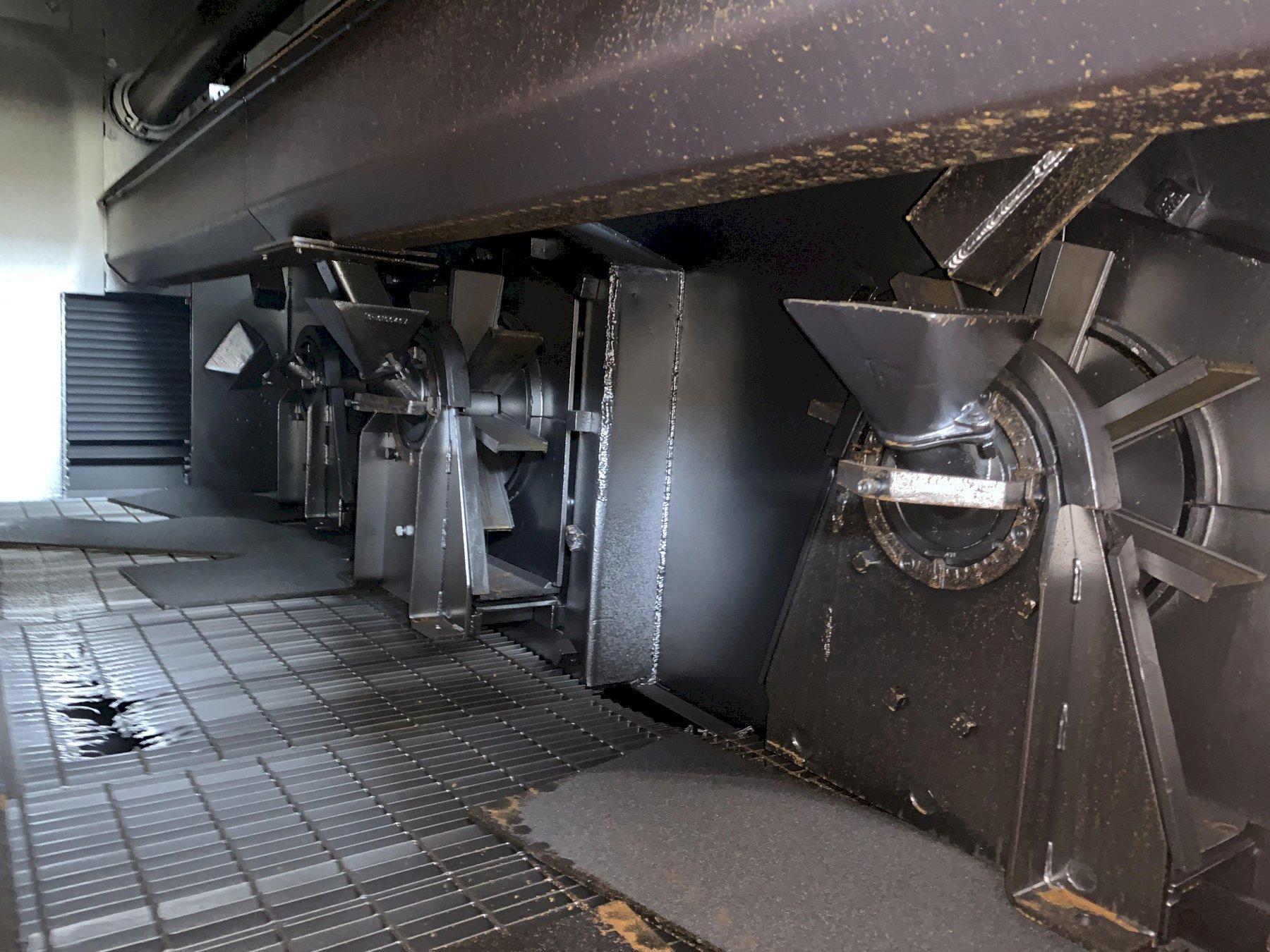

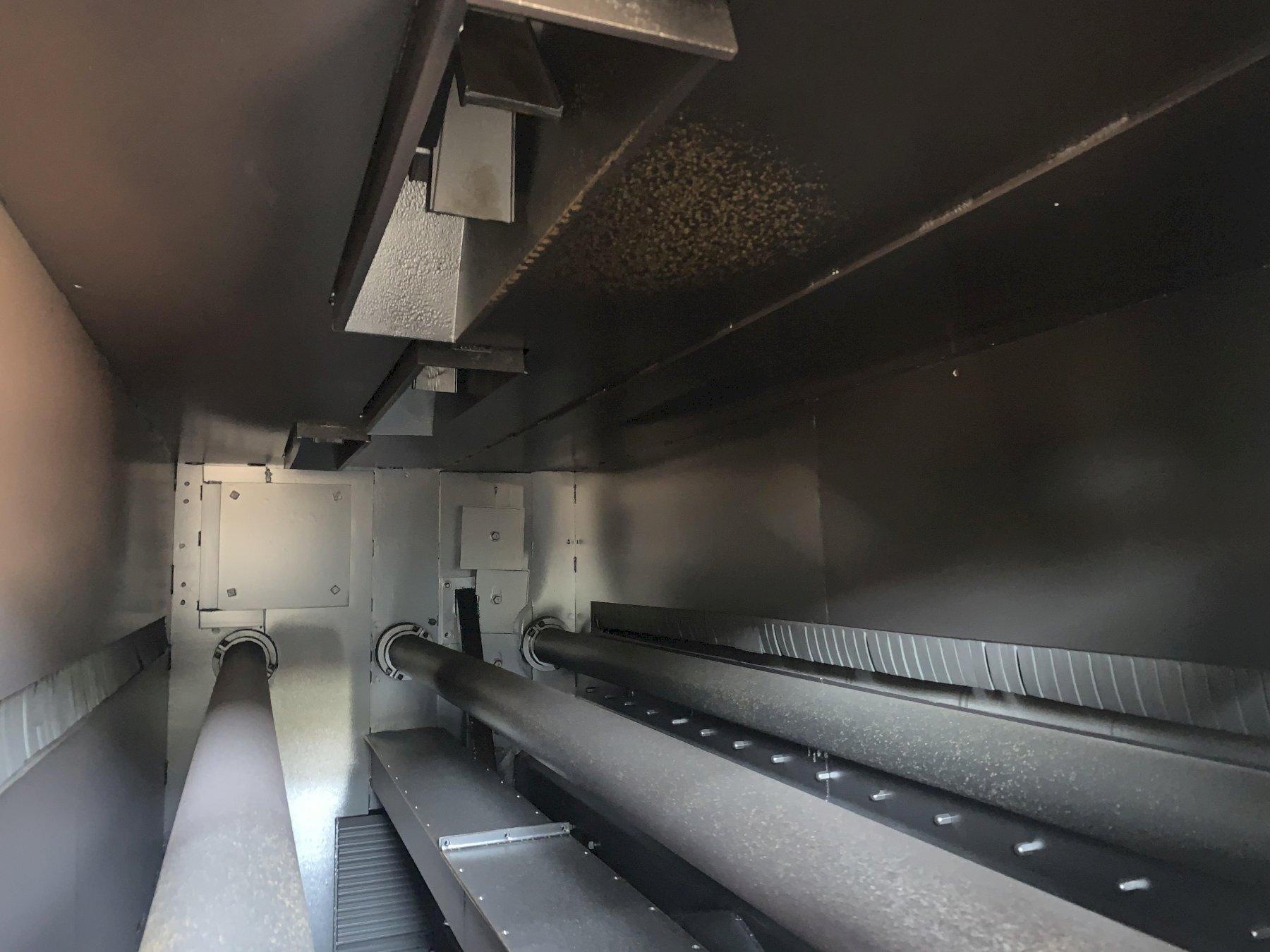

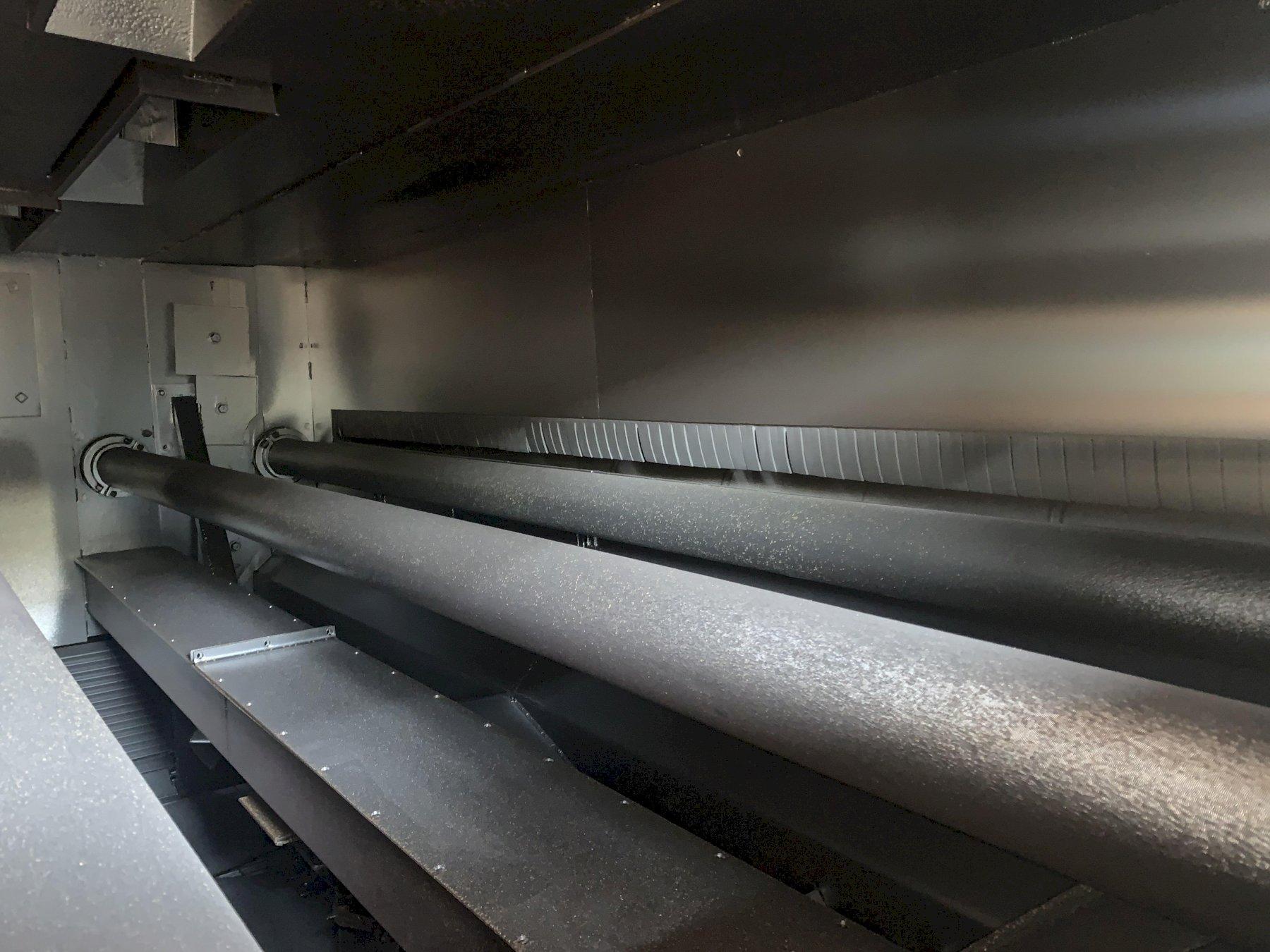

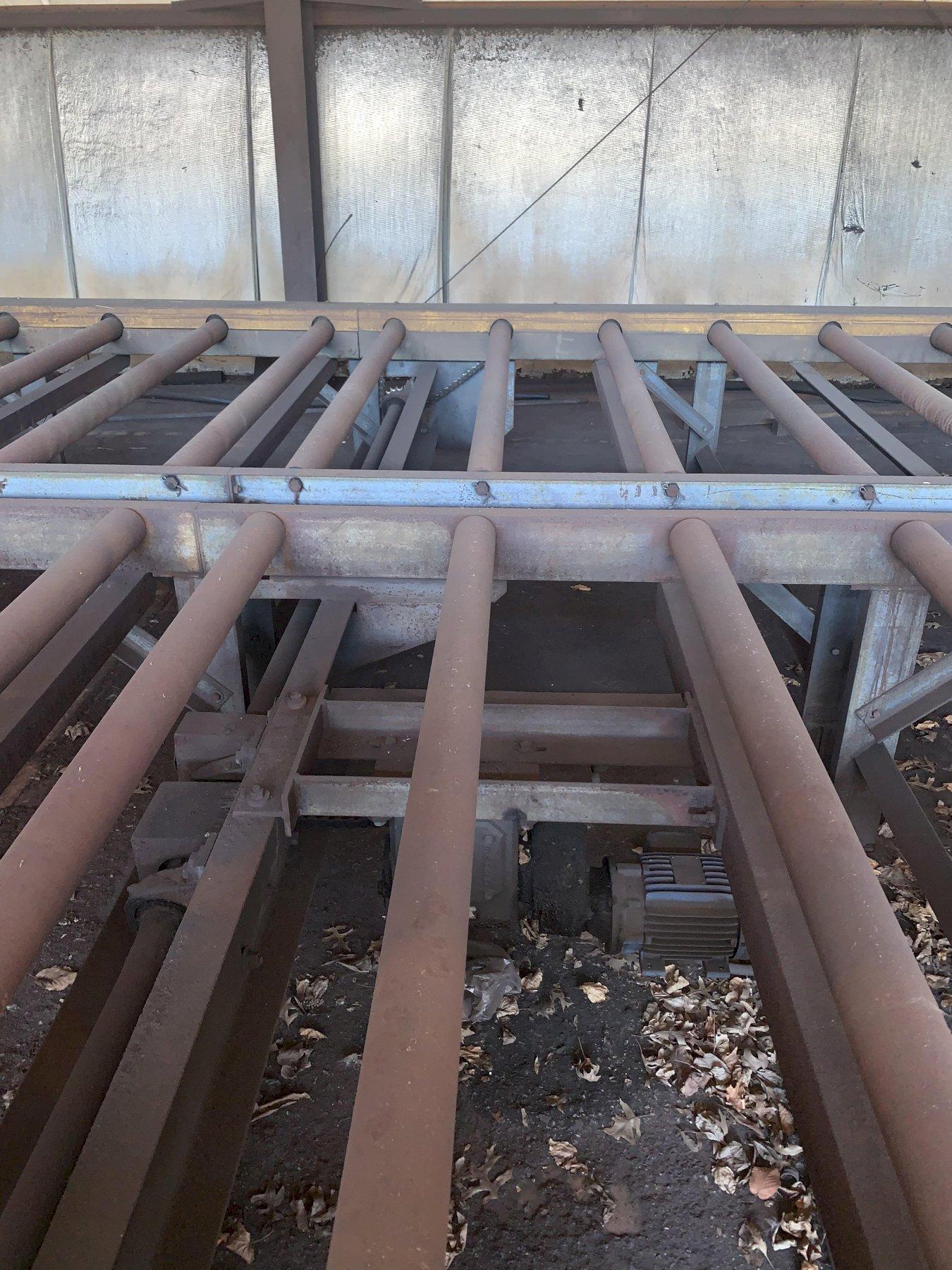

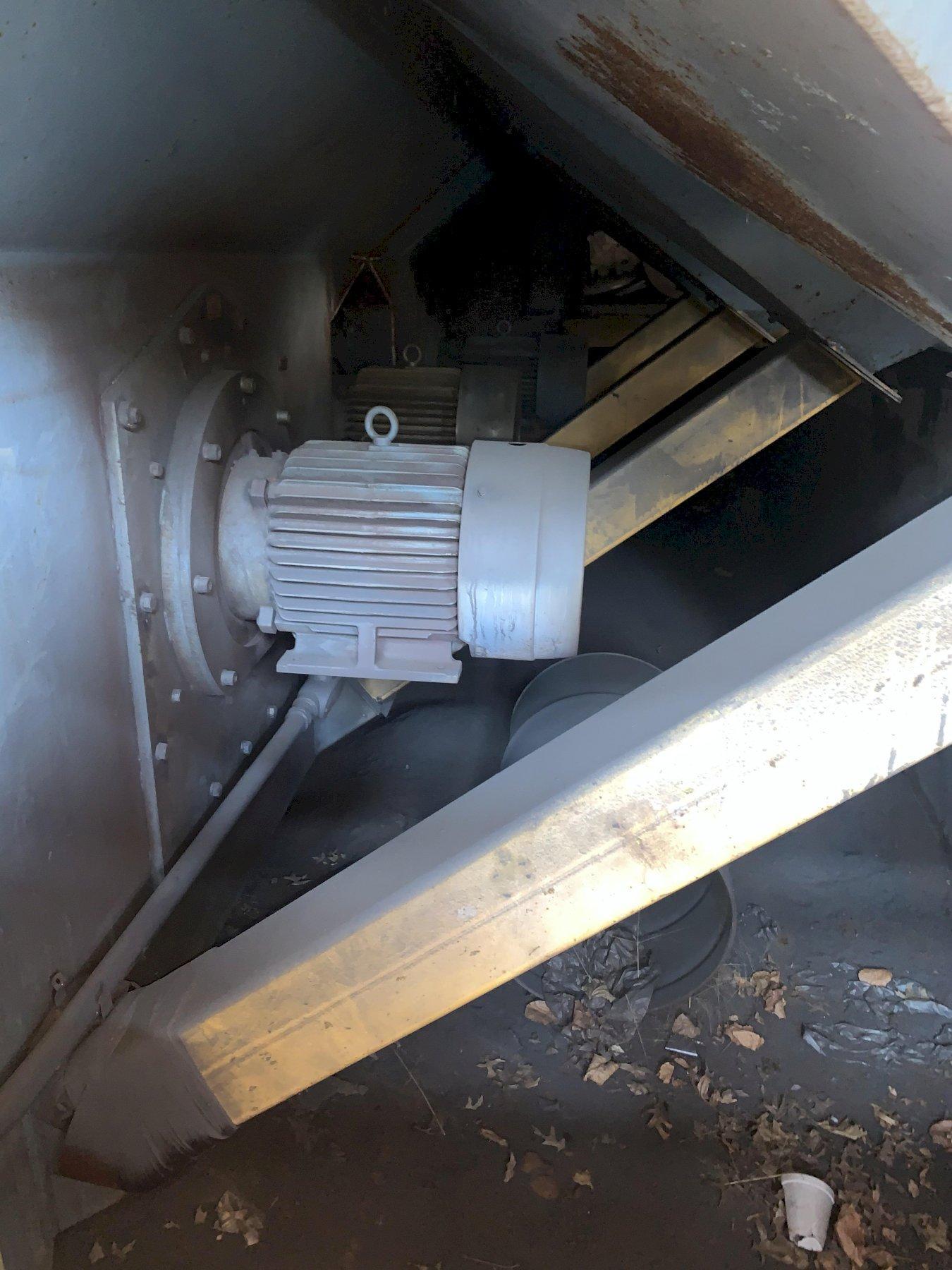

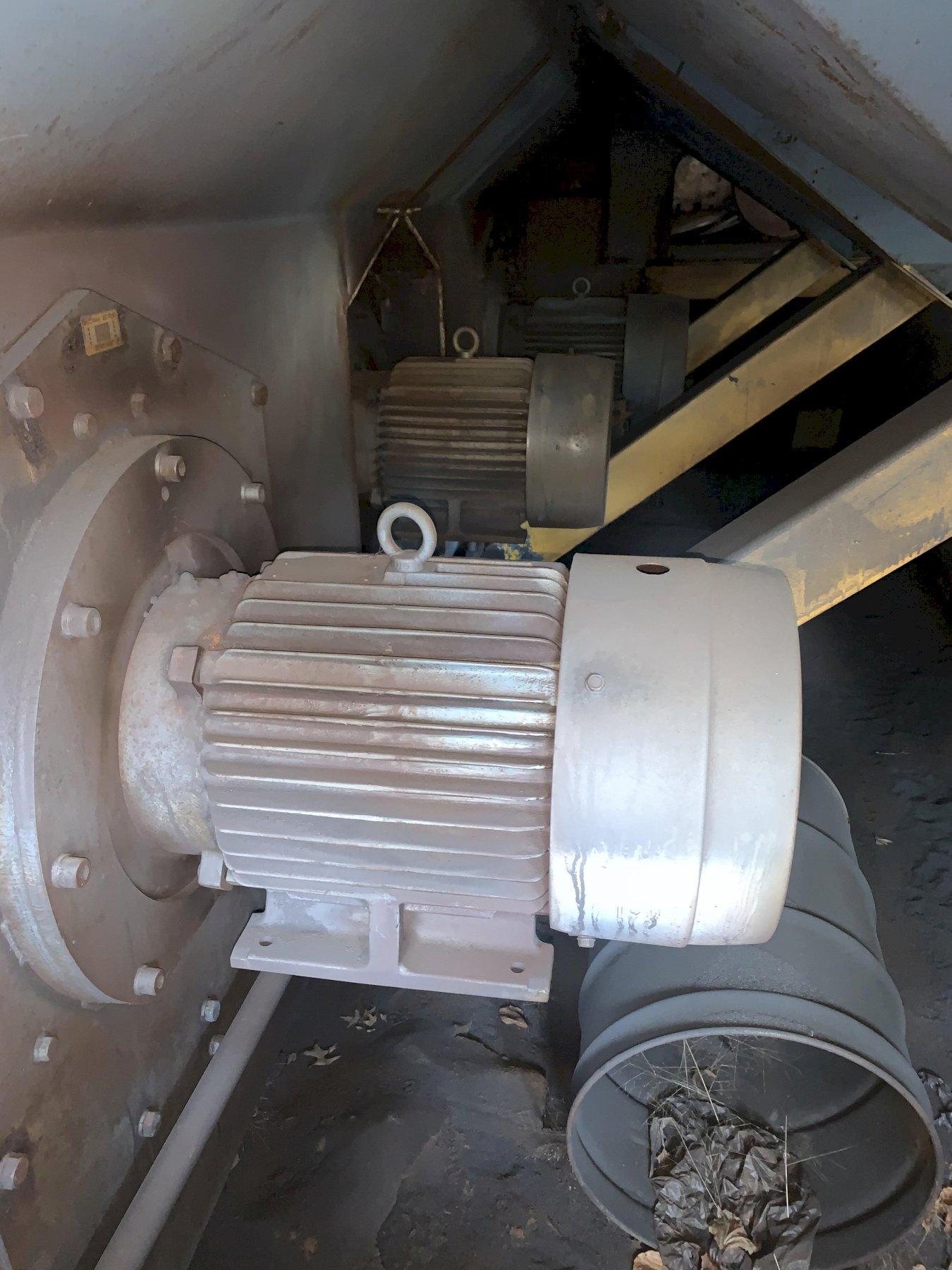

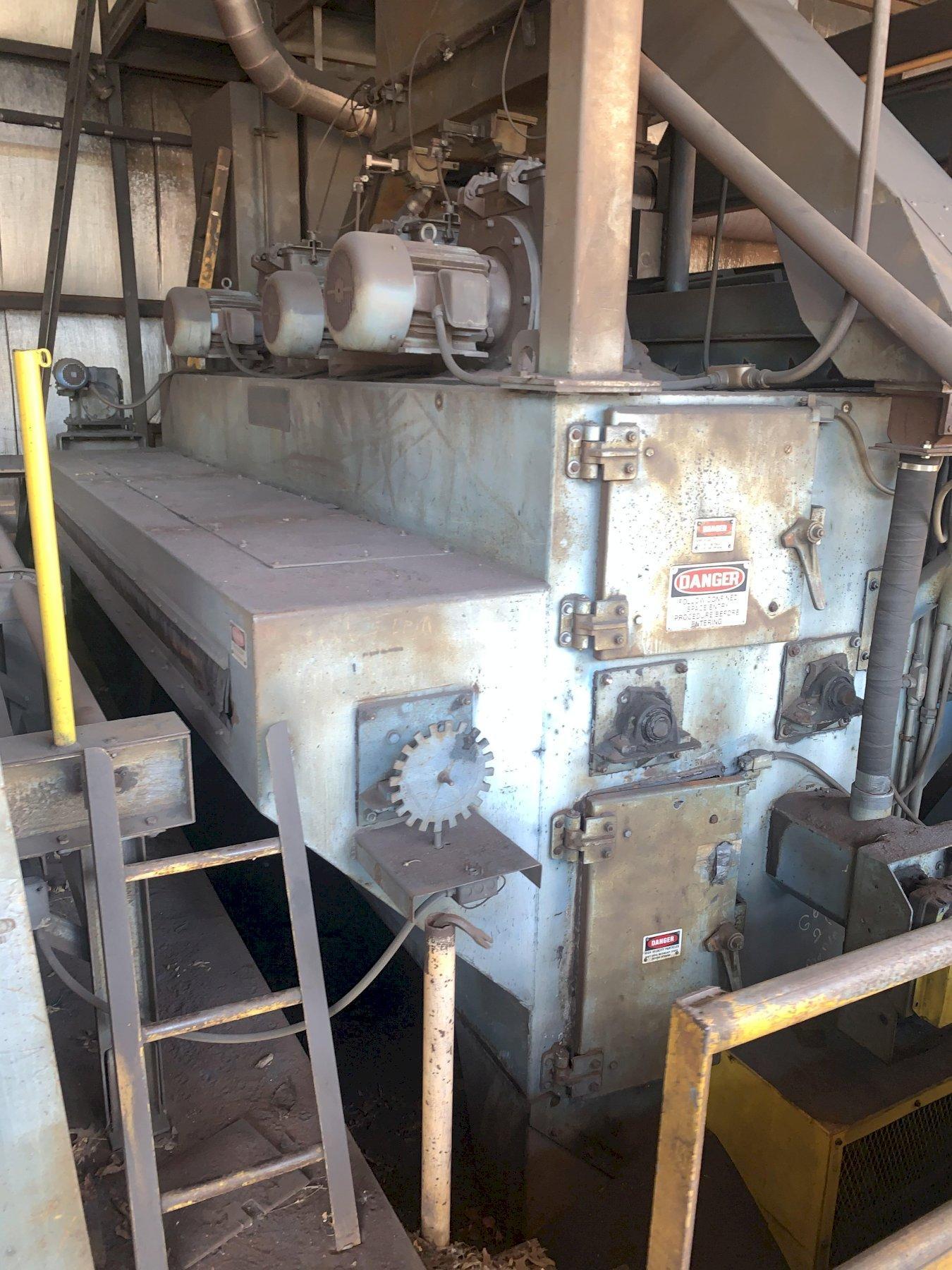

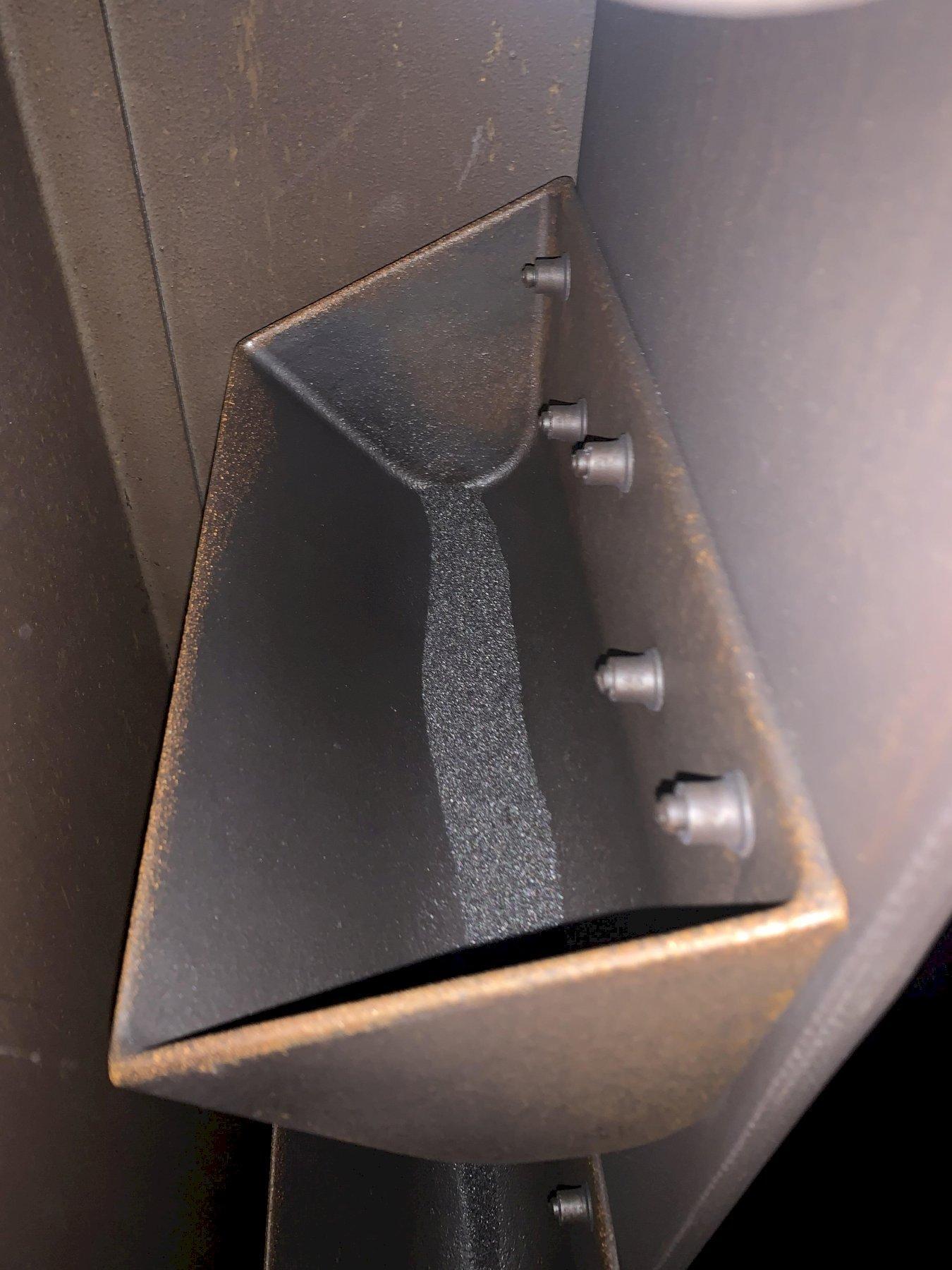

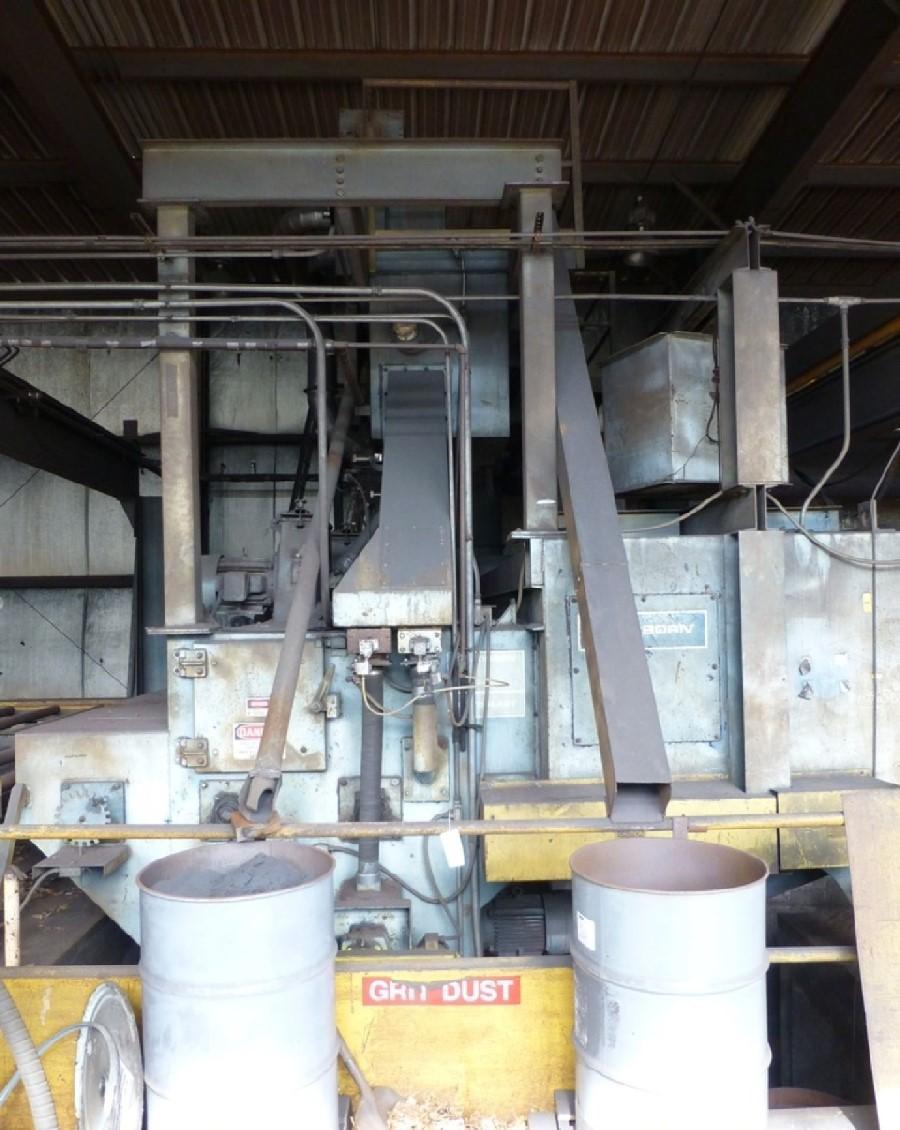

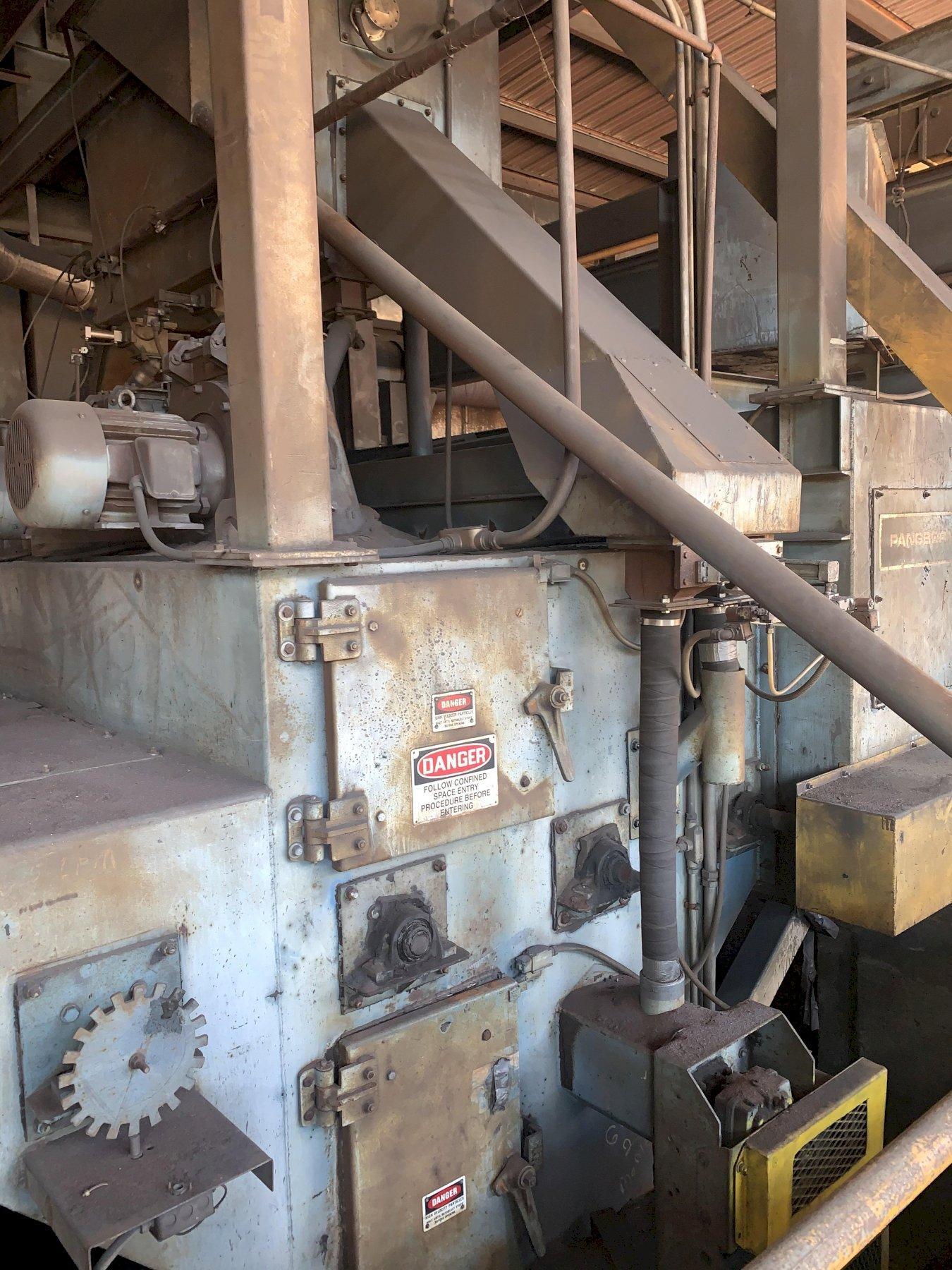

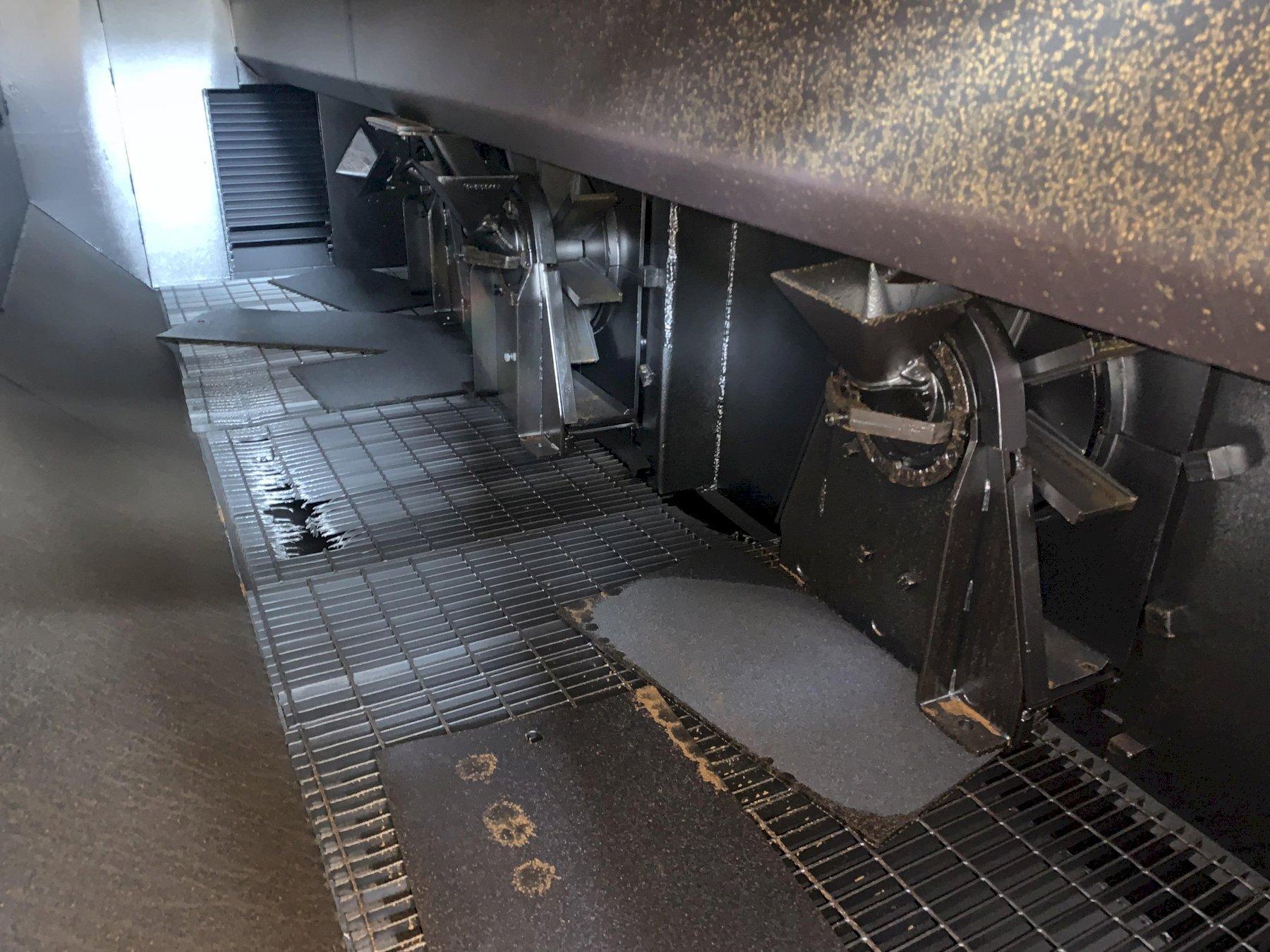

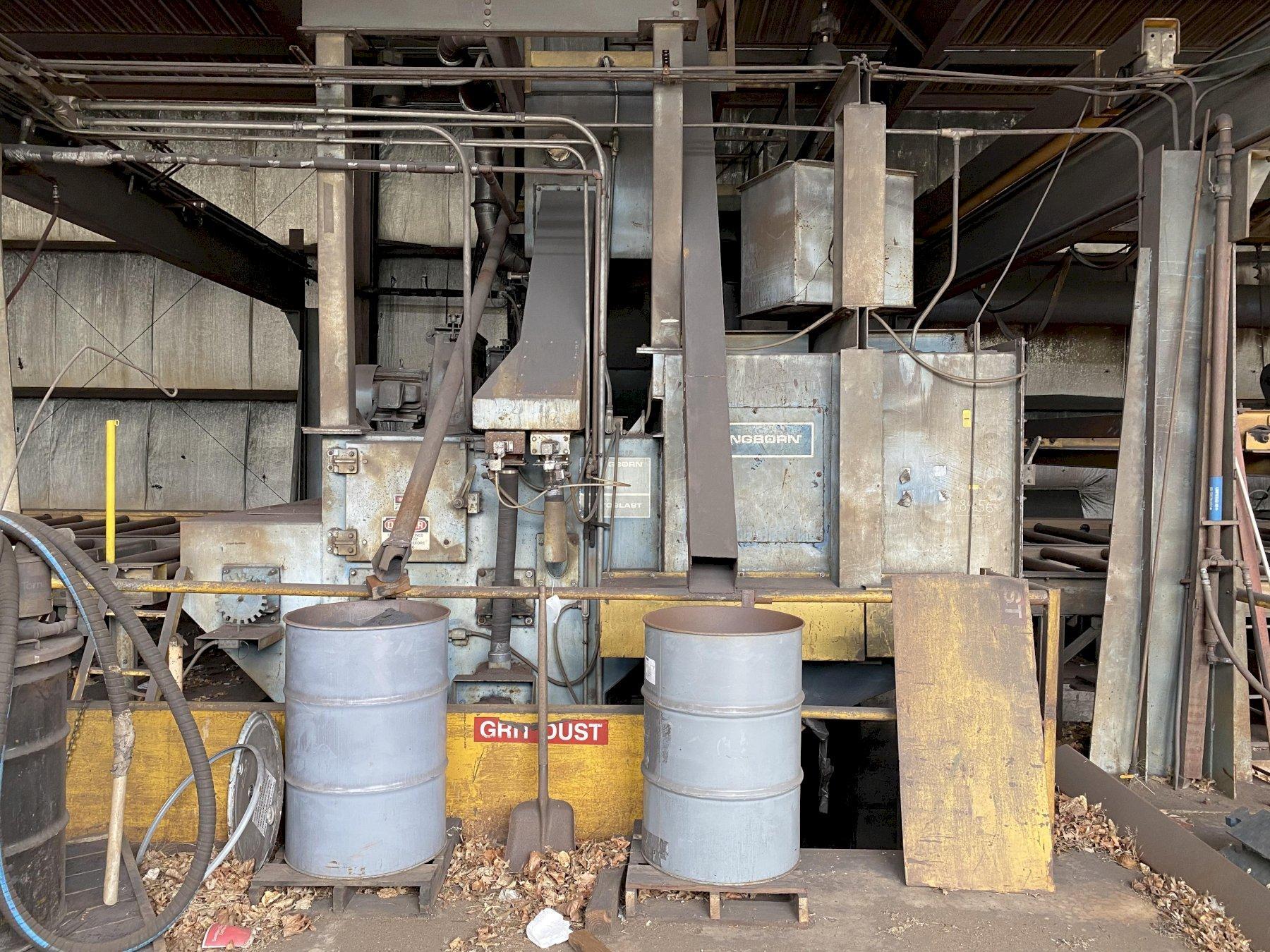

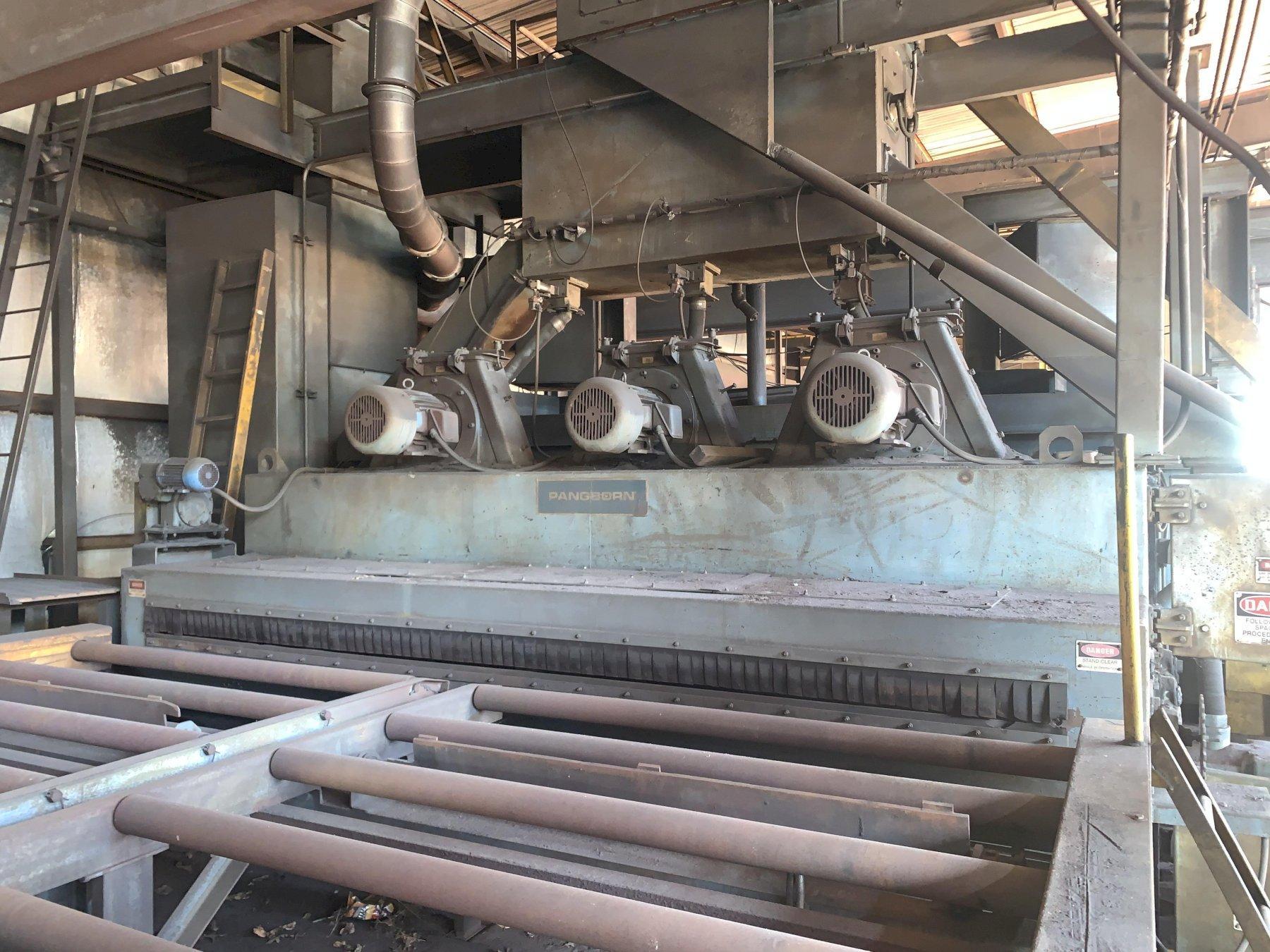

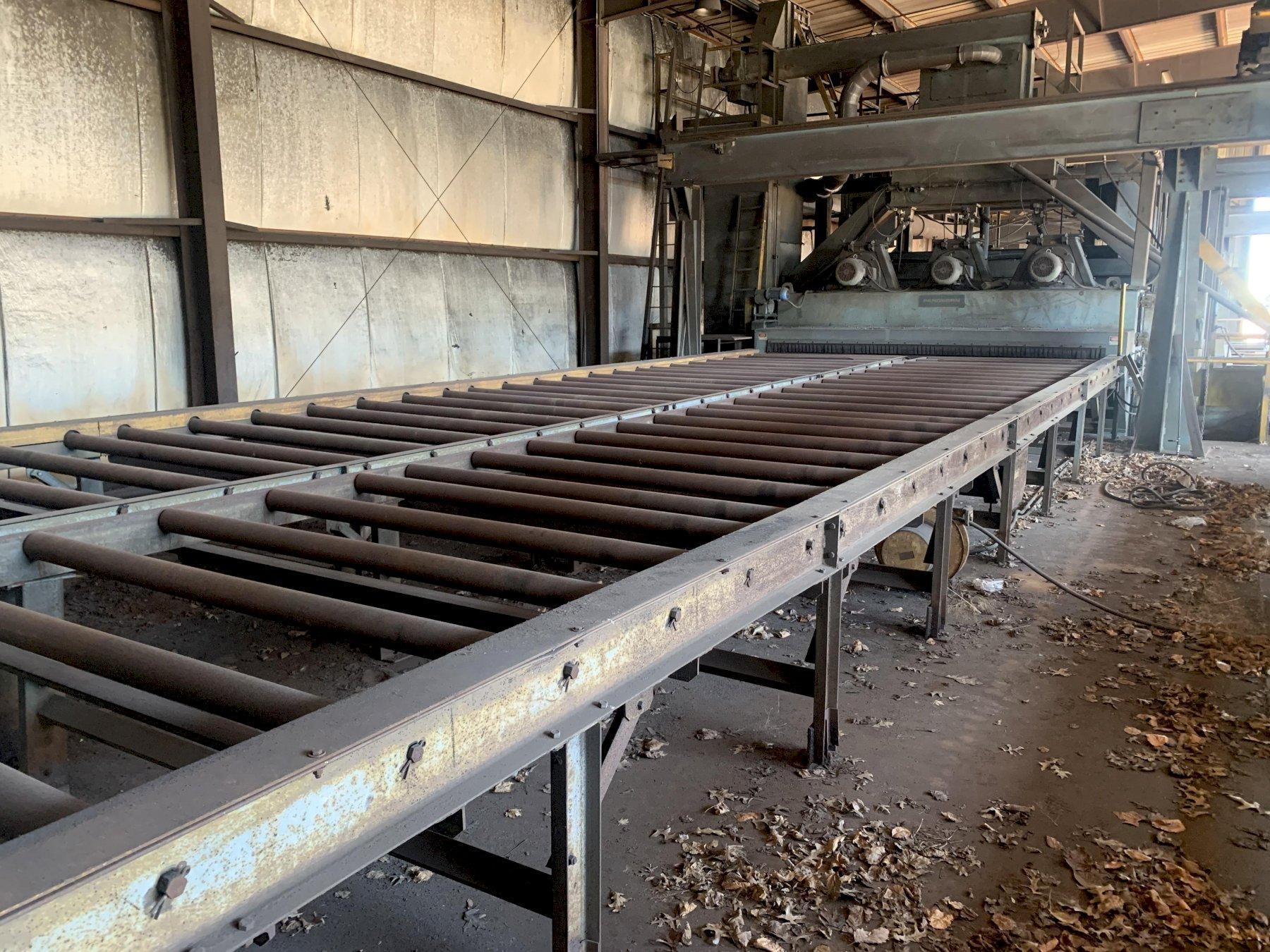

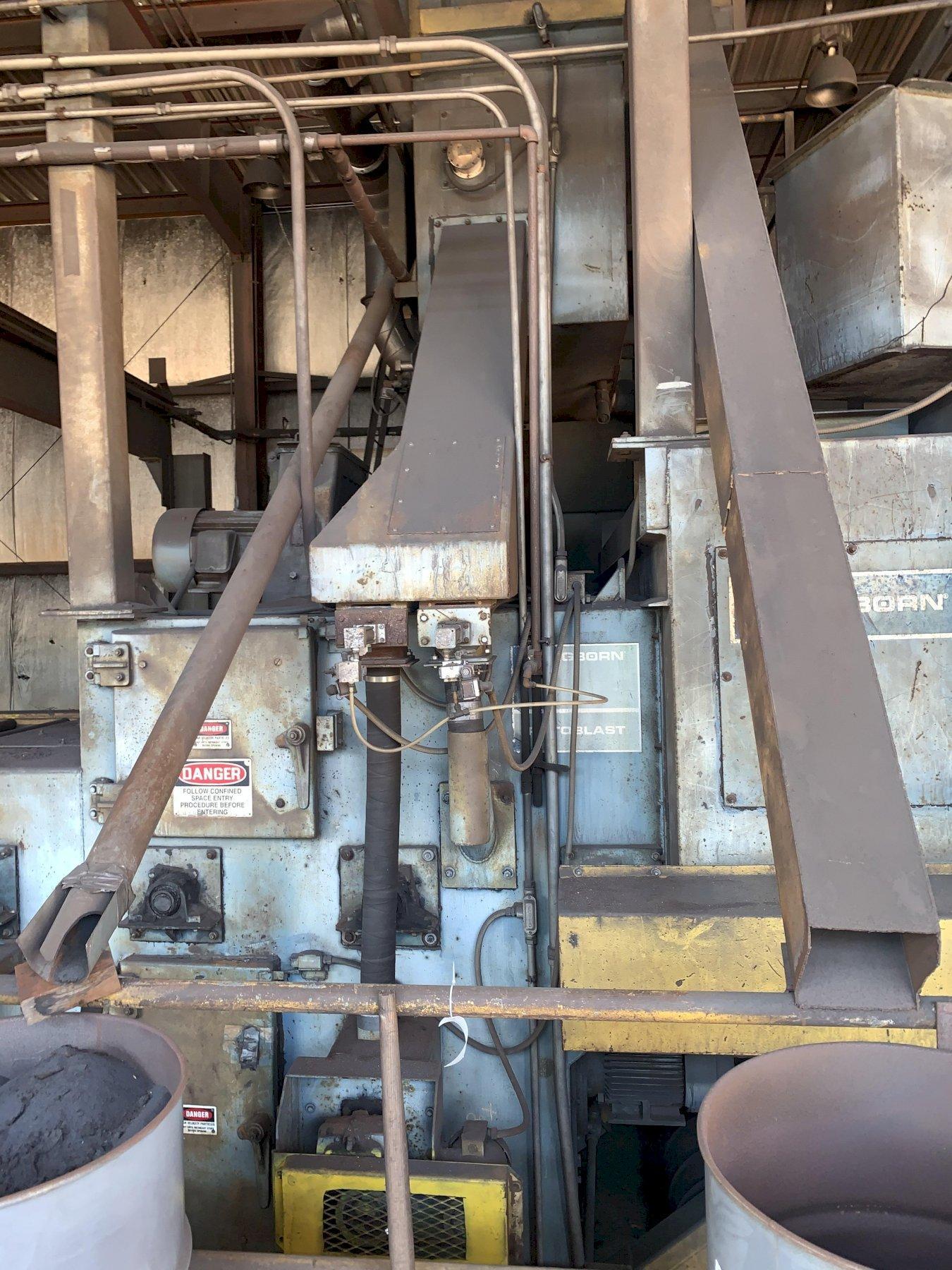

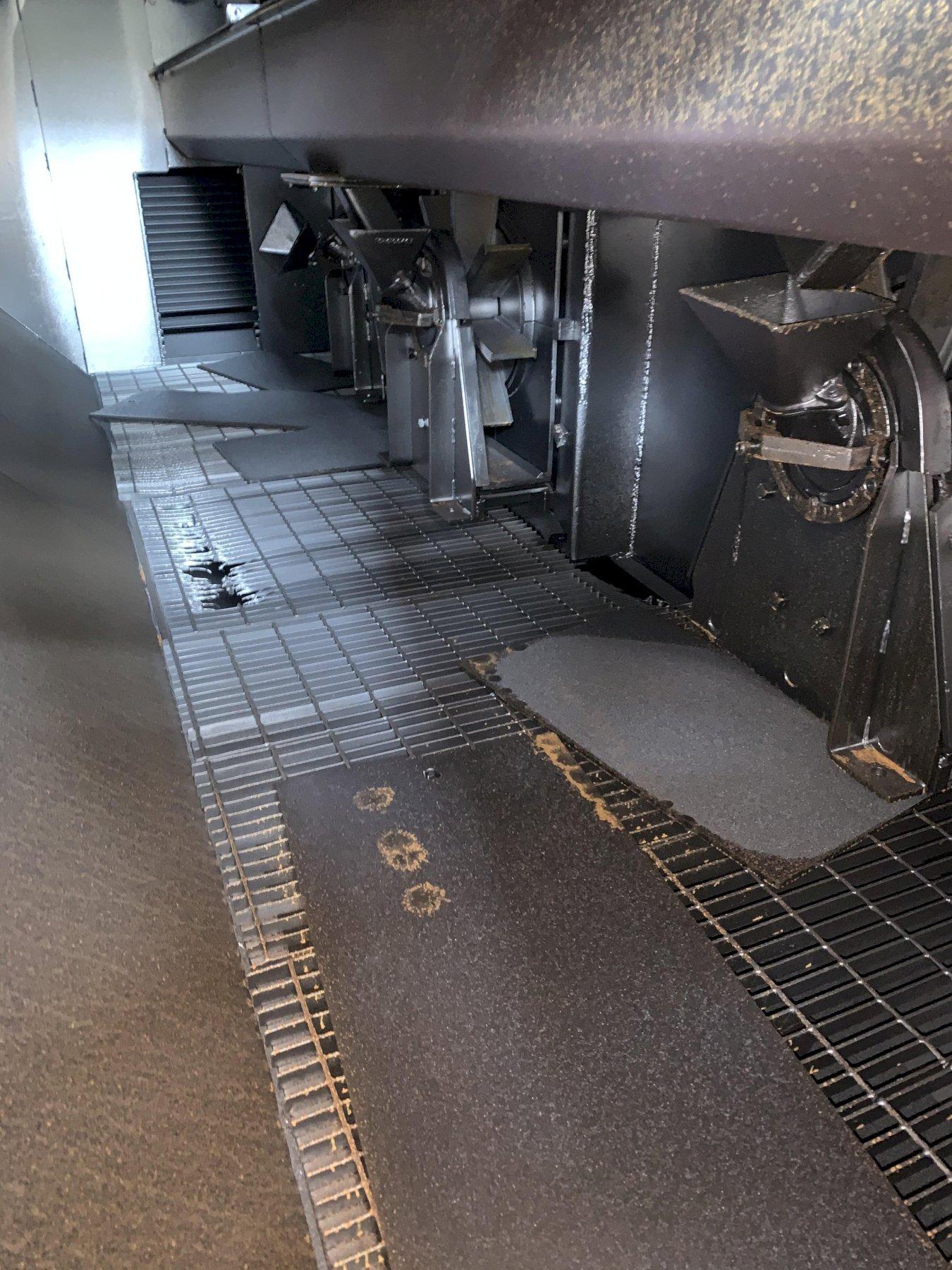

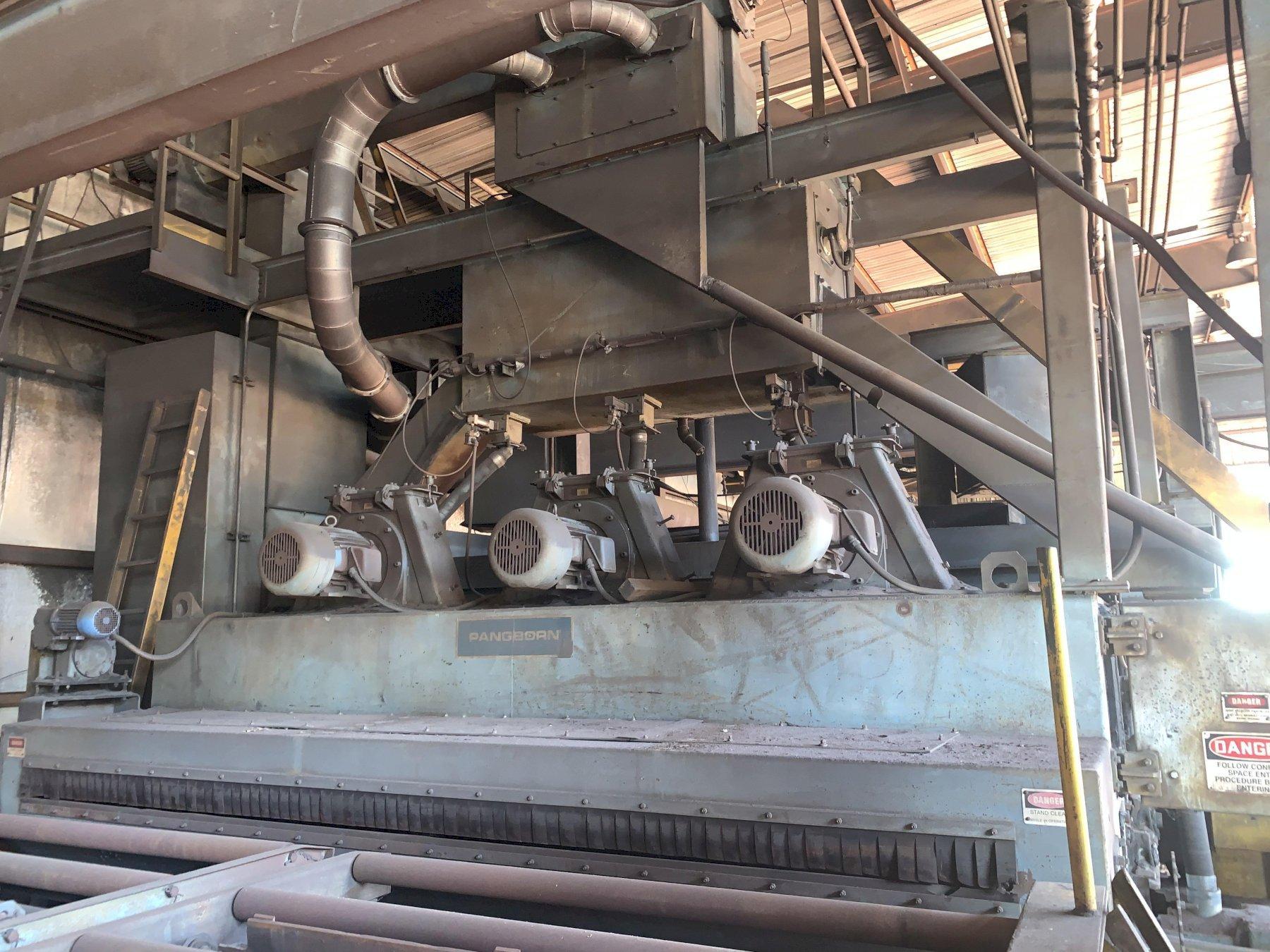

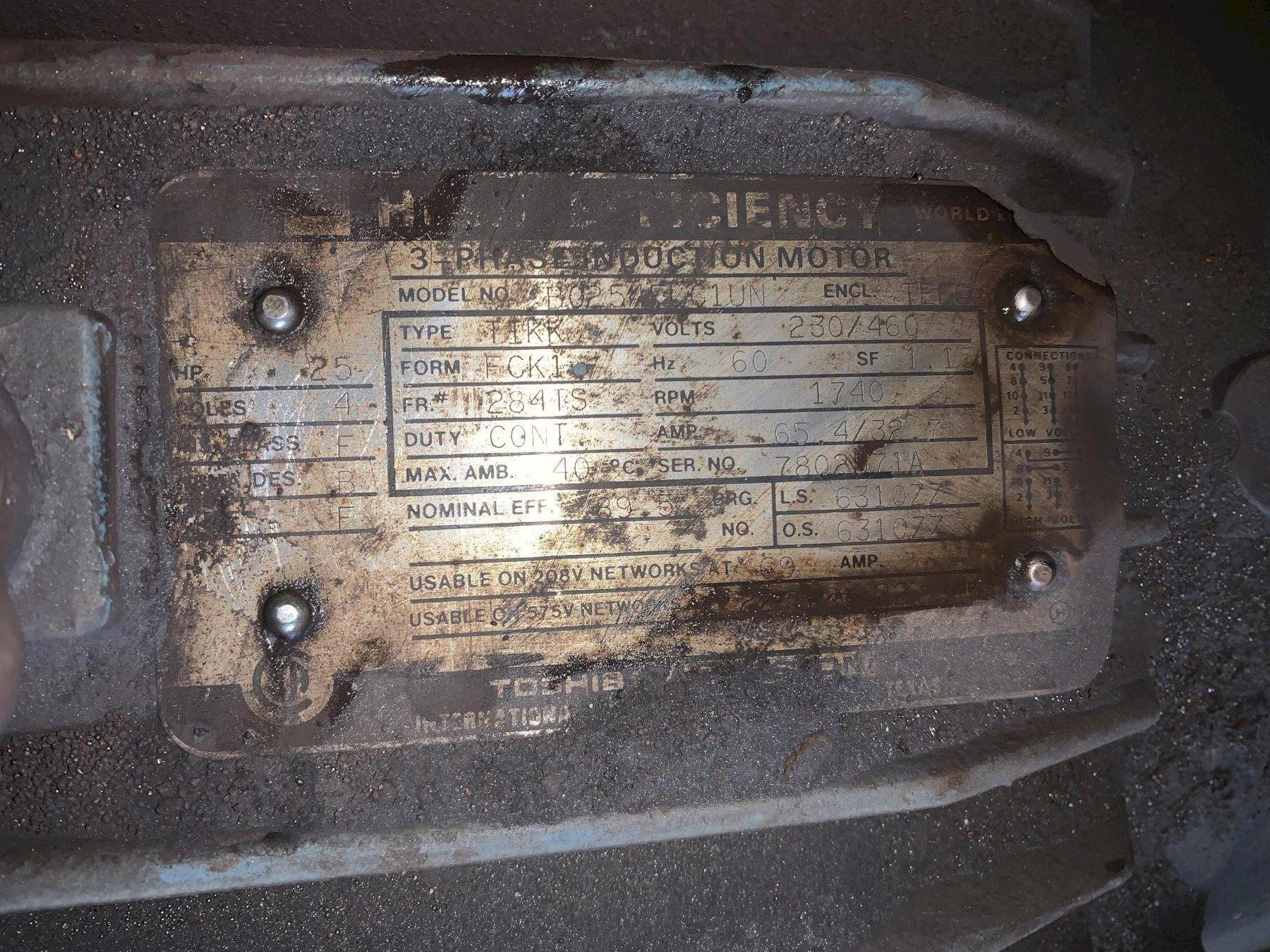

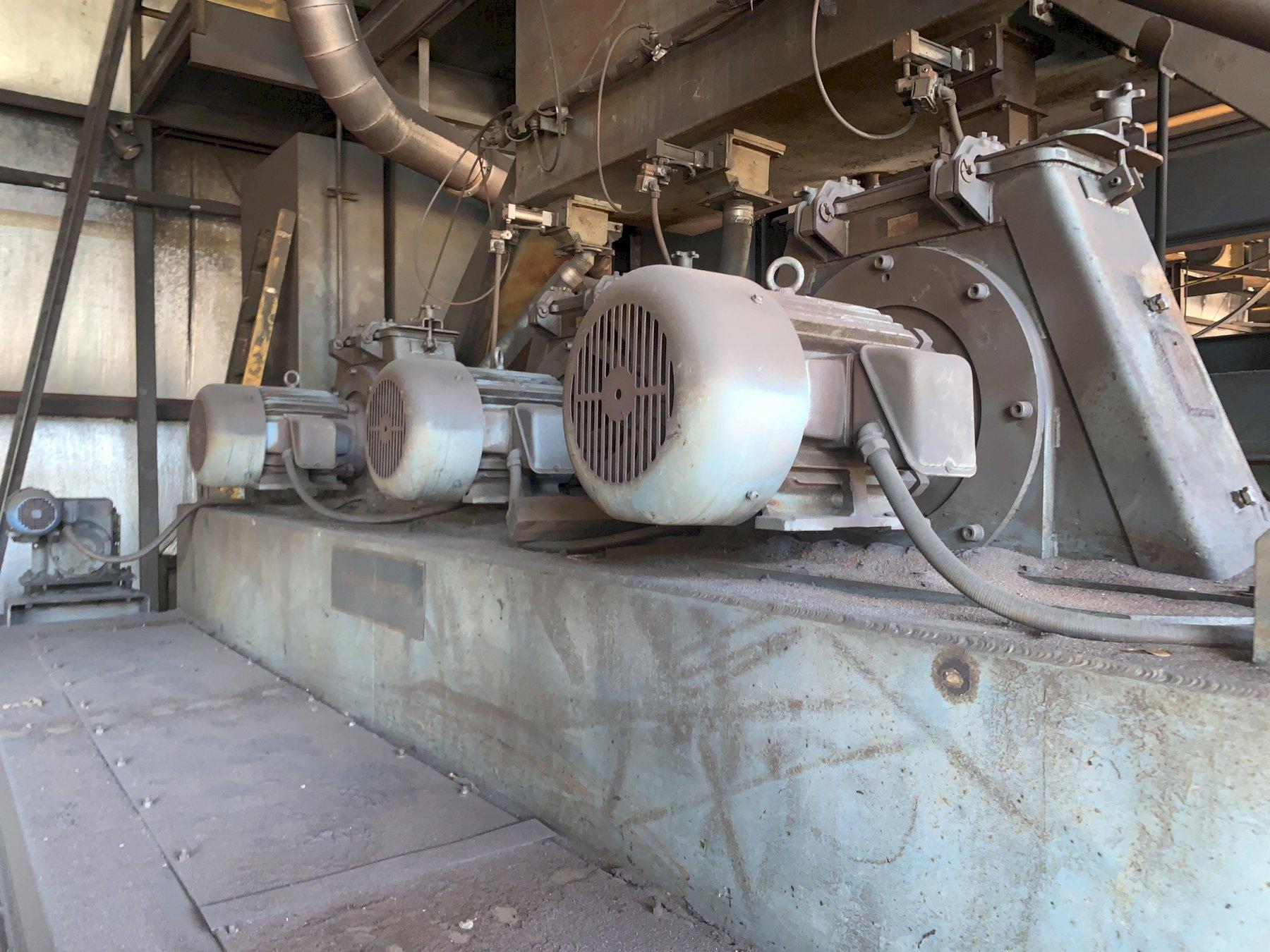

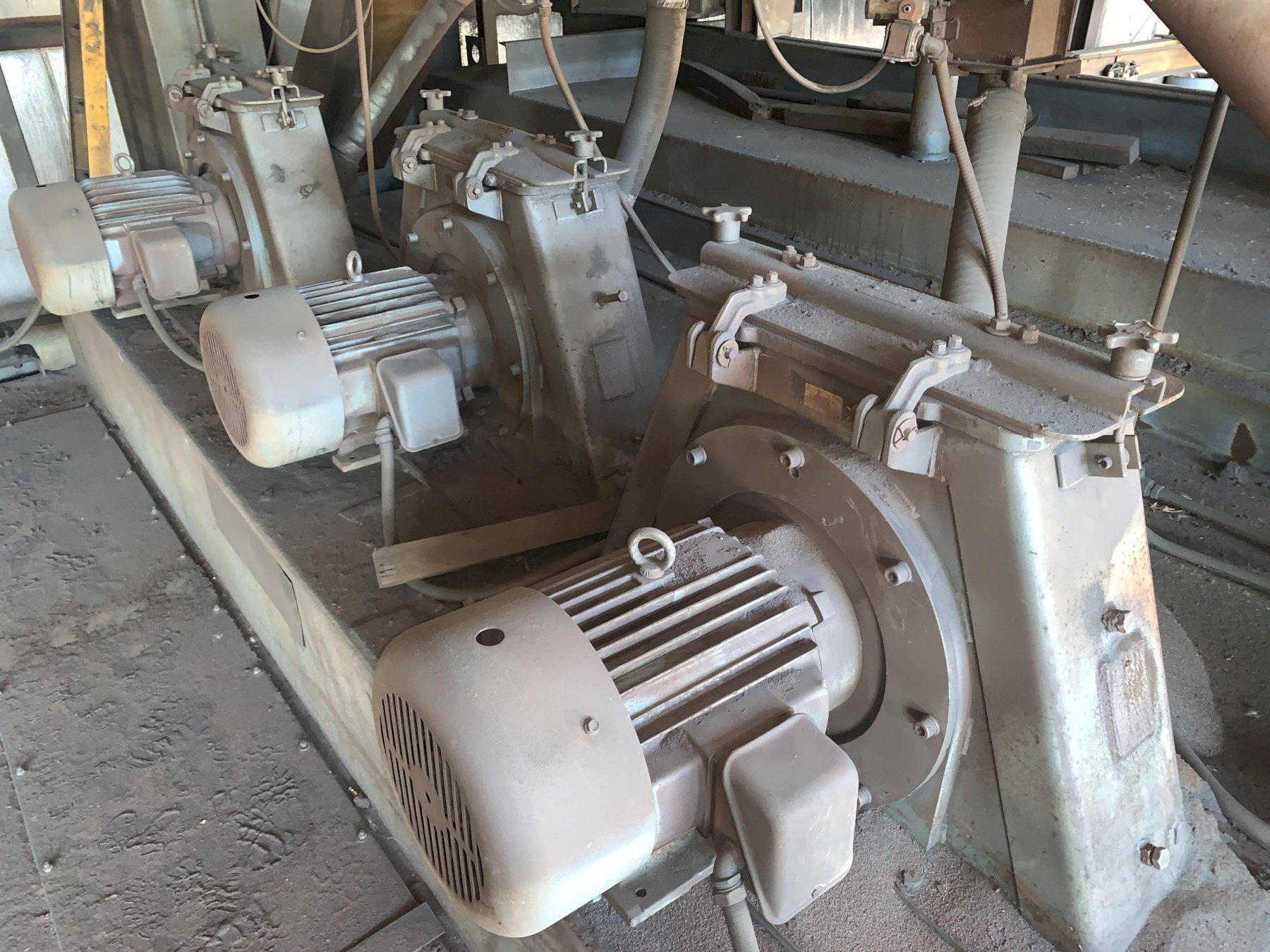

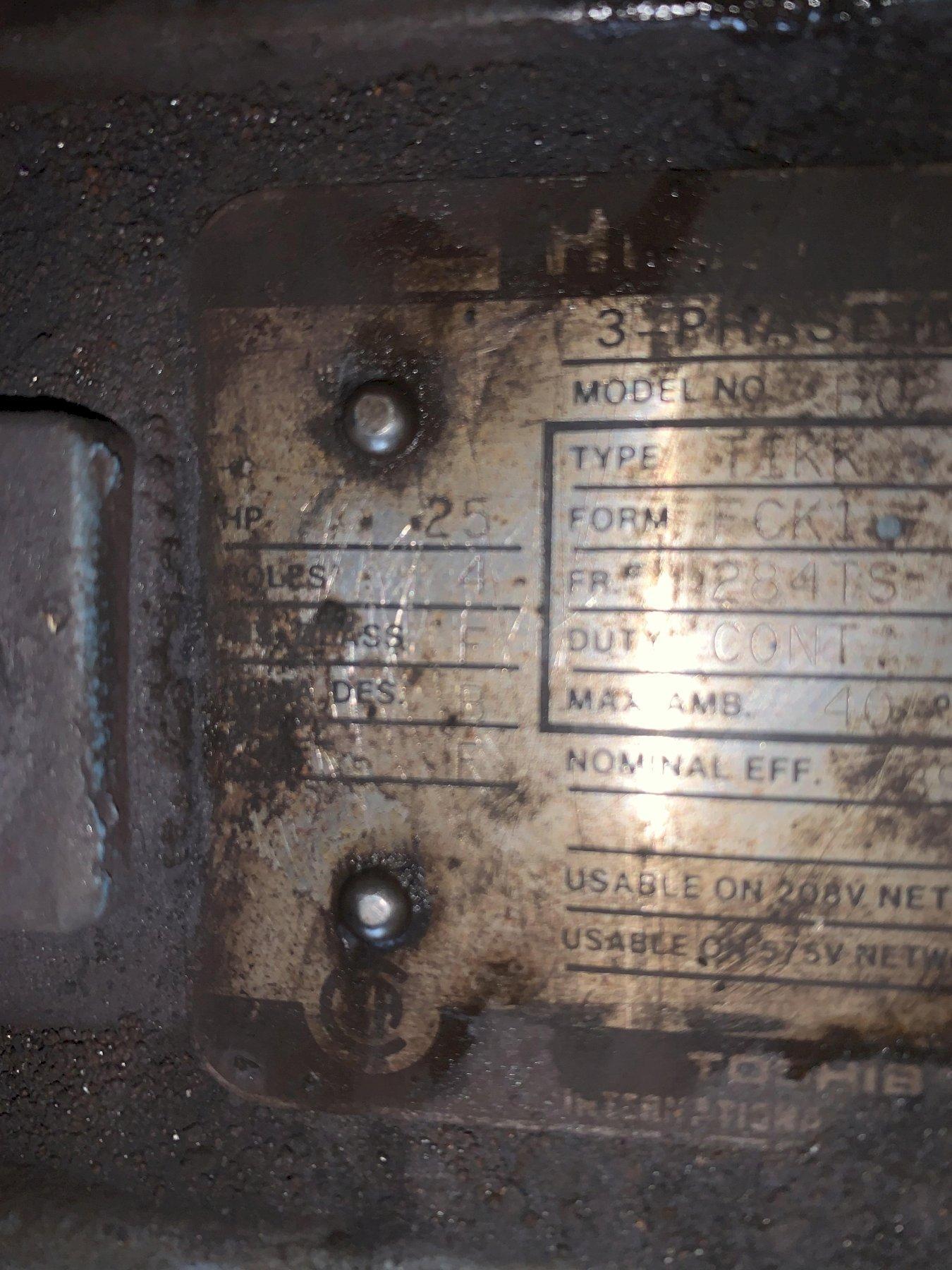

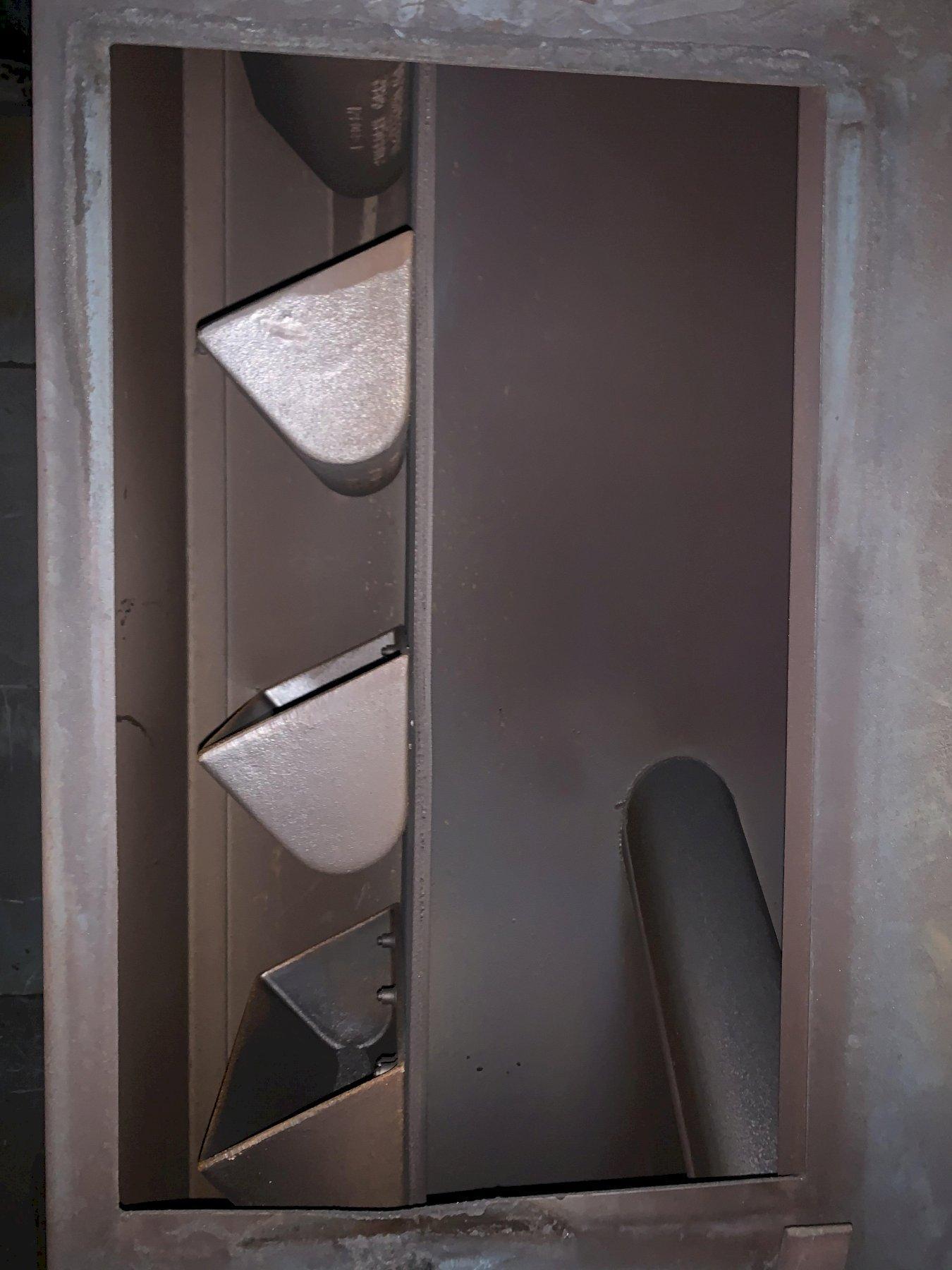

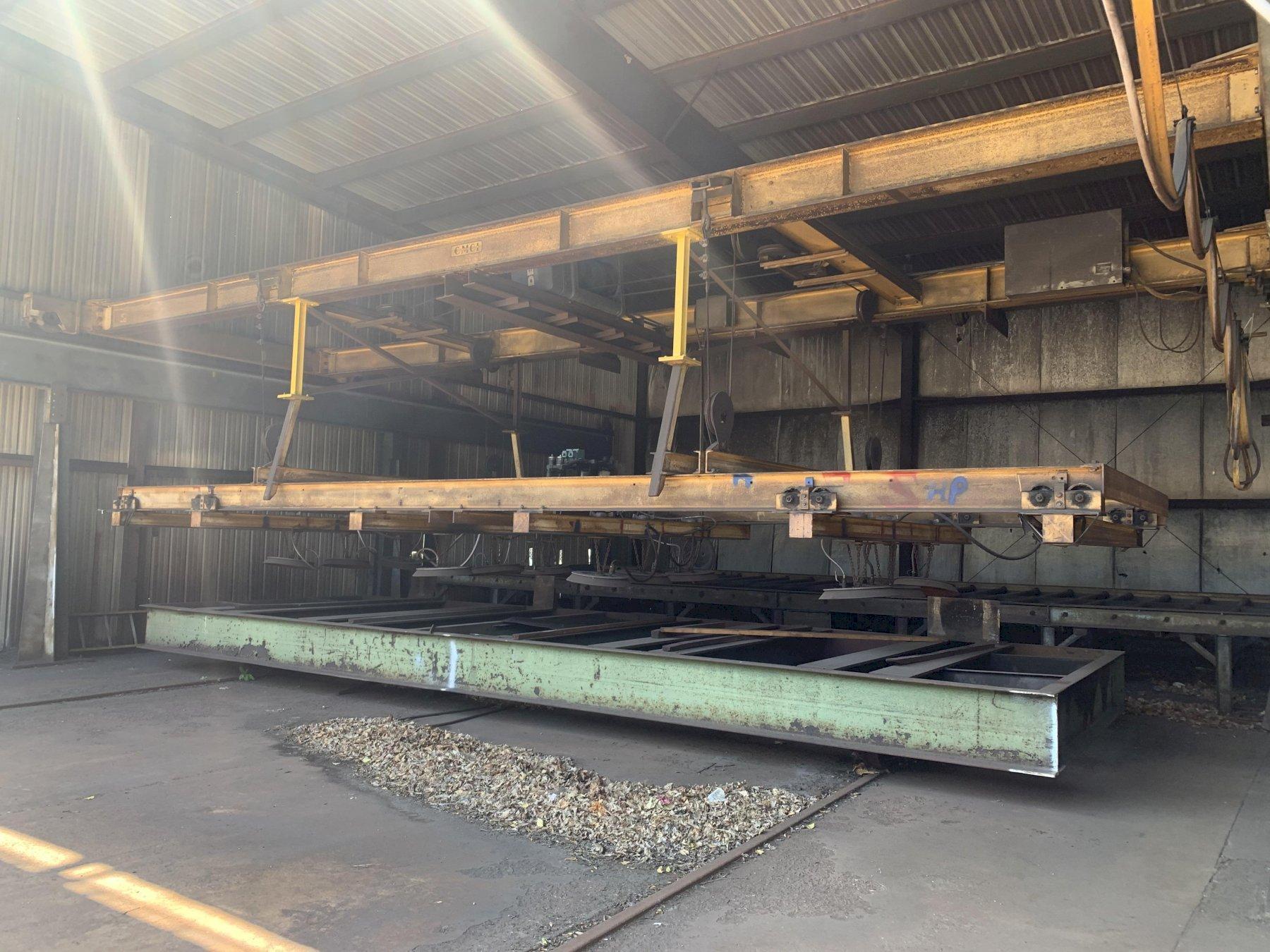

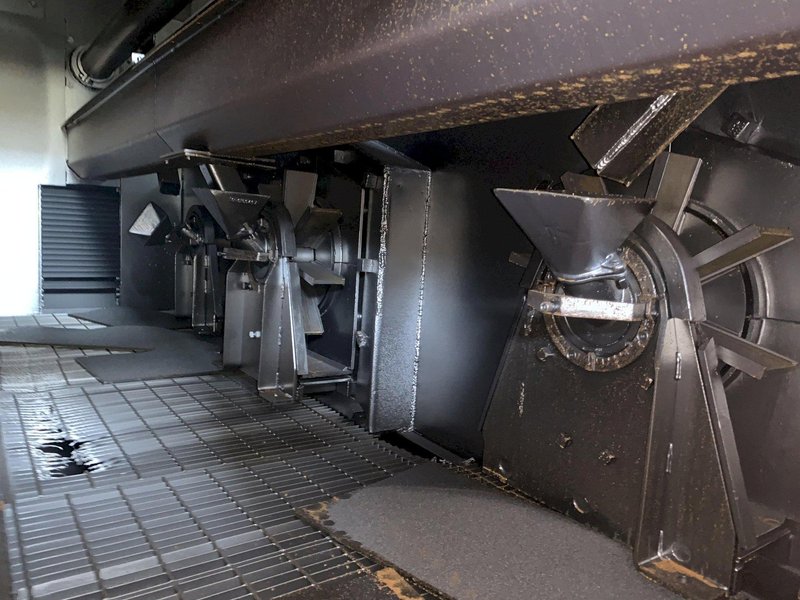

SYSTEM CONSISTS OF: - MATERIAL HANDLING LOADING WITH VACUUM LIFT - ENTRY ROLLER CONVEYOR - 6 WHEEL ROTOBLAST COMPARTMENT - BRUSH OFF/BLOW OFF COMPARTMENT - EXIT ROLLER CONVEYOR ROTOBLAST COMPARTMENT: SERIAL ................... ES1923/S890714 NEW ...................... 1990 MODEL .................... ES-1923 ROTOBLAST TOP & BOTTOM BLASTING .... YES WIDTH OF OPENING ......... 162" HEIGHT OF OPENING ........ 4" MAX NUMBER OF SHOT WHEELS .... 6 WHEEL CONFIGURATION ...... 3 TOP / 3 BOTTOM WHEEL MODEL .............. 240DD-4RI WHEEL MOTORS ............. 25 HP EACH, 1800 RPM WHEEL DRIVES ............. DIRECT POWER ROLLERS ............ (6) X 6-5/8" DIAMETER MEDIA SEPARATOR & RECLAIM SYSTEM: AUTOMATIC REPLENISHER .... YES ELEVATOR ................. BUCKET TYPE ELEVATOR MOTOR ........... 7.5 HP SEPARATOR ................ "AIRWASH" POWER ROLLERS ............ (2) X 6-5/8" DIAMETER BRUSH & BLOW OFF STATION: BRUSH OFF ................ 5 HP BRUSH BLOW OFF ................. 10 AIR NOZZLES LOADING IN-FEED ROLLER CONVEYOR: LENGTH ................... 40' WIDTH .................... 15' CONFIGURATION ............ (2) 80" LANES ROLLER DIAMETER .......... 3-1/2" ROLLER CENTERS ........... 18" VARIABLE SPEED DRIVE ..... YES UNLOAD OUT-FEED ROLLER CONVEYOR: LENGTH ................... 40' WIDTH .................... 15' CONFIGURATION ............ (2) 80" LANES ROLLER DIAMETER .......... 3-1/2" ROLLER CENTERS ........... 18" VARIABLE SPEED DRIVE ..... YES DUST COLLECTOR: CAPACITY ................. 6700 CFM MODEL .................... 20CP5RP PANGBORN CONTROL PANEL: WHEEL HOUR METERS ........ YES WHEEL LOAD INDICATOR ..... YES CONVEYOR CONTROLS ........ YES EMERGENCY STOP BUTTON .... YES |
