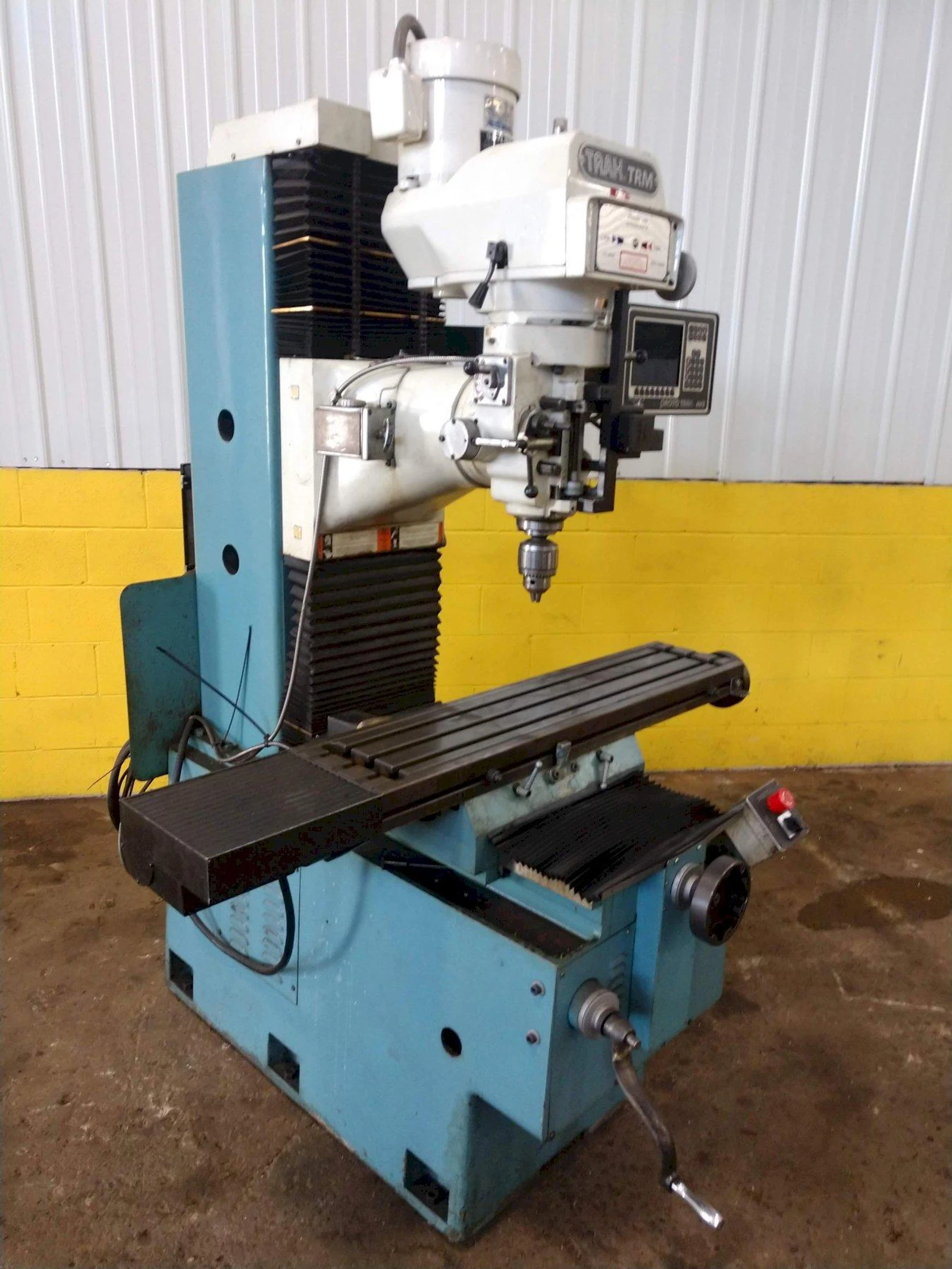

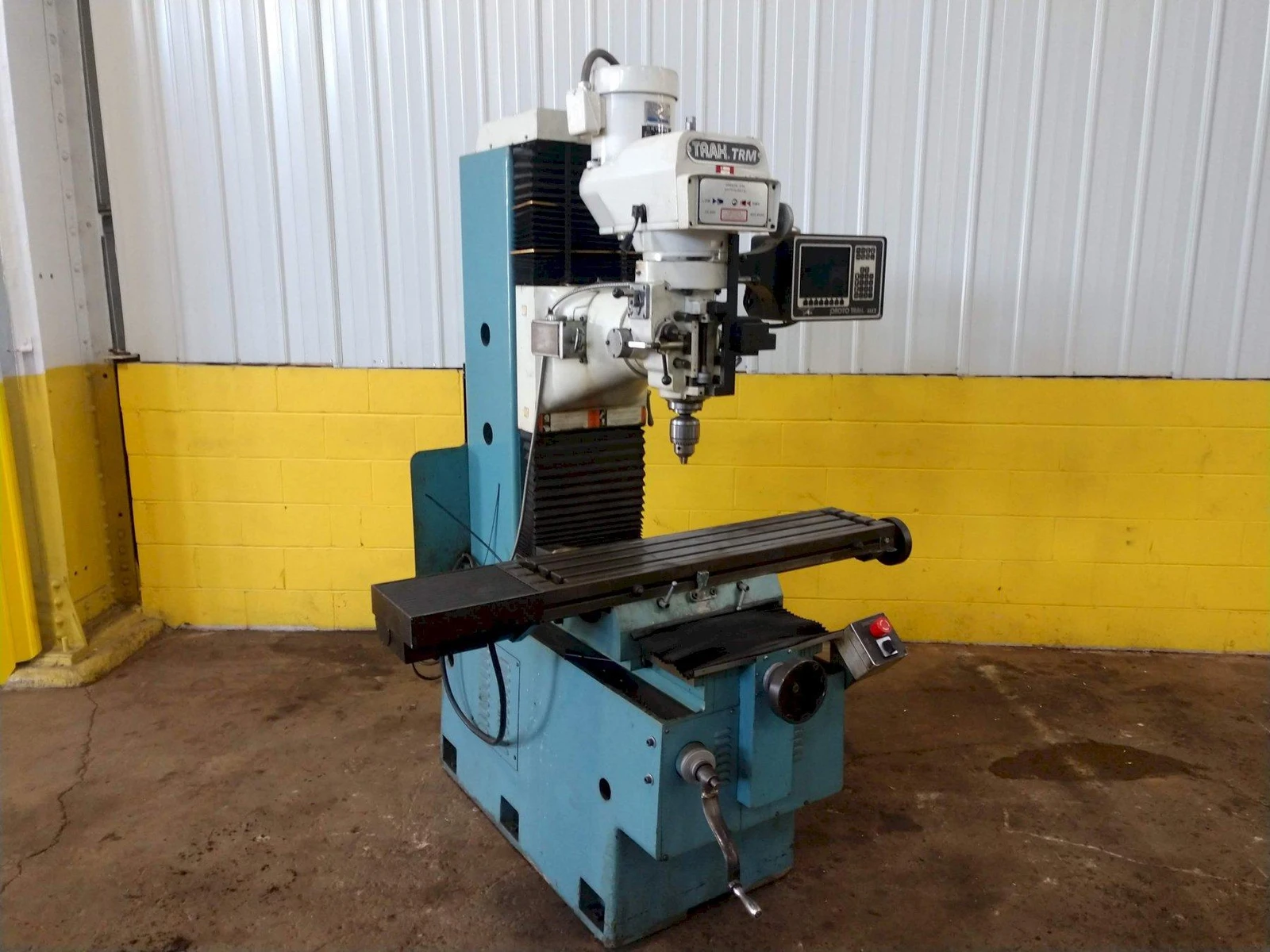

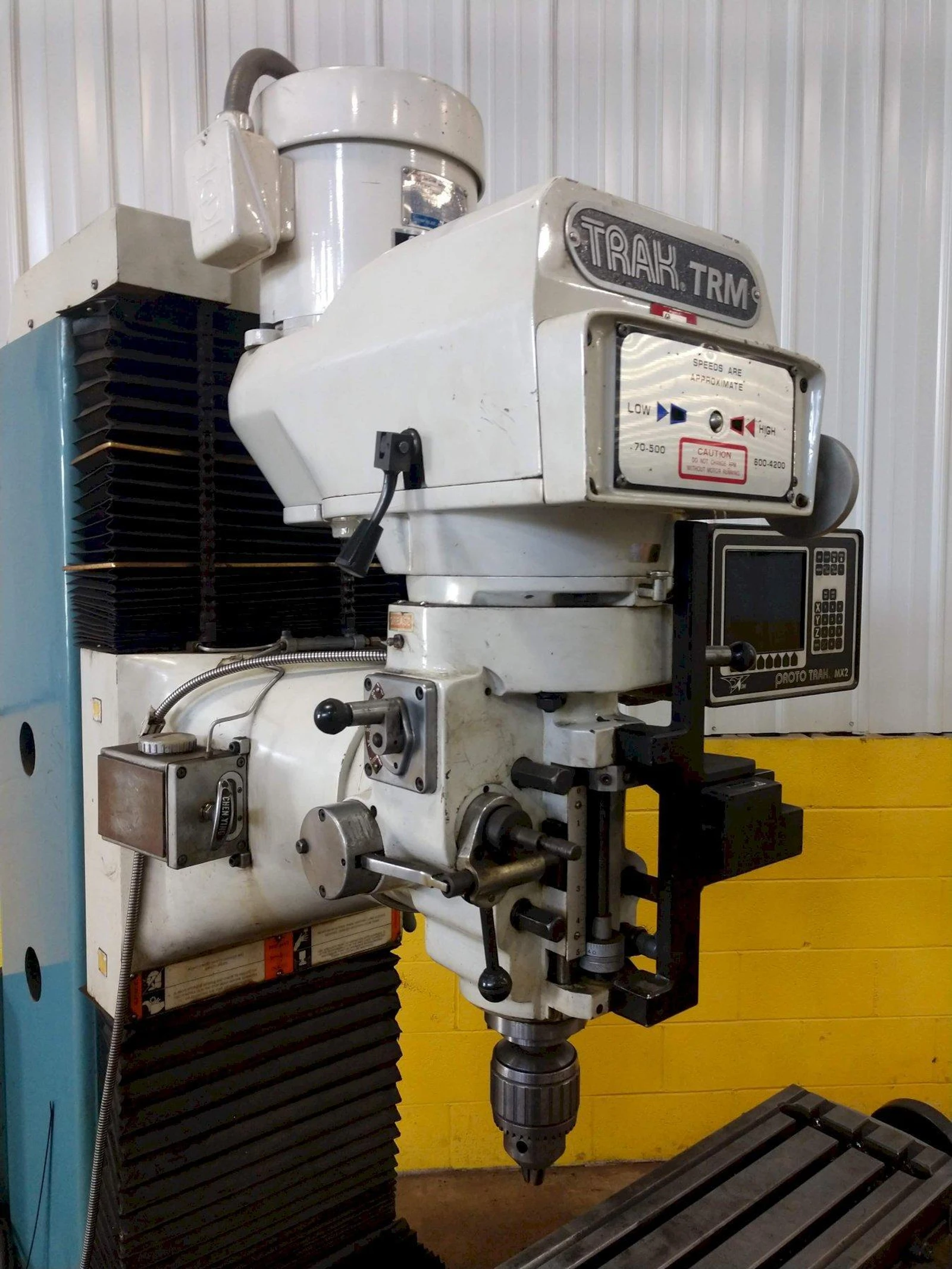

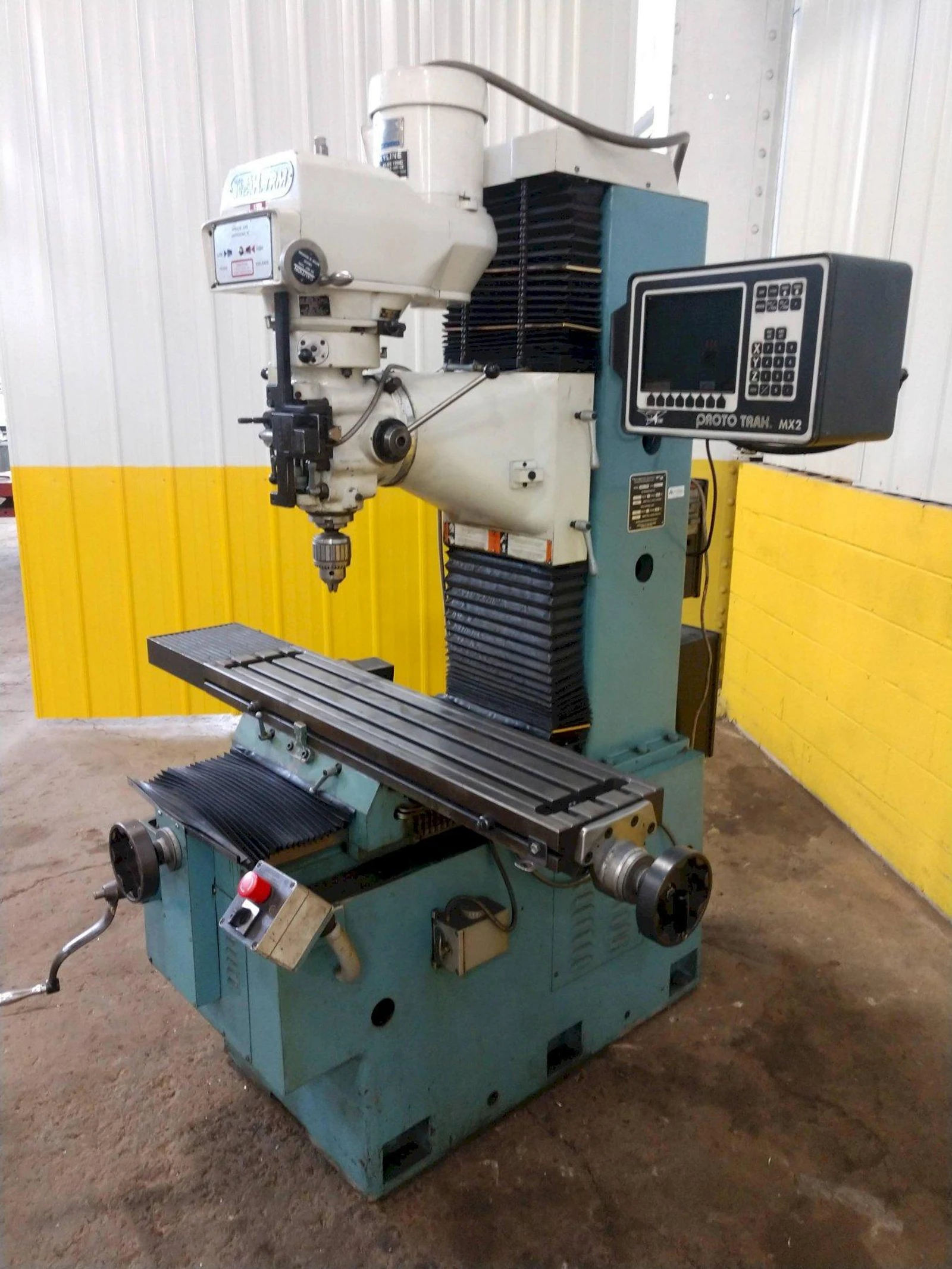

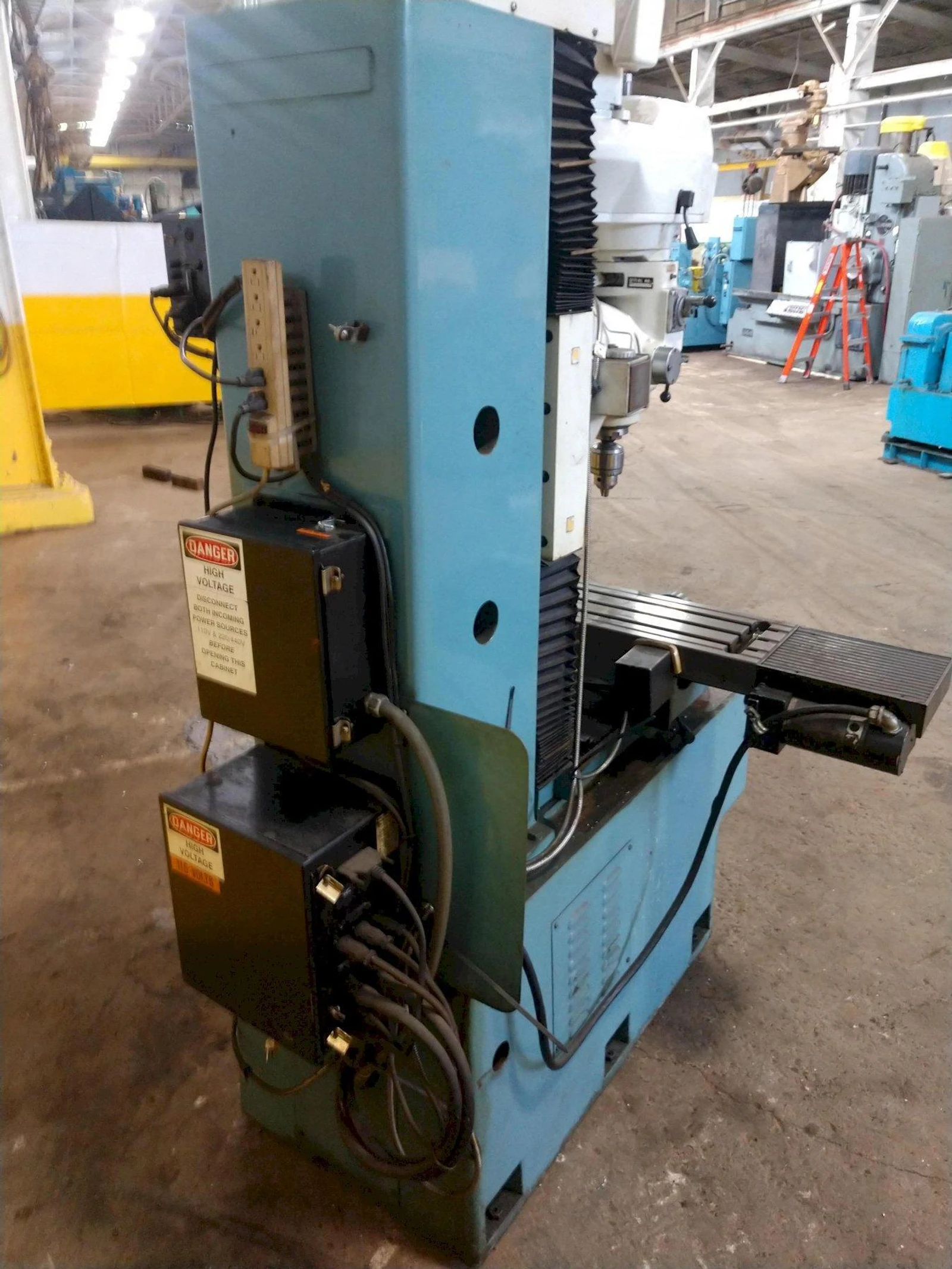

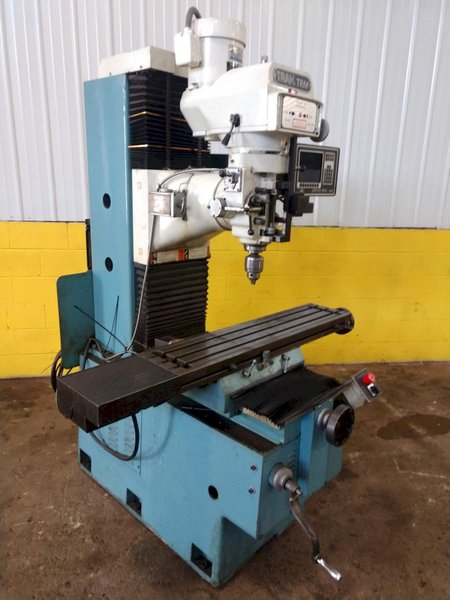

3 HP SOUTHWESTERN INDUSTRIES SWI TRAK MODEL #TRM3 PROTOTRAX MX2 CNC VERTICAL KNEE MILL: STOCK #13145
Brand
Category
Type
Model
Not specified
Stock #
13145
Year
Not specified
Condition
Good
Location
Ohio
|
SERIAL ........................... 94-366
MODEL ............................ TRAK-TRM
TABLE SIZE ....................... 10" X 54"
TABLE TRAVEL (X) ................. 30"
TABLE TRAVEL (Y) ................. 17"
HEAD TRAVEL (Z) .................. 23.5"
QUILL TRAVEL ..................... 5"
QUILL DIAMETER ................... 3-15/16" SPINDLE TAPER .................... #40 NST
SPEED RANGE ...................... 70 TO 4200 RPM
SPINDLE NOSE TO TABLE ............ 0 TO 23-1/2"
SPINDLE CENTER TO COLUMN FACE .... 19"
HEAD SWIVEL LEFT/RIGHT ........... 90 DEG.
MAXIMUM WORKPIECE WEIGHT ......... 1320 LBS.

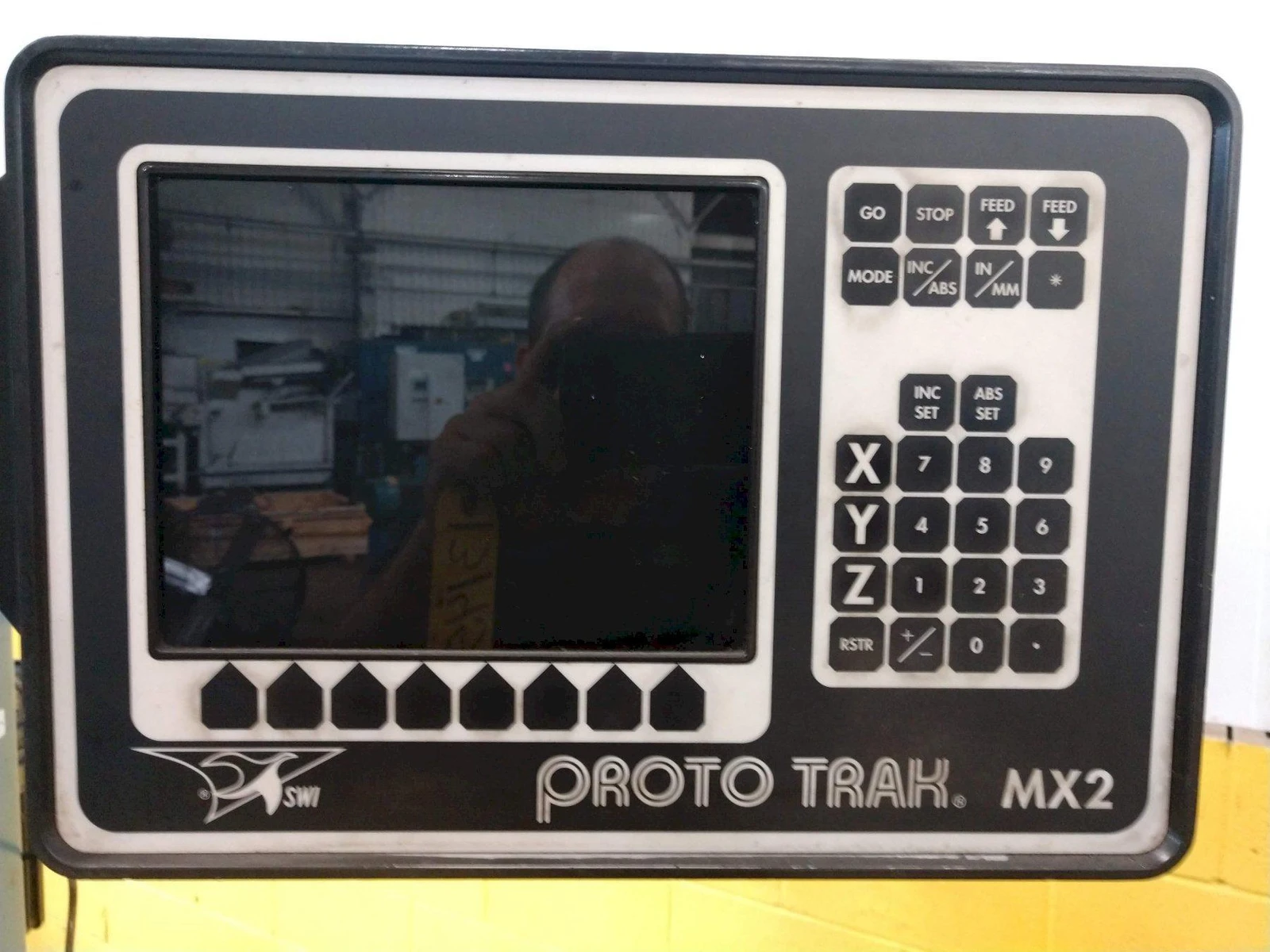

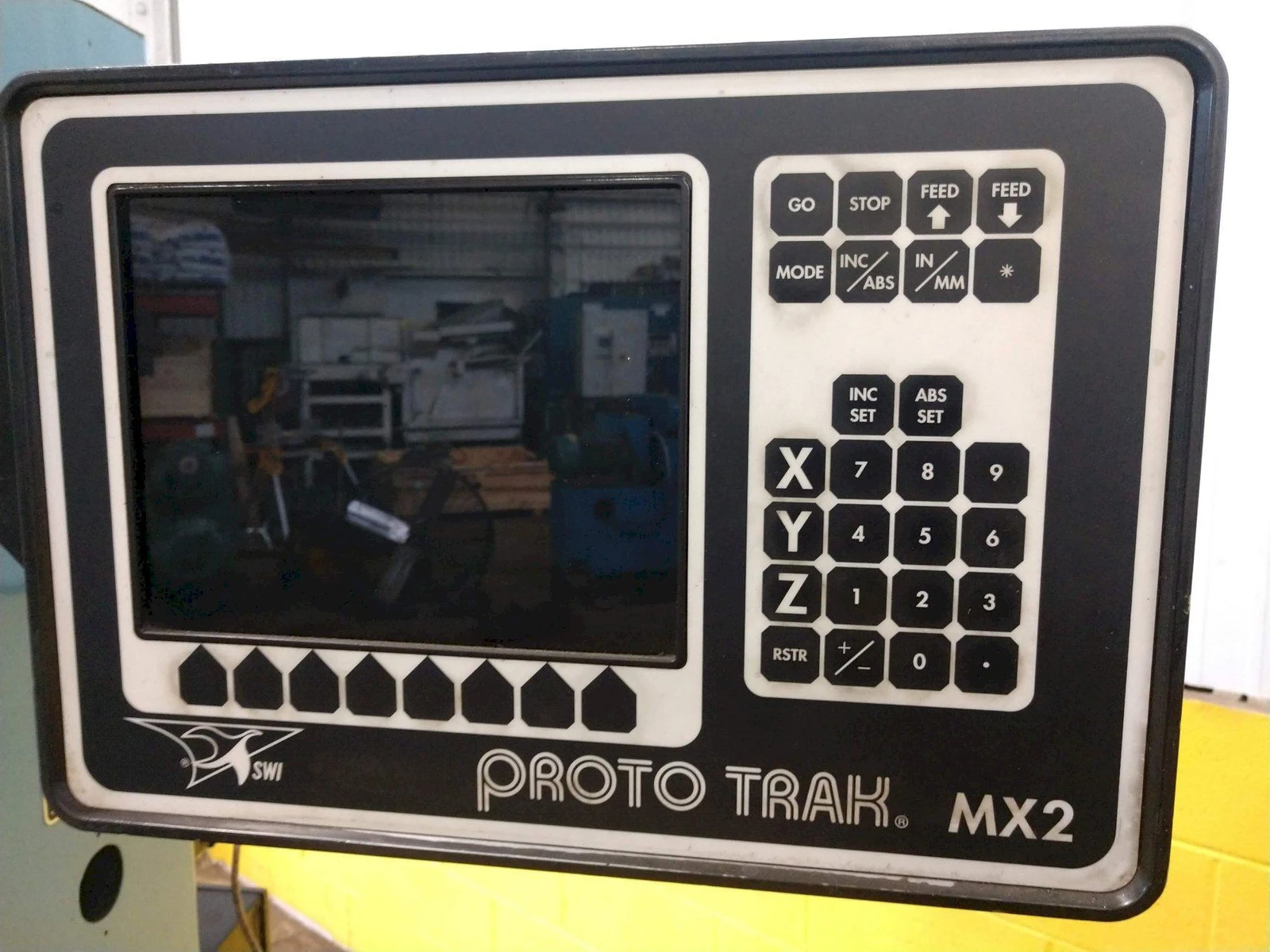

AUTOMATIC LUBRICATION SYSTEM ..... YES CONTROL .......................... TRAK MX2 SPINDLE DRIVE .................... 3 HP
|
