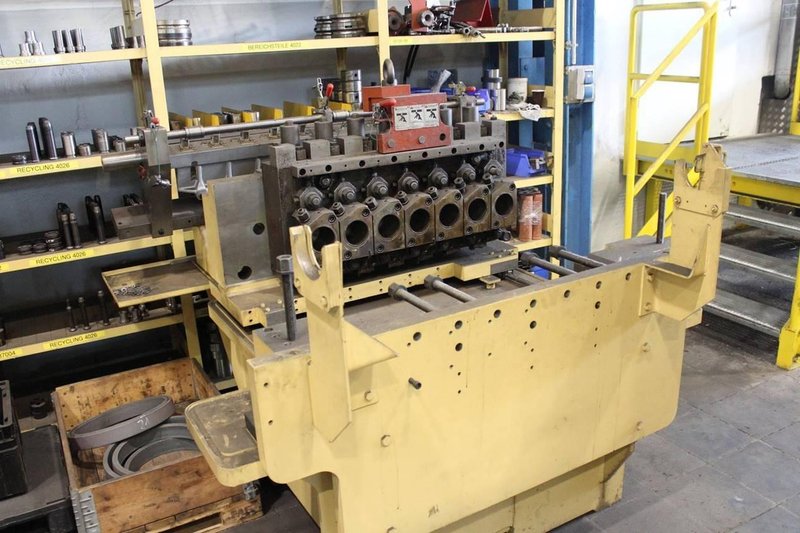

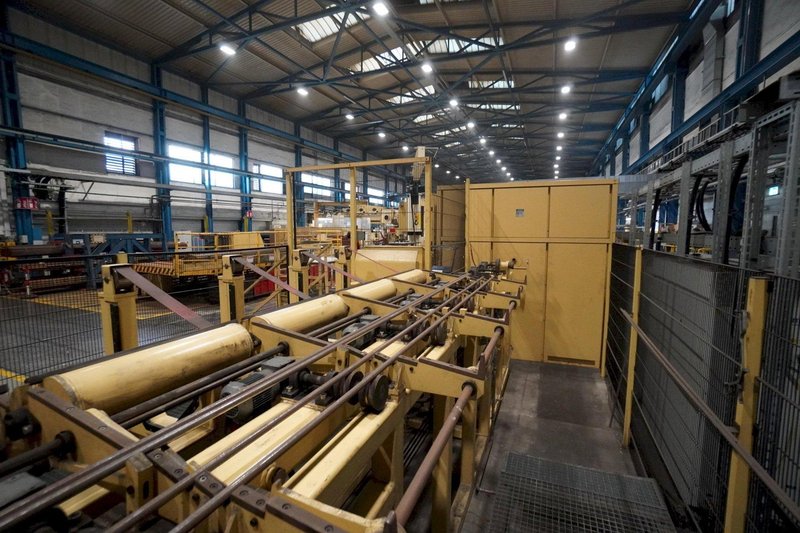

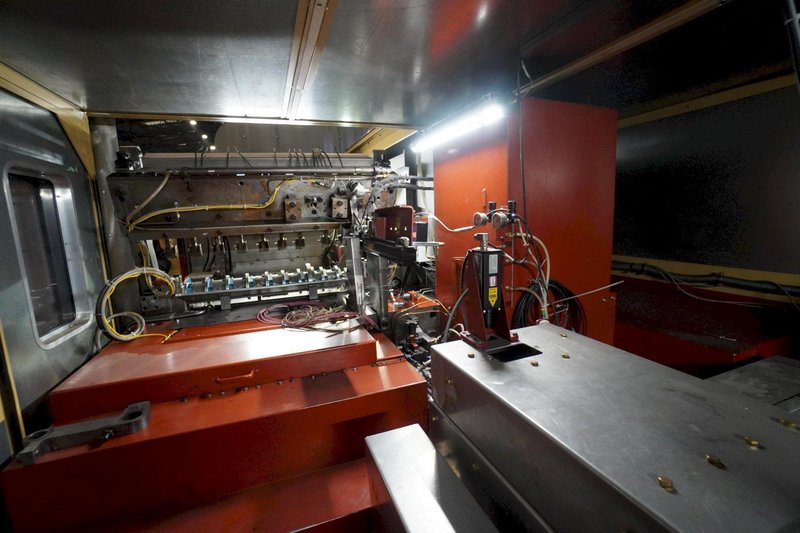

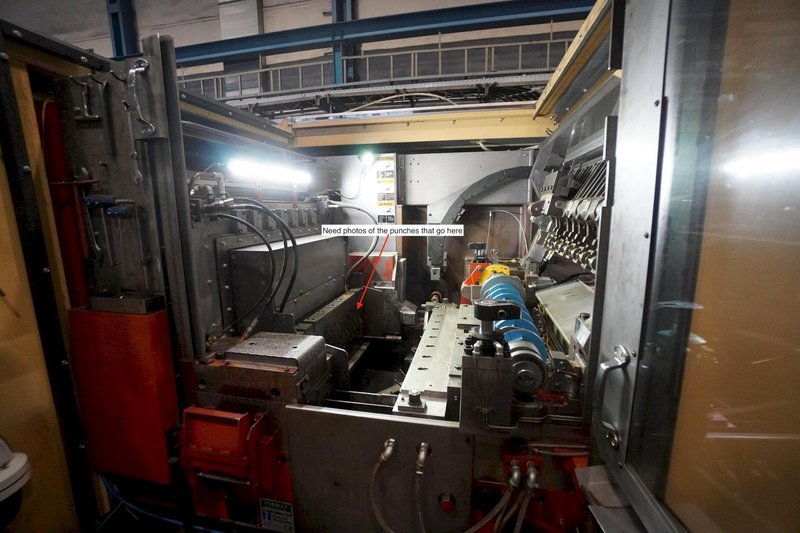

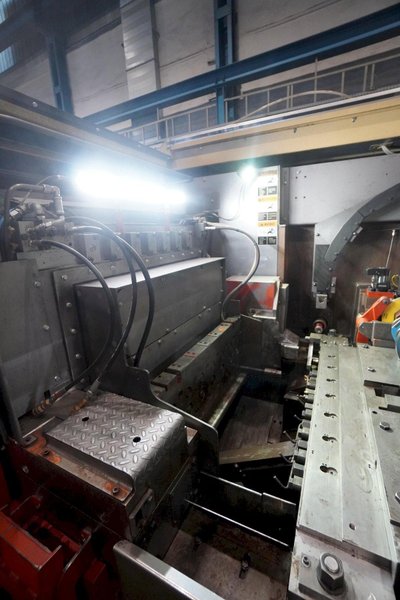

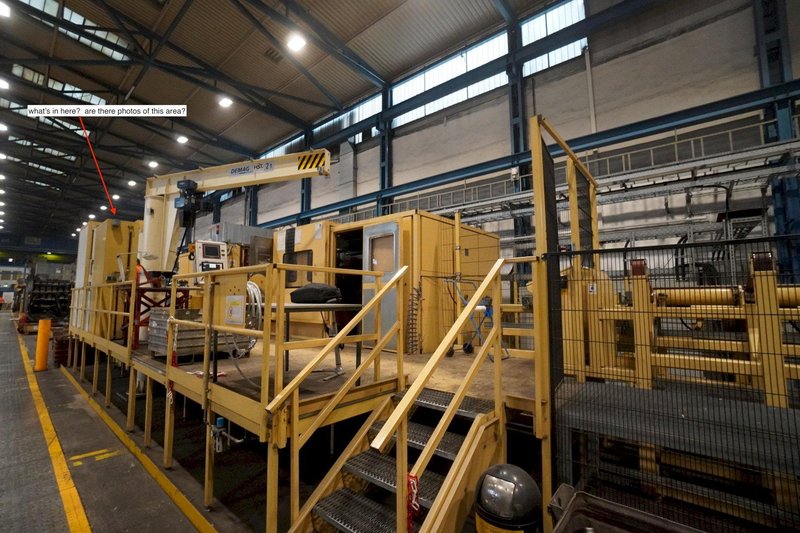

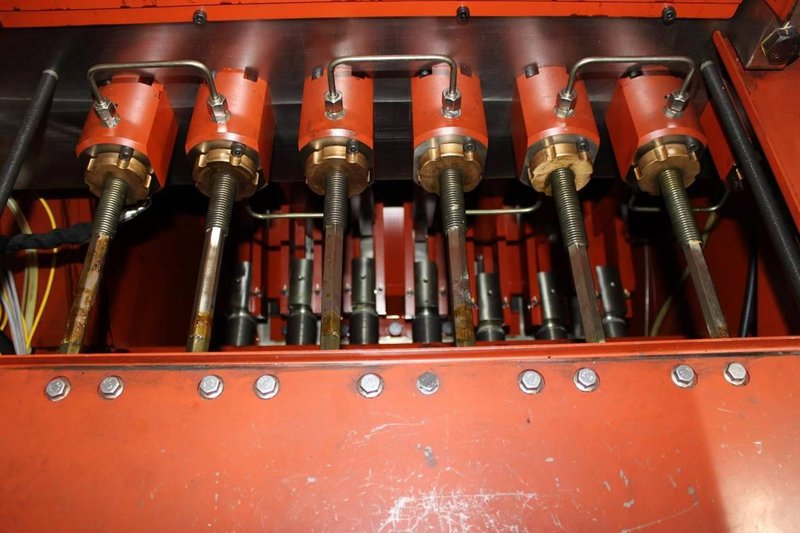

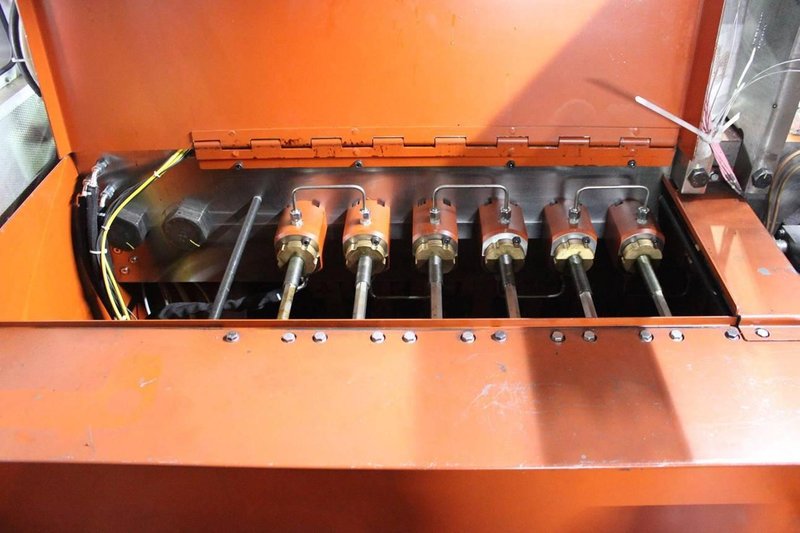

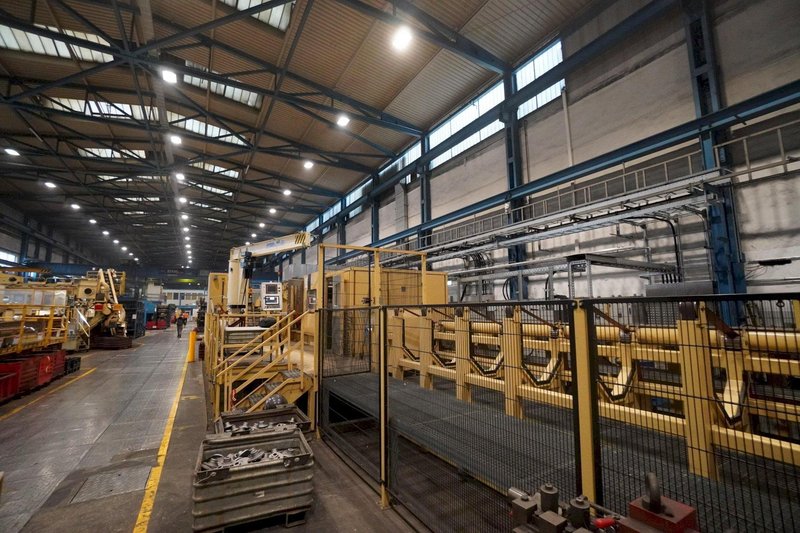

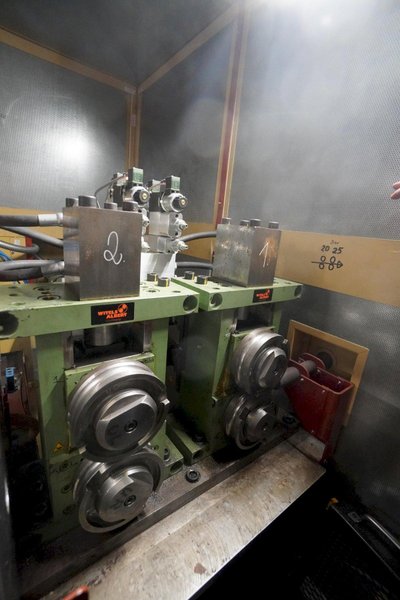

National Formax Model FXP57S Warm Former 7 Die Semi Hot Former
built 2017

National Formax Model FXP57S Warm Former 7 Die Semi Hot Former built 2017

Brand

National

Category

Fabricating Machines

Type

Formers, Hot Nut

Model

FXP57S

Stock #

12571

Year

2017

Condition

Used

Location

Auvergne

Specifications
Files & Videos

Maximum Cutoff Diameter T>300 Deg. C	22mm
Maximum Cutoff Diameter <300 Deg. C	17mm
Bar Diameter	14-22mm
Tonnage	2000 Kn
Maximum Tonnage per Station	1260 Kn
Heating Temp	750-1000 C
Number of Dies	7
Maximum Part Diameter	42mm
Maximum Feed Length	67mm
Minimum Feed Length	4,5mm
Maximum Die Kickout	75mm
Minimum Die Kickout	4
Maximum TKO	18-48
Die Diameter	90mm
Maximum Bullnose Die Diameter	115mm
Die Length	210mm
Tool Diameter	80mm
Maximum Bullnose Tool Diameter	80mm
Tool Length	210mm
Die Centers	116mm
Heading Slide Stroke	150mm
Speed (PPM)	175
Motor	55 Kw
Dimensions	3440mm W x 6700mm L x 3100mm H
Net Weight	43,500 Kg
Gross Weight	55,800 Kg

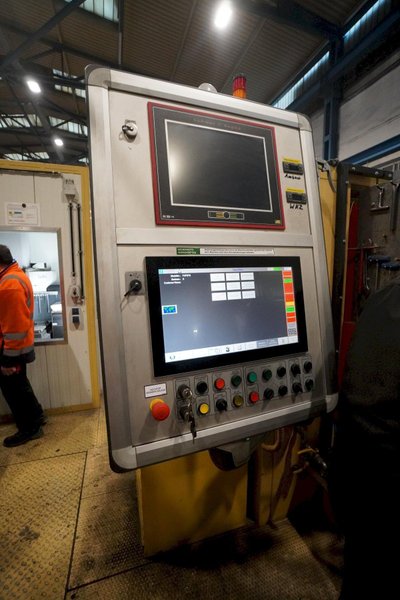

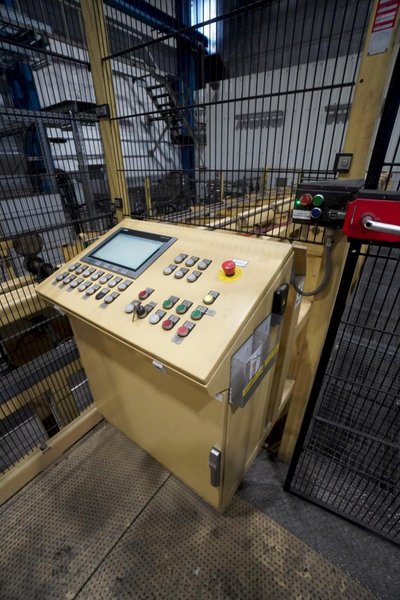

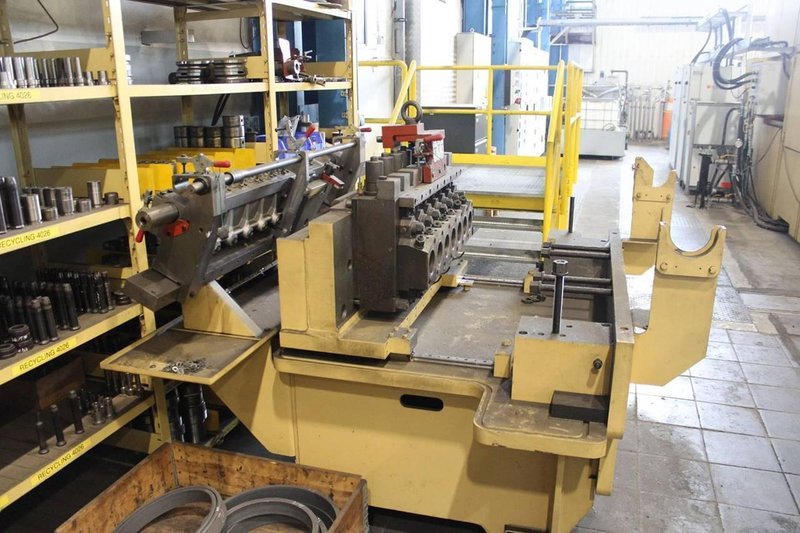

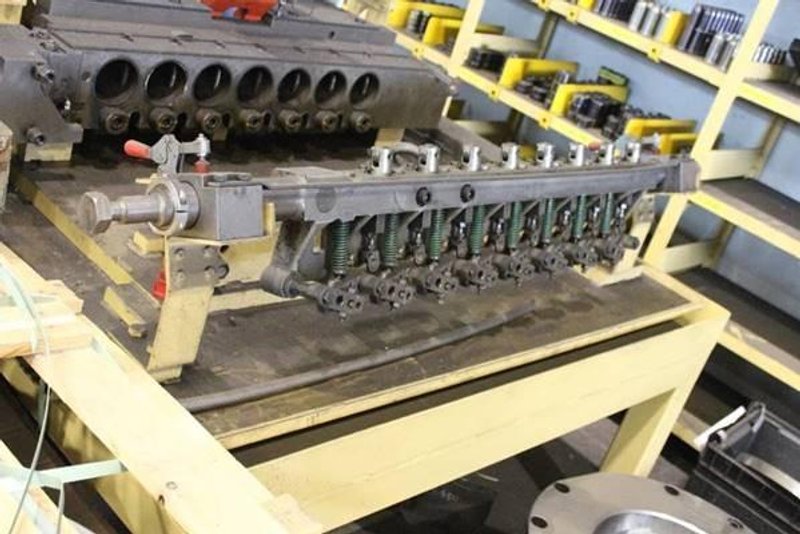

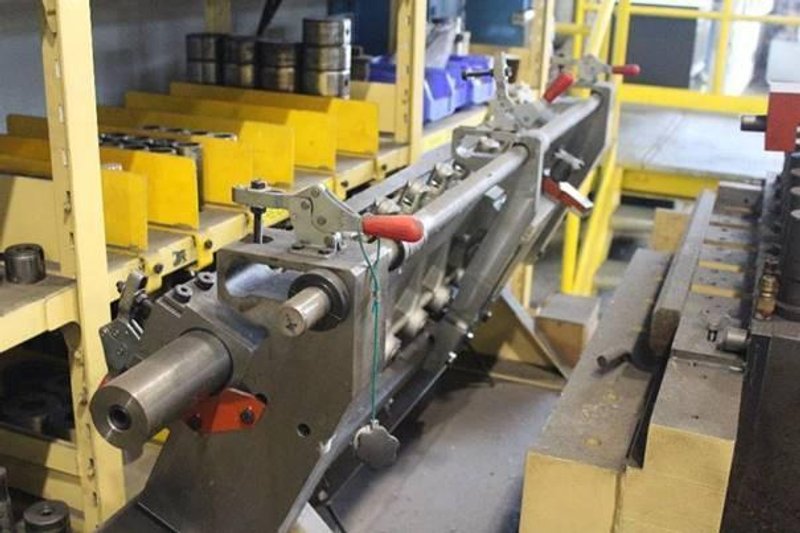

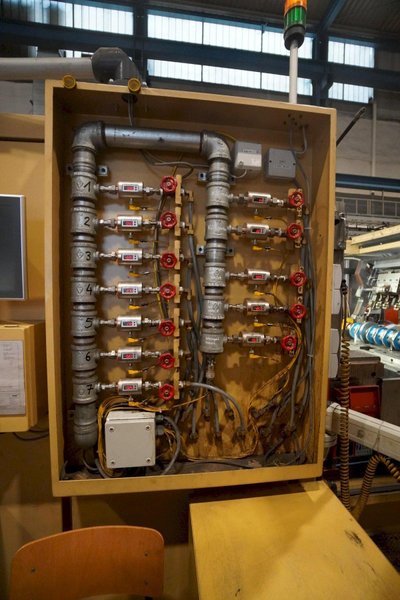

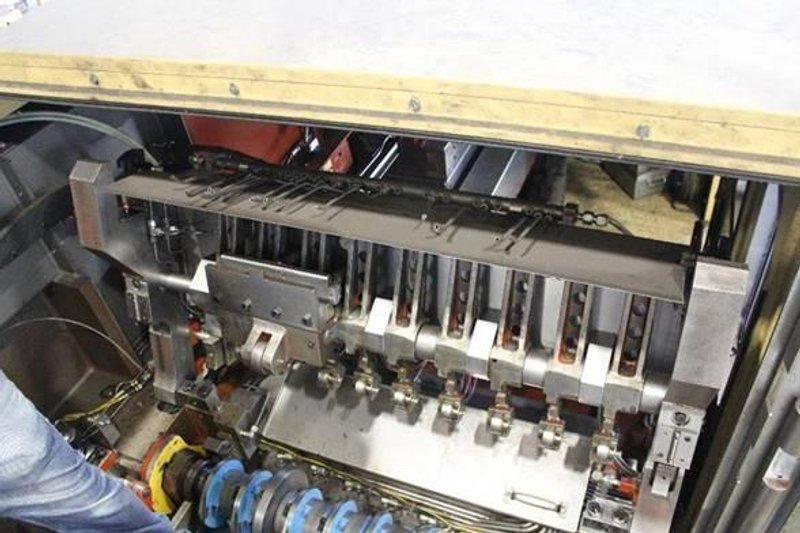

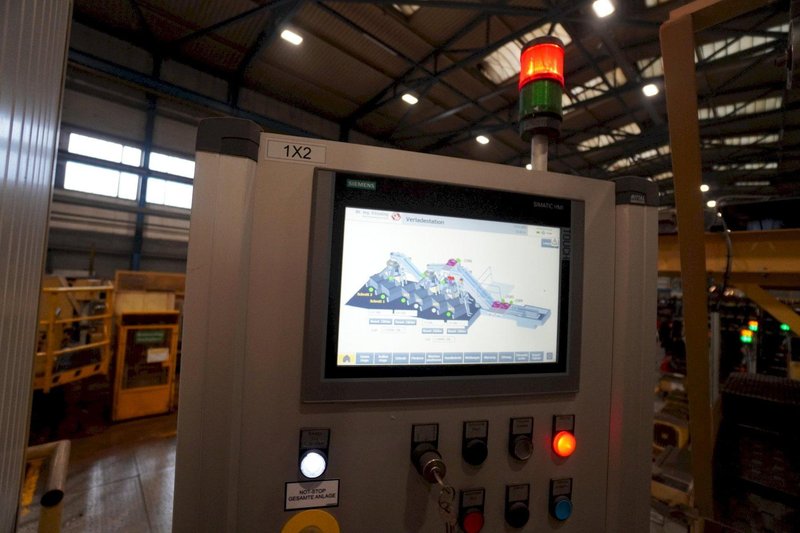

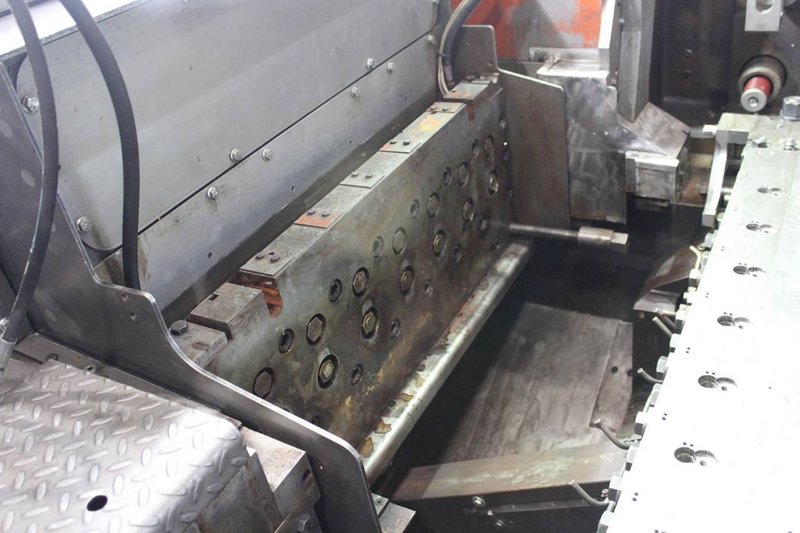

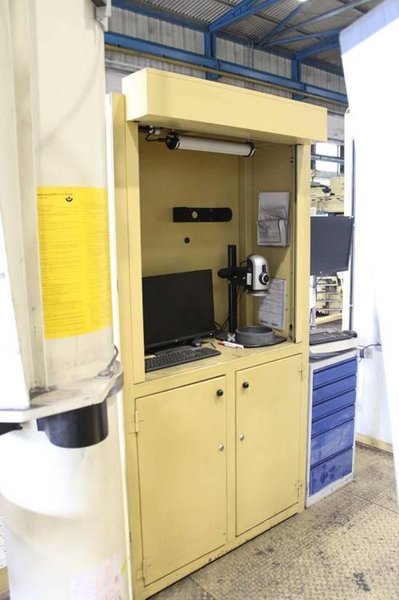

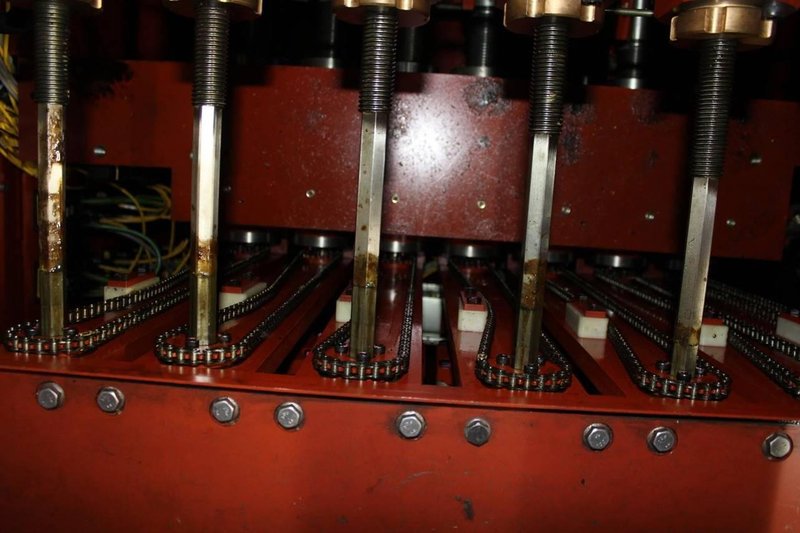

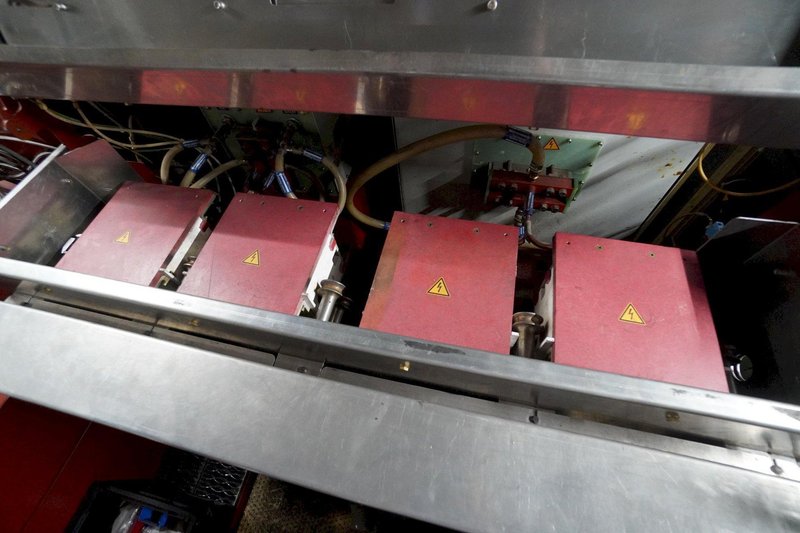

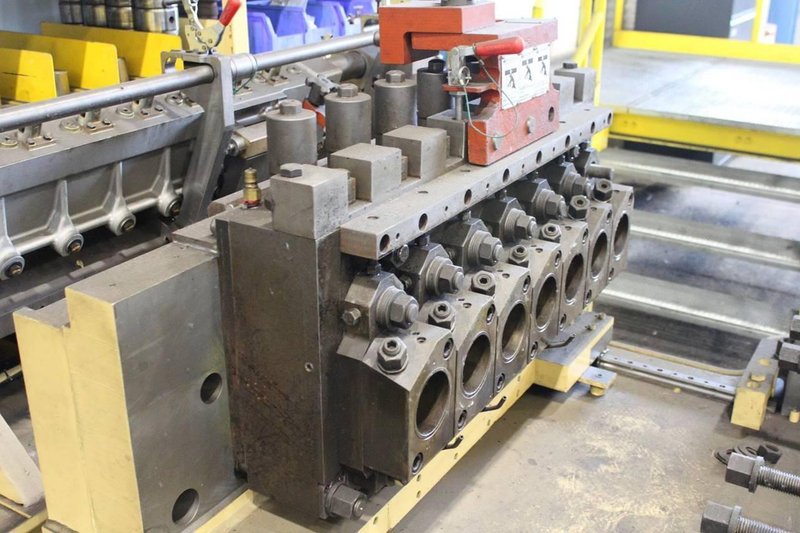

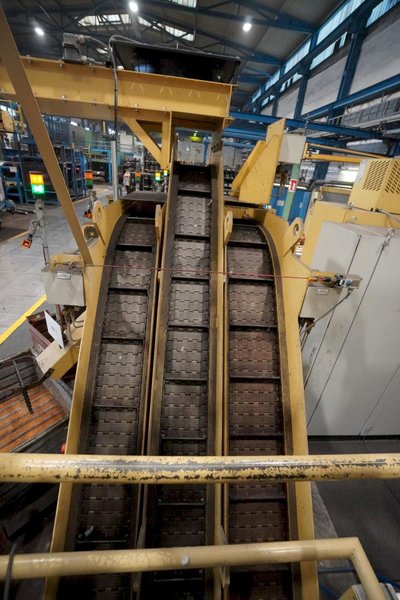

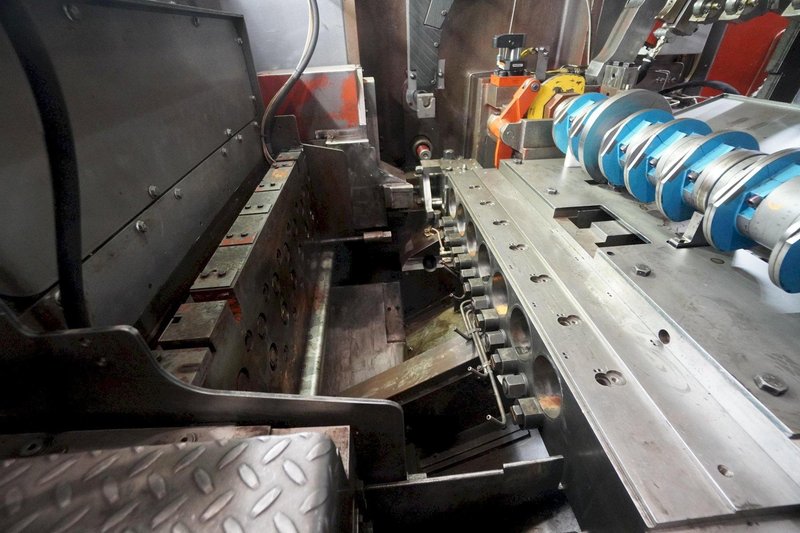

Machine Features: Alternate Blow Feed Capability Cutoff Blank Control Precision Zero-Clearance heading Slide Guiding System Quick Change FORMAPAK System, Including: Die Block, Cutter and Quill Park, Tool Pak, PMP Transfer Slide and Transfer Finger Opening and Closing Camshaft. PMP Transfer w/ Hydraulic Clamping Free Standing Operator Panel w/ Advanced FORMATROL PC Controls Computerized Adjustment of Feed and Die Kickout Length Adjustable Timed Kickouts in all Stations Air Clutch and Spring Set Brake Electrical Equipment w Frequency Controlled AC Drive Machine Lube System w Dual Filters Specialized High Volume Die Coolant System w Filters and Flow Monitors as Specified Safety Systems for Machine and Operator Free Standing Sound Enclosure Special Color Siemens S7-1500 PLC w/ ProfiNet I/O Documentation in English and German eWon Remote Diagnosis System Exhaust Blower (2) FormaPaks including: Die Block, IFO Camshaft, Cutterpak, Toolpak and Transfer Slide Formapak Setup Fixture Jib Crane Spare Part Package Integrated Induction Heating System up 1000 Deg. C Pre Heat Induction Coil: Ambrell, EKOHeat 375/10 Final Heat Induction Coil: Ambrell, EKOHeat 75/25 HD Individual Power System for Each Coil Induction Coils Adequately Isolated and Sealed 265 Kw/32 Deg.C Chiller 50Kw/37 Deg. C Heat Exchanger for Tool Cooling Chiller for Machine Cooling Circuit 50Kw/37 Deg. C Heat Exchanger for Tool Cooling Chiller for Internal Cooling Machine Closed loop Water Cooling Circuit for Machine Components Specialized Cutoff System ( lowered wireline) Automatic Blank Drop 3x Pyrometer Modified Sound Enclosure and Guards Integrated Electric Bar Feeder Servo Controlled Feeding System Automatically Adjusted Stock Gage System w/ Piezo Short Feed Sensor Automatic Retraction Bar when Machine Stops Automatic Pull Back After Each Feed Stroke (~1mm) Bar End Detection System Specialized Discharge System Slug Discharge @ 4th Die Discharge Inner Ring @ 5th Die Discharge Outer Ring @ 7th Die or at Outboard Transfer Position Automatic Sorter Gate ( diverts good parts to scrap) Method to Conveniently Obtain Sample Parts ( inner and outer races) Specialized Water Based Coolant System High Volume System Flow Monitors on Specific Lube Lines Containment of Coolant External Reservoir Water/Oil Separator Coolant Heat Exchanger Paint Free Die Are Specials Specialized Die Space Special Reduced Finger opening IFO Camshaft (42mm Grip Diameter) Various Electrical Specials Bar Magazine Rack Capacity Maximum Charge Weight: 3.0 to Bar Diameters: 14 to 22mm Bar Length: 6000mm Bar Material: Steel Supply Pneumatic Supply: 6 Bar Air Consumption: <20I/min. Electrical Supply: 3~,400V, 50Hz Voltage: 24V DC Dimensions W x H x L Belt Through: 600 x 2000 x 6500 mm Separation System: 1300 x 1800 x 8500 mm Ambient Conditions Humidity: Max. 90% Temperature: 0-50 Deg. C Noise Levels Noise Level of the Machine: <82dB(A) Colliding Bars: Max. 84 44dB(A) Conveyors Conveyed Material: a) Outer rings, b) inner rings, c) slugs Dimensions: a) D26/20 bis D42/34 x 9-15mm, b) D15/9 bis D30/20 x 9-15mm, c) D10-20 x 3-5mm thick Feed Rate: Each 175 St/Min Outer Rings 600 kg/h, Inner Rings 350 kg/h, Slugs 1,080 kg/h Weights: a) 18-138 gr b) 8078 gr c) 3-12 gr Press Trimming: 175 Strokes/Min Material: Steel 100 Cr6 Temperature: Up to Max. 1,000 Deg. C Part Feed: Customer Supplied Feed Chute Part Removal/ Discharge: in Henson Containers 1,050 x 950 x 650mm Load Monitoring Schwer & Kopka Control PC Sk800 15" Touch Screen Pressload Monitoring in Each Station Frame Load Monitoring 16 Analog Input Channels 5 Digital Input/Output Channels
