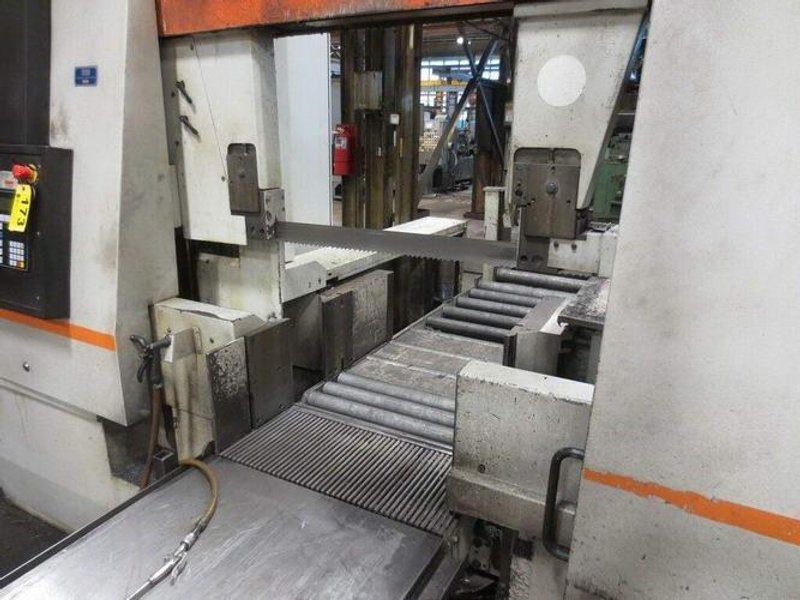

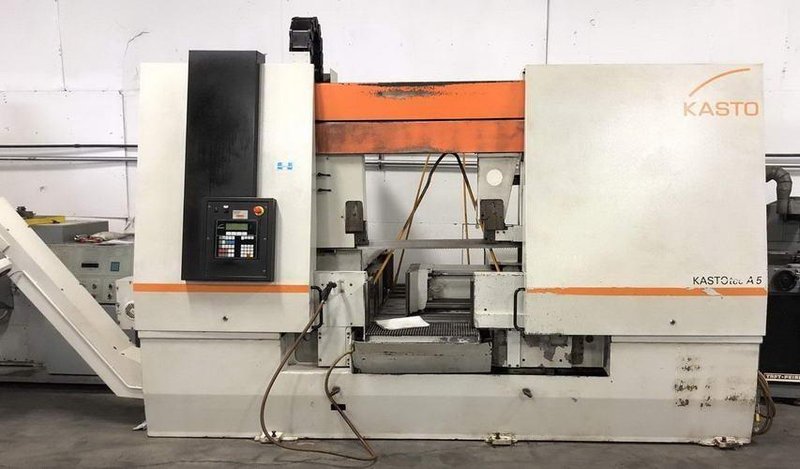

KASTO Kastotec A5 Programmable Horizontal Band Saw

KASTO Kastotec A5 Programmable Horizontal Band Saw

Name: KASTO Kastotec A5 Programmable Horizontal Band Saw
Brand: KASTO
SKU: 2132
Availability: InStock

Brand

KASTO

Location

Ohio

Specifications
Files & Videos

                KASTO Kastotec A5 Programmable Horizontal Band Saw

AGE: N/A

MODEL: KASTOTEC A5

SPECIFICATIONS:

       Cutting Range: 530mm x 630mm (20.8" x 24.8") / 530mm x

                        530mm (20.8" x 20.8") / 530mm (20.8")

       Cutting Range, Bundle: 530mm H x 630mm W (20.8" x 24.8")

       Clamping Range: 0 - 630mm (0 - 24.8")

       Smallest Dimension to be Cut: 10mm x 10mm (.39" x .39")

       Shortest Length of Residual Piece, Single Cut: 10mm (.39")

       Shortest Remenant Length, in Auto. Operation: 35mm (1.37")

       Shortest Cut-Off Length: 6mm (0.23")

       Cutting Speed: 12 - 20 M/ Min. (39.3 - 65.6 FPM)

       Material Feed Length, Individual Feed: 600mm (23.6")

       Multiple Feed: 9999mm (393.6")

       Clamping Force: 2,000 - 10,000 N

       Clamping Force of Feed Vice: 2,000 - 20,000 N

       Saw Blade Dimensions: 7675mm x 54mm x 1.3mm

EQUIPPED WITH:    Chip Conveyor

Motor Data: 9.5 KW Connected Load

              5.5 KW Saw Motor

              5.23 KW Running Wheel

NOTE: Can be seen under Power, Price includes loading onto truck

Overall Dimensions: 2225mm L x 5215mm W x 2415mm H
