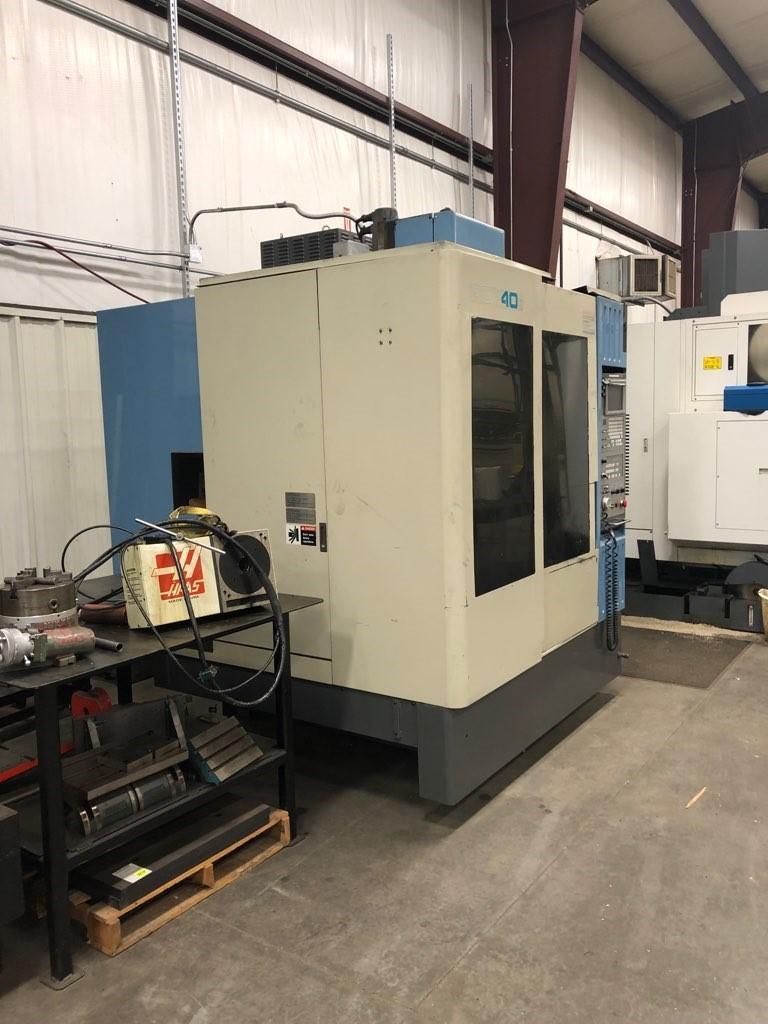

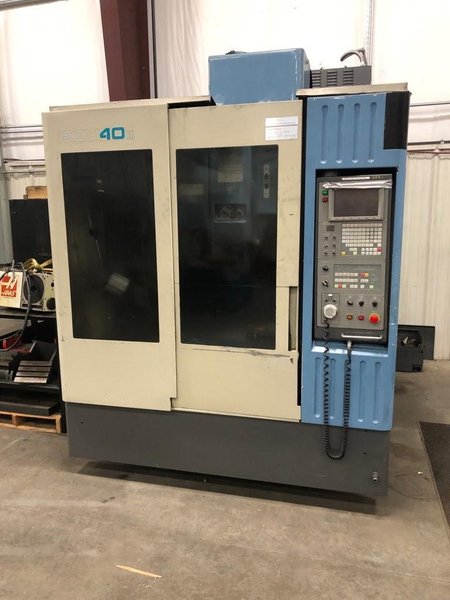

OKK PCV-40 II CNC Vertical Machining Center

Brand
Model
PCV-40II
Stock #
1704420
Year
Not specified
Condition
Not specified
Location
Ohio

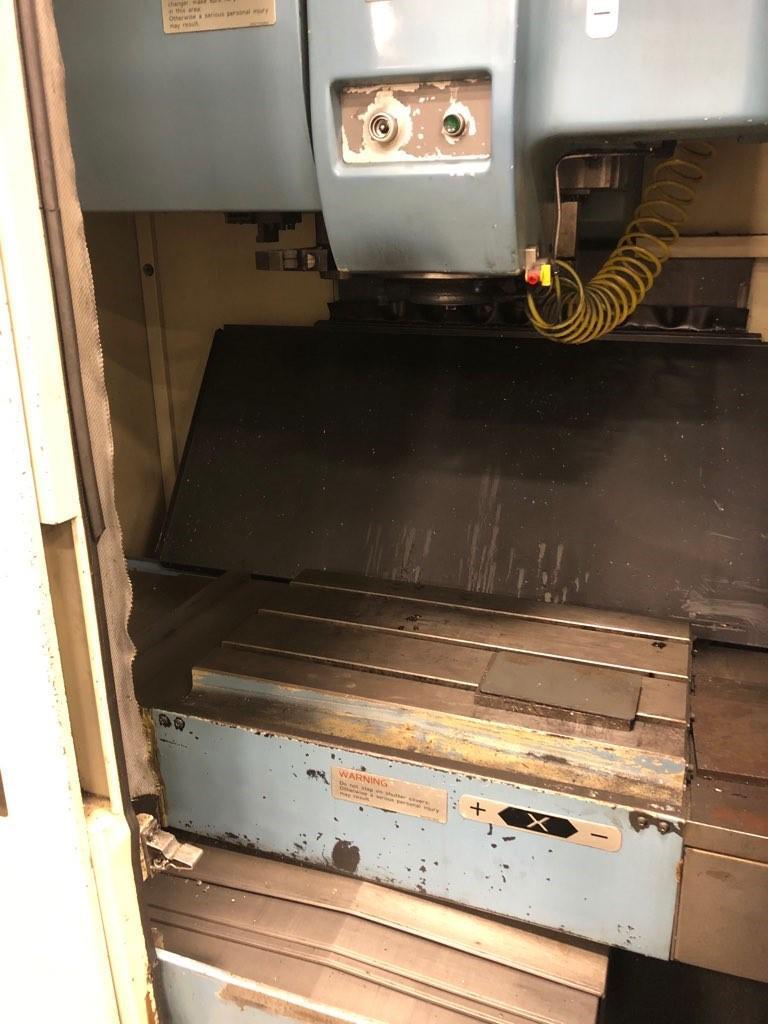

TABLE SIZE 28.35" x 16.14"
MAXIMUM TABLE LOAD 1,102 LBS
SPINDLE NOSE TO TABLE TOP 7.87" - 24.02"
X AXIS TRAVEL 22.05"
Y AXIS TRAVEL 16.14"
Z AXIS TRAVEL 16.14"
RAPID TRAVERSE RATE X & Y AXES 1181 IPM
RAPID TRAVERSE RATE Z AXIS 945 IPM
CUTTING FEED RATE 0.1 - 393 IPM
SPINDLE SPEEDS 100 - 10000 RPM
SPINDLE TAPER CAT 40
TOOL CHANGER CAPACITY (SIDE-ARM) 20 STATION ATC
TOOL CHANGE TIME (TOOL TO TOOL) 1.5 SECONDS
SPINDLE MOTOR 10 HP (DIRECT DRIVE)
MAXIMUM TOOL WEIGHT 16 LBS
WEIGHT, APPROX. 10,200 LBS
DIMENSIONS, APPROX. 78"L x 88"W x 107"H
Equipped With:

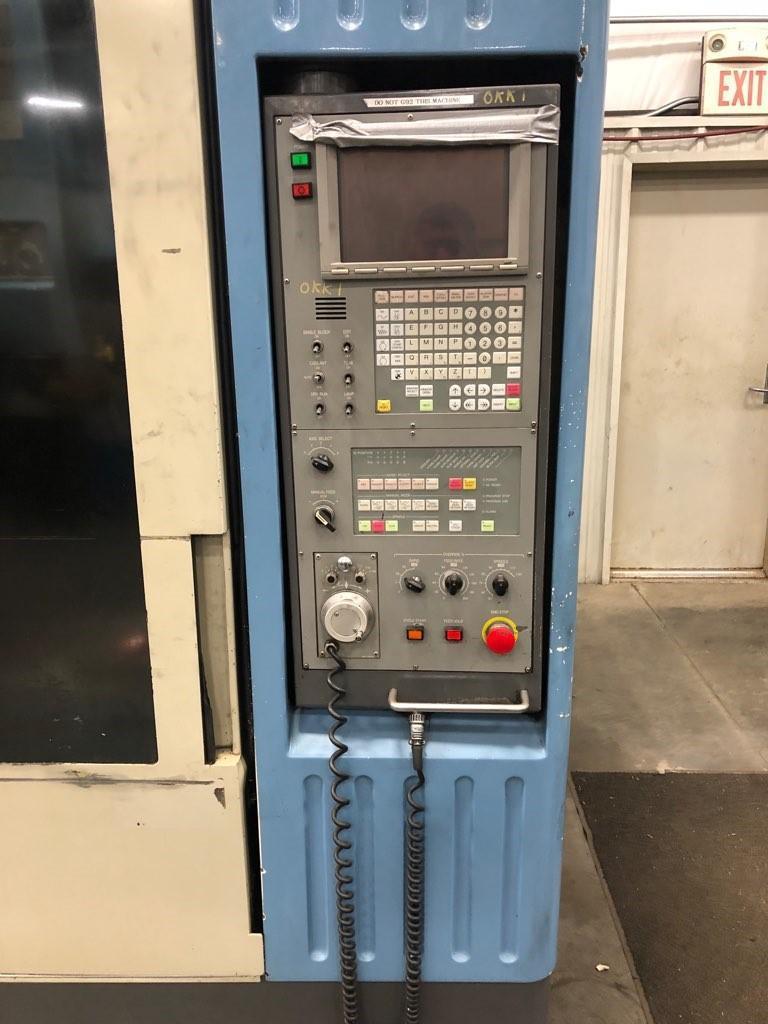

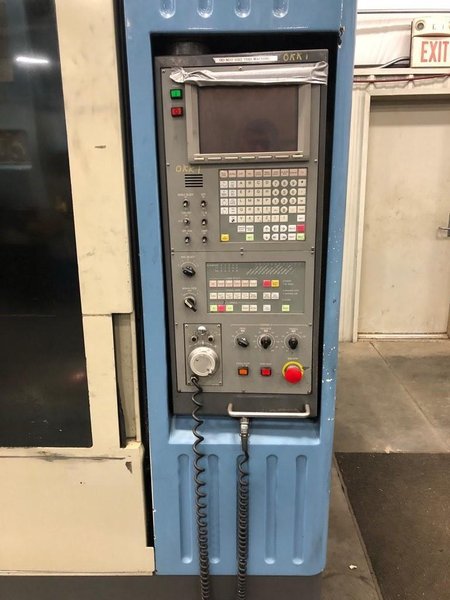

MITSUBISHI NEOMATIC 500M MELDAS CNC CTRL w/AUDIO FEATURE,
ETHERNET & RS-232 PORT INTERFACES FOR DNC OPERATIONS,
SONY GLASS LINEAR SCALES ON X & Y AXIS, GRAPHICS DISPLAY,
RIGID TAPPING (SYNCHRONOUS TAPPING / SOLID TAPPING),

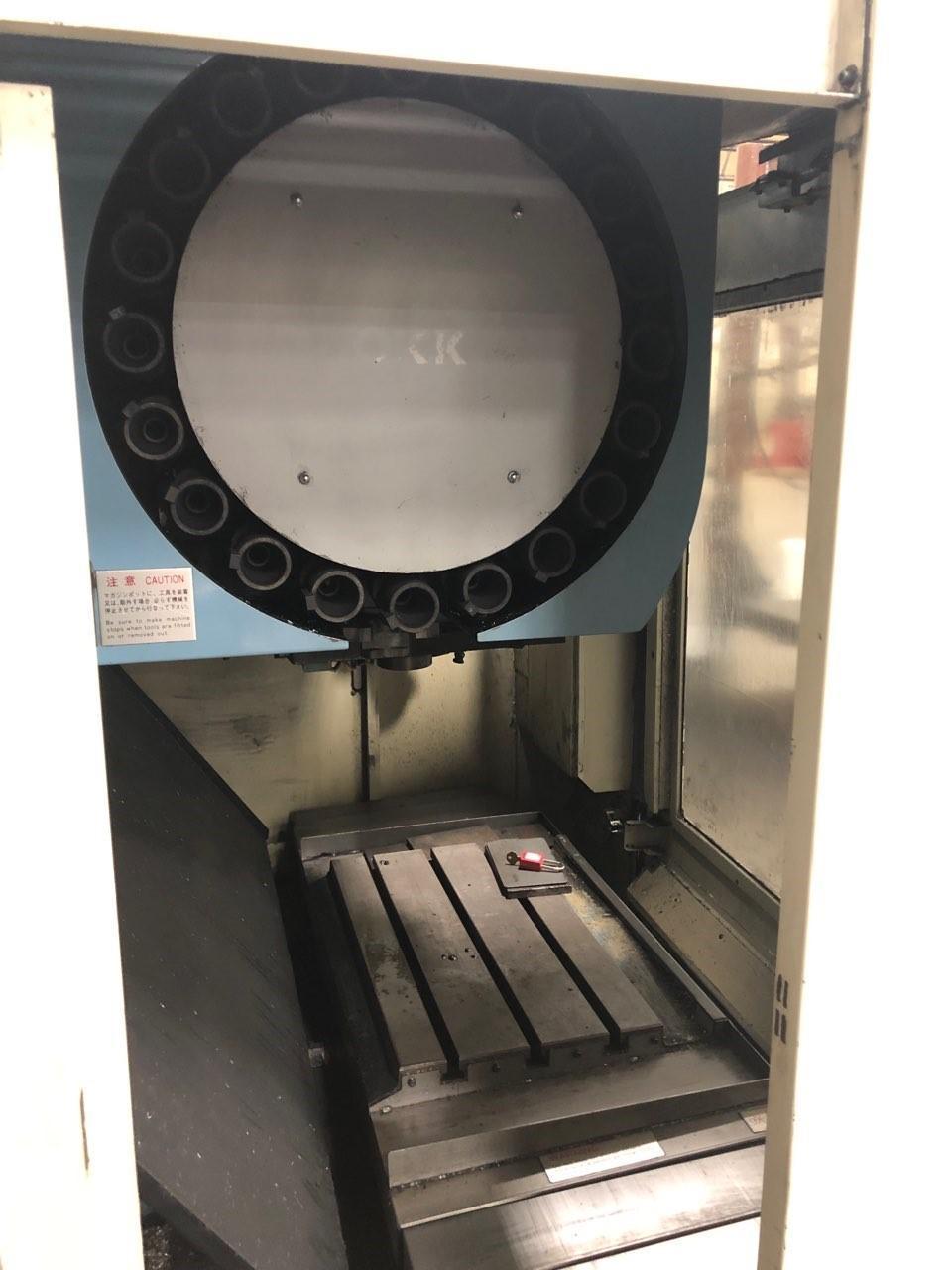

SWING ARM TOOL CHANGER,
CHIP WASHDOWN/CHIP-FLUSH FEATURE,
REMOTE PULSE GENERATOR HAND-WHEEL,
COOLANT SYSTEM AT SPINDLE w/TANK & PUMP,
FULLY ENCLOSED GUARDING, ALL AVAILABLE MANUALS
****BOX WAY DESIGN ON ALL AXIS****JAPANESE QUALITY****
