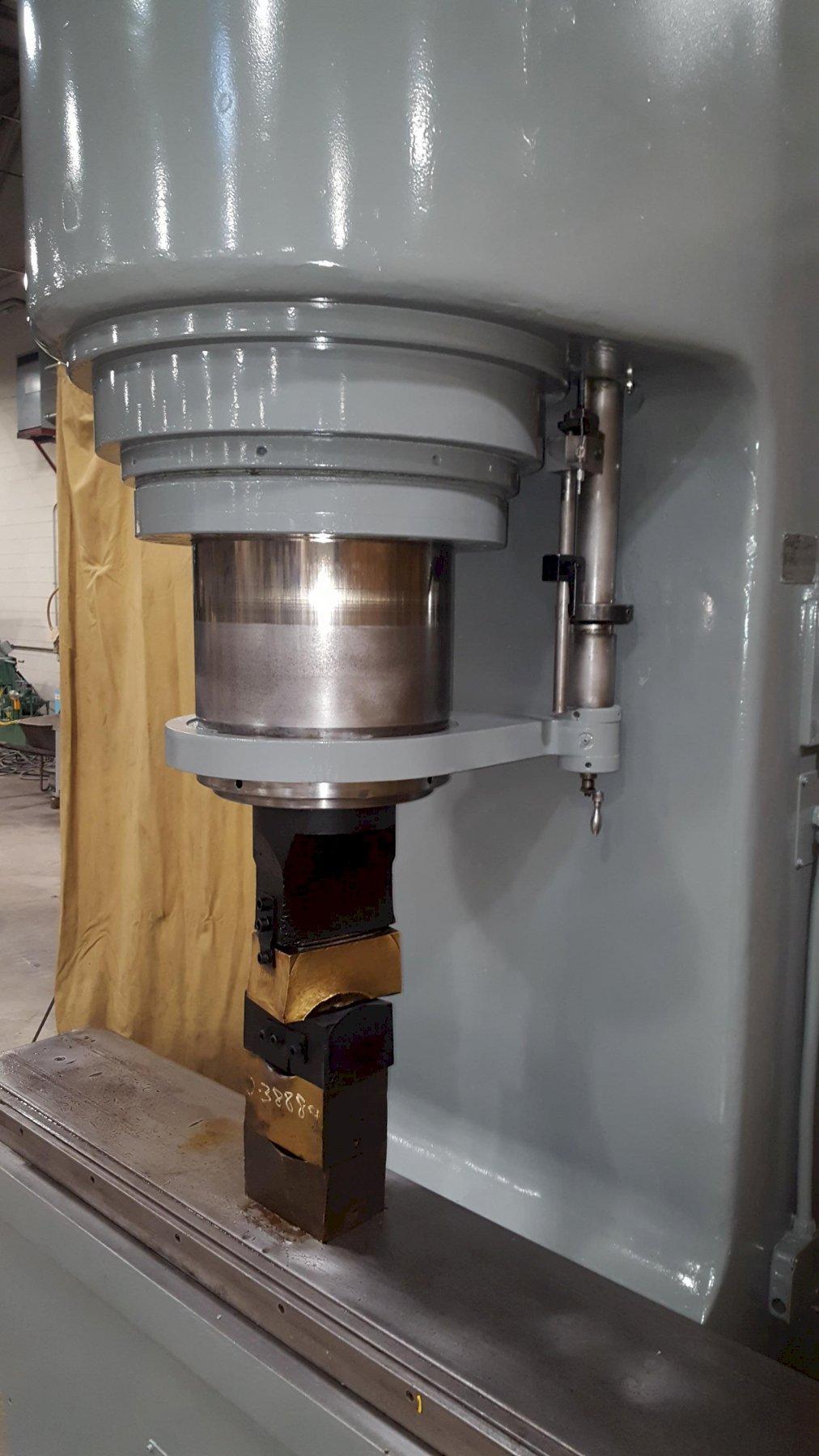

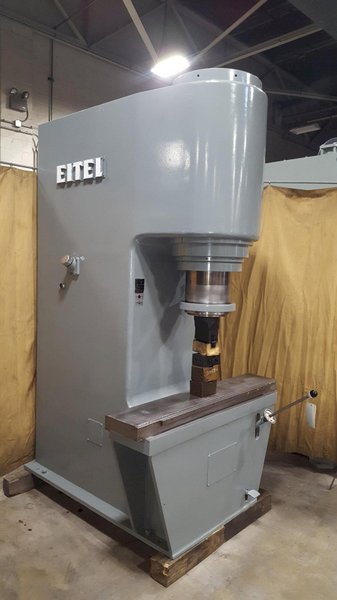

Eitel Model RP-200 Straightening Press
Brand
Category
Model
RP-200
Stock #
PP1317
Year
1977
Condition
Used
Location
Illinois
| Maximum Straightening Pressure | 220 Ton |
| Straightening Bed (L x W) | 59.875" x 10.75" |
| Length of Pressure Bearing Bed | 55" |
| Ram Speed Up | 215 IPM |
| Ram Speed Down | 60 IPM |
| Total Stroke | 10" |
| Controllable Straightening Stroke (Adjustable) | 0.875" |
| Daylight to Table, Maximum | 33" |
| Daylight to Table, Minimum | 13.75" |
| Depth of Throat | 13.75" |
| Front of Table to Face of Machine | 21" |
| Height of Table | 31" |
| Overall Height | 118" |
| Approximate Weight | 20,000 lbs |
|

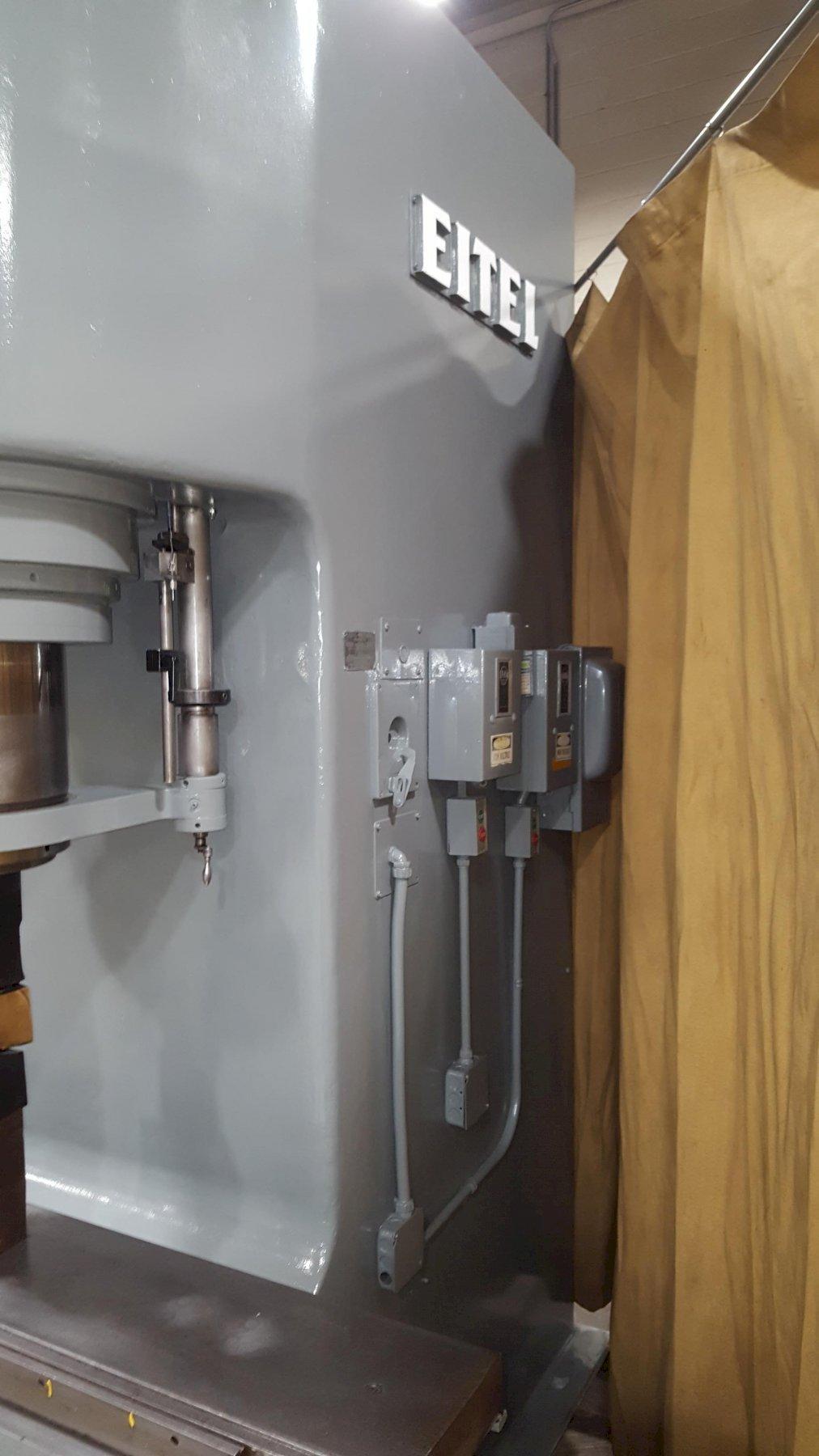

Motor Driven with 25 HP 3 Phase 60 Cycle AC Hydraulic Pump Drive. Complete Electrical Controls. Stroke Control Allowing for Fine Adjustment of the Lowest Position of the Ram Within the Last 20mm Of The Set Ram Stroke. Limitation Of Return Stroke For Presetting The Shortest Stroke To Suit The Job Thereby Reducing Operating Time.

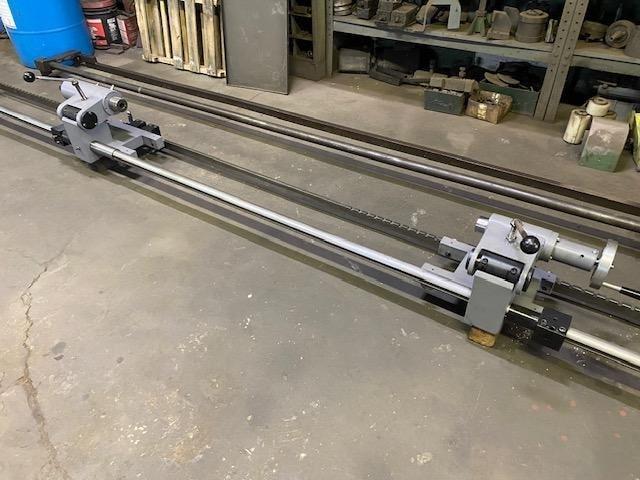

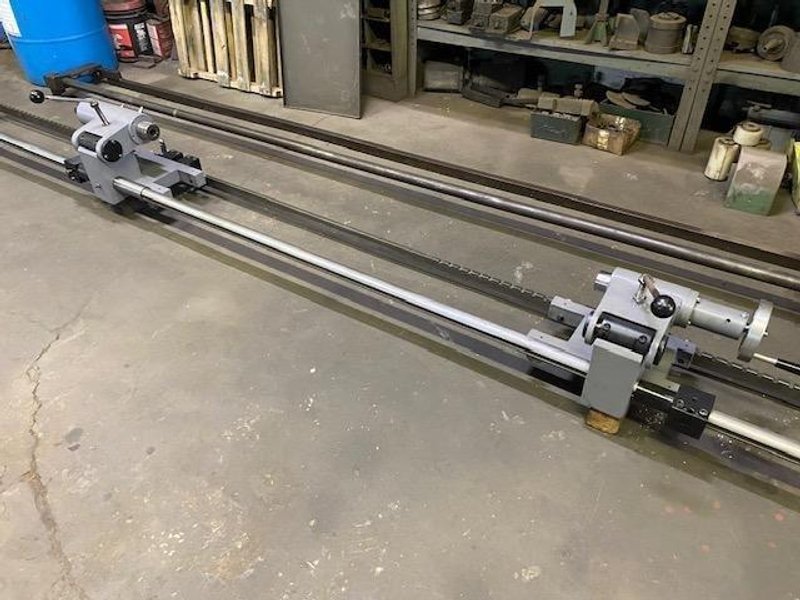

*Eitel WR-3 rolling parts fixture available at additional cost* |
|
