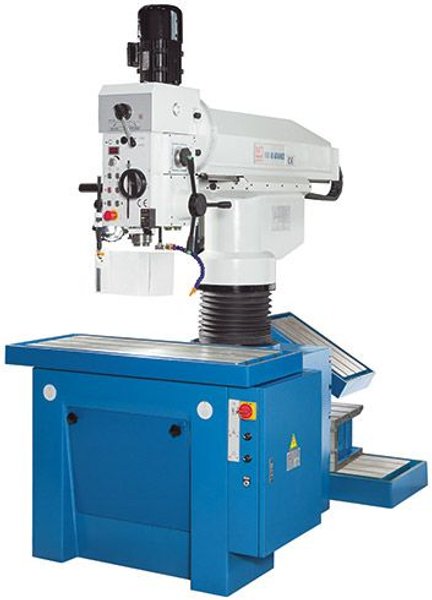

KNUTH MODEL KSR 40 ADVANCE RADIAL DRILL PRESS

Brand
KNUTH
Category
Drilling Machines
Type
Drills, Radial
Model
KSR 40 Advance
Stock #
16326
Year
Not specified
Condition
New
Location
Not specified

Working Area
Drilling capacity1.57 in
Tapping capacity, steelM 30
Throat37 in
Spindle nose-to-table surface distance31 in
Column stroke15 in
Quill stroke8 in
Head swivel range± 90¡
Column diameter9 in
Table set up area47x20 in
Number of T-slots3 positions
T-slots, width0.7 in
Travels
Upper beam travel23 in
Headstock
Spindle mount4 MT
Spindle speed (infinitely variable)50 - 2,000 rpm
Feed
Feeds(6) 0 - 0.02 in/R
Drive Capacity
Motor rating main drive3 Hp
Motor rating height adjustment2 Hp
Motor rating coolant pump0.5 Hp
Measures and Weights
Overall dimensions (length x width x height)68x48x89 in
Weight6,028 lbs
Part No. 162363

  • Powerful machine for drilling, tapping, countersinking and boring
  • Large travel ranges and many different machining stations provide maximum setup and machining possibilities
  • Extremely sturdy construction ensures high accuracy and reliability
  • Quick and precise tool positioning: hydraulic clamping is released by the push of a button, head easily swivels forward, backward and horizontally
  • Motorized up and down movement of drill head
  • Height can be adjusted without changing the drilling position
  • Provides great flexibility when machining large parts
  • Drill head swivels ±90 degrees
  • Automatic feed with depth stop trigger
  • Thick-walled column and large dimensions of all components ensure maximum accuracy
  • Digital boring depth display
  • Infinitely variable spindle speed with digital display and a digital drilling depth indicator provide extra convenience for the operator

  • digital speed indicator
  • additional setup areas at the side and rear

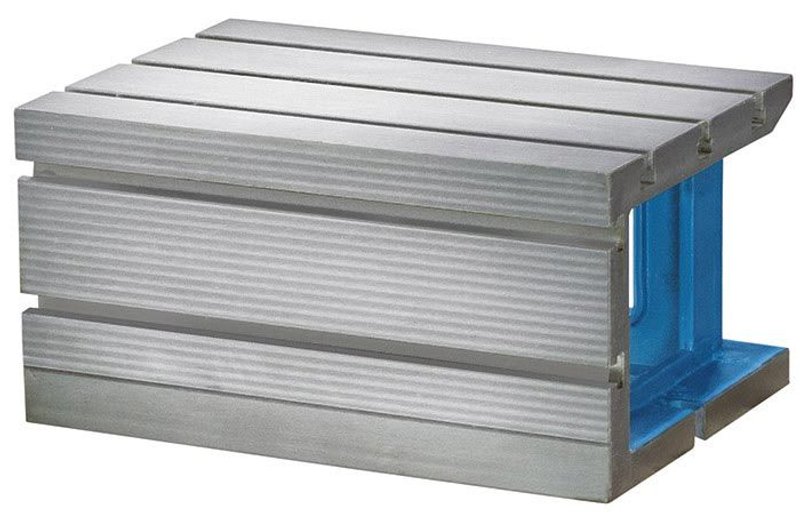

  • cube table
  • swiveling horizontal table
  • digital boring depth indicator
  • work lamp
  • coolant system
  • tapping unit
  • drill chuck with tool-holder bits
  • reducing sleeves
  • operating tools
  • operator manual
