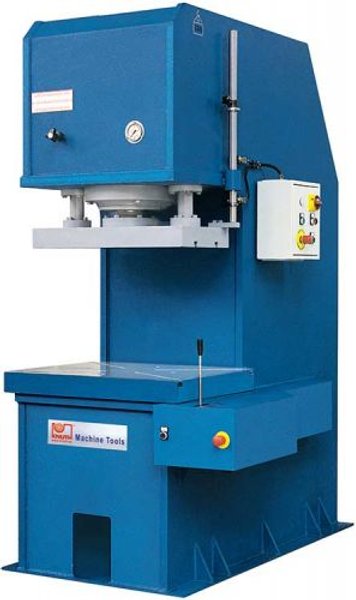

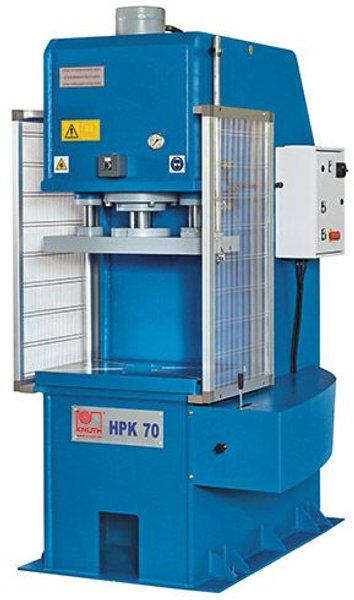

KNUTH MODEL HPK C-FRAME PRESS

Brand
KNUTH
Category
Presses (Stamping)
Type
Presses, C-Frame
Model
HPK
Stock #
16299
Year
Not specified
Condition
New
Location
Not specified
  HPK 100HPK 40HPK 70HPK 150
Working Area
Pressure force220,000 lbs88,000 lbs154,000 lbs330,000 lbs
Table dimensions31x24 in28x20 in28x20 in35x24 in
Stroke19.7 in
Ram-plate size28x14 in28x14 in28x14 in31x16 in
Stroke speed0.08 in/s0.16 in/s0.08 in/s0.12 in/s
Rapid Feed
Rapid feed52 in/min69 in/min47 in/min47 in/min
Measures and Weights
Overall dimensions (length x width x height)48x75x103 in40x60x99 in48x60x99 in60x87x119 in
Weight7,480 lbs3,300 lbs4,620 lbs12,100 lbs

  • Large ram plates and work tables for large workpieces or multiple clamping

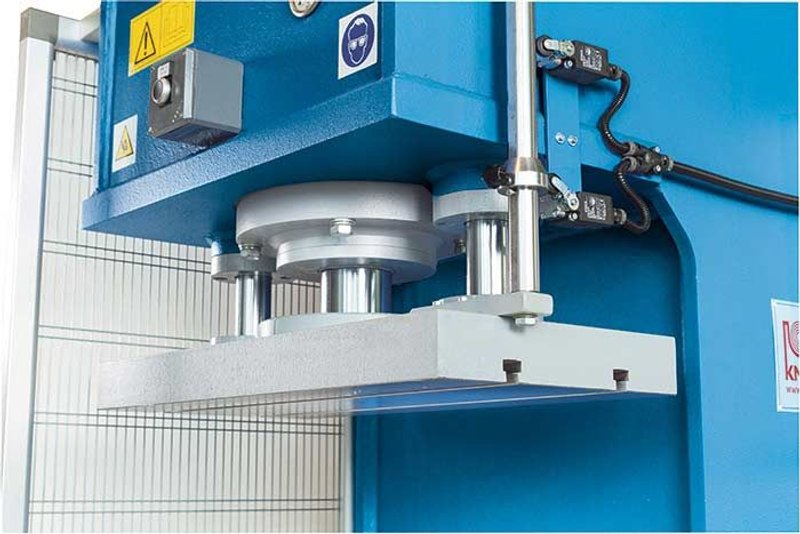

  • Strong hydraulic cylinder and two circular guides ensure uniform and precise feeding during press operation
  • Ideal for die pressing, blanking, bending and much more
  • Stroke length with quick adaption to next tool
  • Ram plate and work table with T-slots for tool clamping
  • Firmly bolted work table
  • Advance and reverse jog operation for easy machine set-up
  • Stroke limit adjustable by micro-switch
  • Optimum table height
  • 2-stage hydraulic pump

  • ram plate and work table with T-slots
  • adjustable ram stroke
  • pressure gauge
  • manual control lever
  • operator manual
