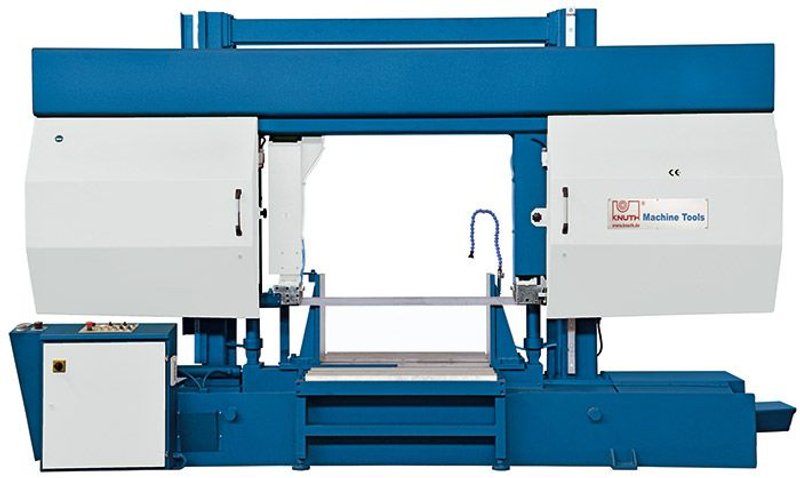

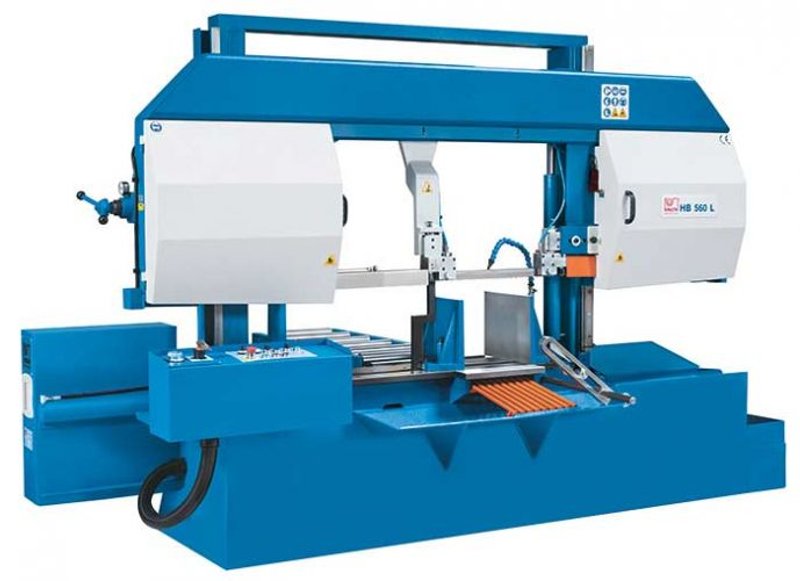

KNUTH HB L SERIES SEMI-AUTOMATIC HORIZONTAL BAND SAW

Brand
KNUTH
Category
Saws
Type
Saws, Bandsaws
Model
HB L
Stock #
16281
Year
Not specified
Condition
New
Location
Not specified
  HB 380 LHB 460 LHB 560 LHB 810 LHB 1020 L
Cutting Capacities
Cutting capacity 90¡ round15 in18 in22 in32 in40 in
Cutting capacity 90¡ - square15 in18 in22 in32 in40 in
Cutting capacity 90¡ - flat20x15 in26x18 in30x22 in32x33 in40x40 in
Cutting capacity 45¡ - round12 in15 in16 in32 in27 in
Cutting capacity 45¡ - square12 in15 in16 in32 in27 in
Cutting capacity 45¡ - flat12x15 in15x18 in16x22 in19x33 in27x40 in
Cutting speed65.4 - 327 fpm
Drive Capacity
Motor rating main drive4 Hp5.4 Hp5.4 Hp5.4 Hp10.1 Hp
Motor rating hydraulic pump0.7 Hp0.7 Hp1.5 Hp2 Hp3 Hp
Motor rating coolant pump0.2 Hp
Measures and Weights
Blade dimensions188.98x1.34x0.04 in204.72x1.61x0.05 in236.22x1.61x0.05 in322.83x1.61x0.05 in374.02x2.13x0.06 in
Overall dimensions (length x width x height)113x66x37 in123x71x40 in126x40x81 in154x48x93 in178x67x109 in
Weight2,530 lbs3,102 lbs3,850 lbs5,060 lbs12,892 lbs

  • Torsion-proof steel construction with dual-column guide Ð rigid and vibration absorbing
  • The saw frame features a mono-frame design for travel across large linear guides
  • Advanced hydraulic saw frame feed with new pressure regulating system (PAS) allows optimum adjustment for every sawing task: infinitely variable feed speed and cutting power control provide a wide spectrum of machining possibilities with just one saw blade type
  • The control valve features identifications and labeling for sheets, solid materials and various other material types to provide maximum user-friendly handling
  • Optical registration of the workpiece height allows fully automated empty runs in rapid feed mode for a timely optimum change-over to work feed as well as limiting the vertical saw frame travel and keeping down-times to a minimum
  • Every model of this series provides infinitely variable cutting speeds from 66 to 328 ft/min
  • Powerful, low-maintenance motors for high reliability
  • Hydraulic workpiece clamping is now standard equipment on all models
  • Pressure gauge ensures correct saw blade tension for increased blade life and lower cost

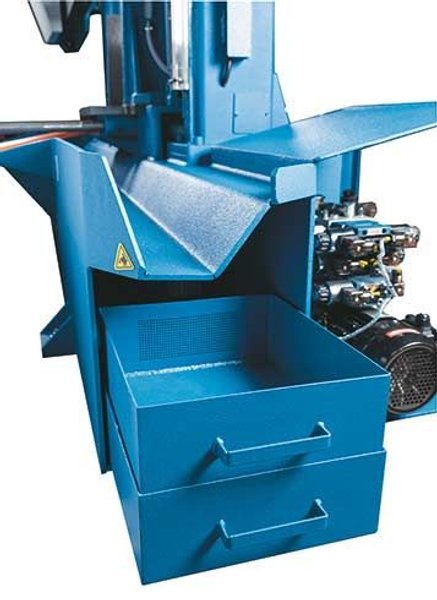

  • Removable coolant reservoir for simplified maintenance
  • Hydraulic saw blade tensioning (HB 810 L and 1020 L)

  • bimetallic band saw blade
  • hydraulic part clamping
  • hydraulic workpiece clamping
  • input / output rollers
  • automatic stroke height adjustment
  • automatic stroke height adjustment
  • coolant system
  • infinitely variable cutting speed
  • operator instructions
