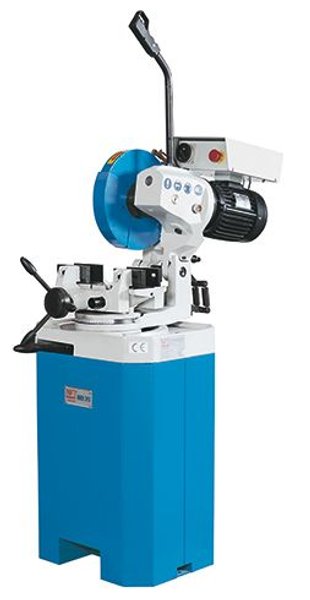

KNUTH KKS T CIRCULAR SAW

Brand
KNUTH
Category
Saws
Type
Saws, Circular Cold
Model
KKS T
Stock #
16245
Year
Not specified
Condition
New
Location
Not specified
  KKS 315 TKKS 250 TKKS 275 TKKS 350 T
Working Area
Max. saw blade diameter12 in10 in11 in14 in
Shaft diameter1.6 in1.3 in1.3 in1.3 in
Speed18/36 rpm42 rpm42 rpm18/36 rpm
Width of vise6 in4 in4 in6 in
Working height38 in
Cutting Capacities
Cutting capacity 90¡ round4 in2 in3 in5 in
Cutting capacity 90¡ - square4 in2 in3 in4 in
Cutting capacity 90¡ - flat6x4 in3x2 in4x2 in6x4 in
Cutting capacity 45¡ (round) L4 in2 in3 in4 in
Cutting capacity 45¡ (square) L4 in2 in2 in4 in
Cutting capacity 45¡ (flat) L4x4 in2x2 in3x2 in4x4 in
Cutting capacity 45¡ (round) R4 in2 in3 in4 in
Cutting capacity 45¡ (square) R4 in2 in2 in4 in
Cutting capacity 45¡ (flat) R4x4 in2x2 in3x2 in4x4 in
Drive Capacity
Main motor rating0,75 / 1,3 Hp1,1 Hp1,1 Hp1 / 1,7 Hp
Measures and Weights
Overall dimensions (length x width x height)37x23x71 in37x19x68 in37x19x71 in39x23x73 in
Weight499 lbs315 lbs326 lbs519 lbs

  • Easy operation, rugged design, and precise angular cuts make this circular cold saw a Òmust-haveÓ basic for any workshop
  • The entire series is ideally suited for cutting solid materials, tubes, and sections of steel, iron, and light metals
  • The operator guides the cut via a hand-lever, where the ON/OFF switch is integrated ergonomically into the hand grip
  • The models KKS 250 and 275 T provide a rigid vise with quick-action clamping feature and are ideal for small batch productions

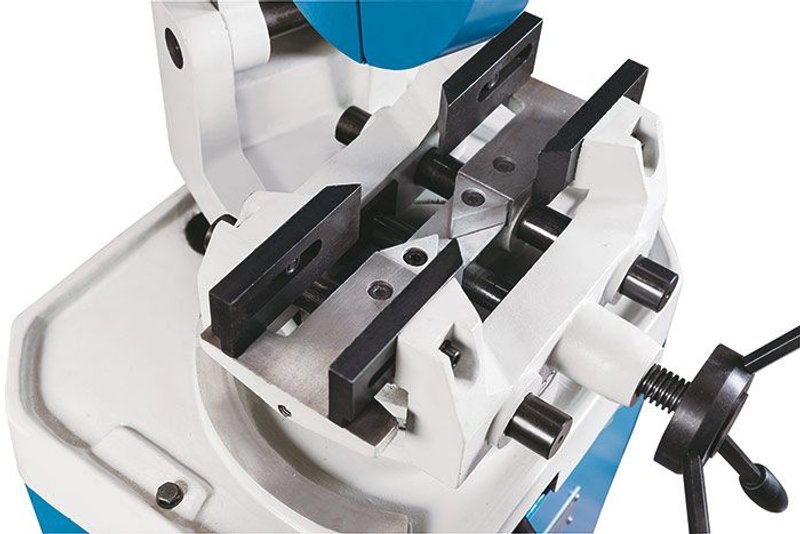

  • KKS 315 T / KKS 350 T feature a self-centering dual vise that hold the workpiece firmly on both sides of the saw blade
  • The miter can be adjusted up to +/- 45 degrees by rotating the gear head
  • The selected angle adjustment is fixated via a central clamping lever that is integrated into the machine frame
  • All models have high-torque motors, and the KKS 315 and 350 T also have reversible poles and 2 speeds
  • A large idler gear runs in an oil bath for low maintenance and minimal wear
  • The rugged machine base allows a space-saving machine setup
  • An integrated coolant system is part of the standard equipment on all models

  • Self-centering vise
  • base
  • coolant system
  • 1 saw blade
  • linear stop
