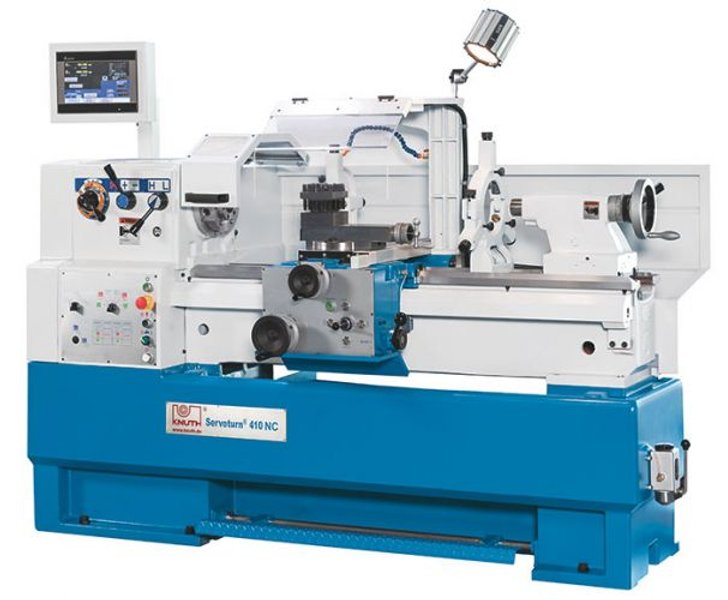

KNUTH "Servoturn 410 NC" SERVO/CONVENTIONAL LATHE

Brand
KNUTH
Category
Lathes & Turning Machines
Type
Lathes, Servo/Conventional
Model
Servoturn 410 NC
Stock #
16187
Year
Not specified
Condition
New
Location
Not specified

Working Area
Center width40 in
Turning diameter over bed16 in
Turning diameter over support9 in
Turning diameter without gap bridge20 in
Bed width12 in
Travels
Travel X-axis9.4 in
Travel Z1-axis5 in
Headstock
Spindle speed(12) 30 - 2,000 rpm
Spindle bore2 in
Spindle mountD1/6
Spindle taper MT 6
Feed
Feed X-axis0.00039 - 0.07874 in/R
Feed Z-axis0.00039 - 0.07874 in/R
Tapping
Tapping, metric0.02 - 14 mm
Tapping, diametric6 - 100
Tapping, module0 - 0.2 in
Tapping, withworth2 - 100 TPI
Leadscrew1.26x0.24 in
Tailstock
Tailstock taperMT 4
Tailstock quill diameter2 in
Tailstock quill stroke5 in
Drive Capacity
Motor rating main drive5 Hp
Motor rating coolant pump0.1 Hp
Measures and Weights
Overall dimensions (length x width x height)87x39x48 in
Weight3,850 lbs
Part No. 470546

  • A heavy ribbed machine bed and a massive one-piece cast-iron frame provide the solid basis for this machine
  • Wide, hardened and ground guideways ensure superior turning results and long life
  • Removable bridge allows machining of workpieces with larger diameters
  • The massive headstock is equipped with a large main spindle that runs on two high-capacity tapered roller bearings and one grooved ball bearing
  • The main drive features a wide speed range with 12 gear steps that easily can be selected via shifting
  • Feeds, thread types, and contours are designed simply and intuitively with electronic selection via a headstock-mounted rotary switch
  • In addition to standard machining tasks with extensive thread options, this machine can be used for turning tapers and radii

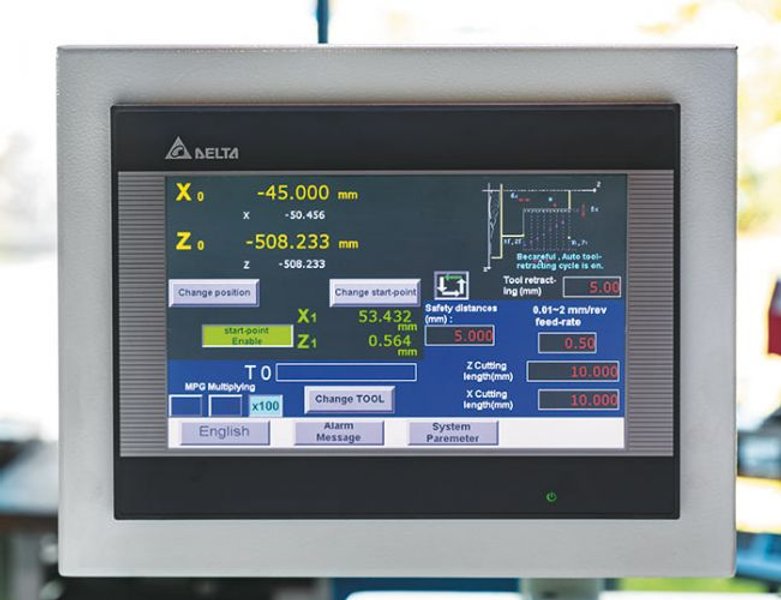

  • Values for travel distances, feed speeds, and thread leads are input via touchscreen at the control
  • Micro-control via electronic hand-wheels offering the same handling and postioning as with a conventional machine, just smoother and more precise
  • Ball screws in Z and X axes ensure considerably less errors due to loseness (backlash), resulting in significantly higher precision
  • A manual central lubrication system simplifies maintenance and supplies all guideways with lubricant

  • delta servoconventional CNC control
  • fixed splash guard (wall)
  • chuck guard
  • protective shield for support
  • steady rest
  • follow rest
  • coolant system
  • leadscrew cover
  • work lamp
  • manual central lubrication
  • 4-station tool holder
  • fastening bolts
  • operator instructions
