KMT B 1304 NC | KMT B 2552 NC | KMT B 2554 NC |
Working Area | Structural steel plate thickness | 0.03 - 0.16 in | 0.03 - 0.08 in | 0.03 - 0.16 in | Working length | 51 in | 100 in | 100 in | Cutting angle | 2.4 deg | 1.6 deg | 1.8 deg | Strokes per minute (automatic mode) | 30 | Knife length | 53 in | 101 in | 101 in | Work table height | 33 in | Support arms | 23.62 in | Number of support arms | 5 positions | Back Gauge | Rear stop | 25 in | Drive Capacity | Motor rating main drive | 5.4 Hp | 5.4 Hp | 10.1 Hp | Measures and Weights | Overall dimensions (length x width x height) | 69x72x47 in | 119x71x49 in | 121x74x50 in | Weight | 2,981 lbs | 4,180 lbs | 5,500 lbs |
Machine Frame and Drive System - The machine frame is made of a robust steel weldment treated with stress-relief annealing
- An automatic hold-down fixates the plate during cutting
- The double-edged upper and lower knives can be rotated and reused
Material Support - The rigid side angle stop simplifies alignment of the plate to the cut line

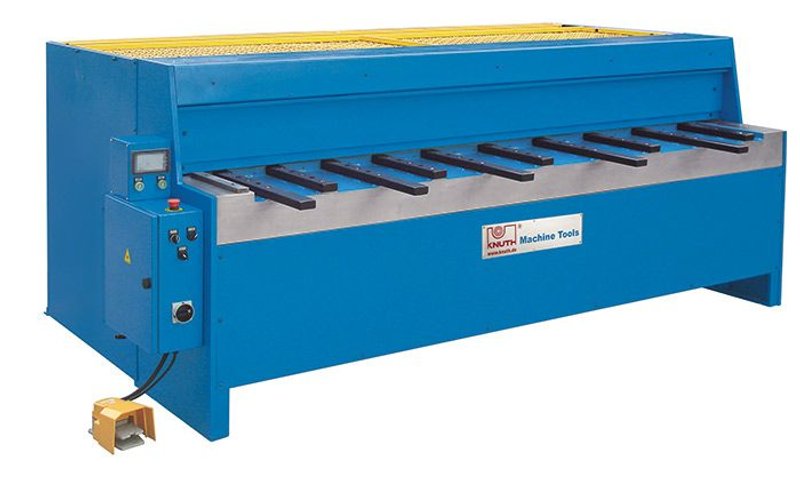

Operation and Ergonomics - The PLC back-gauge control with 4.3" touchscreen features a user-friendly graphic interface for quick and easy programming
- The mobile control unit features a foot switch, so the operator has both hands free
Back Gauge - The backgauge is driven by a servo motor, which significantly improves positioning and repeatability accuracy
- A plate hold-up fixture prevents any overhang of the plate in front of the back gauge to ensure maximum accuracy and quality of every cut, even in thin plates

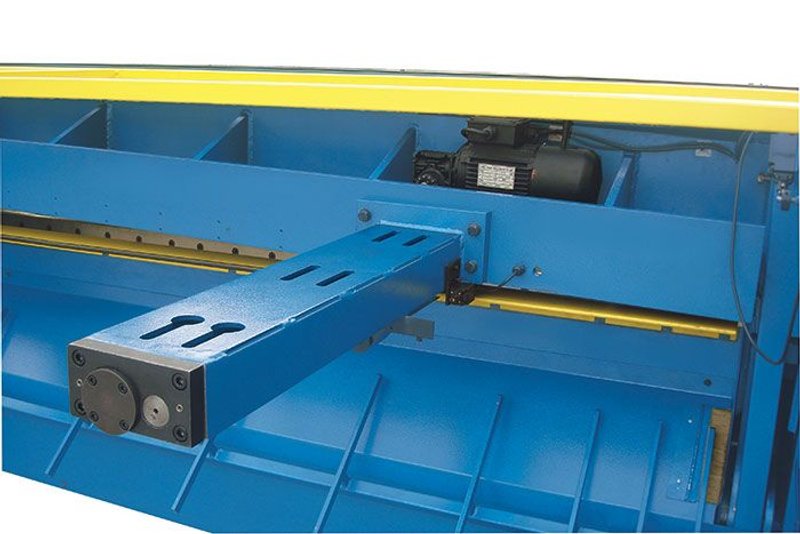

- Support arms are positioned via an air cylinder and lowered in sync with the cutting process
- PLC control
- work lamp
- Safety guard with power off after open door
- Back gauge with 4.3" touchscreen
- foot pedal
- cut-line lighting
- lateral stop
- Support arms with material support rollers
- powered rear stop
- hold-down
- Pneumatic sheet hold-up device

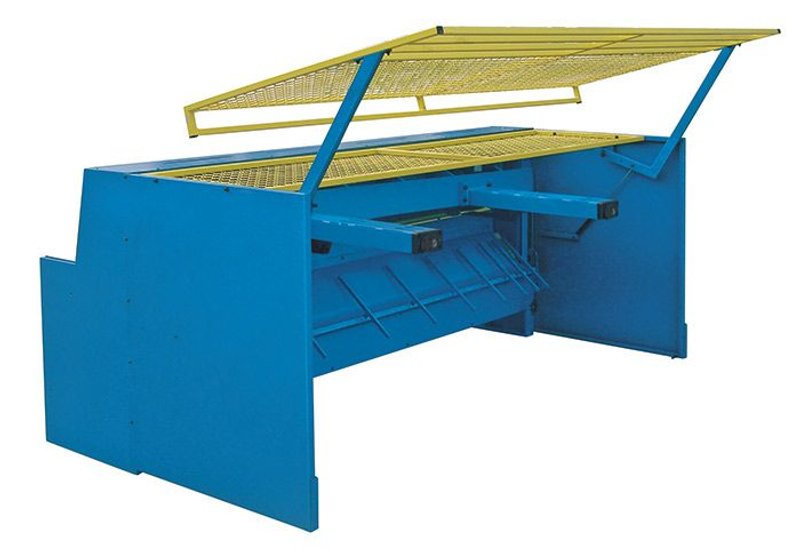

- Safety cover for work area near back gauge
- operator manual
|
