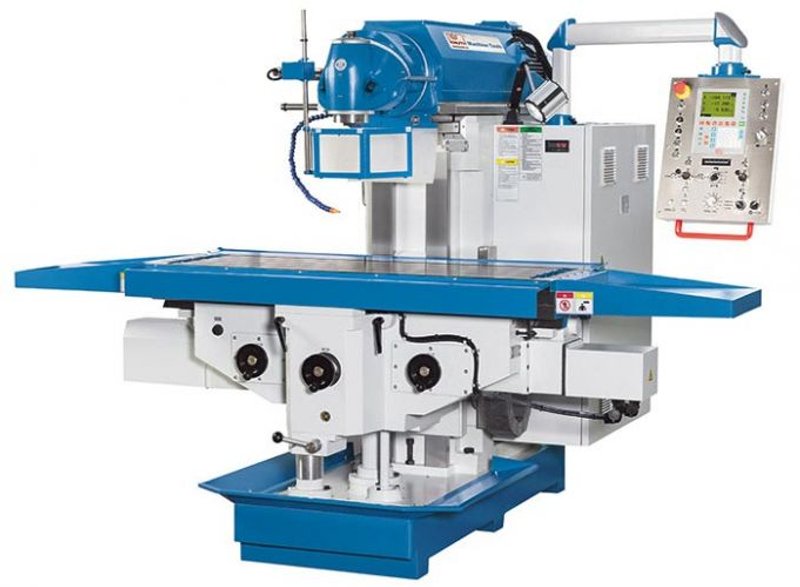

KNUTH SERVOMILL UWF 10 SERVOCONVENTIONAL MILLING MACHINE

Conventional milling, now easier, more precise and more efficient due to integrated electronics

• The Servomill represents a new generation of advanced milling machines that are operated like a conventional machine
• This machine features a user-friendly design, significantly higher precision and increased machining capacity
• Very high reliability and long service life of all components ensure drastically reduced maintenance and increased reliability
• Rigid, torsion-proof construction with dovetail guide on X axis, and wide square guides on Y and Z
• Large work table and long travels on all axes
• All guides are hardened, ground, and supplied with oil by a central lubrication unit

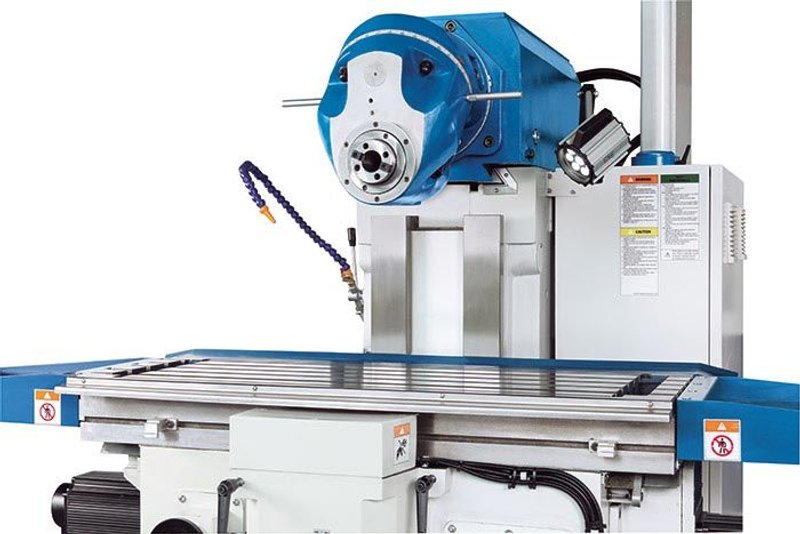

• Universal swivel head swings easily to a horizontal position
• Infinitely variable feed speeds and rapid feeds can be synchronized to spindle speed by the push of a button

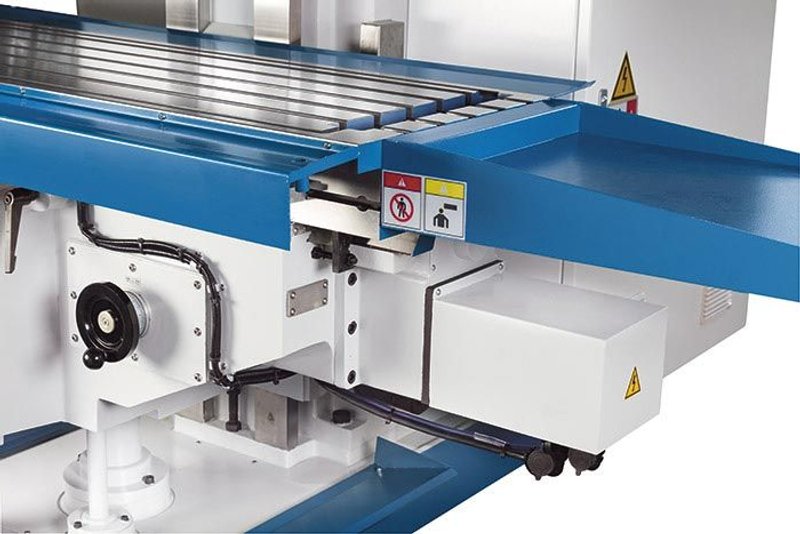

• Preloaded ball screw for easy and precise Feeds, and zero backlash
• Robust transmission with hardened and ground gears

Servomill - Highlights

• Control developed and built in Germany
• Positioning control for traveling pre-selected paths on all axes
• Zero-backlash preloaded ball screws
• Servo motors on all axes, infinitely variable feed, rapid feed, and speed control
• Electronic spindle load indicator
• Electronic hand-wheels on all axes
• X, Y and Z axes can be controlled via joystick
• Integrated position indicator with glass scale

Your Advantages:

• Easy to use: intuitive operation - practical layout of control elements and streamlined function
• Automatic feed on all axes and infinitely variable rapid feed
• Set limit stops on any axis with the push of a button - 3 stop positions per axis can be stored
• More precise: operated via electronic hand-wheels - axes are powered by high-quality servo drives that translate your hand movements with the precision and dynamics of modern CNC machines
• More reliable: drives, spindles, and measuring systems are totally enclosed or mounted in protective enclosures and virtually maintenance-free
• Electronics - made in Germany
• More capacity: this machine only uses premium drive components that are designed for continuous operation
• Maintenance-free: no regular maintenance needed for the entire feed drive

• Advanced Feed Technology:
• Axes are powered by high-quality servo drives that translate your hand movements with the precision and dynamics of modern CNC machines
• Reliable, maintenance-free mass production technology
• High rapid feed rate for reduced machine down-times
• Ball screw drive on all axes:
• Considerably less errors due to loseness (backlash), resulting in significantly higher precision
• Significantly reduced friction, no stick-slip effect, reduced heat buildup, minimal wear
• Electronic hand-wheels:
• Micro-control via electronic hand-wheels offering the same handling and postioning as with a conventional machine, just smoother and more precise
• Joystick control:
• Maximum operator comfort for axis movements
• Easy handling during sequential processing
• Electronically controlled fixed stops:
• Set 2 limit stops at 3 positions on each axis by the push of a button - these buttons are grouped around the feed switch for intuitive control
• This ensures high repeatability during coordinate drilling or pocket cutting, and siginificantly more positions can be set up than on conventional machines
• Electronic spindle load indicator:
• Assists the operator in the most efficient utilization of machine and tool capacities
• Reliable indicator helps avoid damages caused by overloads

X.pos Plus - You will gain productivity, quality and comfort

• Default coordinates
• Hole circle pattern calculation
• Vibration filter feature
• Mm/inch conversion
• 8 display languages
• Calculator function
• high-resolution display with excellent legibility
• state-of-the art electronics and a very robust, completely sealed enclosure ensure maximum safety and optimum production conditions
• a major focus during the development and selection of electronic components was the achievement of maximum resistance against external interferences and maintaining low temperature levels
• background colors of the display can be changed as required or desired
• the keyboard membrane is highly resistant and yet very comfortable to touch
• the display also provides a key to toggle between radius and diameter
• the axis position is maintained when the display is turned off
• graphical support with residual path display and sketch drawing
• linear and non-linear length correction is possible
• easy mounting, easy electric connection, and maintenance-free operation
