FPK 4.2 | FPK 6.2 |
Working Area | Table dimensions | 15x33 in | 20x37 in | Vertical table | 10x35 in | 12x49 in | Table load capacity (max.) | 550 lbs | 660 lbs | Slots (number/width/spacing) | 0.2x0.55x2.48 in | 0.28x0.55x2.48 in | T-slots, vertical table (number x width x spacing) | 0.12x0.55x2.48 in | Travels | Travel X-axis | 16.5 in | 23.6 in | Travel Y-axis | 9 in | 20 in | Travel Z-axis | 15 in | 16 in | Vertical Milling Spindle | Travel pinole | 4 in | Spindle center - column (min.) | 11 in | 6 in | Spindle center - column (max.) | 19 in | 26 in | Rapid Feed | Rapid Feed X-axis | 23.62 in/min | Rapid Feed Y-axis | 23.62 in/min | Rapid Feed Z-axis | 23.62 in/min | Feed | Work feed X-axis | 1 - 47 in/min | 1 - 24 in/min | Work feed Y-axis | 1 - 47 in/min | 1 - 24 in/min | Work feed Z-axis | 1 - 47 in/min | 1 - 24 in/min | Horizontal Milling Spindle / Vertical Milling Spindle | Speed range | (12) 50 - 2,600 rpm | (18) 90 - 3,200 rpm | Spindle mount | ISO 40 | Drive Capacity | Motor rating main drive | 3 Hp | 5 Hp | Motor rating coolant pump | 0.1 Hp | Measures and Weights | Overall dimensions (length x width x height) | 48x52x71 in | 60x71x77 in | Weight | 2,596 lbs | 3,190 lbs |
- Machine column made of premium cast-iron, ensures maximum dynamic rigidity and constant precision

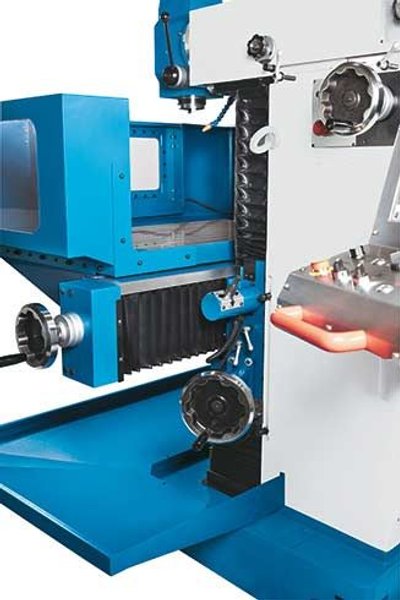

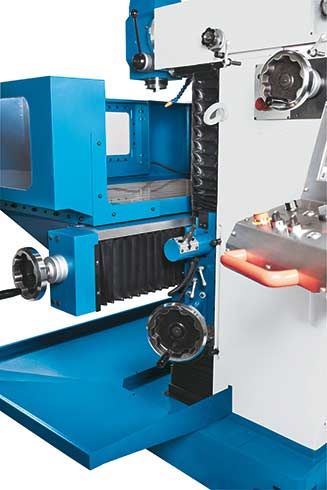

- The FPK 6 features rigid box ways in the Z-axis, while X- and Y-axes are equipped with micro-adjustable dovetail guides
- All guides are hardened and precision-ground
- Precise preloaded ball screws on all axes

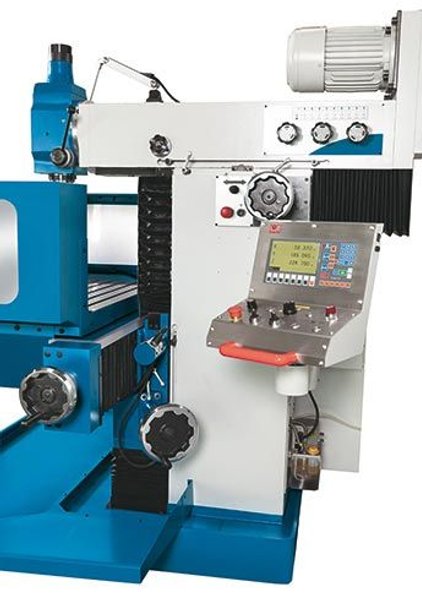

- Ergonomically arranged controls and a swivelling control panel plus standard digital position indicator for maximum operator comfort
- Both machines feature rigid outer arbor supports for horizontal milling
- Large work tables and long travels of this compact machine allow a wide range of applications
- Automatic feed on all axes, infinitely variable, with fast rapid feed
- The vertical cutter head swivels, and the quill can be moved manually
- The fine-tuned main spindle drive offers a wide speed range with high torque
- An optional air-driven tool drawing system allows quick tool changes
- Extensive accessory package included
- Central lubrication system is standard equipment
- The price includes a fully assembled 3-axis position indicator
3-axis position indicator, X.pos 3.1 - Completely assembled, ready for operation and exact measurements
- Lower error rate
- Increased productivity
- More accuracy
- Resulting in valuable time savings
- For increased productivity
- Operator-specific features
- Easy to read display
- Resolution: 0.0004 / 0.0002"
- Convenient keyboard layout
- Axis position is maintained when display is turned off
- Default coordinates
- Hole circle pattern calculation
- Calculator function
- Radius / diameter toggle
- Mm/inch conversion
- Easy expansion and maintenance-free operation
- Storage for 99 tools
- 3-axis position indicator
- central lubrication
- reducing sleeves MT1, MT2, MT3
- adapter ISO 40 / MT 3
- cutter arbor, long, 1.06 inch
- preloaded ball screws
- stainless steel guideway cover Z- axis
- chip tray
- coolant system
- LED work lamp
- pull rod (M16) for horizontal / vertical
- Level pads and bolts
- operating tools
- operator manual
|
