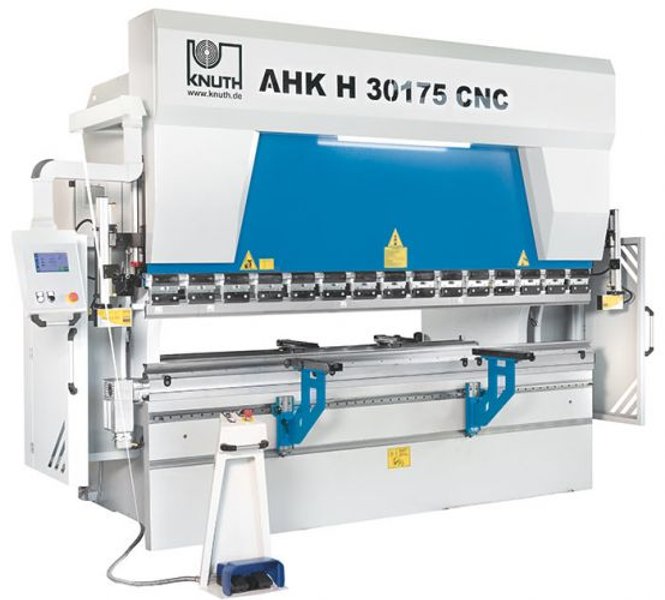

Working AreaPressure force | 192.5 t | Brake length | 122 in | Brake length | 102 in | Throat | 16 in | Stroke | 8.1 in | Clear opening | 19.09 in | Table width | 4 in | TravelsTravel in X-axis | 30 in | FeedBending speed | 0.39 in/s | Rapid feed | 5 in/s | Return speed | 3.94 in/s | Drive CapacityMotor rating main drive | 24.8 Hp | Measures and WeightsHydraulic tank volume | 66 gal | Overall dimensions (length x width x height) | 154x79x113 in | Weight | 23,100 lbs |
Machine Frame and Male Die
- The machine frame is made of a high-precision, stress-relieved steel weldment
- The machine frame has been machined on a state-of-the-art 5-axis milling machine in one single setup to ensure more precise bending and maximum reliability
- All components subject to tensile loads have been carefully constructed and designed with large radii to eliminate the risk of welding cracks
- Male die and table have been optimized to reduce deformations to the lowest minimum possible
- The male die has been designed for optimum vertical load absorption by the guides, piston bearings and seals
- All components were treated in a modern paint and drying system and feature two coats of paint, each coat with a minimum thickness of 60 micron
Work Area - A large throat, long stroke, and narrow table ensure plenty of free space to accommodate complex bending sequences
Crowning - All machines include a manual crowning system inside the table; a motorized crowning version is available as an option
- The crowning provides a uniform distribution of bending forces to ensure precise bending angles across the full workpiece length
Hydraulics - Polished, hard chrome-plated pistons on both hydraulic cylinders feature superior 2 micron surface grades, ensuring a long seal life.
- Cylinder bodies are forged from solid SAE 1040 material
- Perfectly matched hydraulic components and measuring systems ensure exact synchronization of work cylinders

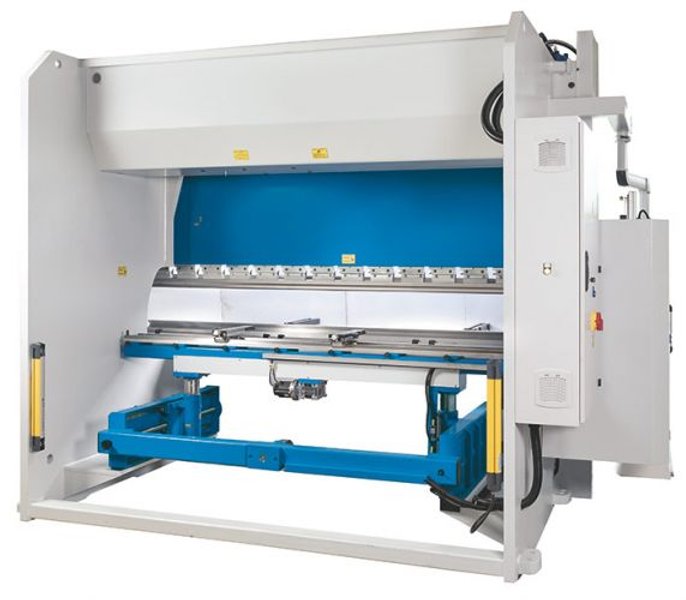

Back Gauge - The back gauge of a press brake is the most important factor for machining precision
- The entire back gauge system is very robust and perfectly suited for rough production environments
- Linear guides and large preloaded ball screws are mounted in a protective enclosure to ensure smooth operation even under the most difficult environmental conditions
- Exact adjustment of back gauge finger height
- Positioning of back gauge fingers on dual, smooth-running linear guides
Front Support Arms - Rigid linear guide and ball bearings for boom ensure maximum stability and easy positioning
- Each support arm can be adjusted in height, is easy to handle and extremely sturdy
Bending Tools - Promecam (European) tool mounts accommodate an extensive selection of bending tools
- All tools are hardened and ground, and allow precise setup
- manual quick-action clamping system for tool mount shortens tool changing times
Safety and Productivity - Safety concept based on the latest CE standards
- The manual AKAS Laser Safety System is known for excellent reliability and functionality without the limitations that are typical for light curtains
- Cybelec Touch 8 2D Steuerung fŸr 3 Achsen
- X-axis back gauge with servo motor
- quick-action clamping of male die
- manual akas laser safety LC II M FMSC safety system
- light barrier
- 2 front support arms

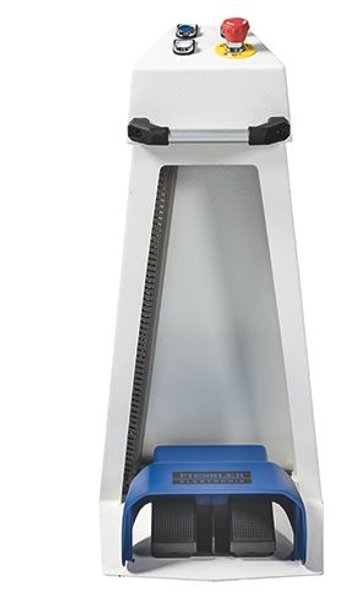

- foot pedal with E-stop button
- operator instructions
- european type male die H = 3 inch
- european type female die 4V H: 2 x 2 inch
- 2 height-adjustable back-gauge fingers
- european tool mount
- motorized crowning
- R axis
|
