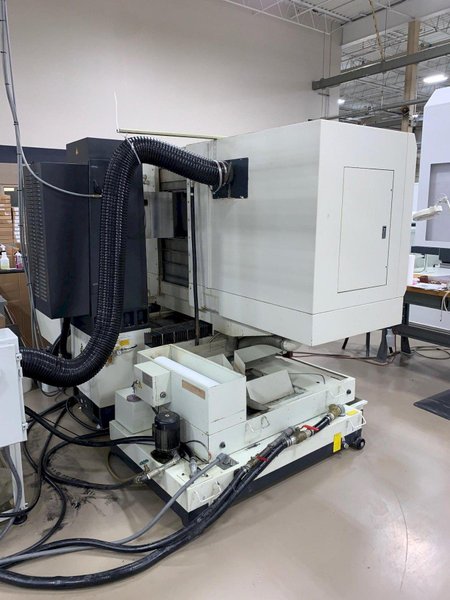

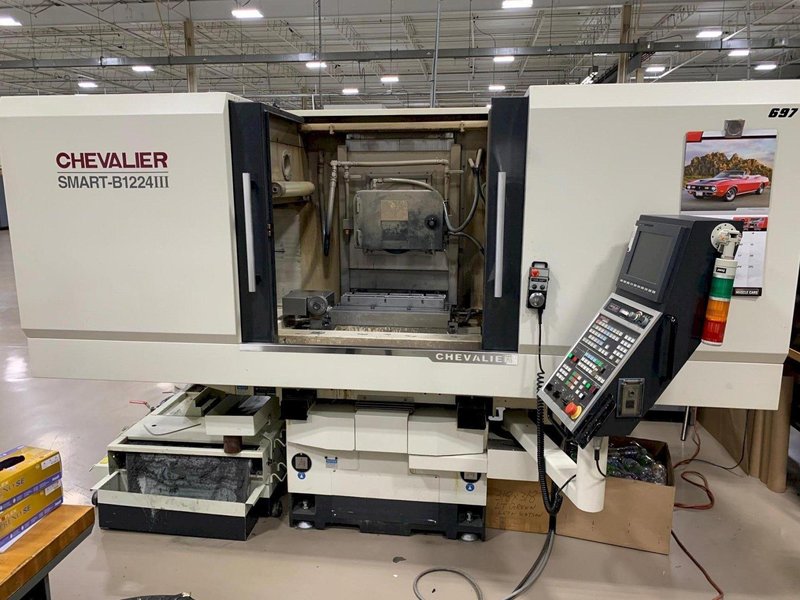

Chevalier CNC Hydraulic Grinder, Model: Smart-B1224III
Brand
Category
Type
Model
Smart-B1224III
Stock #
2083
Year
2014
Condition
Not specified
Location
Ohio
|
Year of Mfg ........................... 2014

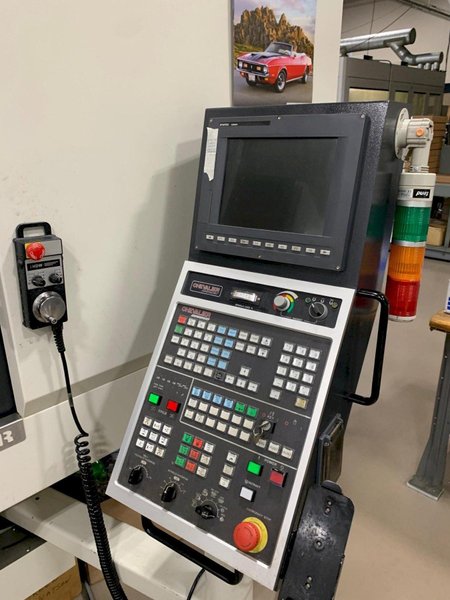

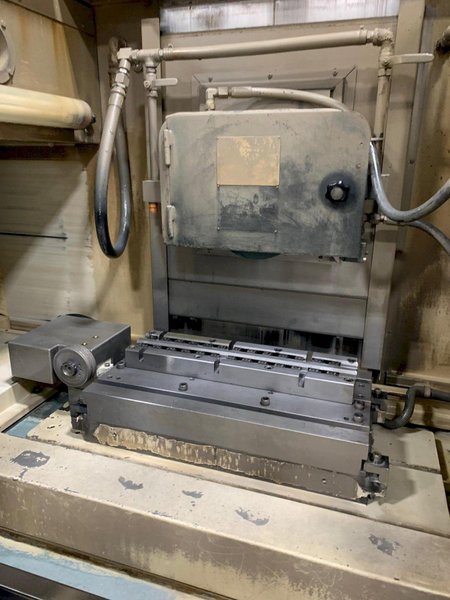

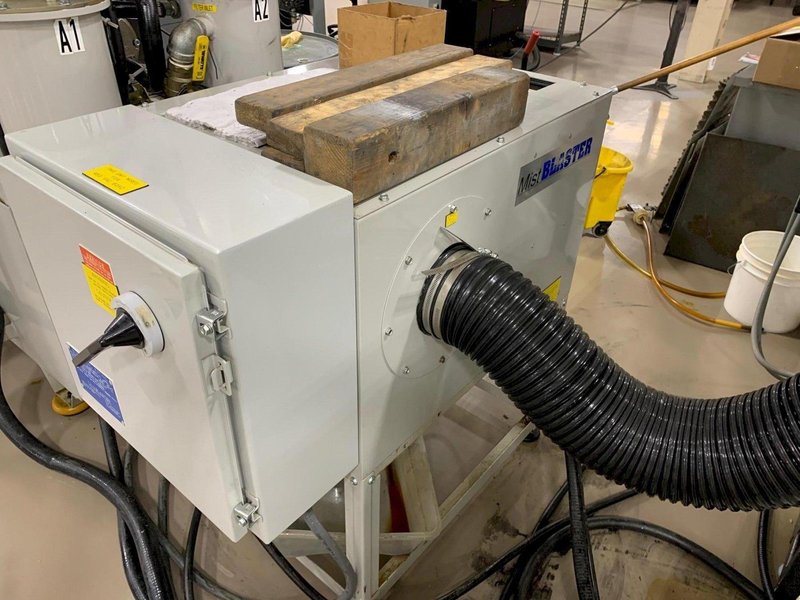

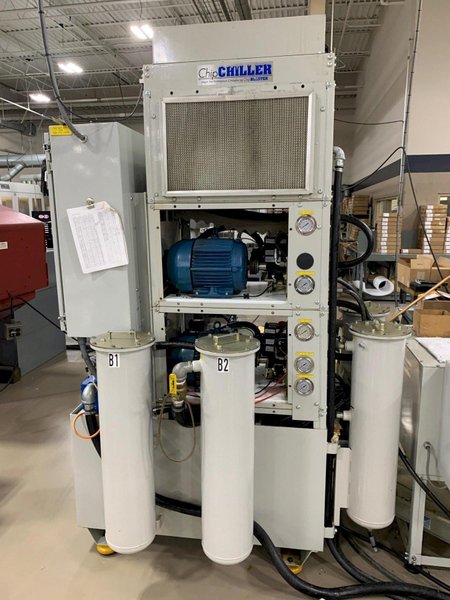

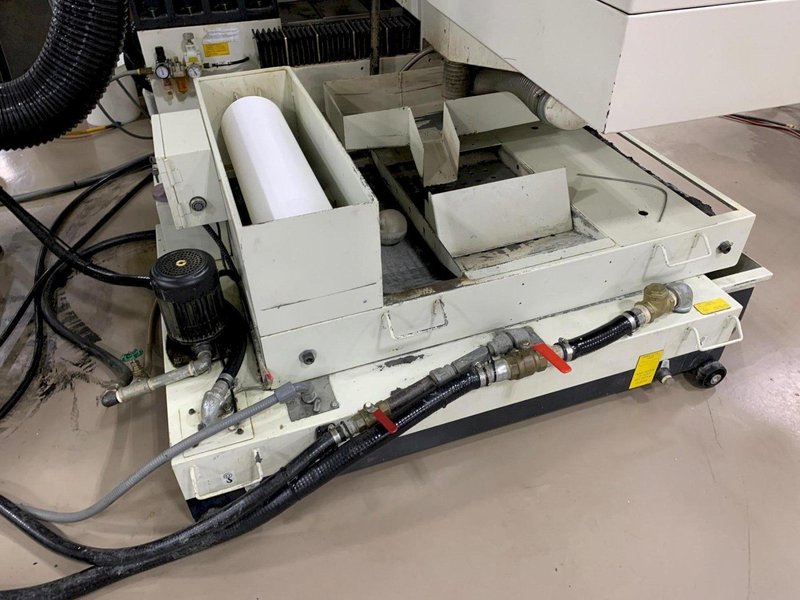

Table Size ............................ 11-3/4" x 23-5/8", Max. Grinding Length .................. 24", .Max. Grinding Width Crosswise ......... 12", Max. Grinding Elevation ............... 16.5", Dist Btwn Table to Spindle Centerline . 23.6", Table Load ............................ 923 lbs., Table Speed ........................... 16-82 FPM,Tranverse Movement: Max. Stroke ................................ 13-4/5", Feed Speed ............................ 0-10 FPM, Spindle ............................... 1750 Spindle ............................... 15 HP Equipped with: Chipblaster Mist Collector, Model: SAMB (2103). Pendant Controller, Model: iHDW-BLECS-IM, Walker Electromagnetic Chuck Control, (12"x24"), Diamond Disc Wheeler Dresser with Coolant Pipe (2,000 Rpm, 1" Shaft Max. Width 1" OD 3-1/2" - 4-1/2" Riser Block, Coolant System with Auto Paper Feeding, Fully Enclosed Splash Guard w/ 2 Machine Lamps, Control: Syntec 10 MDN Also available and selling separately is a ChipBlaster Model: ChipBlaster Model: JS-60 & ChipChiller by ChipBlaster Specifications subject to verification |
