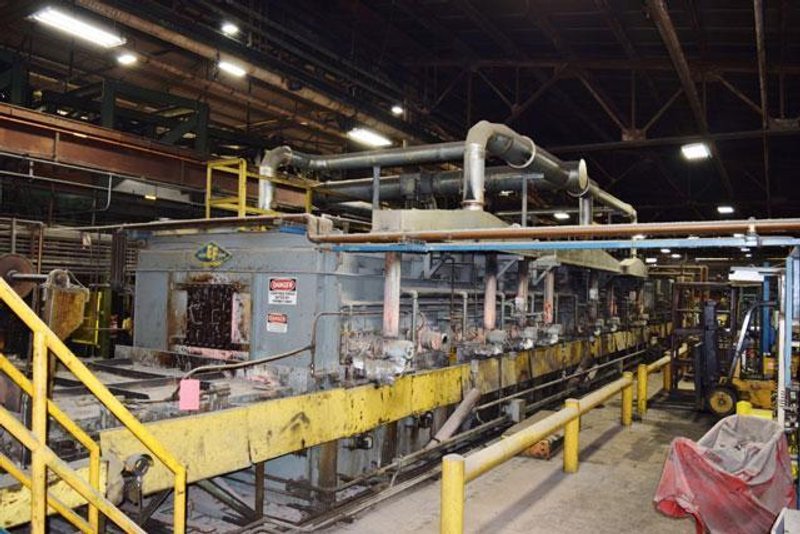

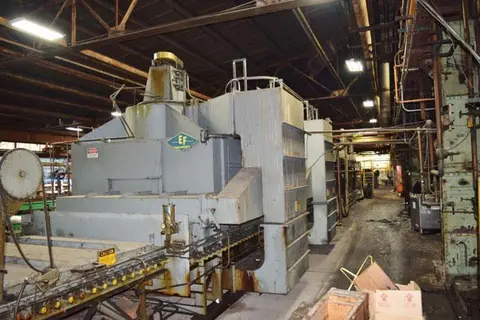

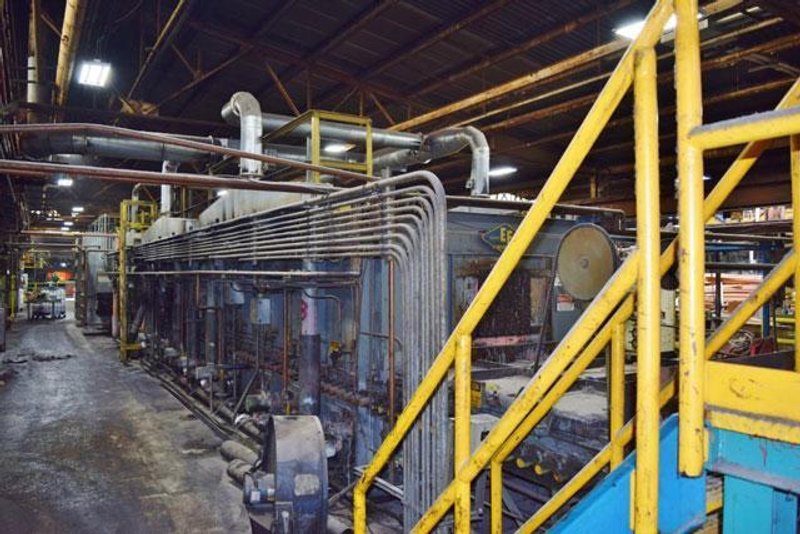

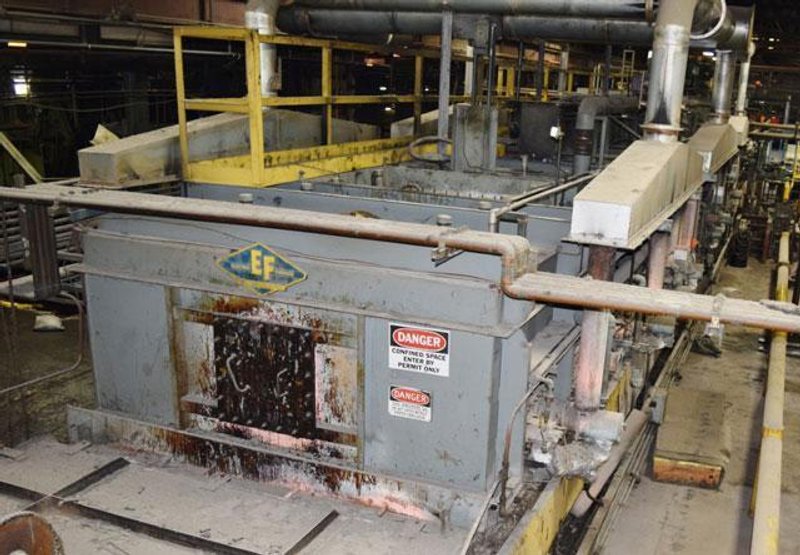

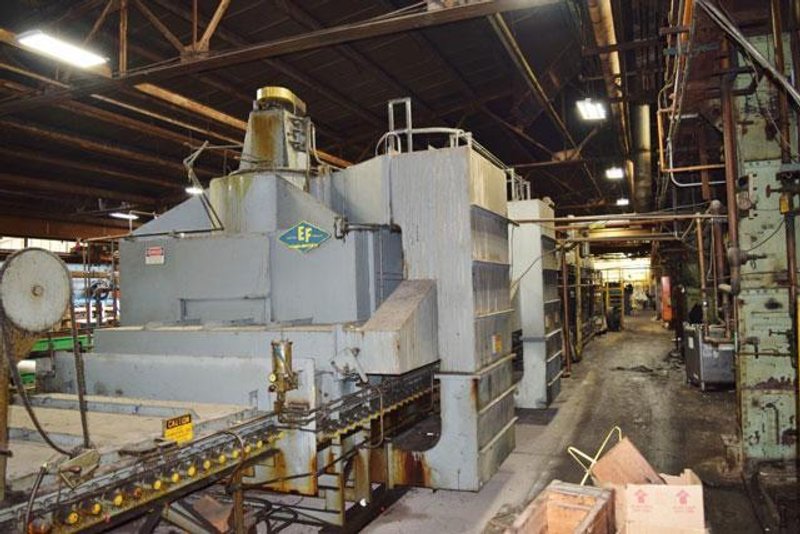

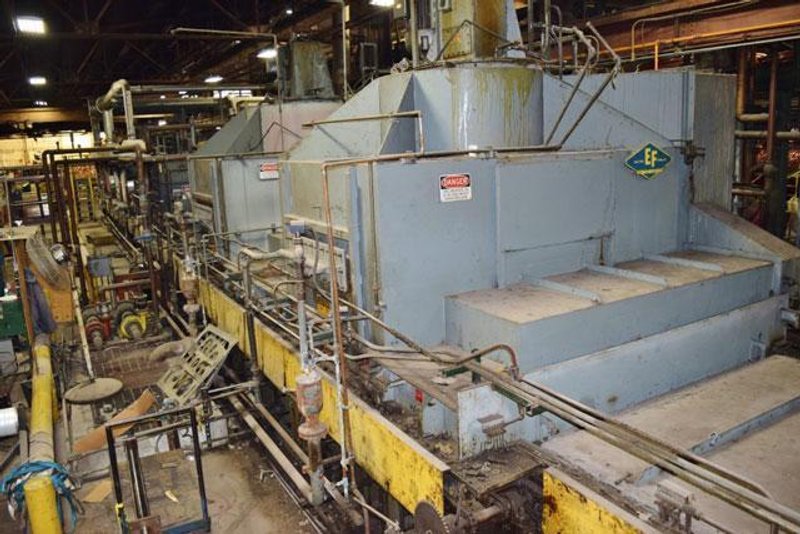

80" (2032mm) E.F.C.O. Roller Hearth Bright Anneal for Copper Tube Coils (13708)


 MACHINE# 13708

 SPECIFICATIONS:

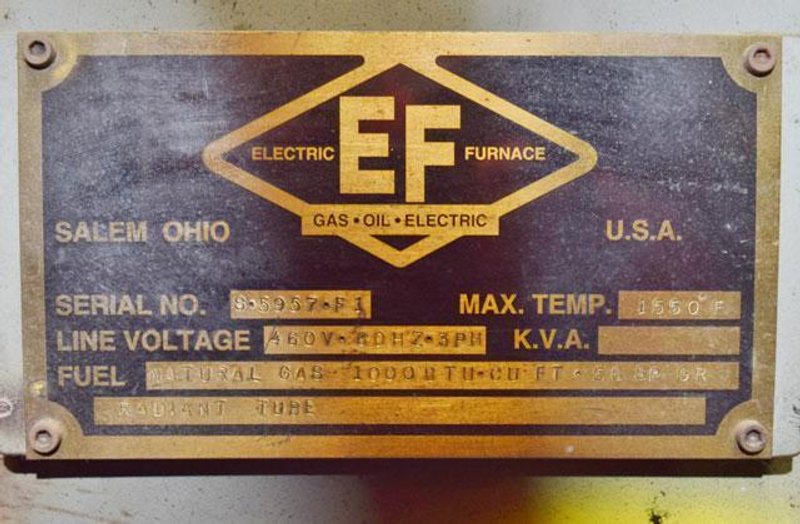

 MANUFACTURER: ELECTRIC FURNACE CO. (U.S.A.)
 TYPE: ROLLER HEARTH RADIANT TUBE FOR COPPER TUBING BRIGHT ANNEALING.
 YEAR OF MANUFACTURE: 1995
 MAXIMUM TEMPERATURE: 1550 DEG. F (843 DEG. C)
 NORMAL OPERATING TEMPERATURE: 1300 DEG. F (704 DEG. C)
 GAS-FIRED
 RADIANT TUBE
 FORCED AIR CIRCULATION
 ATMOSPHERE CONTROLLED: NITROGEN HYDROGEN MIX
 PRODUCT: COPPER TUBE IN SINGLE LAYER PANCAKE COILS LAID TWO ACROSS.

 MAXIMUM COIL DIAMETER: 39" (990mm)
 ANNEALING CAPACITY: 8000 LBS./HR. (3628 KG/HR.)
 No. OF ZONES: 3
 No. OF BURNERS: 20
  ZONE 1 (22 FT. 6 IN.) 10
  ZONE 2 (11 FT. 3 IN.) 6
  ZONE 3 (11 FT. 3 IN.) 4
 No. OF RECUPERATORS: 10 IN ZONE 1

 DIMENSIONS:
 INSIDE WIDTH BETWEEN ROLL COLLARS: 6' 8" (2032mm)
 ACTUAL WIDTH OF HEATING CHAMBER: 7' 1" (2159mm)
 LENGTH OF CHARGE VESTIBULE: 8' (2.4m)
 INSIDE LENGTH OF HEAT CHAMBER: 45' (13.7m)
 LENGTH OF JET HOOD SECTION: 26' (8m)
 LENGTH OF DISCHARGE VESTIBULE: 8' (2.4m)
 OVERALL LENGTH: 96' (29.26m)
 LOADING HEIGHT ABOVE FLOOR LEVEL: 3' 4" (1036mm)
 CLEARANCE HEIGHT ABOVE TOP OF ROLLS: 0' 3" (92mm)

 ROLL LOAD (MAXIMUM):
  50 LBS. (22 KG)/ROLL
 100 LBS. (45 KG)/LINEAL FT.

 FURNACE IS INSTALLED BUT NOT RUNNING.

  ** SPECIFICATIONS SUBJECT TO REVISIONS **

  ** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

  ** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
