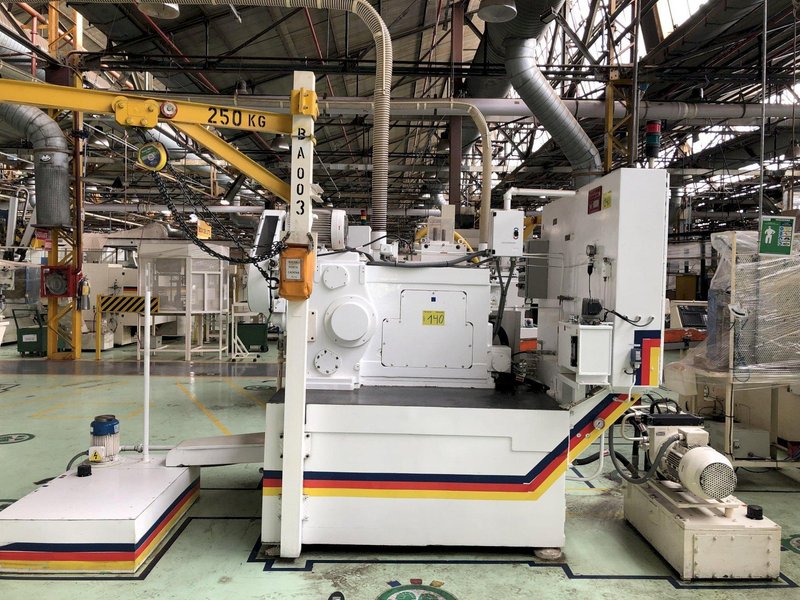

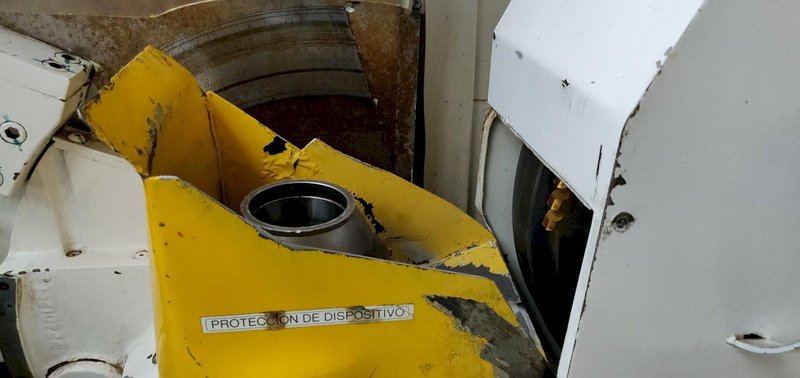

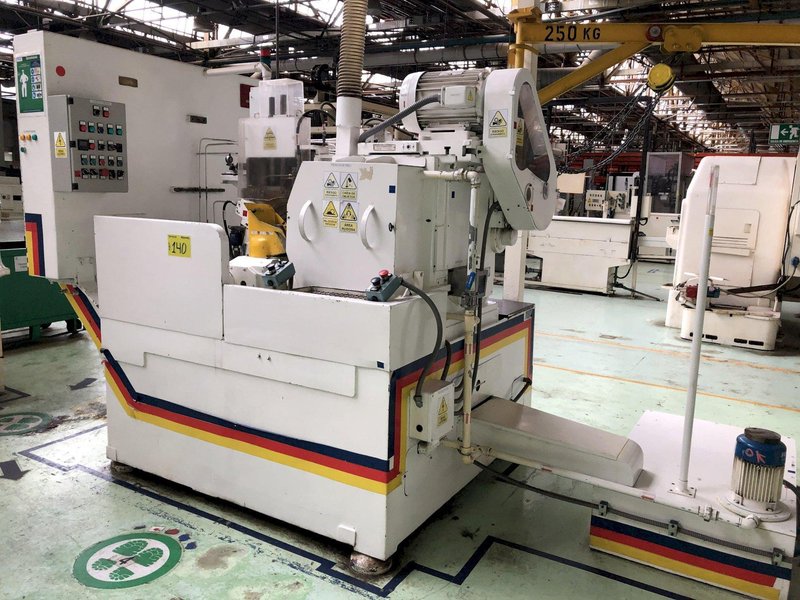

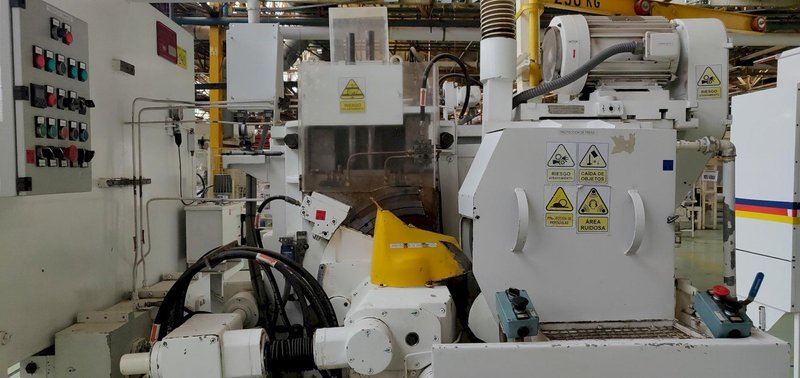

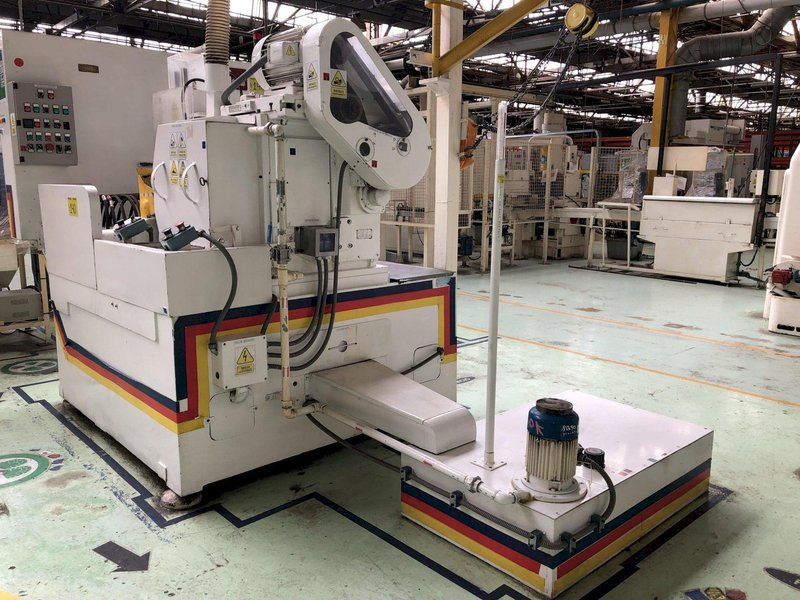

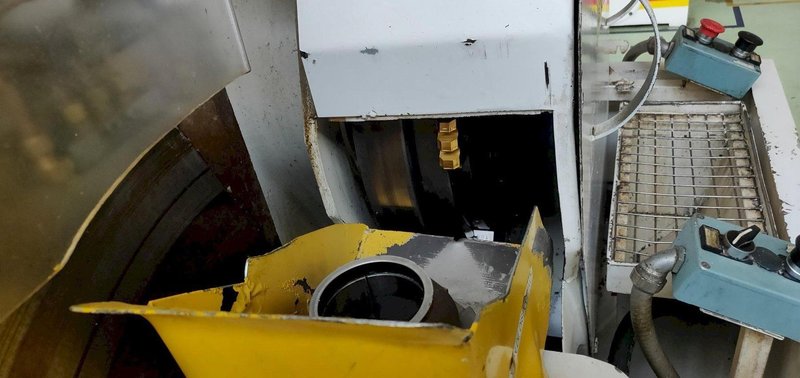

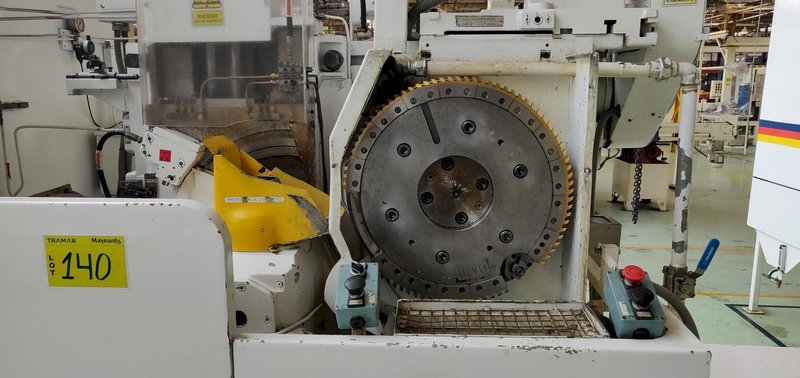

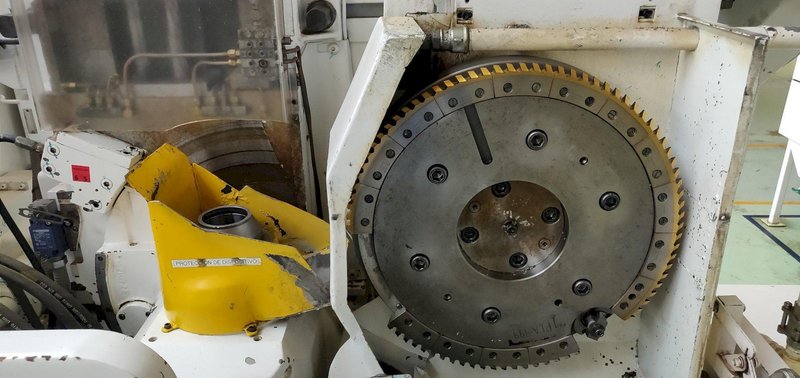

Gleason No. 726 Straight Bevel Revacycle
Brand
Category
Type
Model
No. 726 Revacycle
Stock #
140
Year
Not specified
Condition
Used
Location
Cordoba
| CNC Control | no |
| Type of CNC Control | Manual |
| Dimensions | 126" x 90" |
| Weight | 19100 pounds |
|
SPECIFICATIONS:
Pitch Diameter- Manual: 152mm
Face Width At Root-21 Inch Cutters: 28mm
Index Range: 8-50
Work Spindle:
Diameter Of Tapered Hole At Large End: 99.22mm
Taper Per Foot: 15.48mm
Depth Of Taper: 15.8mm
Counterbore Behind Taper: 57.2 X 77.9 mm
Diameter Of Hole Through Spindle: 22.3mm
Feeds And Speeds:
Cutter Speeds 21 Inch Cutters: 107-163 FT/Min.
Feeds 21 Inch Cutters: 2.0-3.1 Sec/Tool
Main Drive Motor-10HP: 1800 RPM
Hydraulic Motor-7.5HP: 1800 RPM
Machine Dimensions L X W Automatic: 3.2 X 2.26m
Machine Weight Manual/Automatic: 7484/8664 KG EQUIPPED WITH:
Multiple Cutter Bodies
Blades
Auto Lube
Coolant System
Motor and Push Button Controls
|
|
