Table Size: 63" x 122"
X-Axis: 173.2"
Y-Axis: 78.74"
Z-Axis: 47.24"
B-Axis: +/- 105 Deg.
C-Axis: +/- 200 Deg.
Max. Rapid Rate on X&Y Axis: 2,340 IPM
Max. Rapid Rate on Z Axis: 780 IPM
Max. Rapid Rate on B&C Axis: 180 Deg./Sec.
Max. Feedrate on X&Y Axis: 944 IPM
Max. Feedrate on Z Axis: 780 IPM
Spindle Type: HSK 63 F
Speed: 1,000-18,000 RPM
Motor: 15 HP Liquid Cooled
Nose: HSK 63F Taper
HSK Tool Holders: 20 Holders & 20 Collets
Vacuum Hold Down System: 1 Pump
Power: 9 HP
Capacity: 168 CFM
Pressure: 21.5" Hg
Zones: 1
Electrical: 240V / 3-PH / 60Hz

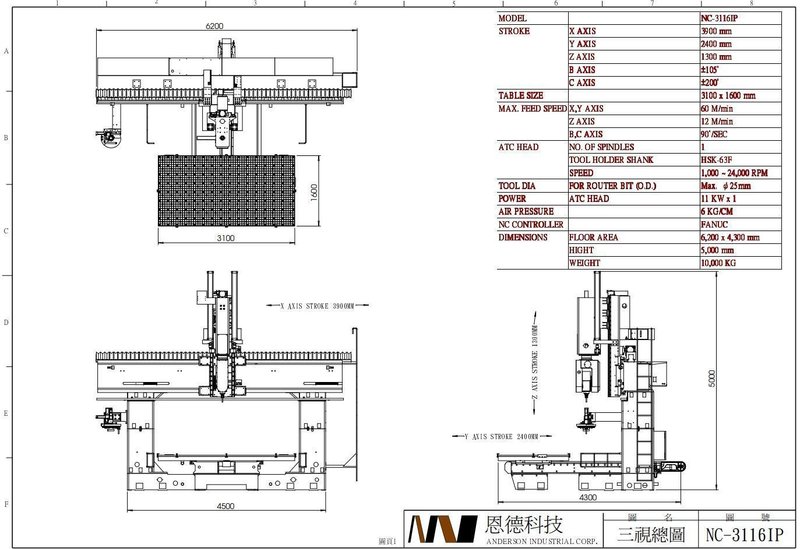

Machine Footprint: 160" x 134.4" x 186"
Weight: 24,000 lbs.
|
