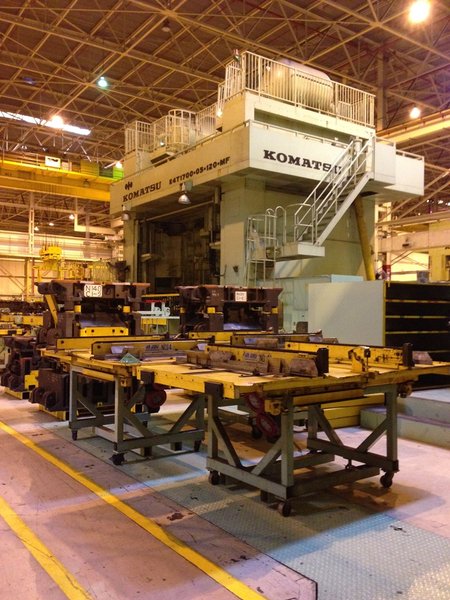

1700 TON KOMATSU TRI-AXIS 5 STATION TRANSFER PRESS, MODEL E4T1700-05-120-MF, 29.50" STR, 5.90" ADJ, 90" X 236" BOLSTER, 10-20 SPM
Brand
Category
Model
E4T1700-05-120-MF
Stock #
6710
Year
1998
Condition
Good
Location
Illinois
|
PRELIMINARY SPECIFICATIONS
KOMATSU TRI-AXIS ECCENTRIC DRIVE PRESS(6000) mm MODEL E4T1700-05-120-MF 1700 TONS MAX. CAPACITY 750 mm SLIDE STROKE 150"mm SLIDE ADJUSTMENT 1350 mm Die HEIGHT 10-20 STROKES PER MIN. 2300 mm fb X 6000 mm LR bed area and bolster T slotted SPECIFICATIONS OF TRI AXIS MECHANICAL FEED 5 NUMBER OF STATIONS (2) AUTO BOLSTER ROLLING DIE CHANGE SLIDE TONNAGE ......1700-500-400-250-300-250 940 mm CONVEYOR WIDTH EQUIPMENT AND FEATURES AIR CLUTCH AND BRAKE AIR COUNTER BALANCES AIR CUSHIONS ALL UPDATED ELECTRICAL AND SAFETY WINDOWS THIS PRESS IS CURRENTLY RUNNING IN A VERY MODERN SHOP. PLEASE DON'T HESITATE TO INSPECT UNDER POWER . PRESS IS READY FOR IMMEDIATE DELIVERY. THE PRESS IS IN EXCELLENT WORKING CONDITION. ALL SUPPORT MAINTENANCE RECORDS AVAILABLE. |
