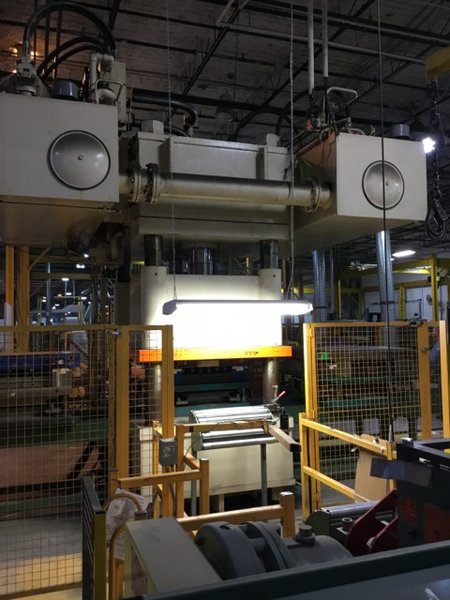

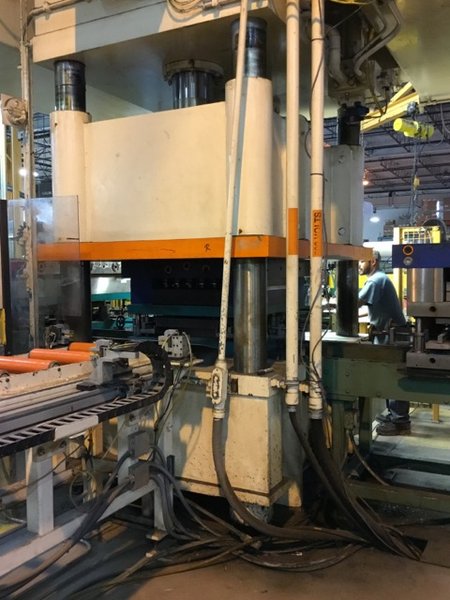

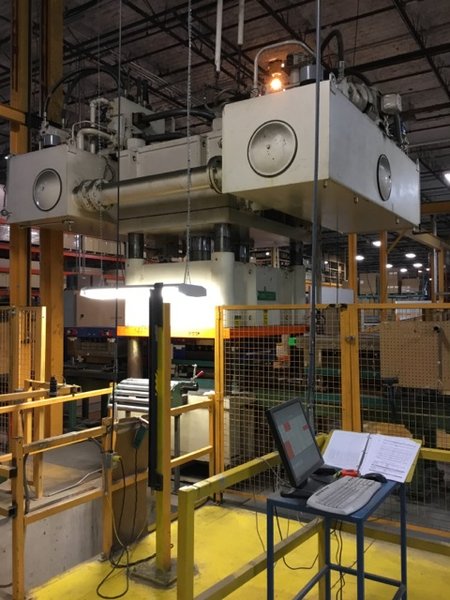

PRELIMINARY SPECIFICATIONS

PH HYDRAULICS 4 POST PRESS

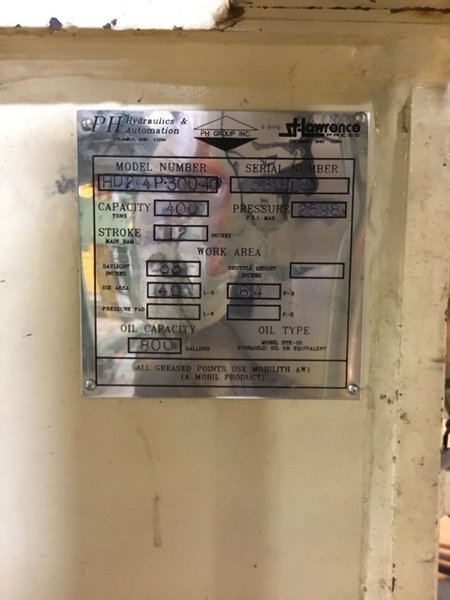

MODEL HD2-4P-300-40

400 TON CAPACITY
300 TON PUNCHING CAPACITY
12" STROKE
33" DAY LIGHT OPENING
21" SHUT HEIGHT
81" LR X 60" FB BED AREA
64" LR X 40" FB DISTANCE BETWEEN POST

SPEEDS
340 IPM RAPID ADVANCE
180 IPM PRESSING
352 IPM RAPID RETURN

EQUIPPED WITH
2 POINT SUSPENSION, SELF CONTAINED SINGLE ACTION DOWN ACTING
ST. LAWRENCE HYDRAULICS & ELECTRICALLY

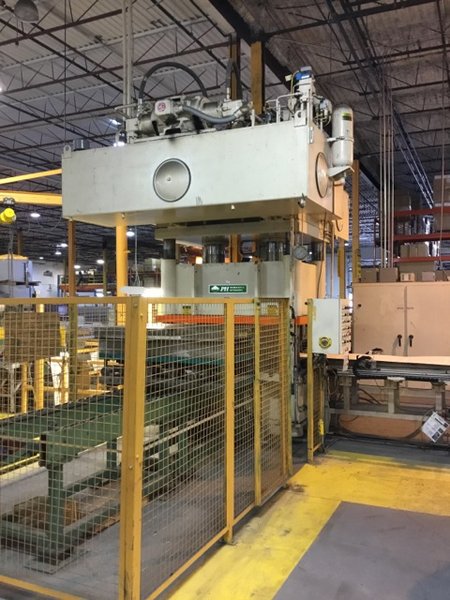

SELF CONTAINED PRESS MOUNTED HYDRAULICS (TOP MOUNTED)
800 GALLON CAPACITY (2 - 400 GALLON)
125 HP O.D.P. / 1200 RPM / 230-460 VOLT
VICKERS FIXED VANE PUMPS # 4525V38A5 / 38 GPM

PLATEN LATCHES
UPPER PLATEN EQUIPPED WITH  AUTOMATICALLY OPERATED SPRING ENGAGE, HYDRAULIC DISENGAGED LATCHES TO MECHANICALLY HOLD PLATEN AT ANY POSITION OF THE WORK STROKE, LATCHES ARE INTERLOCKED ELECTRICALLY

APPROX. O.A. DIMENSIONS 70" LR X 89" FB X 170" H
APPROX. WEIGHT 63,000 LBS

AVAILABLE FOR INSPECTION, PRESS IS DISASSEMBLE, AVAILABLE IMMEDIATELY

Specifications Subject To Verification; Subject To Prior Sale
