PRELIMINARY SPECIFICATIONS

NEW IN 1997

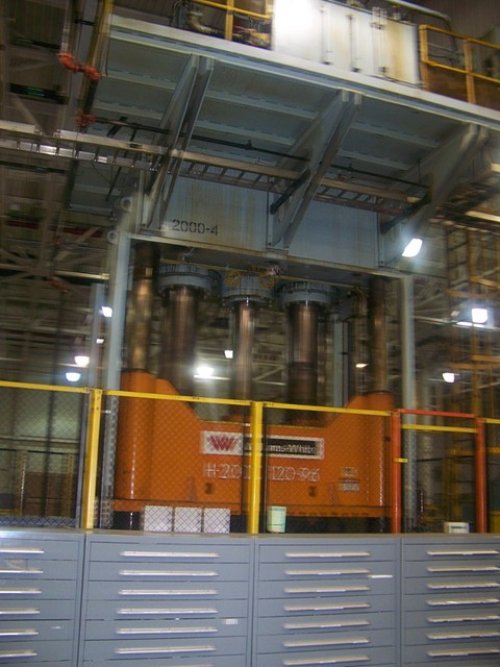

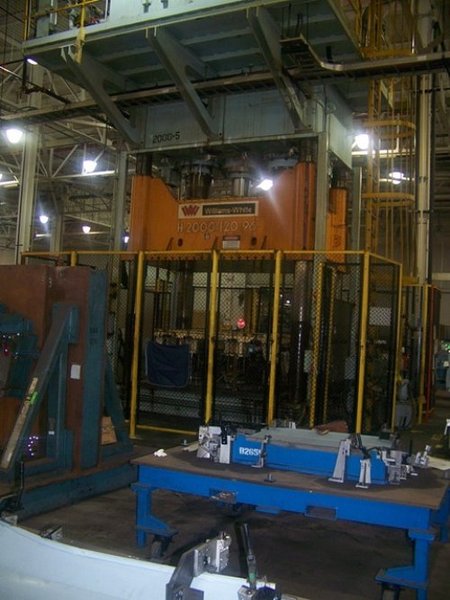

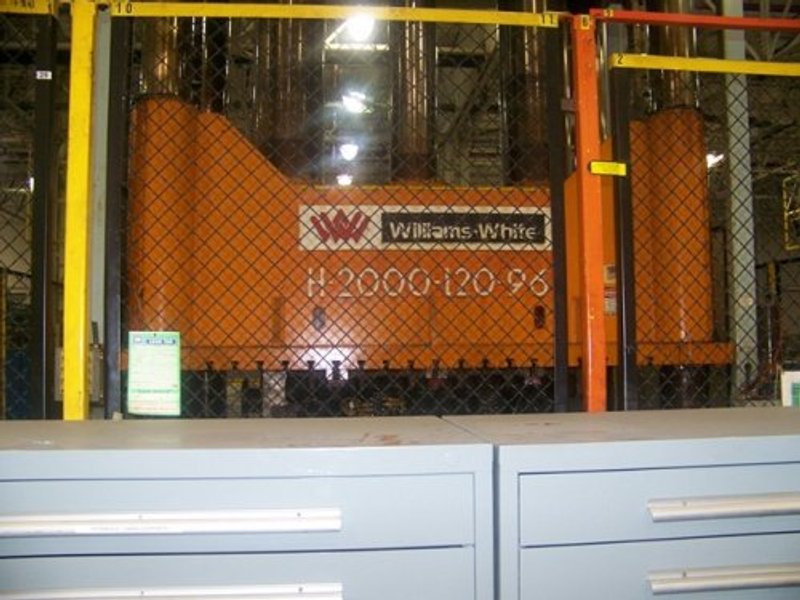

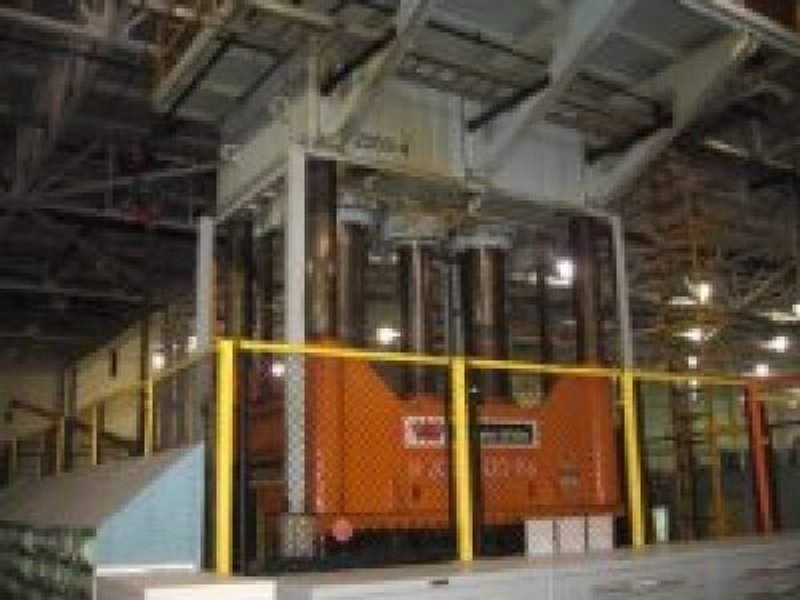

MODEL H-2000-120-96
2000 TON CAPACITY
- 200 TON STRIPPING
60" STROKE
100" DAYLIGHT
40" SHUT HEIGHT
154" X 96" LOWER PLATEN
154" X 96" UPPER PLATEN
122"LR X 63.5"FB AREA BETWEEN POSTS
20" FLOOR TO TOP OF BOLSTER

SPEEDS:
1000 IPM FAST CLOSE
25-275 IPM INTERMEDIATE PRESSING (UPTO 500 TON)
30-200 IPM STRIPPING
900 IPM FAST OPEN

EQUIPPED WITH:
PLC 5 CONTROL
(2) 250 HP RELIANCE MOTORS
- 265% EFC (BREAK DOWN TORQUE)
(1) 2.5 GALLON ACCUMULATOR FOR PILOT PRESSURE
MANIFOLD CONSISTS OF VICKERS & OIL GEAR
(2) OIL GEAR PVV 540 PUMPS
(2) PVWH PUMPS FOR COOLING & FILTRATION
4" THICK T-SLOTTED BOLSTER
- 1" T-SLOTS @ 6" CENTERS
SERVO FILTER SYSTEM
SYSTEMS FILTER SYSTEM

APPROX O.A. WEIGHT: 324,000LBS
APPROX O.A. DIMENSIONS: 257" X 189" X 324"ABOVE FLOOR (45.5" PIT)
