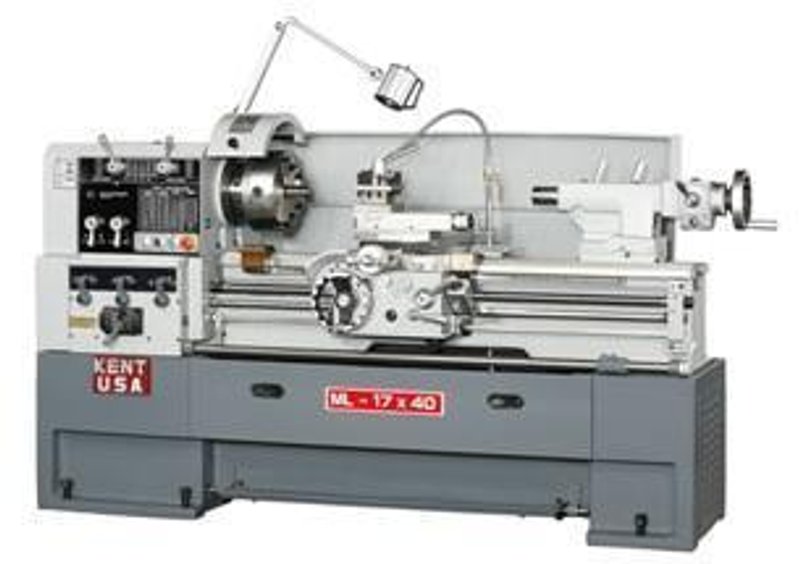

10HP Spindle Motor - 12 Speeds
3.125" Spindle Through Hole Solid Full Length Casting Base With Front Loading Chip Tray For Easier Cleaning Adjustable Over-Load Feed Clutches Quick Reversal Feed From Apron Full Length Safety Foot Brake Spindle Jog Button Control One Shot Lubrication For Apron, Carriage and Bed Ways Multi-Position Adjustable Feed Position Stops Dual Inch/Metric Calibrated Tailstock Quill With knockout Tang; Heavy Duty 2-Speed Tailstock Dual Inch/Metric Dials With Quick Change Sleeve SPECIFICATIONS Swing Over Bedways 17" Swing Over Cross Slide 10.875" Swing Over Gap 24" Gap Length (W/Face Plate) 8" Bed Width 12" Distance Between Centers 44" Spindle Hole 3.125" Spindle Nose Camlock D1-8 Spindle To Sleeve Taper 1/19.18 - MT5 Spindle Speeds 12 Steps - 26-1500 RPM Bearing Length On Ways 17.3" Cross Slide Width 7.25" Cross Slide Travel 10.6" Top Slide (Compound) Travel 4.75" Thread Capacity Inch (45) 2-72 TPI Metric (39) 0.2 - 14mm Modular (18) 0.3 - 3.5M Diametrical Pitch (21) 8-44 DP Feeds Longitudinal 0.0015 - 0.04 IPR Cross 0.00075 - 0.02 IPR Tailstock Quick Diameter With Tang 2.3" Tailstock Quill Travel 5" Tailstock Quill Taper MT4 Main Motor 10 HP Coolant Pump Motor 1/8 HP Approx. Dimensions 95" x 39" x 63"" Approx. Weight 4560 Lbs |
