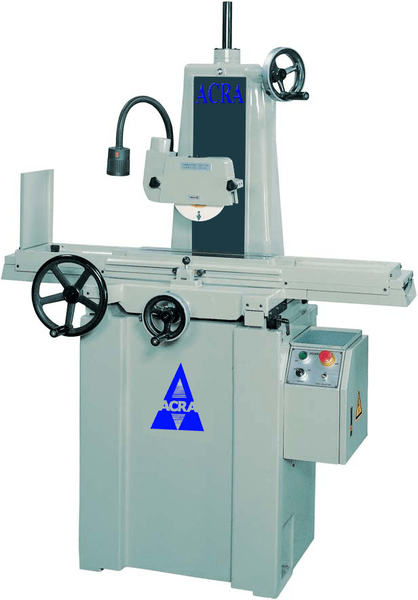

6" X 18" ACRA MODEL 618S MANUAL SUPER PRECISION SURFACE GRINDER • Table surface guaranty (Testing grinding piece* 6, thickness difference.): 0.0001 “.• 2HP V3 grade low vibration spindle motor. • High precision cartridge-type spindle, ABEC Class 7 (P4) bearings (1 roller bearing and 2 angular contact ball bearings), 0.0001” TIR. • Cross Double V and Longitudinal V & flat, and TURCITE B coated with hand scraped, 3 axes are solid slide ways for superior accuracy with longer machine life. • One-piece casting base and slide way, column casting is enhanced for extra rigidity. • All main castings are made of “Meehanite GC275” and stress have been annealed for long lasting and accuracy. • Automatic and central lubrication system. • Suitable for both precision surface grinding and form. • Made in Taiwan Specifications: Capacity: 6” x 18” Maximum Grinding Length: 18.5″ Maximum Grinding Width: 6.3″ Maximum Distance from Table to Spindle: 15.7″ Working Surface area: 18.3″ x 6″ Maximum Longitudinal movement: 18.9″ Maximum Cross movement: 7″ Grinding Wheel Spindle Motor: 2.0 HP x 2P Grinding Wheel Spindle revolution (60Hz): Max. 3600 rpm Grinding Wheel Diameter x width x bore: 8″ x 0.5″ x 1.25″ Longitudinal Hand Feed per revolution: 4.1″ Cross Hand Feed per revolution graduation of Dial Ring: 0.2″/rev 0.001” Vertical Hand Feed per revolution graduation of Dial Ring: 0.05″/rev 0.0001″ Weight 1600 lbs Dimensions 56 × 40 × 71 in
Standard Equipment: • Auto Lubrication. • Kanetsu Permanent Magnetic Chuck. • 1 PC Grinding Wheel. • 1 SET Grinding Wheel adaptor & Flange Extractor. • 1 PC Arbor for wheel balancing. • 1 SET Diamond Dresser (1/4 carat) with a base. • 1 PC Dust Guard. • 1 SET Halogen Working Lamp. • 3 PCS Leveling plates. • 3 SETS Leveling bolts with nuts. • 4 PCS Eyebolts. • 2 SETS T-Nut & screws. • 1 SET Necessary tools with a toolbox. • 1 CAN Lubrication oil (4 liter). • 4 PCS Plug (5/8″). • 1 Copy Operation manual and inspection certificate. • 1 CAN Spare Paint. |
