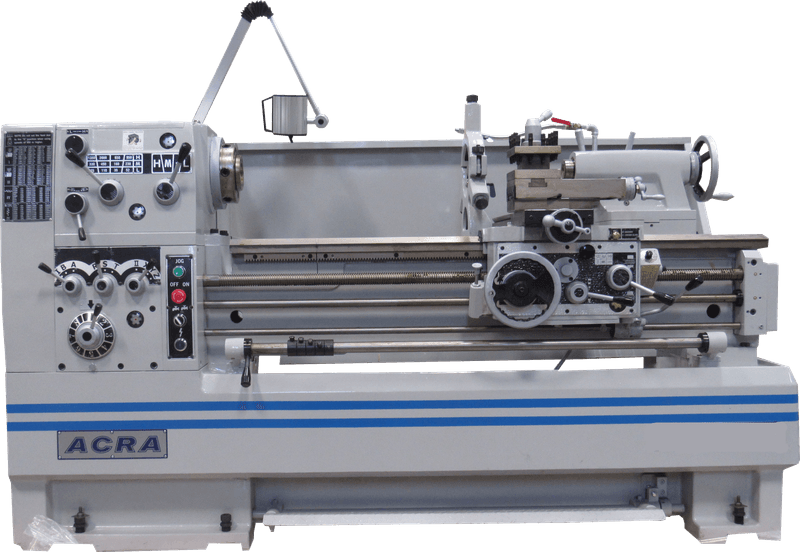

17" X 67" ACRA MODEL 1767ACH PRECISION GAP BED ENGINE LATHE:
Spindle:
• Supported By 3 Precision P-Grade Taper Roller Bearings
• Dynamically Balanced, Hardened, And Precision Ground
• D1-6 Spindle Nose
• Spindle Bore 2-1/4″
Universal Gear Box:
• Oil Bath Lubrication
• Heat-Treated Gears
• Inch/Metric/Module/Diametrical Threads
• Output Shaft Is Designed With Safety Pin
Head Stock:
• All Gears Made By Chromium Molybdenum Steel
and Segmentation Treated And Precision Ground
• Forced Lubrication System
Tailstock:
• Quill made By Chromium Molybdenum Steel
with Segmentation And Precision Ground
• Tailstock Spindle 2-3/8″ And Spindle Travel 6″


Specifications;
Capacity:                                          17″/24″ x 67″
Swing Over Bed:                              17″
Swing Over Cross Slide:                   10-1/2″
Swing In Gap:                                   24″
Distance Between Centers               67″
Bed Width:                                       12″
Spindle Nose:                                    D1-6
Spindle Bore:                                    2-1/4″
Taper of Spindle:                               MT NO.5
Spindle Speeds – Steps:                    12 step
Spindle Speeds – Range:                  35 ~ 2,000 RPM
Cross Slide Travel:                             6-1/2″
Compound Slide Travel:                    4″
Inch Threads:                                     2~72 TPI
Metric Threads:                                 0.2 ~ 14 mm
Longitudinal Feeds:                           0.0012 ~ 0.039″/rev
Cross Feeds:                                       0.0004 ~ 0.0117″/rev
Tailstock:
       Quill Diameter:                            2-3/8″
       Quill Travel:                                 6″
       Quill Taper:                                  MT NO.4
Power:
       Spindle Drive Motor:                   7.5 HP
       Voltage:                                       230/460V AC /3 PH
Weight                                               4750 lbs
Standard Equipment:
10″ 3-Jaw Chuck
12″ 4-Jaw Chuck
Steady Rest
Full Length Splash Guard
Coolant System
4 Way Tool Holder
Foot Brake
Halogen Work Lamp
