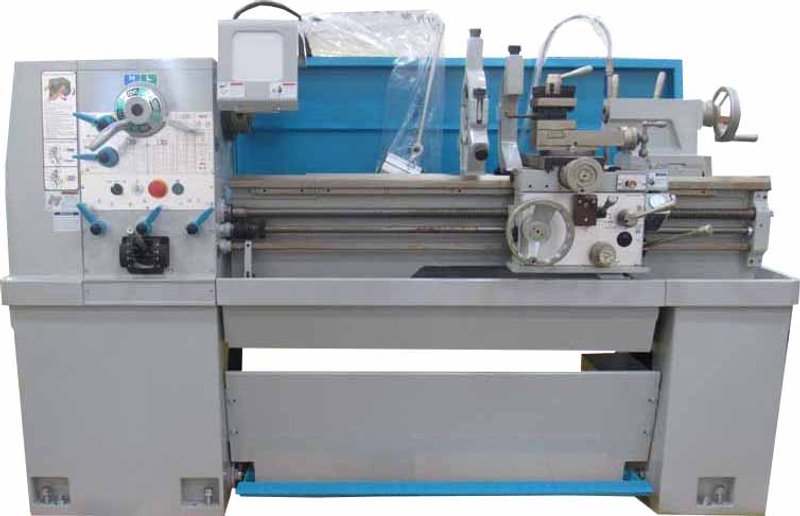

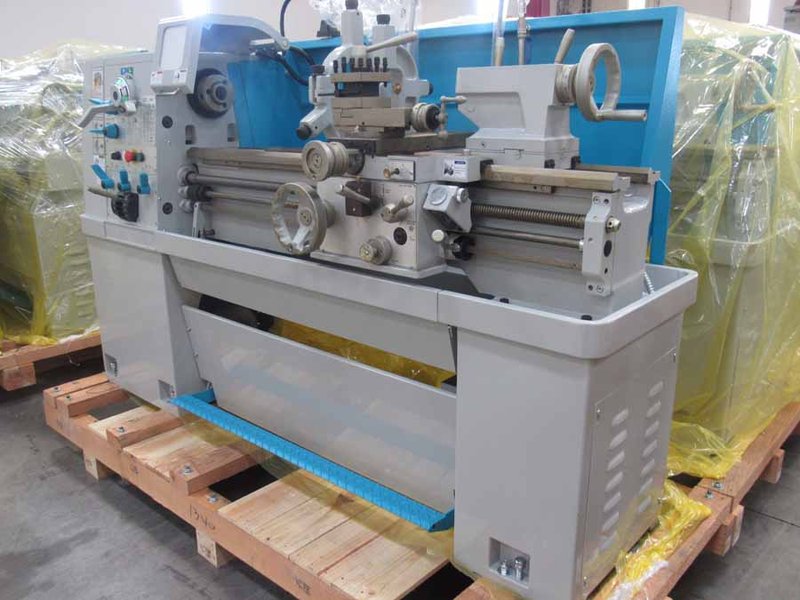

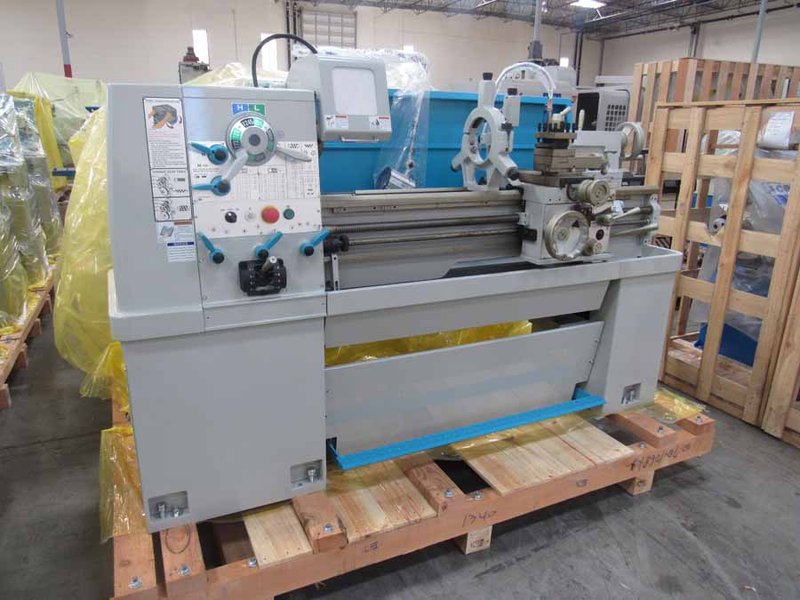

14" X 40" ACRA MODEL 1440C PRECISION GAP BED ENGINE LATHE

Acra’s 1440C Precision Gap Bed Engine Lathe offers the perfect balance between precision and compact size for production machine shops, toolmakers, or school shops. Endowed with the classic South Bend heritage of extreme accuracy and only the highest quality construction, these machines are carefully designed with intelligent features throughout, such as: the signature hardened and ground three V-way bed made with Meehanite® castings, Japanese spindle bearings, Universal quick change gearbox, a hefty tailstock with 4-1/2″ of barrel travel, one-shot bed-way lubrication, and Allen-Bradley® controls. It also features the following:

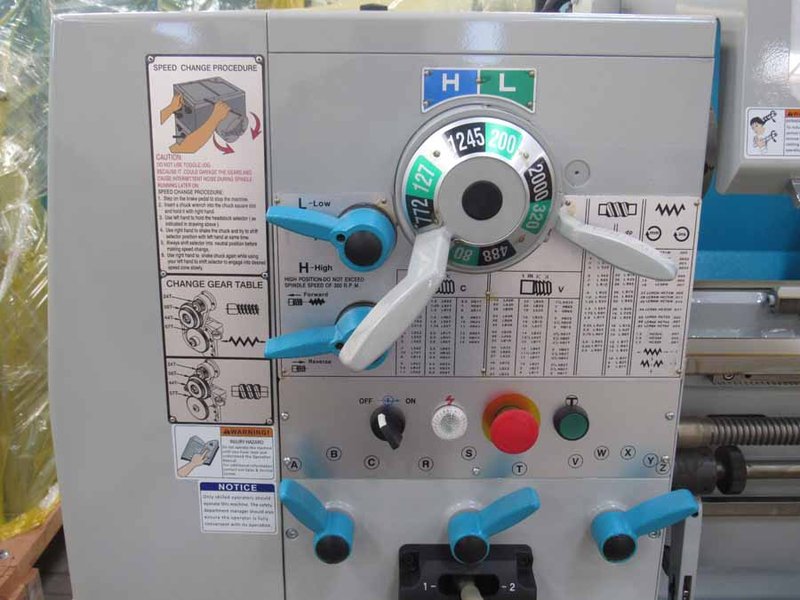

• 8-Speed Gearhead with Precision Hardened and Ground Gears.
• Universal Quick Change Gearbox.
• Safety Shield with Microswitch.
• One-Shot Bed-Way Lubrication.
• Southbend Hardened & Ground Three V-Way Bed.
• Meehanite Casting.
• Micrometer Stop.
• Feed Stop.
• Pull-Out Chip Tray.
• Safety Foot Brake.


Specifications:
Capacity:                                             14”/20” x 40”
Swing over Bed:                                  14-1/8″
Distance Between Centers:                 40″
Swing over Cross Slide:                       8-5/8″
Swing over Gap:                                  20-7/8″
Width of Bed:                                      9”
Spindle Nose to Gap:                          6-3/8”
Cross Slide Travel:                               7″
Compound Travel:                               4″
Compound Slide Travel:                      4″
Spindle Nose:                                     D1-4
Spindle Bore:                                      1.-5/8″
Spindle Taper:                                    MT #5
Spindle speeds: (8)                             80-2,000 RPM
Tail-stock Taper:                                 MT #3
Tail-stock barrel travel:                      4-1/2″
Tail-stock barrel diameter:                1-7/8″
Inch Threads:                                    (45) 2 ~ 72 TPI
Metric Threads:                                 (39) 0.2-14 mm
Modular Pitches:                               (18) 0.3 – 3.5 MP
Diametrical Pitches:                          (21) 8-44 DP
Longitudinal Feed Range:                 0.002 to 0.067 IPR
Cross Feed Range:                            0.001 to 0.034 IPR
Number of Feed selections:              17
Coolant Motor size:                          1/8 HP
Spindle Motor size:                           5 HP
Voltage:                                             230/460V, 3-PH, 60 cycle
Weight                                               2700 lbs
Standard Equipment:
• Allen-Bradley® controls.
• Signature South Bend three V-way bed.
• 6″ 3-Jaw scroll chuck w/ D1-5 back plate
• 8″ 4-Jaw independent chuck D1-5
• 10″ Faceplate D1-4
• Safety Chuck Guard with microswitch shut-off

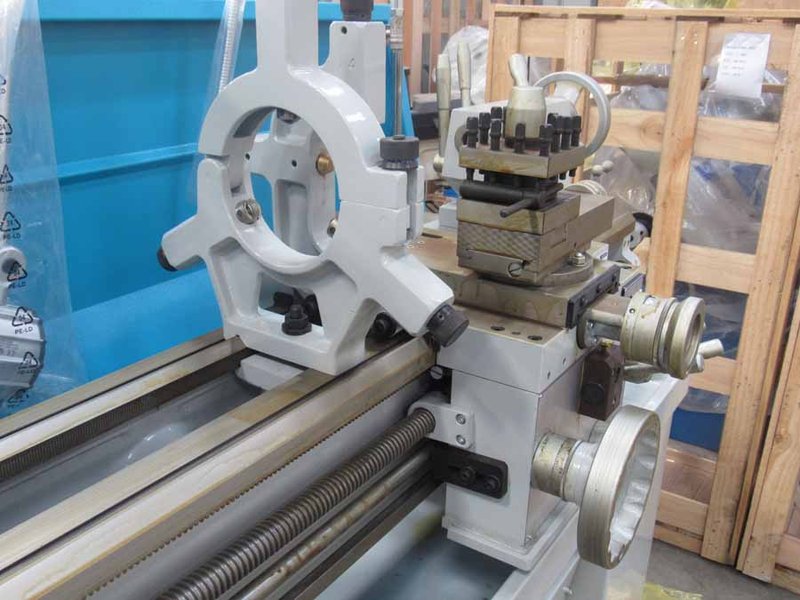

• Steady Rest with roller tips
• Two MT #3 Dead Centers
• Threading Dial Indicator
• Six Leveling Pads
• NTN Japanese Spindle Bearings

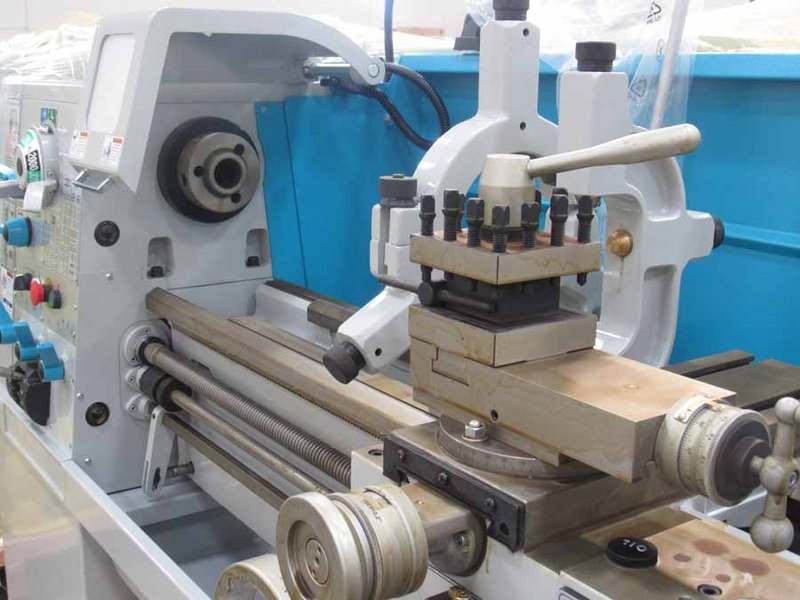

• 4-Way Tool Post
• Halogen lamp
• Complete Coolant system
• Micrometer Carriage stop
• Spindle Sleeve MT #5/MT #3
• Full Length Back Splash
• Foot Brake
• Front Removable pull-out Chip Tray
• Tool set and box
• Spindle Nose to Gap: 6-3/8″
• Follow rest
• Operation manual and parts list EXTRA LONG SADDLE W/ GIBS
