14" X 40" ACRA MODEL 1440GWI GEAR-HEAD PRECISION GAP BED ENGINE LATHE

Brand
Model
1440GWI
Stock #
15797
Year
Not specified
Condition
New
Location
Not specified

14" X 40" ACRA MODEL 1440GWI GEAR-HEAD PRECISION GAP BED ENGINE LATHE

Gear-head spindle lets you select speeds without having to fuss with belts or pulleys.
Shifting gears is as easy as switching a couple of front-mounted levers.
Quick change gearbox makes thread cutting selection fast and efficient.


Specifications:
Capacity:                                                14″/20″ x 40″
Swing Over Bed:                                    14″
Swing Over Cross Slide:                         8-1/4″
Swing In Gap:                                         20″
Length of Gap:                                       9-3/8″
Distance Between Centers:                    40″
Spindle Bore:                                         1-1/2″
Spindle Nose:                                         D1-4
Spindle RPM:                                          40 – 1,800 (12 Speeds)
Spindle Bearing Type:                             Taper Roller Bearing
Longitudinal Feeds:                                 0.0011″~0.0271″/rev.
Cross Feeds:                                            0.0003″~0.01″/rev
Inch Treads(28):                                       4-56 TPI
Metric Threads(37):                                 0.45mm~7.0mm
Maximum Tool Size:                                1″x1″
Compound Slide Travel:                          3-1/2″

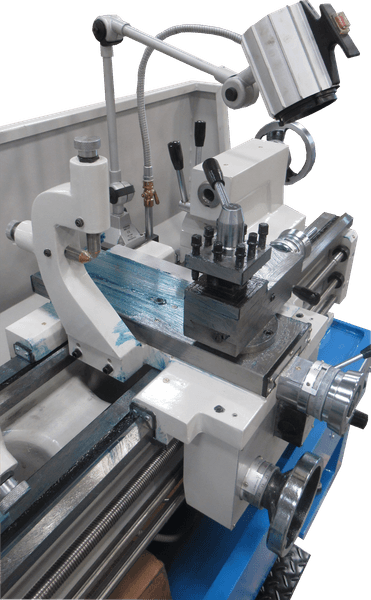

Cross Slide Travel:                                    6″
Carriage Travel:                                        37″
Tailstock Travel:                                        4-5/4″
Diameter of Tailstock:                              1-7/10″
Tailstock Taper:                                         MT#3
Main Motor:                                             4 HP
Voltage:                                                    220/440V AC / 3PH
Weight                                                     2540 lbs
Dimensions                                              78 × 30 × 60 in

Standard Equipment:
260mm (10-1/4″) extra wide bed ways with harden and grounded
Available with three phases or single phase motor
One piece case iron floor stand
Special larger 190mm (7″) D1-4 3 jaw scroll chuck
ISO9000 Certified factory
6″ 3 Jaw Chuck
8″ 4 Jaw Chuck
Steady/Follow Rest

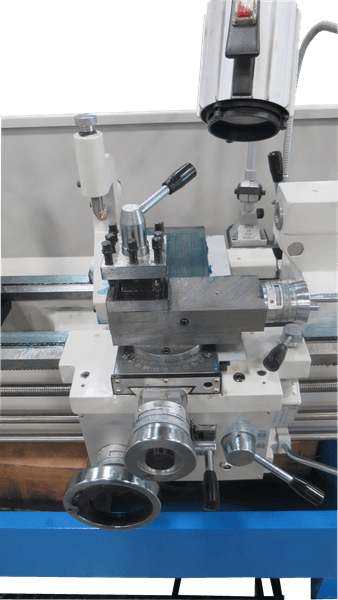

4 Way Tool Holder

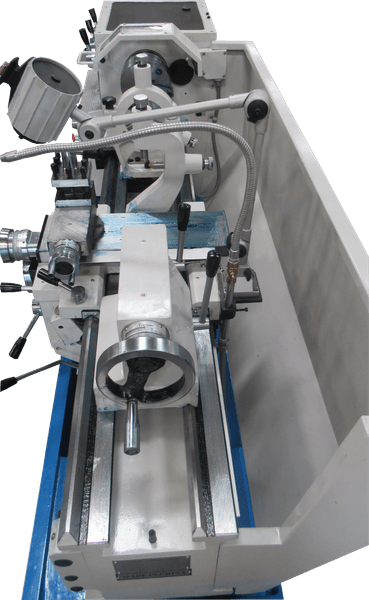

Coolant System

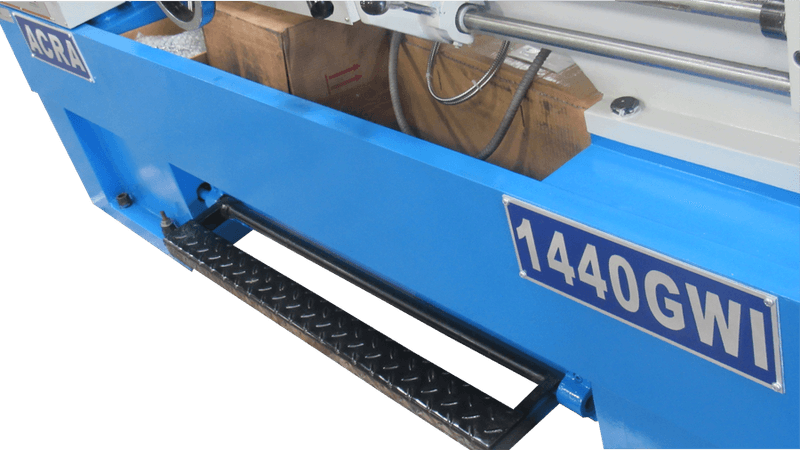

Foot Brake
Full Length Splash Guard
Micro Bed Stop
Chuck Guard
