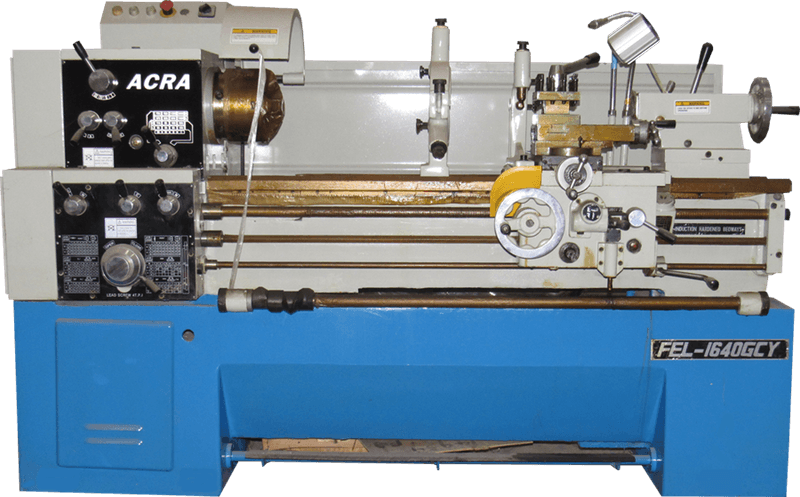

16" X 40" ACRA MODEL 1640GCY PRECISION GAP BED ENGINE LATHE One piece cast iron base with high rigidity.Gears in Head Stock are hardened and ground. All Bed Ways are hardened and ground. 3 Bearings help support the Spindle for smoother turning at high speed. High Spindle speed 33-2,000 RPM 7-1/2 Spindle Motor Apron and Slideways are lubricated by One Shot Lubrication. Camlock D1-6 Spindle with 2-1/32″ Bore. Specifications: Capacity: 16″/22″ x 40″ Swing Over Bed: 16″ Swing Over Cross Side: 10-3/16″ Swing In Gap: 22-13/16″ Distance Between Centers: 40″ Bed Width: 10-6/8″ Spindle Nose: D1-6 Spindle Bore: 2-1/32″ Taper of Spindle: MT No.6 Spindle Speeds (16 Speeds): 33~2,000 RPM Cross Slide: 9-1/4″ Travel: Compound Slide: 3-7/8″ Inch Threads: 4~56 TPI Metric Threads: 0.5~7 mm Longitudinal Feeds: 0.002~0.036 IPR. Cross Feed: 0.06~0.92 IPR Tailstock: Quill Diameter: 2″ Quill Travel: 3-7/8″ Quill Taper: MT NO.4 Spindle Drive Motor: 7-1/2 HP Head Stock Lubrication Motor: 1/8 HP Voltage: 230/460V AC ~ 3PH Weight 3600 lbs Dimensions 83 × 41 × 56 in

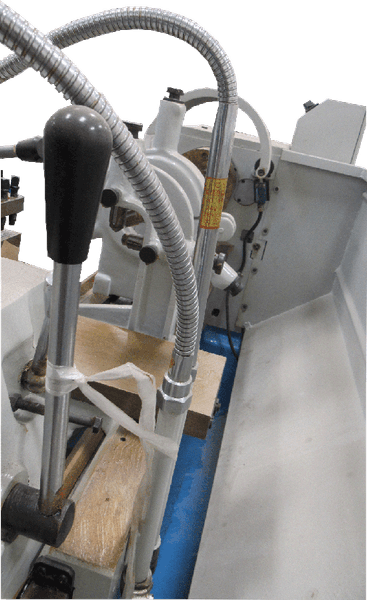

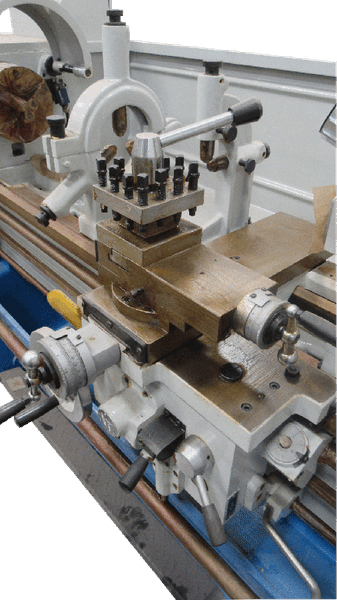

Standard Equipment: 8″ 3-Jaw Chuck 10″ 4-Jaw Chuck Steady/Follow Rest Coolant System Halogen Light 4 Way Tool Holder Full Length Splash Guard Chuck Guard Tool Box Dead Center & Center Sleeve |
