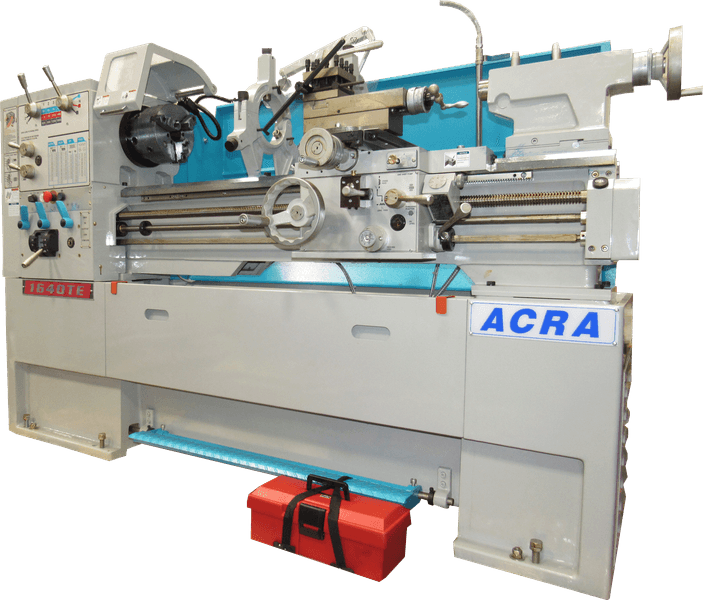

16" X 40" ACRA MODEL 1640TE PRECISION GAP BED ENGINE LATHE (12 SPEED)

Bed & Stand:
One Piece Cast Iron Floor Stand With Foot Brake
Front Removable Chip Tray Floor Stand Or Rear Chip Floor Stand Selected
Bed Width (10-1/4″), Bed Meehanite Casting, Vibration Stress Relieved
Induction hardened And Precision Ground Bed Ways
Precision Hand Scraped Removable Gap Bed

Headstock:
Dynamic Balanced Spindle
Spindle Is Supported By 3 Points Precision Bearings-2 Taper Roller And 1 Ball Bearing
Housing Are Properly Stabilized & Deflection Free
All Gears & Shafts Are Made By Chromium Molybdenum Steel With Segmentation And Precision Ground
EVS Models Forced Lubrication System
Nylon Safety Gears In End Train

Spindle:
Machined From Forged Alloy Steel, Hardened Ground & Dynamically Balance
Three Point Support By High Grade Precision Machine Tool Taper Roller & Ball Bearings

Universal Gear Box:
Induction Hardened And Ground Gears And Shafts
Wide Threads Cutting Capacity For Imperial, Metric, Module Pitch And Diametrical Pitch

Apron:
Right Hand Side Or Left-Hand Size Apron. Hand-Wheel Available As Requested
Integrated Automatic Device For Longitudinal & Cross Feeds, Forward And Reverse Feeds

Carriage & Slide:
Anti-Float Design, Backlash Eliminator Fitted In Cross Slide Nut
Safety Clutches At Feed Shaft Lever
Dual Reading Dials
One Shot Lubrication For Carriage And Tops Slide


Specifications:
Capacity:                                           16″/23″ x 40″
Swing Over Bed:                               16-3/16″
Swing Over Cross Slide:                    10-3/8″
Swing In Gap:                                    23″
Distance Between Centers:               40”
Bed Width:                                        10-1/4″
Spindle Nose:                                    D1-6
Spindle Bore:                                     2-1/16″
Taper of Spindle:                               MT NO.6
Spindle Speeds:                                (12 Speeds)
Spindle Speeds – Range:                   36 ~ 1800 RPM
Cross Slide Travel:                              8-11/16″
Compound Slide Travel:                     5-1/2″
Inch Threads:                                     2 ~ 72 TPI
Metric Threads:                                  0.2 ~ 14 mm
Longitudinal Feeds:                           0.002 ~ 0.067″/rev
Cross Feeds:                                      0.001 ~ 0.034″/rev
Tailstock:
      Quill Diameter:                             2″
      Quill Travel:                                  6″
      Quill Taper:                                   MT NO.4
Spindle Drive Motor:                         5 HP
Voltage:                                             230/460V AC / 3 PH
Weight                                              3700 lbs
Standard Equipment:
8″ 3-Jaw Chuck
10″ 4-Jaw Chuck
Steady/Follow Rest
Halogen Light
Coolant System
4 Way Tool Post
Full Length Splash Guard
Chuck Guard
