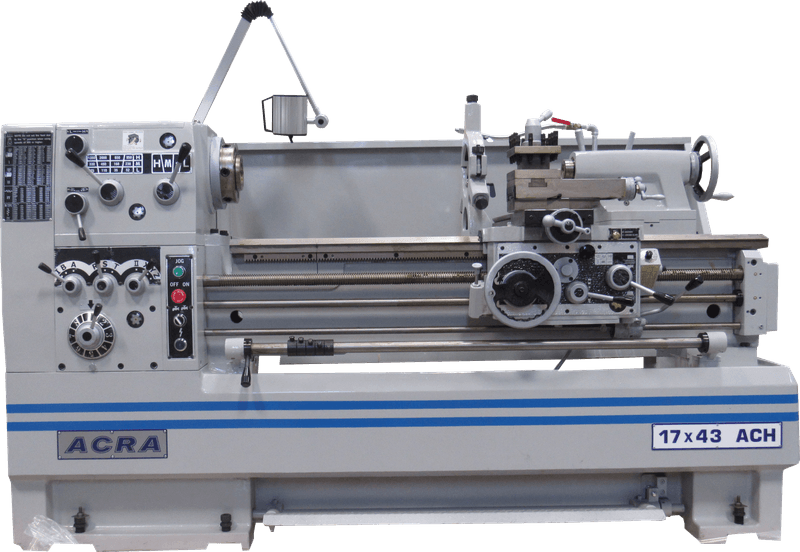

17" X 43" ACRA MODEL 1743ACH PRECISION GAP BED ENGINE LATHE
Brand
Category
Type
Model
1743ACH
Stock #
15756
Year
Not specified
Condition
New
Location
Not specified
|
17" X 43" ACRA MODEL 1743ACH PRECISION GAP BED ENGINE LATHE Spindle:• Supported By 3 Precision P-Grade Taper Roller Bearings • Dynamically Balanced, Hardened, and Precision Ground • D1-6 Spindle Nose • Spindle Bore 2-1/4″ Universal Gear Box: • Oil Bath Lubrication • Heat-Treated Gears • Inch/Metric/Module/Diametrical Threads • Output Shaft is Designed with Safety Pin Head Stock: • All Gears Made by Chromium Molybdenum Steel and Segmentation Treated and Precision Ground • Forced Lubrication System Tailstock: • Quill made by Chromium Molybdenum Steel with Segmentation and Precision Ground • Tailstock Spindle 2-3/8″ and Spindle Travel 6″ Specifications: Capacity: 17″/24″ x 43″ Swing Over Bed: 17″ Swing Over Cross Slide: 10-1/2″ Swing In Gap: 24″ Distance Between Centers: 43″ Bed Width: 12″ Spindle Nose: D1-6 Spindle Bore: 2-1/4″ Taper of Spindle: MT NO.5 Spindle Speeds – Steps: 12 step Spindle Speeds – Range: 35 ~ 2,000 RPM Cross Slide Travel: 6-1/2″ Compound Slide Travel: 4″ Inch Threads: 2~72 TPI Metric Threads: 0.2 ~ 14 mm Longitudinal Feeds: 0.0012 ~ 0.039″/rev Cross Feeds: 0.0004 ~ 0.0117″/rev Tailstock: Quill Diameter: 2-3/8″ Quill Travel: 6″ Quill Taper: MT NO.4 Spindle Drive Motor: 7.5 HP Voltage: 230/460V AC / 3 PH Weight 4300 lbs Dimensions 90 × 42 × 54 in
Standard Equipment 10″ 3-Jaw Chuck 12″ 4-Jaw Chuck Steady Rest Full Length Splash Guard Coolant System 4 Way Tool Holder Foot Brake Halogen Work Lamp |
