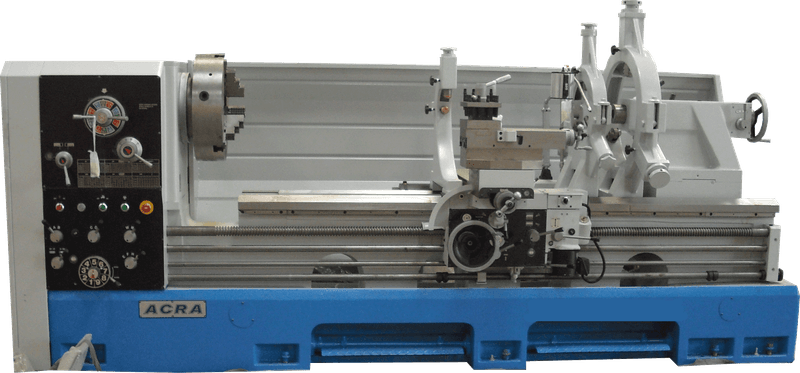

28" X 80" ACRA MODEL 2880SET PRECISION GAP BED ENGINE LATHE

Headstock:
• All gears and mandrel are made of alloy steel with heat treatment and precision ground.
• Rotating type speed changing system is easy to operate.

Spindle:
• Large bore spindle, supported by 3-point precision bearings.
• Suitable for heavy-duty cutting.

Tailstock:
• With speed reduced quill suitable for heavy duty drilling, hand wheel is with dual dial..

Apron and Saddle:
• Easy-operated overload protect safety devise.
• Central lubrication system can be operated manually or automatically.

Gear Box:
• Universal gear box design, is able to cut metric thread, Imperial thread, module thread without changing gears.

Lathe Bed:
• High tensile ribs structure. high precision and wide bed surface.
• With hardened and precision ground.
• One piece structure lathe bed enhances the machines life and working performance.

Auto Longitudinal Stop:
• Auto longitudinal travel devise will control the feed of tool post.

Emergency Brake System:
• More safe emergency brake system can shut off power supply simultaneously.


Specifications:
Capacity:                                           28″/39″ x 80″
Swing Over Bed:                               28-3/4″
Swing Over Cross Slide:                   19-5/8″
Swing In Gap:                                   39-2/8″
Distance Between Centers:               80″
Bed Width:                                       18-1/8″
Spindle Nose:                                   A2-11
Spindle Bore:                                    6″
Taper of Spindle:                              MT NO.5
Spindle Speeds – Steps:                   12
Spindle Speeds – Range:                  15 ~ 1,000 RPM
Cross Slide Travel:                             16-1/2″
Compound Slide Travel:                    10″
Inch Threads:                                     2 ~ 28 TPI
Metric Threads:                                 0.8 ~ 14 mm
Longitudinal Feeds:                           0.05″ ~ 0.7 mm/rev
Cross Feeds:                                      0.025 ~ 0.35 mm/rev
Tailstock:
     Quill Diameter:                             3-3/4″
     Quill Travel:                                  9″
     Quill Taper:                                  MT NO.5
Spindle Drive Motor:                        25 HP x 4P
Voltage:                                            230V/460V AC / 3 PH
Weight                                             12,800 lbs


Standard Equipment:
1 PC 20” 3 Jaw Chuck
1 SET Electromagnetic Brake
1 SET 2 Way Rapid Traverse Device
1 PC Center Sleeve
2 PCS Center (M.T.5#)
1 PC Tool Post Wrench
1 SET Anchor Bolt
1 SET Tool Box & Tool
1 SET Coolant Pump
1 PC Work Light
1 PC Splash Guard
1 SET Steady Rest 11.8″
1 PC Full Length Rear Splash Guard
1 PC 4 Way Tool Holder
