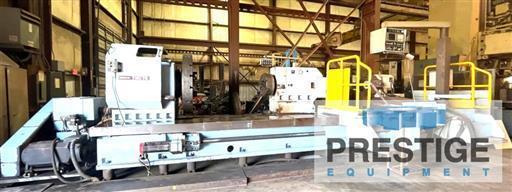

42" X 200" ACRA MODEL CST42200 HOLLOW SPINDLE CNC FLAT BED LATHE WITH FANUC OITF CONTROLLER • One piece box type machine base made of Meehanite castings, all bedways are hardened and ground which provides high hardness, rigidity and durability.• Integrate design of machine body and electrics, convenient for operation and maintenance. • Large Spindle Bore supported by 3-point precision bearing which is suitable in accuracy and heavy cuttings. 9”,10”,12”, 14”,16”,21” is an option. • Spindle speed is controlled automatically by hydraulic system, 4 stages variable speed changing will ensure full horsepower output even under low spindle RPM. • Special Coolant System for headstock will reduce the temperature of spindle. • New Design Tailstock will make the tailstock slide more smoothly and eliminate the wearing as well as provide security in operating. This innovation includes a security devise to ensure operator safe even under a wrong operating. • C-Axis (Live Tooling) is able to make spindle high precision index position, fitted with power tooling turret, will complete with “turning” and “milling capacities”. Fanuc Series Oi-TF Controller features: • Arbitrary Speed Threading & Thread Repair. • Threading Retract. • Balanced Cut. • Dual-Path Synchronization. • Tool-Nose Radius Compensation. • Multiple Repetitive Cycles. • Canned Cycles for Drilling. • High-Speed Rigid Tapping. • Standard, Multi-Lead & Variable Lead Threading Cycles. • Polar Coordinate Interpolation for C-axis / Y-axis / Live Tools with Cutter Radius Compensation. • G54-G59 Plus 48 Additional Workpiece Coordinate Offsets. • Lathe G-code systems A/B/C. • Chamfering / Corner R. • Direct Drawing Dimension Programming. • Programmable Data Input. • Threading Cycle. • Polar Coordinate Command. • 400 Tool Off sets Pairs. • Tool Life Management. • Tool Length Measurement. • Scaling. • Helical Interpolation. • Mirror image for Double Turret. • Polygon Turning. • High-Speed Skip for Probing. Specifications: Swing Over Bed: 42” Swing Over Cross Slide: 26.7” Swing Over Gap: 55.1” (Optional) Width of Gap: 22” (Optional) Width of Bed: 26” Distance Between Centers: 200” Spindle Bore: 6” Spindle Nose: A2-11 Range of Spindle Speeds: 1 – 680 RPM Number of Spindle Speeds: 4 Turret: Number of Tool Stations: H4/ H6/ V8 O.D. Tool Shank Size: 1-1/4” x 1-1/4” I.D. Tool Shank Diameter: 1.96” Cross Slide Travel (X-Axis): 26.7” Longitudinal Travel (Z-Axis): 196” AC Servo Motor: X-Axis (4 HP)/ Z-Axis (9.4 HP) Rapid Feed: X-Axis (393 ipm)/ Z-Axis (315 ipm) Cutting Feed Rate: 0.0004”~20”/rev. Tailstock: Quill Diameter: 6.1” Quill Travel: 9.8” Taper of Center: MT#6 Motor: Main Spindle (cont.): 30 HP Main Spindle (30 min. rating): 35 HP Hydraulic Pump: 2 HP Coolant Pump: 0.5 HP Voltage: 220V~3 Phase Weight 39,670 lbs Dimensions 389 × 118 × 108 in
Standard Equipment: • Controller FANUC OiTF. • FANUC OiTF Controller with Manual Guide i. • Operating, Electric, Controller & Parts Manual. • Color LCD 10.4″. • MPG Hand Wheel. • Spindle Motor 30/35 HP (50 kVA). • Spindle Bore 6″ (A2-11). • Hydraulic System. • Auto Lubrication System. • Head Stock Coolant System. • Air Conditioner. • Tailstock Movable by Engaging with carriage. • H4/H6/V8 Tool Turret. • Work Light. • Rear Chip Conveyor. • Double Door & Splash Guard. • Center and Center Sleeve. • Live Center. • Toolbox with Adjusting Tool. • Foundation Pads, Leveling Screws. • Wood Plate of Vacuum. • Standard Turret Tooling Package. |
