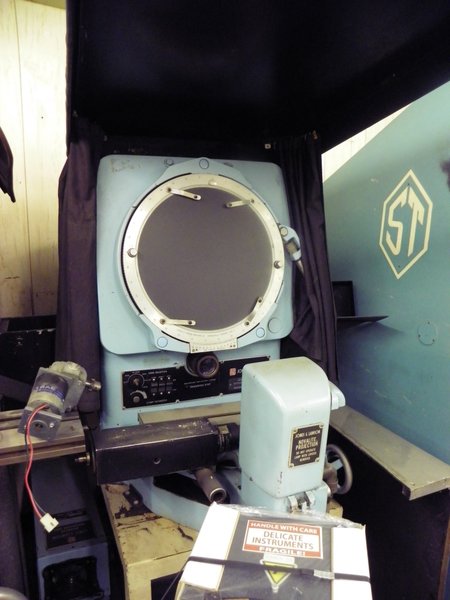

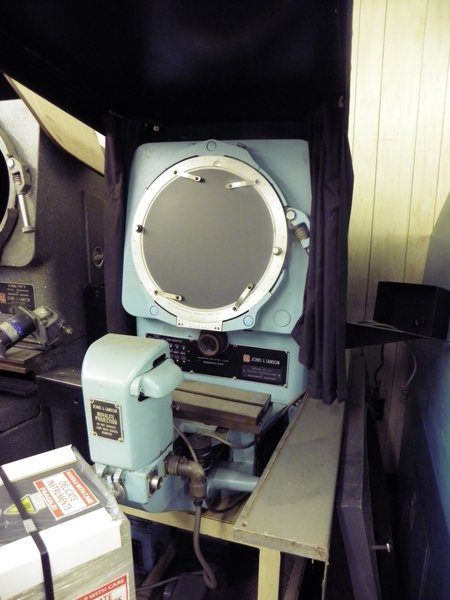

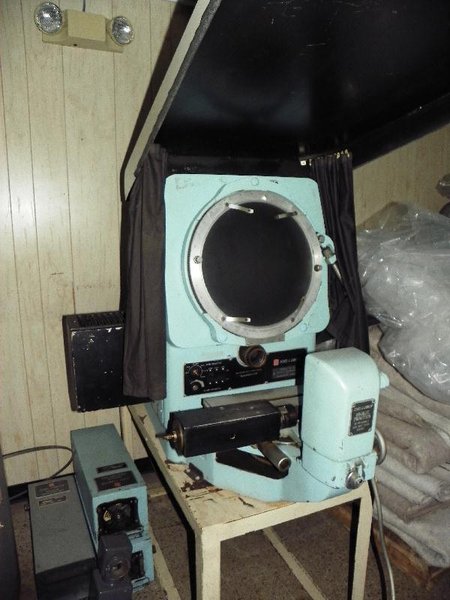

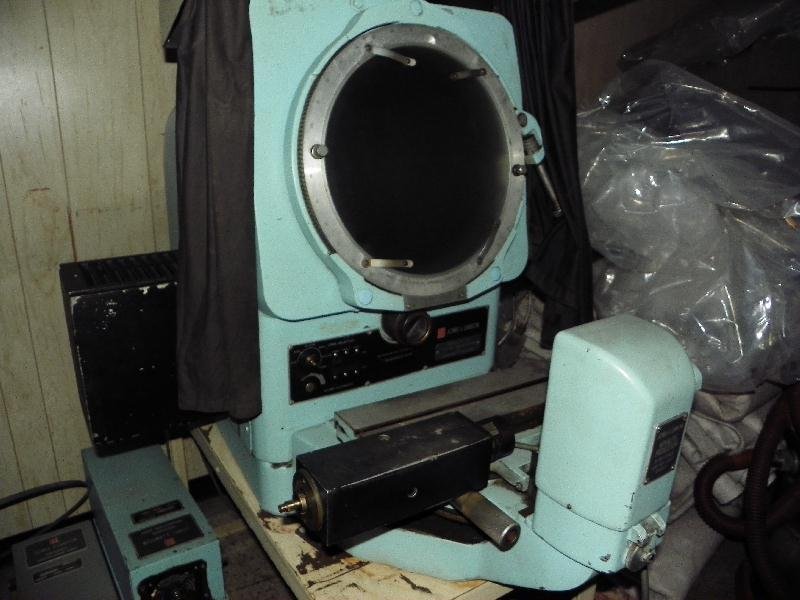

14" JONES & LAMSON TC14 Optical Comparator, S/N C520626, New Approx 1981. Availability Pending.

Brand

JONES & LAMSON

Category

Inspection & Measuring

Type

Comparators

Model

TC-14

Stock #

30572

Year

1981

Condition

Used

Location

Not specified

Specifications
Files & Videos

Specifications:
Screen Diameter - 14"
Table Size - 5" x 16"
Horizontal Table Travel - 4"
Vertical Table Travel - 2"
Focus Travel - 1.375"
Chart Rotation - 360 Degrees
Image Type - Direct, Unreversed
Lens Mount - Power Turret
Electrics - 1/60/115V
Overall Dimensions, Approx - 43" LR x 52" FB x 37" H
Weight, Approx - 750 Lbs.

Equipped with:
New Quadra Chek 200 Digital Readout (install pending)
Thru Lens Surface Reflection (Illumination) Attachment
Power Operated Lens Turret - Advise lenses desired
Green Filter
Overhead Visor and Curtains
All Available Manuals

* Availability Pending - Approx 6 weeks from order.
