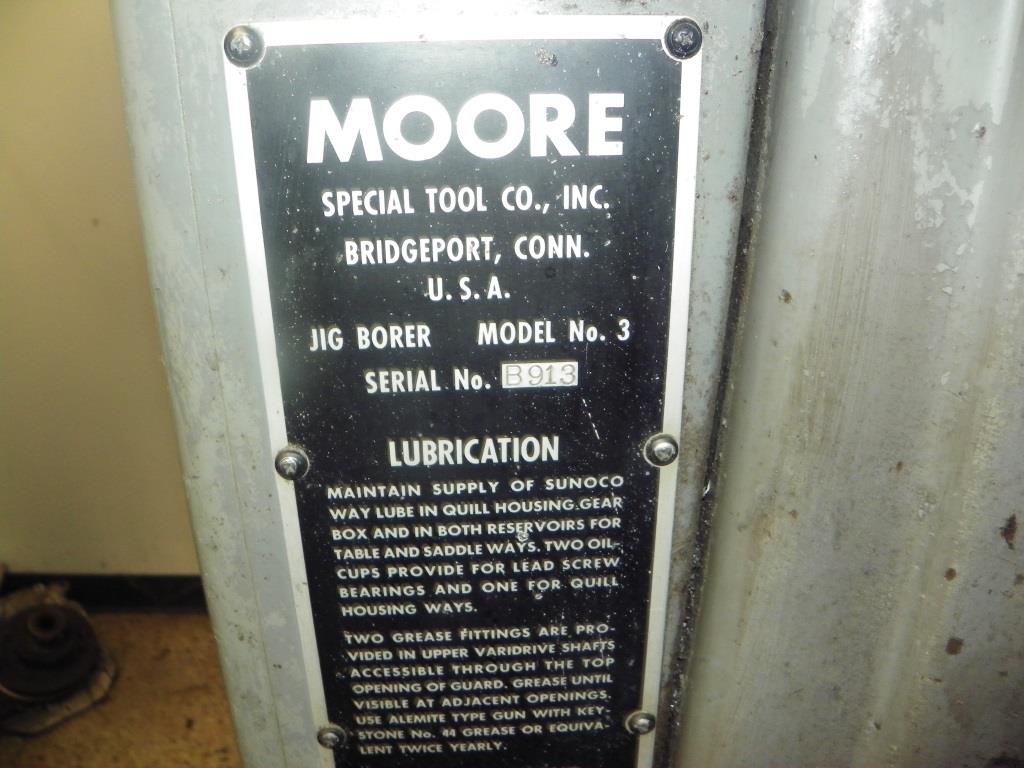

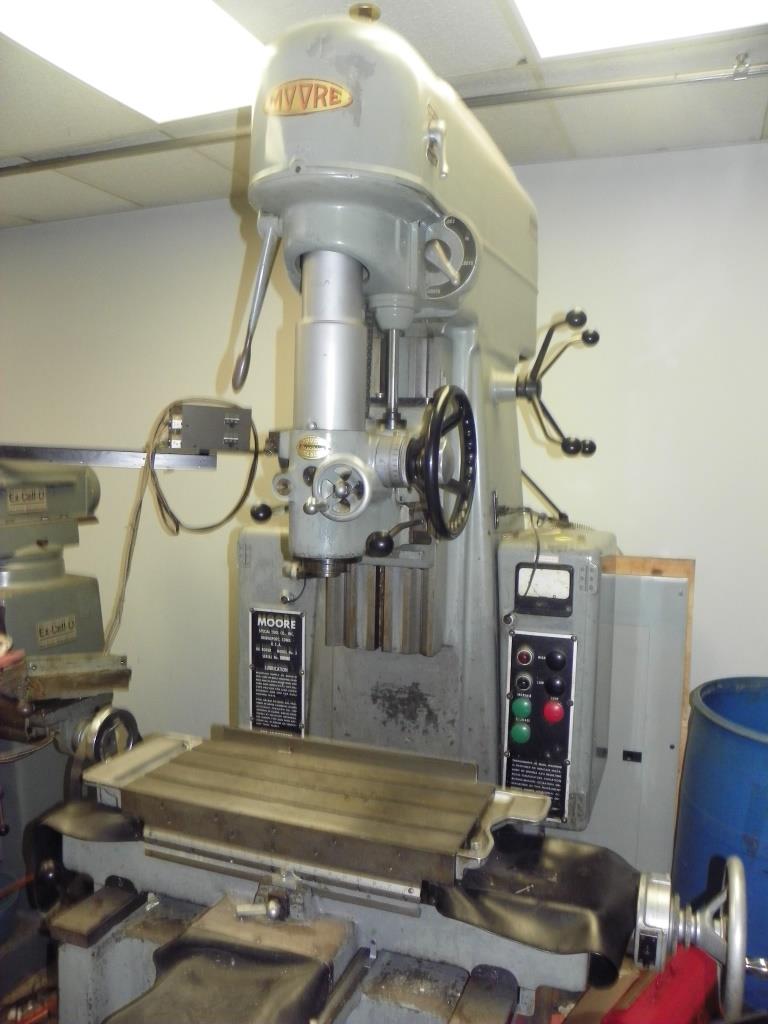

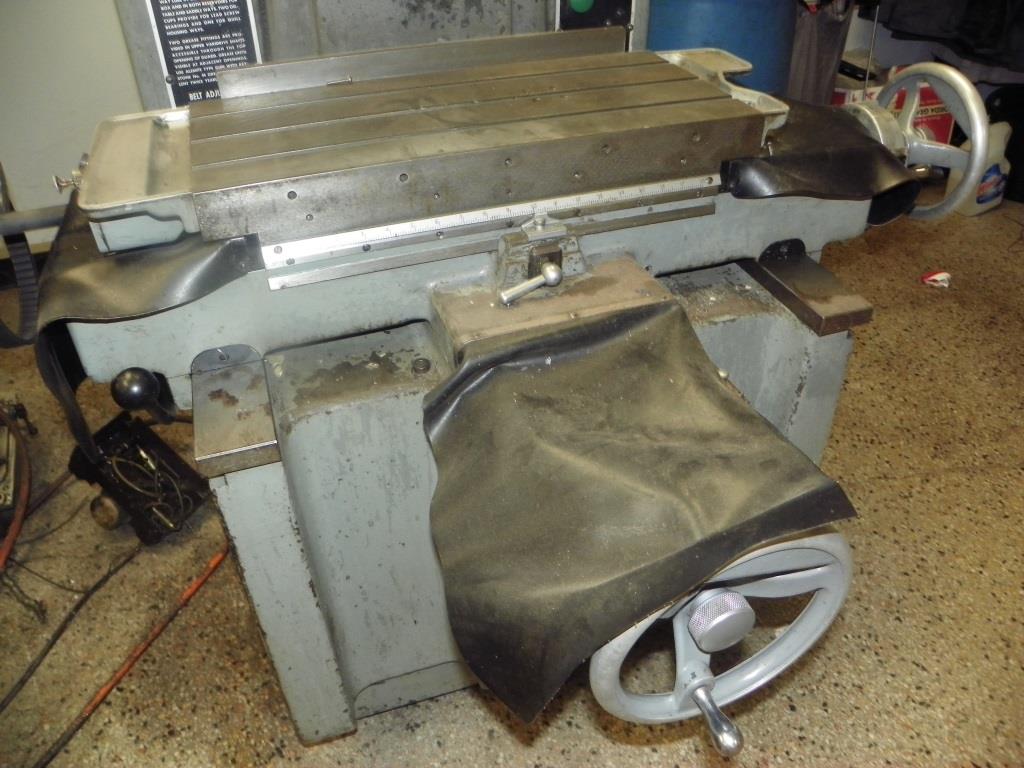

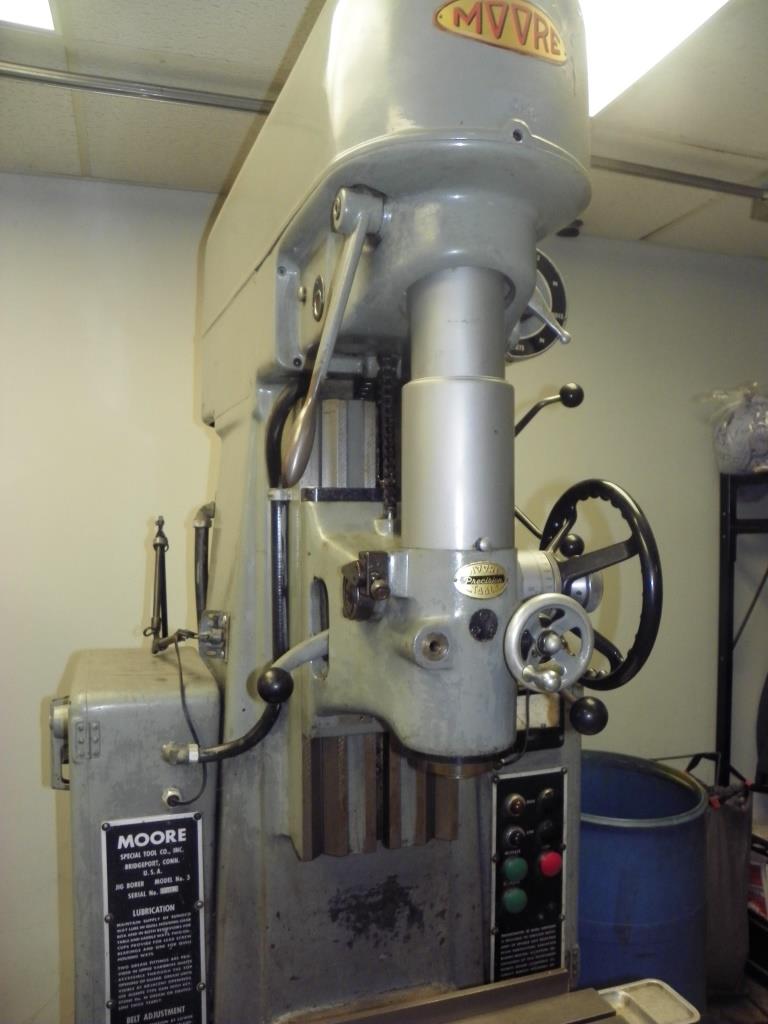

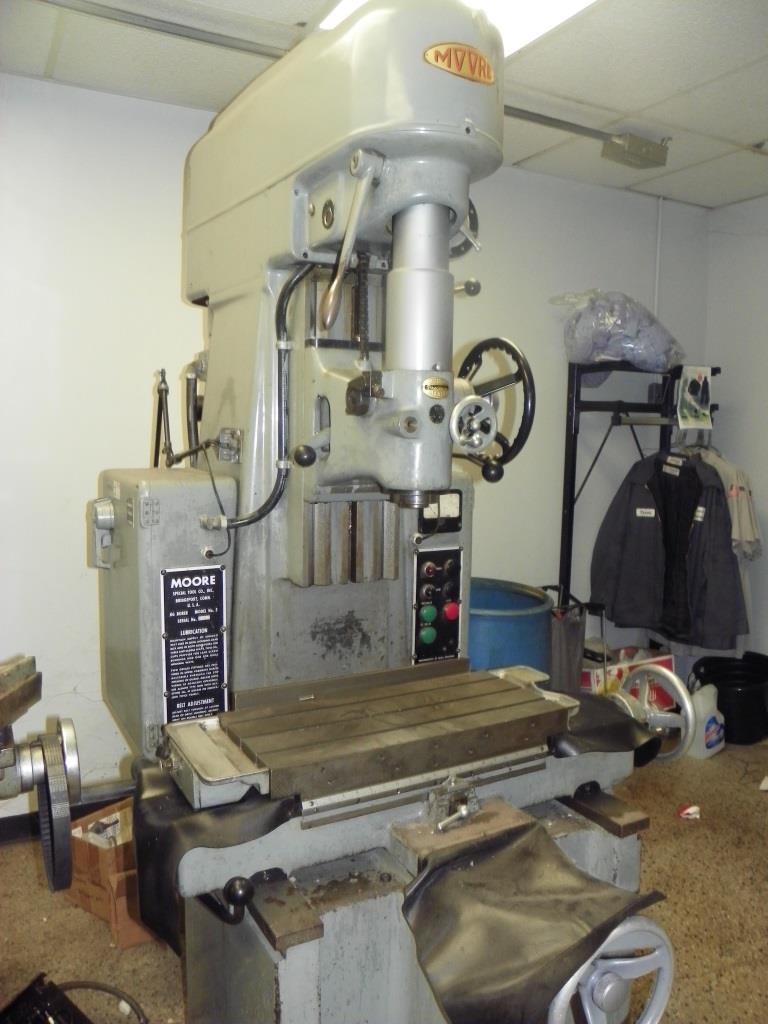

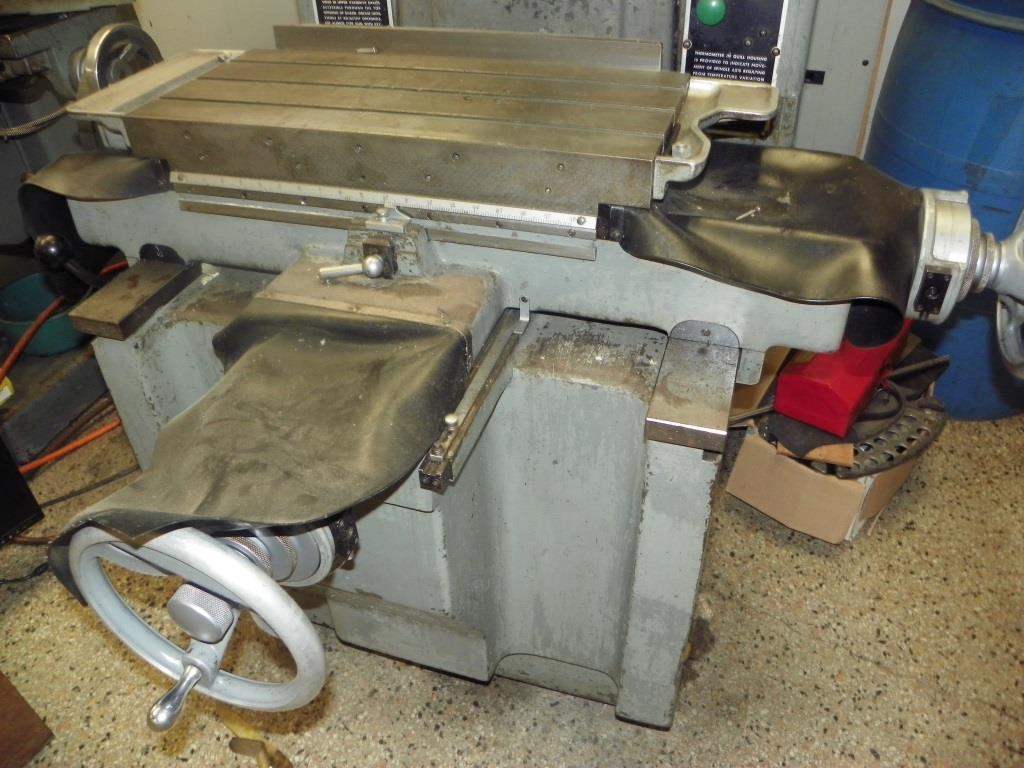

Moore No. 3 Jig Borer, S/N B913, New 1966.
Brand
Category
Type
Model
3
Stock #
16083
Year
1966
Condition
Used
Location
Not specified
|
Specifications:
Table Working Surface 11 x 24" Longitudinal Table Travel 18" Cross Table Travel 11" Vertical Adjustment of Quill Housing 11-15/16" Vertical Quill Travel 5" Spindle Speeds, Range 60 to 2250 RPM Spindle Head Feeds .00075 to .003 per rev" Max Distance Spindle to Table Top 20-13/16" Spindle Center to Column Ways 10" Spindle Center to Column Throat 13-3/4" Weight, Approx 3860 Lbs. Machine is untested and offered as is. There is no tooling included. |
