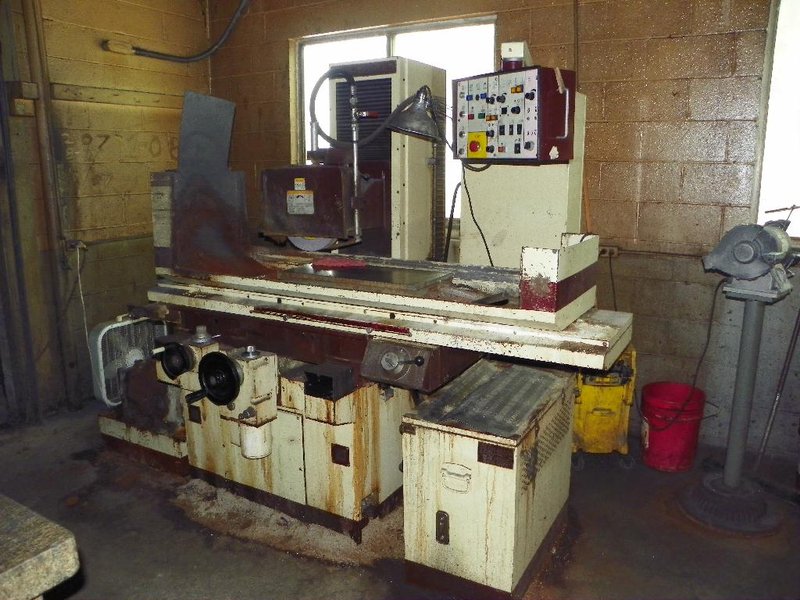

Chevalier FSG-1224AD 3-Axis Automatic Hydraulic Surface Grinder, Scrapped 8/9/2019

Model
FSG-1224AD
Stock #
26228
Year
Not specified
Condition
Used
Location
Not specified

PRELIMINARY SPECIFICATIONS:
TABLE SIZE - 11 ¾” X 23 5/8”
MAX GRINDING LENGTH - 24”
MAX GRINDING WIDTH - 12”
LONGITUDINAL TABLE TRAVEL, MANUAL - 27 ½”
LONGITUDINAL TABLE TRAVEL, HYDRAULIC - 25 5/8”
CROSS TRAVEL - 12”
TABLE SPEEDS - 16 TO 82 FPM
AUTO INCREMENTAL CROSSFEED - 1/8” TO 2”
AUTO INCREMENTAL DOWNFEED - .00005” TO .0002”
GRINDING WHEEL SIZE - 14” X 2” X 5”
GRINDING WHEEL MOTOR - 5 HP
FLOOR SPACE - 108” X 59” X 71”
WEIGHT, APPROX - 6000 LBS.

EQUIPPED WITH:
11 ¾” X 23 5/8” ELETROMAGNETIC CHUCK
COOLANT SYSTEM WITH PAPER FILTRATION
POWER VERTICAL ELEVATION
INCREMENTAL DOWNFEED

* Cleaned and cycled at the price quoted.
