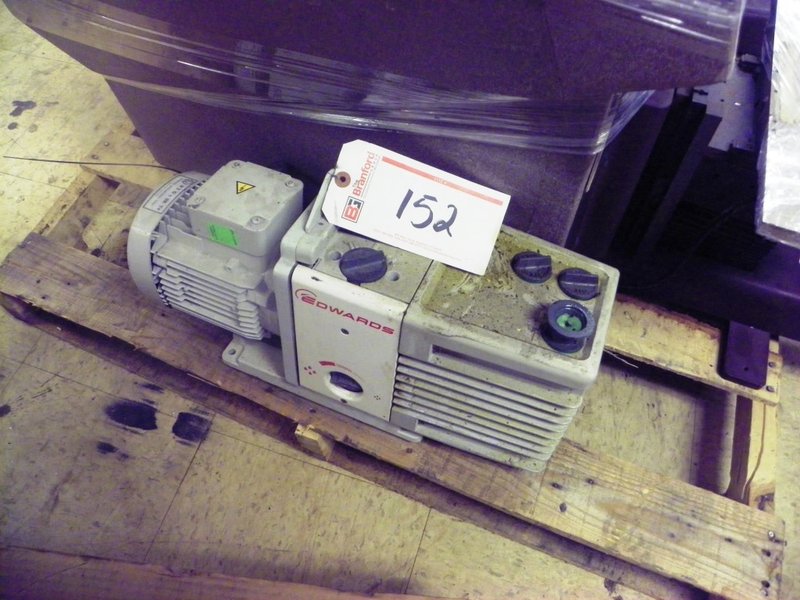

EDWARDS Model RV12 Rotary Vane Vacuum Pump

Brand

Not specified

Technical Data

Displacement
50Hz	14.2 m3h-1 / 8.4 ft3min-1
60Hz	17 m3h-1 / 10 ft3min-1
Speed (Pneurop 6602)
50Hz	12 m3h-1 / 7.1 ft3min-1
60Hz	14.2 m3h-1 / 8.4 ft3min-1
Ultimate pressure	2 x 10-3 mbar / 1.5 x 10-3 Torr
Ultimate pressure GB I	3 x 10-2 mbar / 2.3 x 10-2 Torr
Ultimate pressure GB II	6 x 10-2 mbar / 4.6 x 10-2 Torr
Ultimate pressure with Fomblin®	2 x 10-2 mbar / 1.5 x 10-2 Torr
Max inlet pressure for water vapour	32 mbar / 24 Torr
Max water vapour pumping rate – GB I	60 gh-1
Max water vapour pumping rate – GB II	220 gh-1
Max allowed outlet pressure	0.2 bar gauge / 2.8 psig
Max allowed inlet and gas ballast pressure	0.5 bar gauge / 7 psig
Motor power 50/60Hz	450 / 550W
Power connector 1-ph	IEC EN60320 C13
Nominal rotation speed 50/60Hz	1500 / 1800rpm
Weight (without oil)	29 kg / 63.8 lb
Oil capacity min/max	No files or videos to display Want to request a quote from the owner of this listing? Similar Listings to - EDWARDS Model RV12 Rotary Vane Vacuum Pump Pumps, Vacuum Pumps, Vacuum Pumps, Vacuum An MDNA Partner MDNA is an international nonprofit trade association, established in 1941 to promote the used machinery industry. MDNA members include machinery dealers, auctioneers, and appraisers. Our dealer and auctioneer members offer the most extensive selection of used machinery in the world, with thousands of machines available in warehouses and plants across the globe. LEARN MORE Machine Hub Manage Your Business News Support Contact Us Schedule a Demo Pricing Follow Us On Social Marketplace Equipment for Sale Browse By Category Browse By Manufacturer Auctions Sign In Register © 2024 Machine Hub. All right reserved. \| Terms & Conditions \| Privacy Policy \| Cookie Settings Powered by Hunch Free e339 By visiting and using this site, I agree to the privacy policy, including the collection of my personal data and receipt of exclusive email offers and promotions. We use essential cookies to make our site work. With your consent, we may also use non-essential cookies to improve user experience and analyze website traffic. By clicking “Accept,” you agree to our website's cookie use as described in our Privacy Policy. You can change your cookie settings at any time by clicking Customize Settings Customize Settings Your Privacy Is Important To Us Cookies are very small text files that are stored on your computer when you visit a website. We use cookies for a variety of purposes and to enhance your online experience on our website (for example, to remember your account login details). You can change your preferences and decline certain types of cookies to be stored on your computer while browsing our website. You can also remove any cookies already stored on your computer, but keep in mind that deleting cookies may prevent you from using parts of our website. Choose which cookies you want to enable or disable: Toggle Essential Cookies Essential Cookies Toggle Analytics Cookies Analytics Cookies Toggle Performance Cookies Performance Cookies Toggle Marketing Cookies Marketing Cookies
