Specifications:
Coil weight capacity: 6,000 Lbs.
Max coil width capacity: 12"
Max stock thickness capacity: .085" @ 12" Wide
Max stock thickness capacity: .093" @ 08" Wide
Coil ID capacity: 16"-20"
Coil OD capacity: 60"

Equipped With:

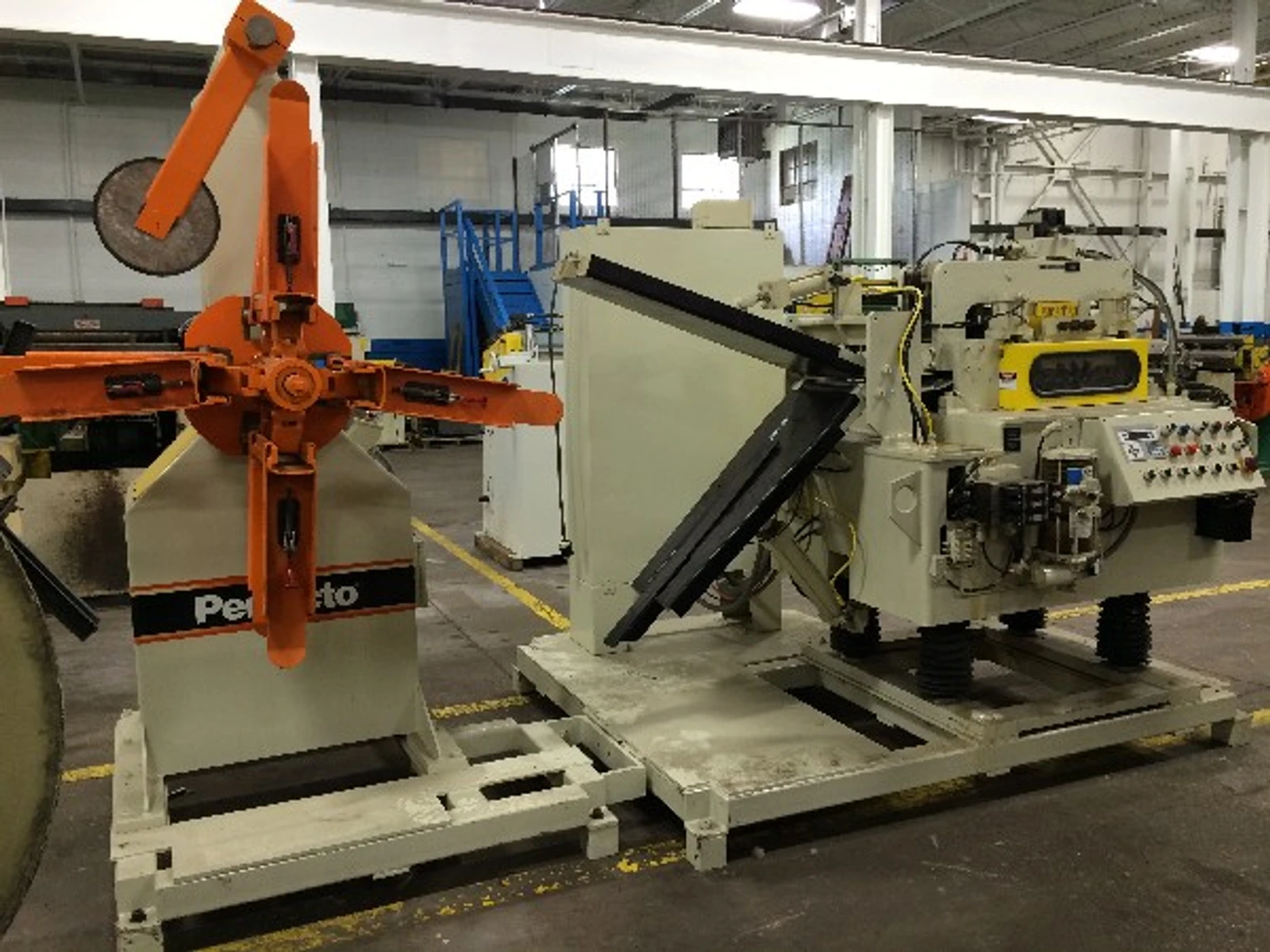

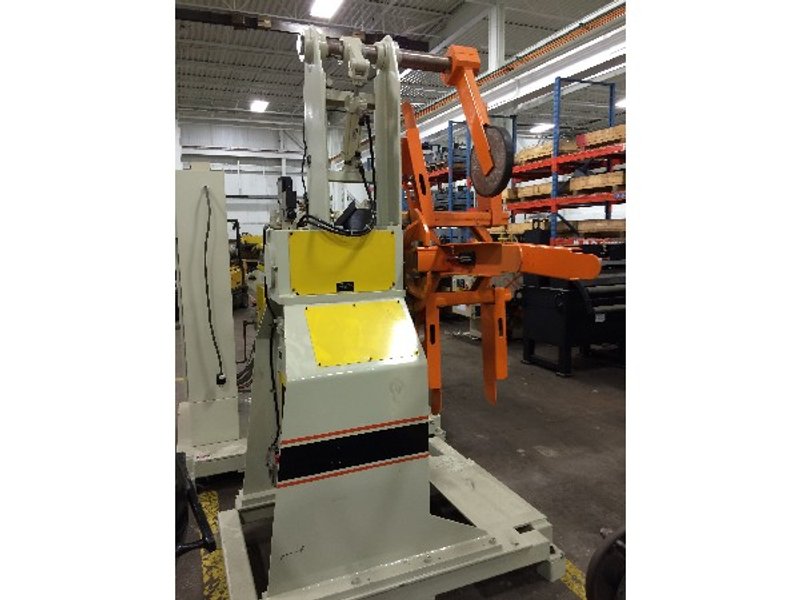

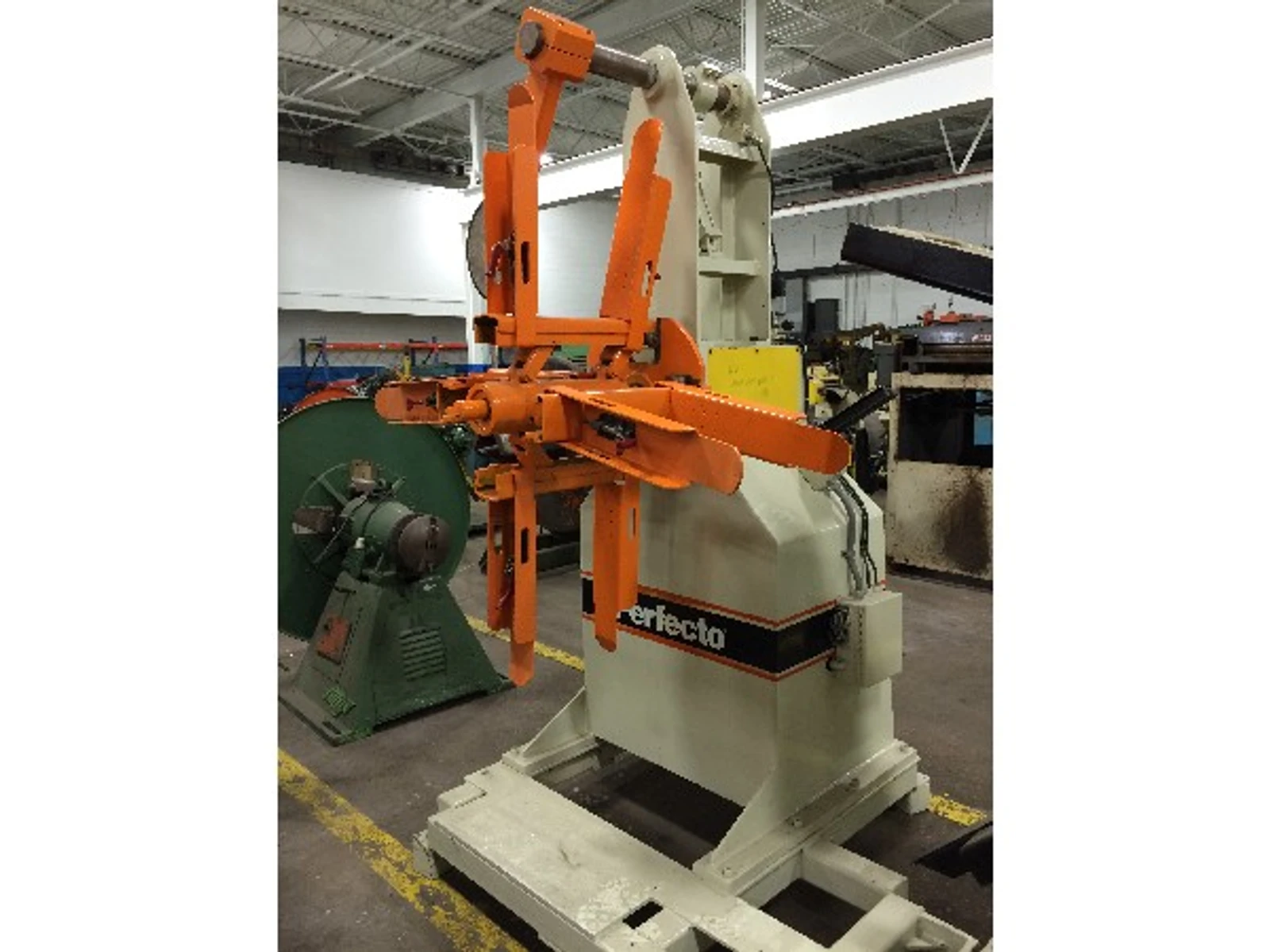

Perfecto Coil Reel Model No.: RS046012M
Front mounted link type manual expansion
Four leaf mandrel
Quick release coil keeper arms
Air operated coil hold down arm
Thread drive for jog forward and reverse via selector switch
Variable speed drive system
Auto/Run cycle

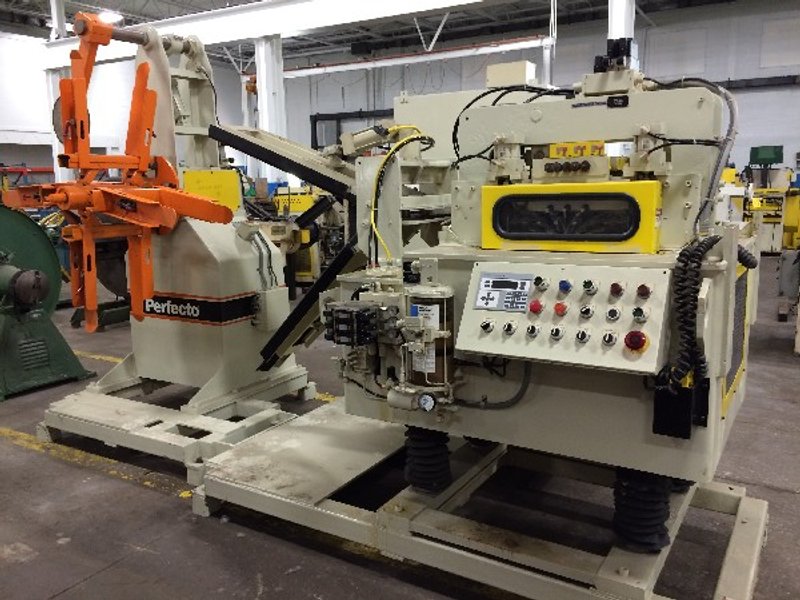

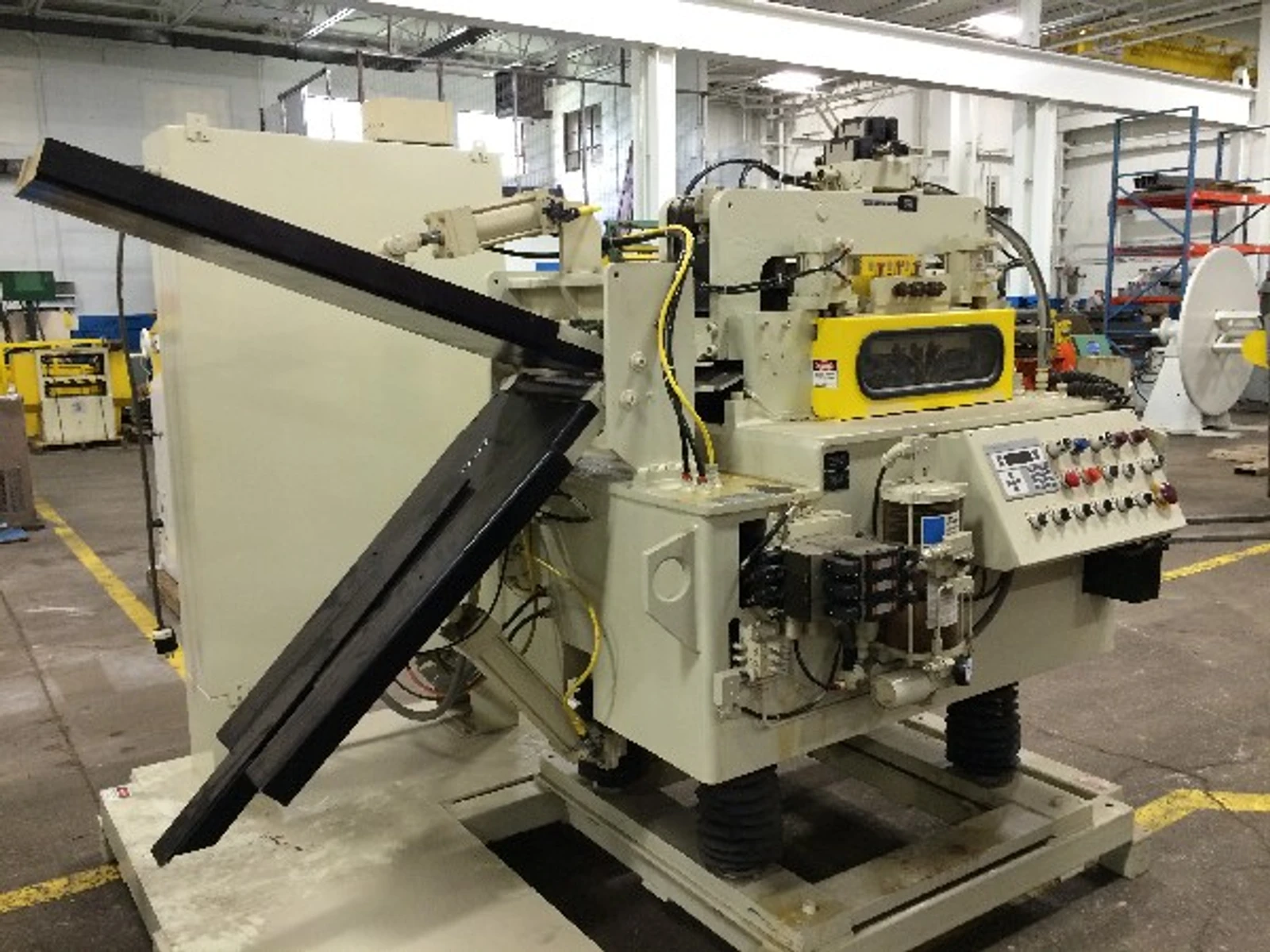

Perfecto Servo Feed Straightener Combination Model No.: FS171207
Entry and exit pinch rolls
Air operated pinch roll adjustments
Seven straightening rolls x 1.750" diameter
Individual/Unison upper straightening roll adjustments
Piloting upper straightening bank
Upper and lower stock peeler tables
Lower peeler table blade extension (air actuated)
Adjustable stock width edge guides
Drive and controls
Auto/Run Cycle

"As-Is"
Warranty: Standard MDNA thirty day return privilege
Terms: 40% Deposit, net prepaid
