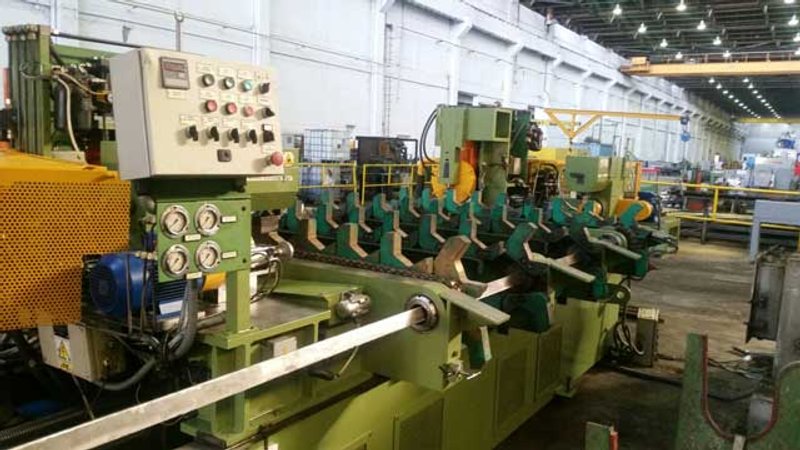

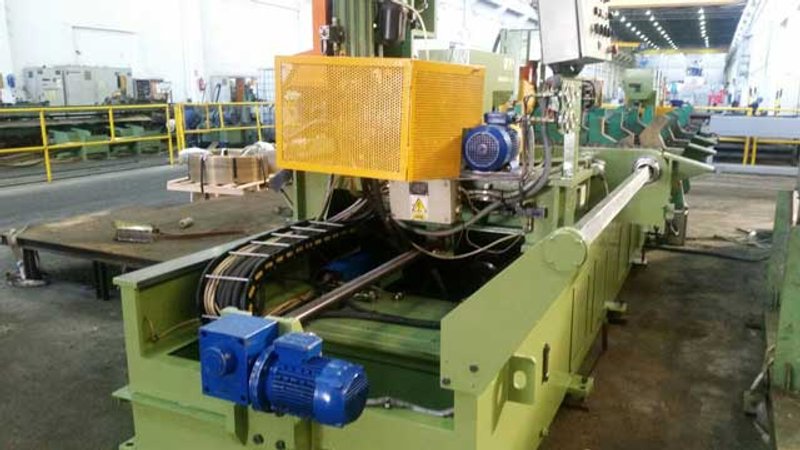

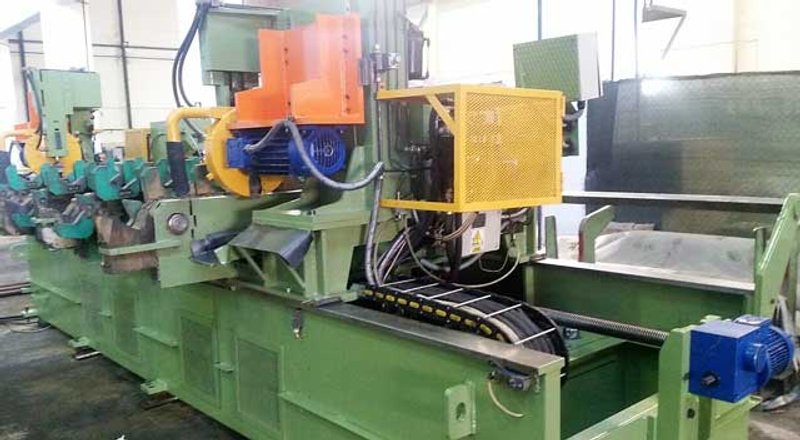

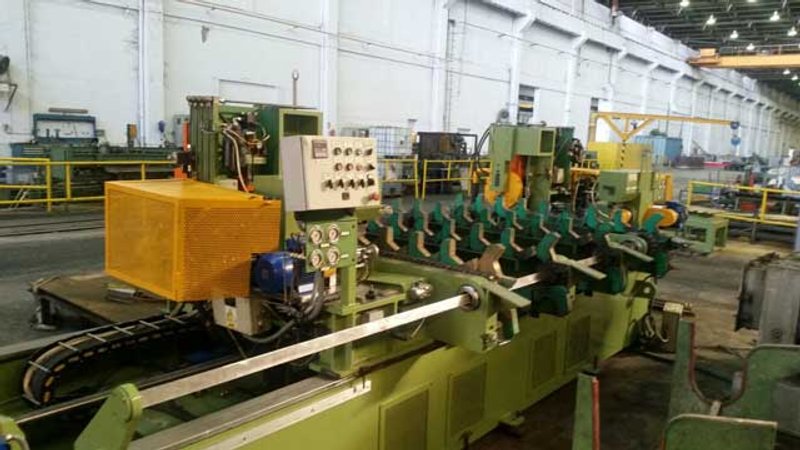

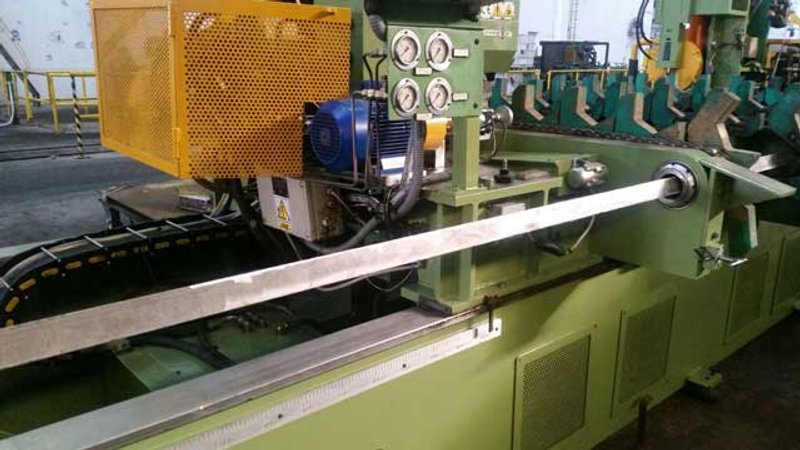

1"(25mm) - 2.5"(65mm) GUARIENTI DOUBLE HEADED CHAMFERING & CUTTING (13392)


 MACHINE# 13392

 SPECIFICATIONS:

 Manufacturer: GUARIENTI OFFICINA MECCANICA S.r.l. (Italy)
 Model: SB-4
 Year: 2000

 Range:
 - Rounds: 25mm - 65mm (1" - 2 1/2")
 - Hexagons: 17mm - 40mm (0.7"" - 1.57")

 Sawing head: 2
 Sawing motor: 2 x 11 kW
 Chamfering head: 2 Staggered
 Chamfering motor: 2 x 2,8/3,3 kW
 Chamfer Angle: 30 - 45 Degree
 Productivity: 5-10 bar/min. depending on the bar diameter
 Bars length:
 - Rounds: 3000mm - 4050mm (9.8 Ft. - 13 1/4 ft.)
 - Hexagons: 3000mm (9.8 Ft.)

 Tension: 380 V. - 50 Hz.

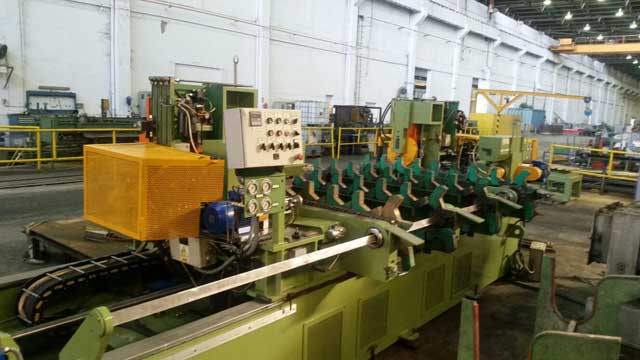

 Composition of the line:

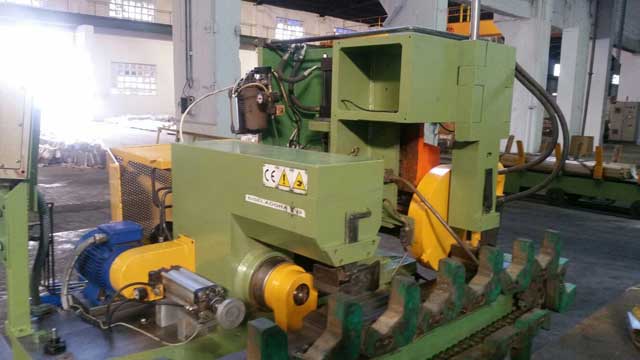

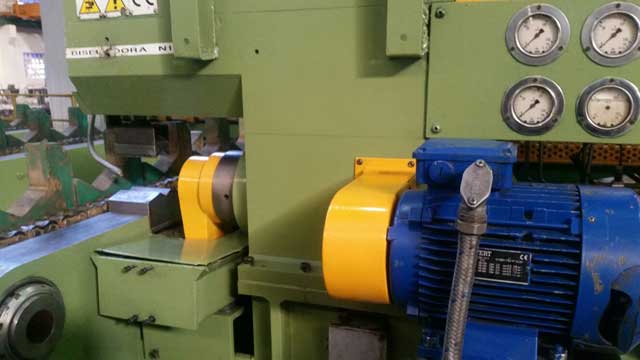

 - 1st cutting and chamfering head
 - 2nd cutting and chamfering head
 - Chains translating system
 - Collecting cradles
 - Head and tails bar belt evacuator

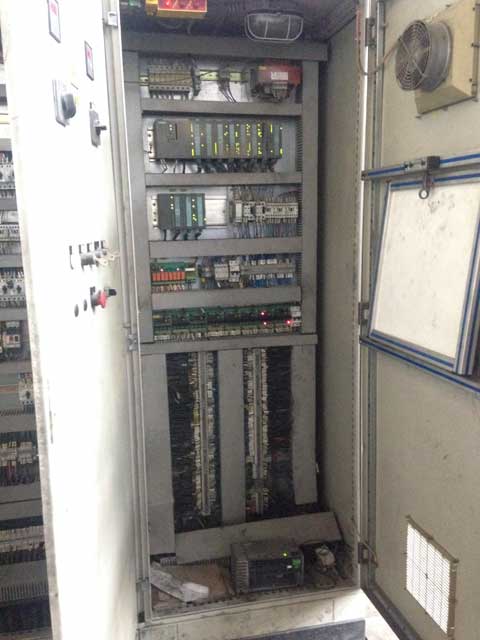

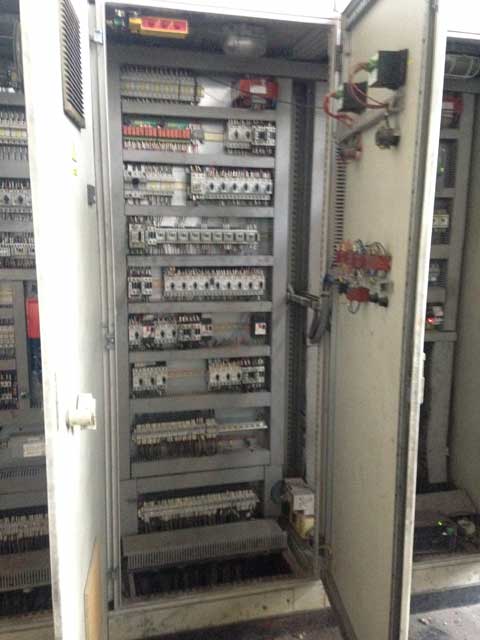

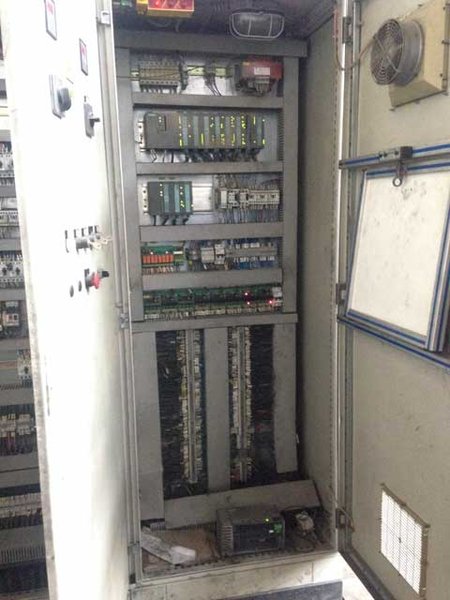

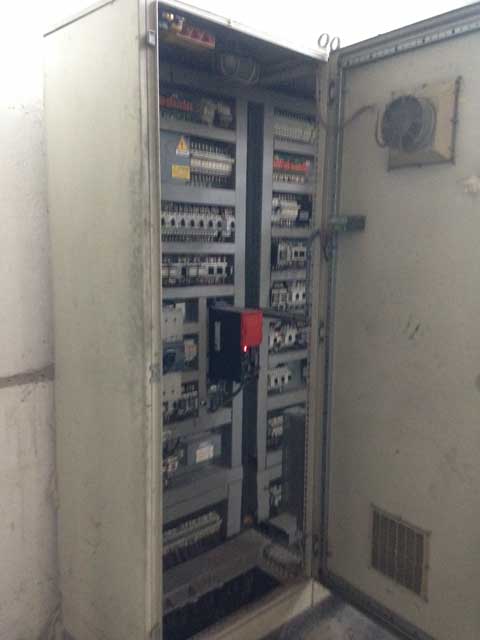

 - Electric equipment with PLC SIEMENS S-7
