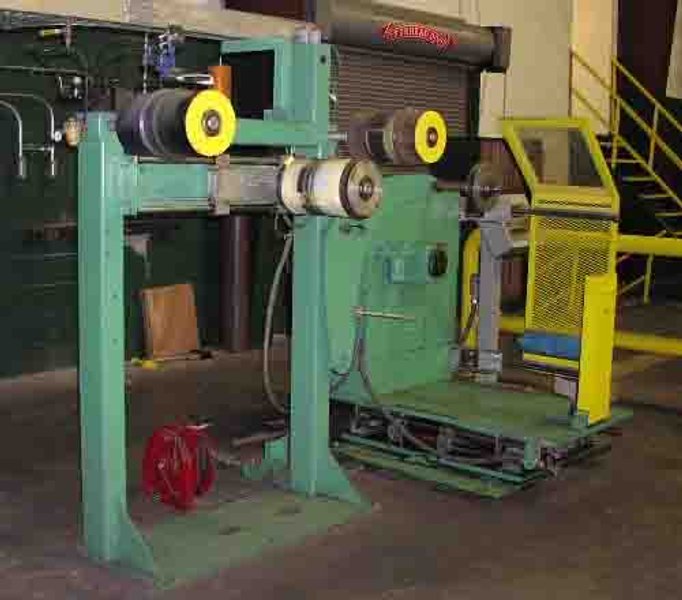

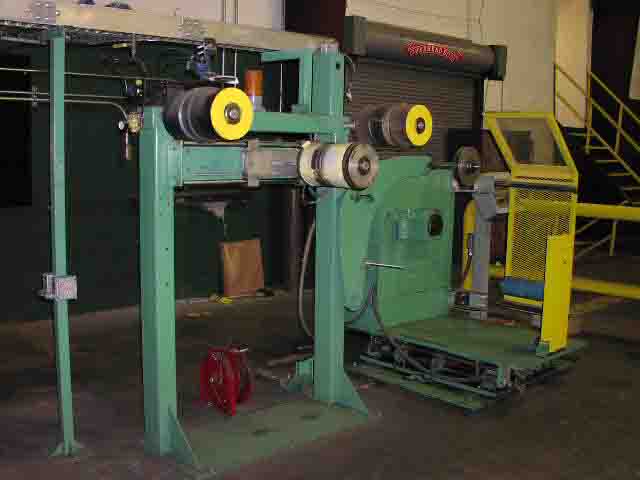

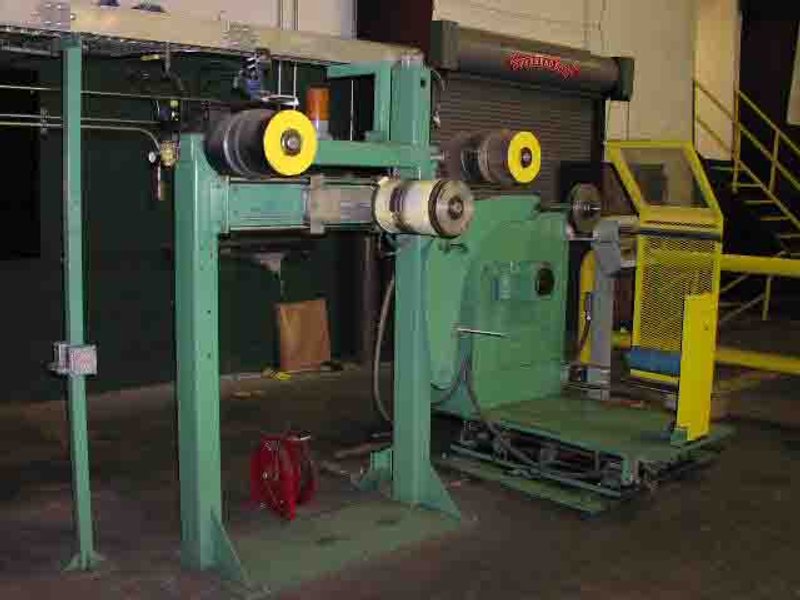

MACHINE # 10579

MANUFACTURER: PROGRESSIVE MACHINE CO. INC.
PATERSON, NEW JERSEY

MODEL: 620-SM-RH
SERIAL NUMBER: 17060620

SPOOLER MACHINE No.: SO# 37370
MAXIMUM COIL WEIGHT: 2,000 LB.

SPOOL SIZE:
O.D.: 30" (762mm)
I.D.: 15" (381mm)
WIDTH: 10 1/2" (267mm)
HOLE DIAMETER: 5" (127mm)

STRIP THICKNESS:
MINIMUM: 0.005" (0.127mm)
MAXIMUM: 0.060" (1.53mm)

STRIP WIDTH:
MINIMUM: 0.300" (7.62mm)
MAXIMUM: 2" (50mm)

LINE SPEED: 150-400 FPM (45-122m/MIN.)
NORMAL TENSION: 15 LB. (6.8 KG)
TYPE OF TENSION: PNEUMATIC
DRIVE MOTOR: 3 HP, 1800 RPM, 3 PH, 60 HZ
ADJUSTABLE FREQUENCY CONTROL

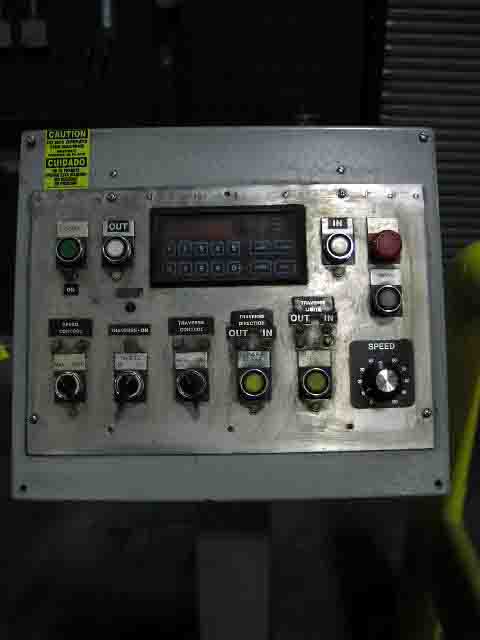

DIGITAL CONTROL SET UP

ENTRY SIDE TENSION STAND
MANUFACTURER: PROGRESSIVE MACHINE CO. INC.
MODEL No.: 604 LH
SERIAL No.: 15420604

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
