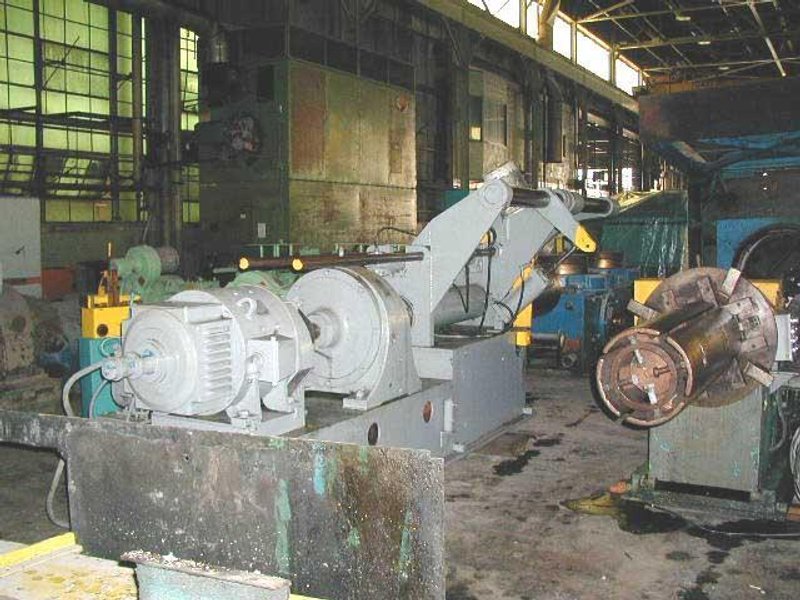

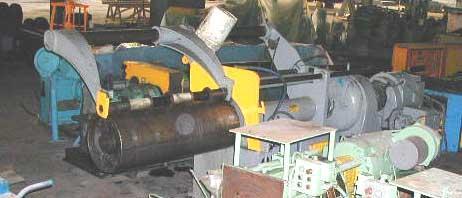

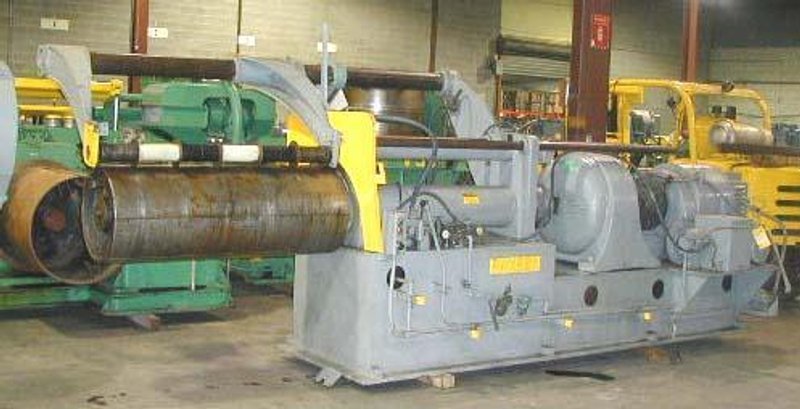

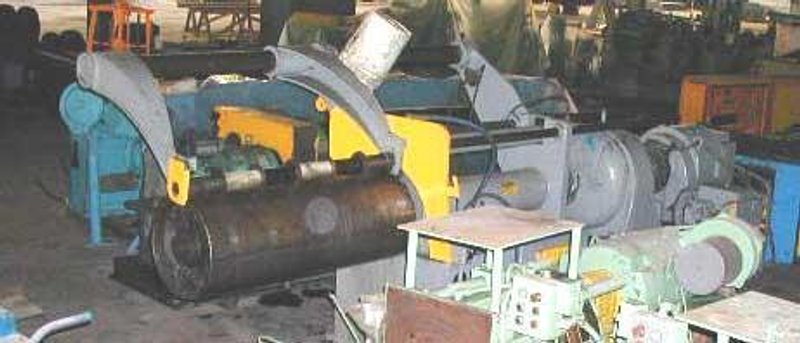

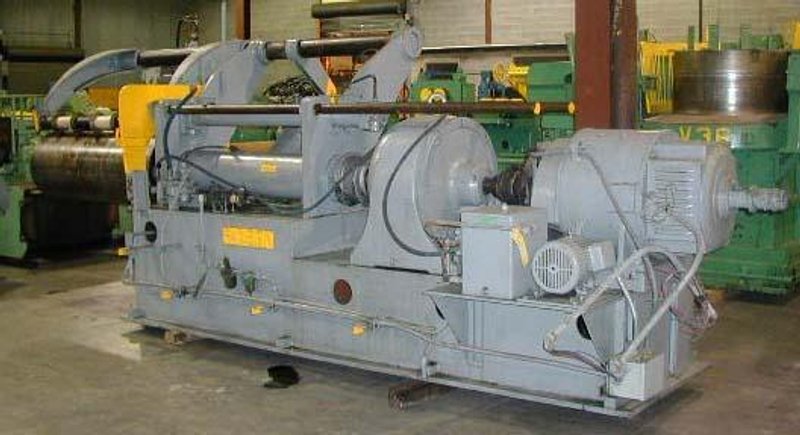

MACHINE #6583

MANUFACTURER: PAXSON MACHINE CO.
CAPACITY: 20,000 LBS. MAX. COIL WEIGHT
TYPE: EXPANDING MANDREL
TYPE OF EXPANSION: HYDRAULIC

MANDREL SIZE:
MANDREL O.D.: 19-1/2" - 20-1/2"
WIDTH: 52"
MAX. COIL O.D.: 72"
MAX. COIL WIDTH: 48"

TYPE OF COIL STRIPPER: HYDRAULIC

EQUIPPED WITH OVERARM SEPARATOR
SHAFT DIAMETER: 2 1/2"
SPACER OD: 3 1/2"
OVERARM SEPERATOR KNIFE OD: 6"

DRIVE MOTOR: 60 HP, 1150/2000 RPM, 206 AMPS,
240 VOLTS, D.C.

GEAR REDUCER: RATED 75 HP, INPUT RPM 1730, OUTPUT
RPM 56, RATIO 31.4 TO 1

SELF-CONTAINED HYDRAULICS:
MANUFACTURER: PAXSON MACHINE CO.
SERIAL NO.: 649
DRIVE MOTOR: 3 HP, 230/460 VOLTS, 3 PH., 60 HZ

OVERALL FLOOR SPACE: 4 FT. x 17 FT.

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
