MACHINE# 13210

SPECIFICATIONS:

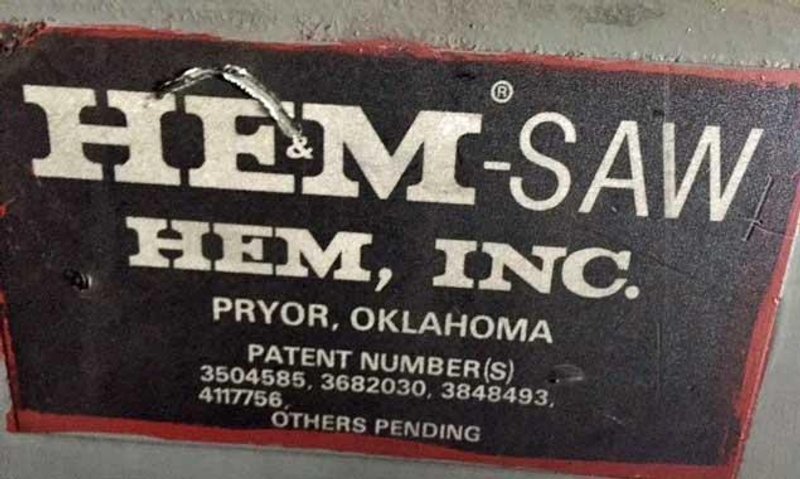

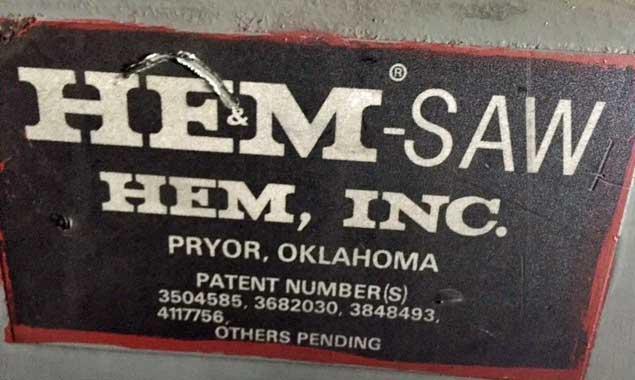

MANUFACTURER:                 HEM INC. (U.S.A.)
MODEL No.:                    1000AH
SERIAL No.:                   235085

MAXIMUM WORKPIECE AS DESIGNED:
 12 3/4" (324mm) ROUND
 12 3/4" (324mm) FLAT

ECONOMIC MAXIMUM:
 12" (305mm) ALUMINUM & BRASS
  8" (203mm) MILD STEEL
  6" (152mm) STAINLESS

OPTIMUM CAPABILITY:
  8" (203mm) ALUMINUM & BRASS
  5" (127mm) MILD STEEL
  4" (101mm) STAINLESS

AUTOMATIC FEED SYSTEM:
 LENGTH OF FEED STROKE:       0-14" (0-356mm) OR (0-24" (0-610mm)
 MULTIPLE INDEX:              10 TIMES
 DESIGN MAXIMUM:              12 3/4" (324mm) x 12 FT. (3.65m)
 ECONOMIC MAXIMUM:            9" (228mm) x 12 FT. (3.65m)
 OPTIMUM CAPABILITY:          5" (127mm) x 20 FT. (6.09m)

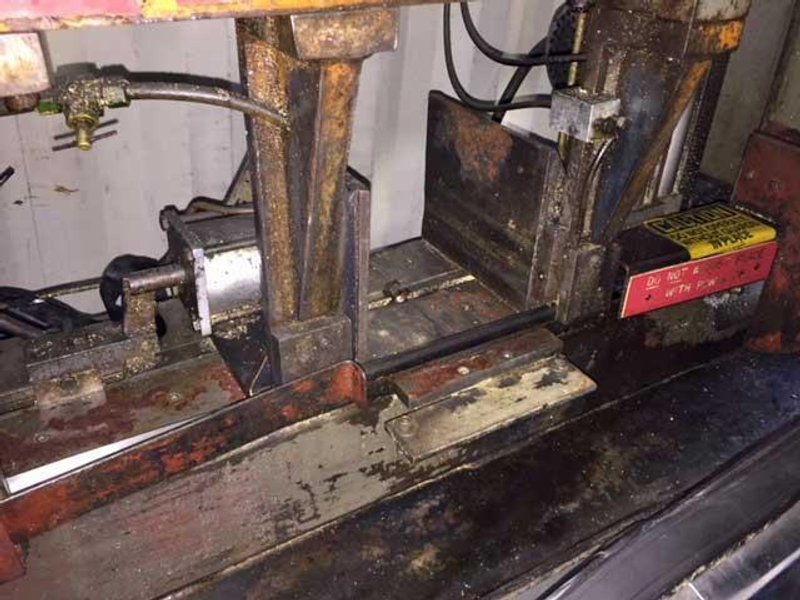

MAIN VISE
OUTBOARD SHUTTLE VISE
OUTBOARD HOLDING VISE
HOLDDOWN ROLLER

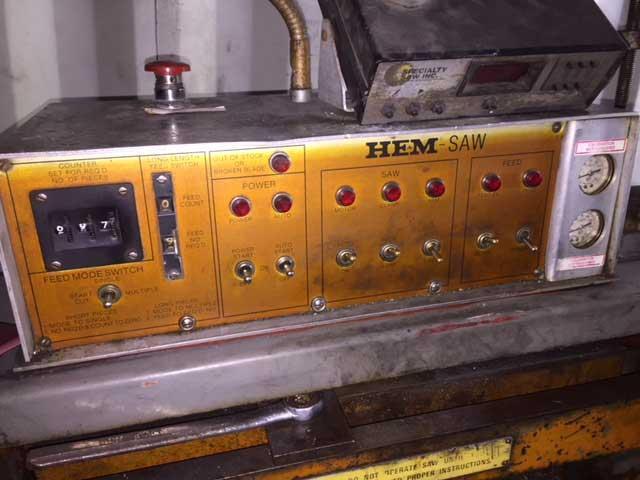

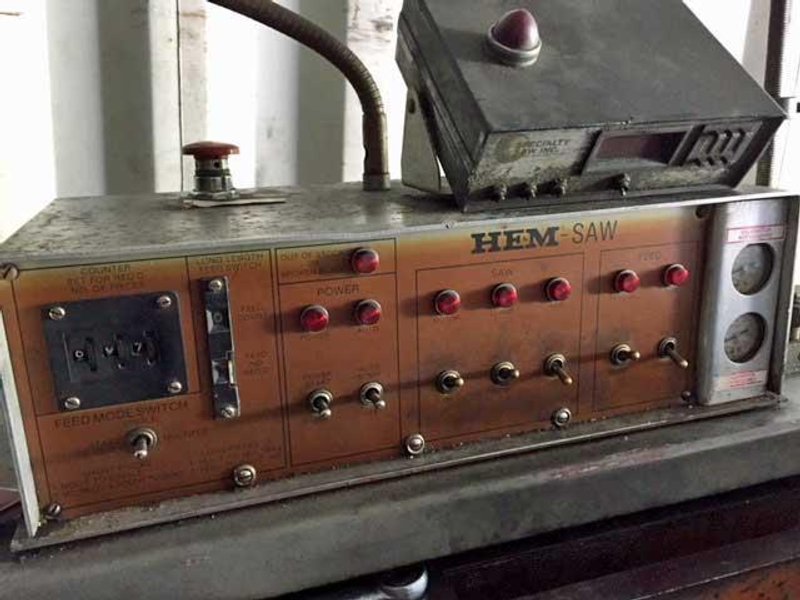

HEM ALL-FUNCTION CONTROL

MODES AVAILABLE:
 - MANUAL
 - SEMI-AUTOMATIC
 - FULL AUTOMATIC
 - MULTIPLE INDEXING FOR LONGER LENGTHS
BUILT-IN DIAGNOSTIC PANEL

MOTOR:                        3 HP, 220/440 VOLT, 3 PH., 60 HZ
SHIPPING WEIGHT:              3000 LBS.
BLADE SIZE:                   1" x 12 FT. x 10" x .035" THICK
                              (25m x 3.91m x 0.89mm)

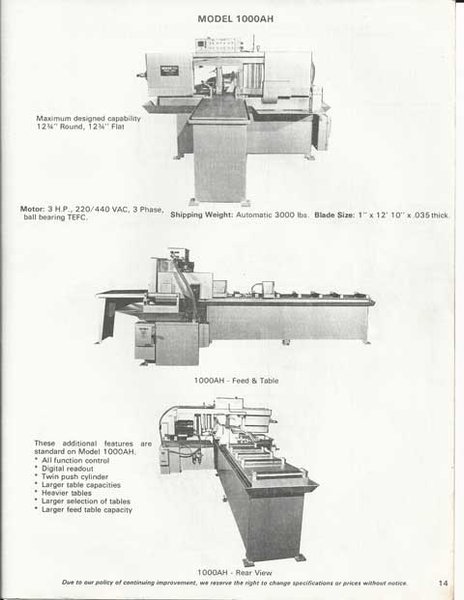

MODEL 1000AH INCLUDES:
 - ALL FUNCTION CONTROL

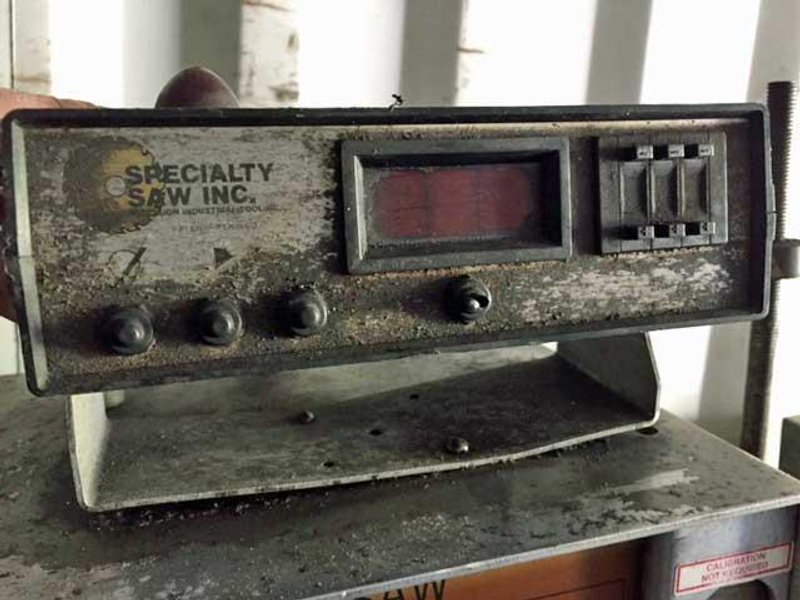

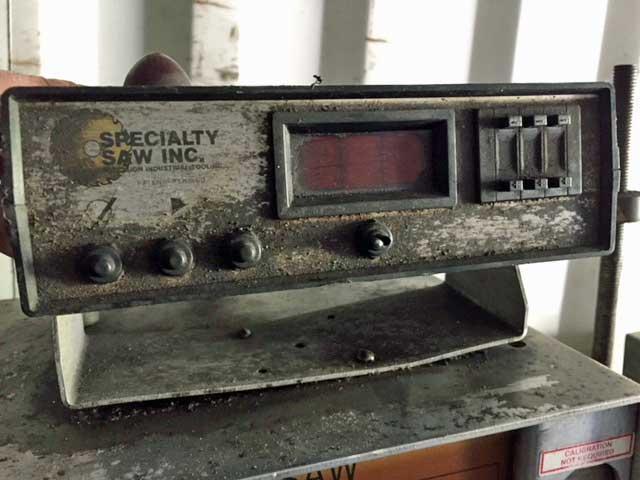

 - DIGITAL READOUT
 - TWIN PUSH CYLINDER
 - LARGER TABLE CAPACITIES
 - HEAVIER TABLES

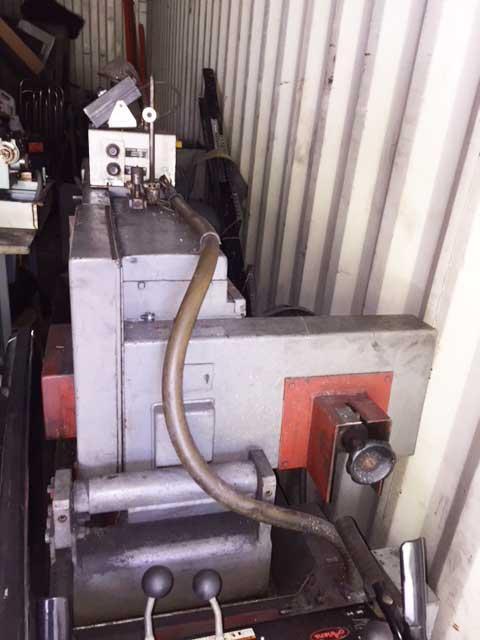

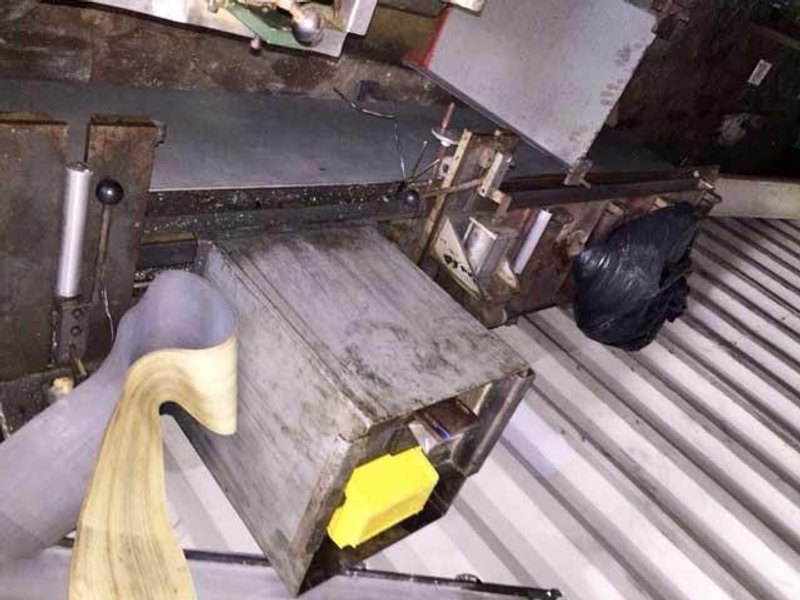

MACHINE IS IN STORAGE.

     **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
