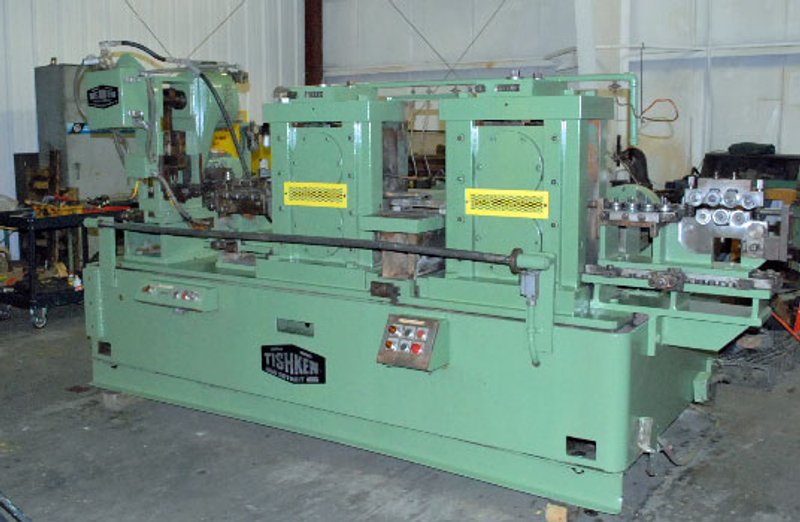

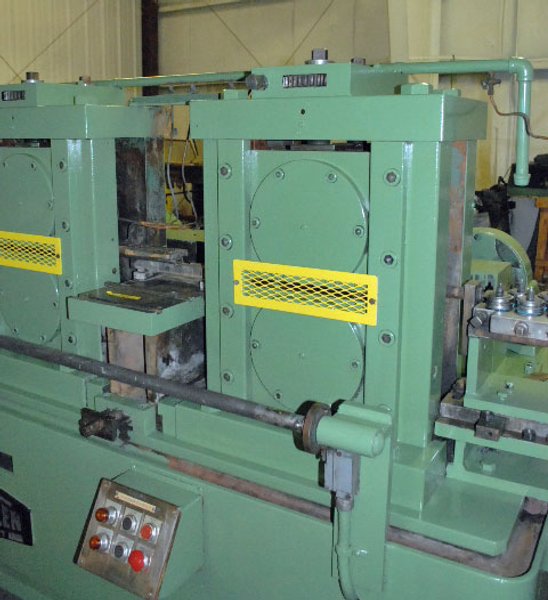

MACHINE# 12685

GENERAL SPECIFICATIONS:
  MANUFACTURER:              TISHKEN MANUFACTURING
  MODEL:                     STR-FLS-2
  TYPE MILL:                 2 STAND TANDEM WIRE FLATTENING,
                             STRAIGHTENING AND CUT-OFF LINE

  CAPACITY:                  #8 OR #9 GAUGE SPRING WIRE
                             (.162" - .148") MAX. RANGE
  ROLL SIZE:                 11" DIAMETER x 4-1/2" FACE WIDTH

OVERALL DIMENSIONS
  (MILL):                      11' L-R x   6' F-B x   6' H
  (CONTROLS):                 4'6" L-R x 2'4" F-B x 7'6" H
  (TABLE):                   10'8" L-R x 1'6" F-B x   4' H

EQUIPPED WITH:

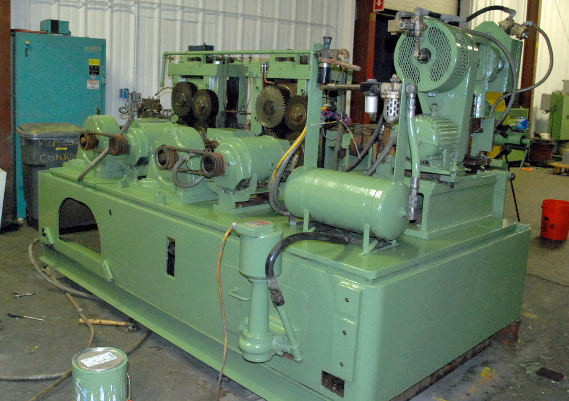

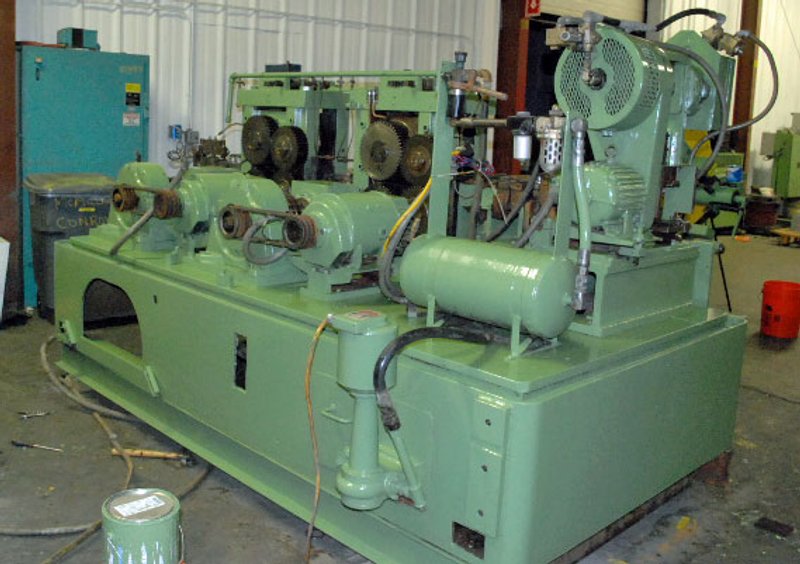

  BELT DRIVEN INDIVIDUALLY DRIVEN STANDS
  ENTRY 2 PLANE STRAIGHTENER, 4 OVER 3 ROLLS EACH PLANE
  EDGE GUIDES
  FIRST SET PINCH ROLLS WITH 5 ROLL STRAIGHTENER

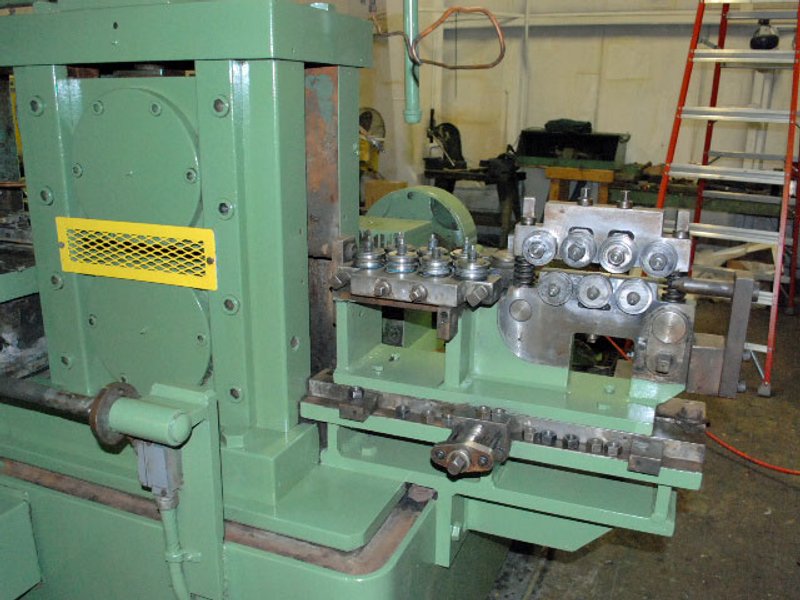

  SECOND SET EXIT PINCH ROLLS WITH 4 ROLL VERTICAL STRAIGHTENER
  TISHKEN #PT-CO-1A AIR CLUTCH AUTOMATIC CUTOFF, S/N 18402-12-82
  GUSHER COOLANT PUMP 1/4 HP, 220/440 VOLTS
  MANUAL ROLL ADJUSTMENT
  10 FT. RUNOUT TABLE
  INDIVIDUAL VARIABLE SPEED, ALL CONTROLS RELIANCE

  MOTOR GENERATOR SET:
  - INPUT VOLTAGE 208/220/440 FULL LOAD AMPS 53.8 - 52/26
  - OUTPUT VOLTAGE 240 DC, FULL LOAD AMPS 55
  - (2) DC MOTORS: 5 HP, 240 V DC, 1750/2600 RPM WITH CONTROLS

      **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

 **ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
