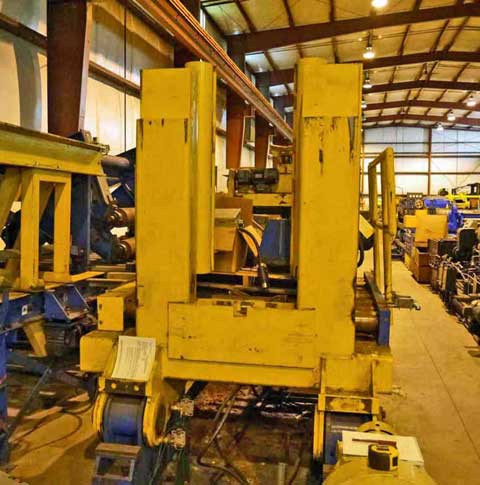

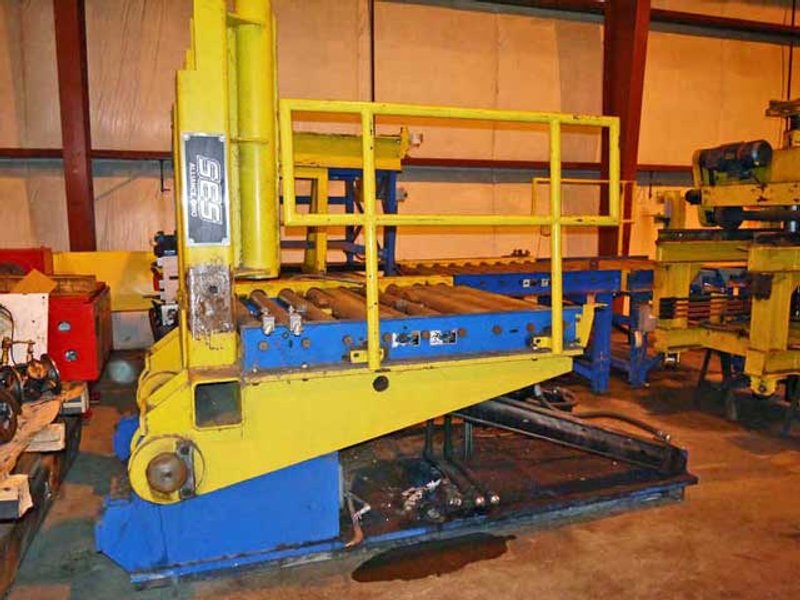

MACHINE# 13234

SPECIFICATIONS:

- Capacity: 20,000 Lbs. (9072 Kg) x 52" (1320mm) Wide Coils

- 48" (1220mm) Long Legs with 7" (178mm) Gap for skids

- Back is open 18" (458mm) Wide to accept Coil Car or C-Hook Loading/Unloading

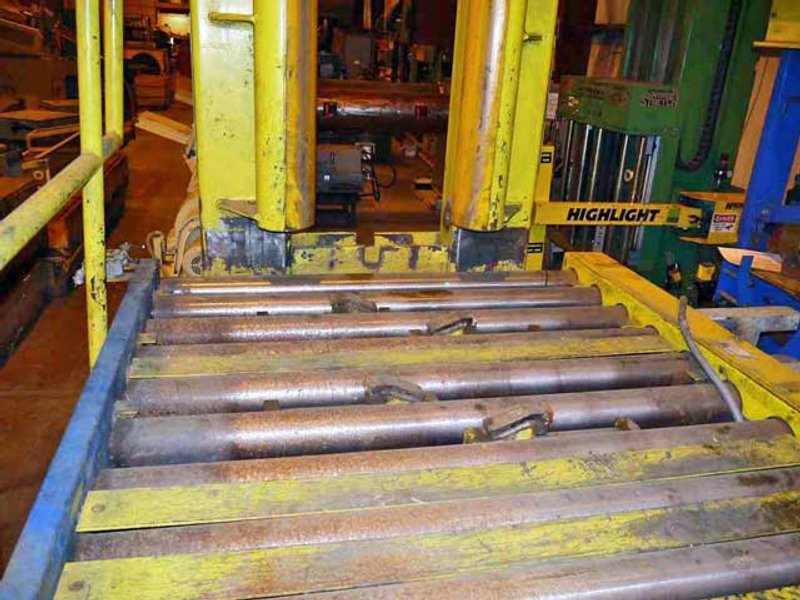

- Driven Conveyor Deck
  4" (100mm) Dia. x 58" (1473mm) Face Rolls on 7" (178mm) Centers with 1.375"

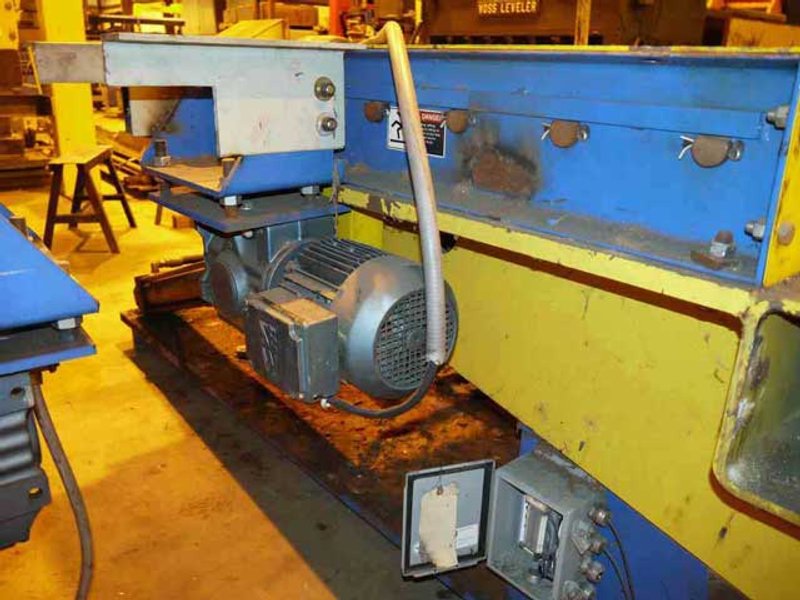

  Dia. Shaft Rolls driven by AC Gearmotor

- 40" (1016mm) from Floor to top of Conveyor Rolls

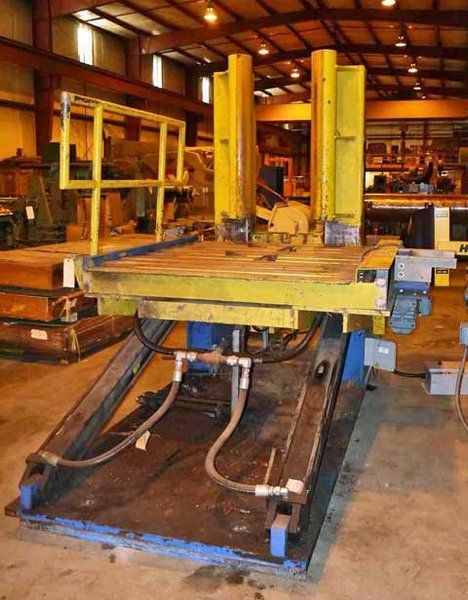

- (2) Hydraulic Cylinders for Tipping 5" (127mm) Bore x 59" (1500mm) Stroke

  Parker Cylinders

- Hydraulic Pallet Clamping Device

- 56" (1422mm) O.D. Capacity
  (Will accept 60" (1524mm) O.D. when used with a Pallet)

- Overall Size:
  122" (3.1m) L x 86" (2.2m) W x 100" 2.54m) High 7,500 Lbs.  (3400 Kg)

 ** SPECIFICATIONS SUBJECT TO REVISIONS **

 ** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

 ** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
