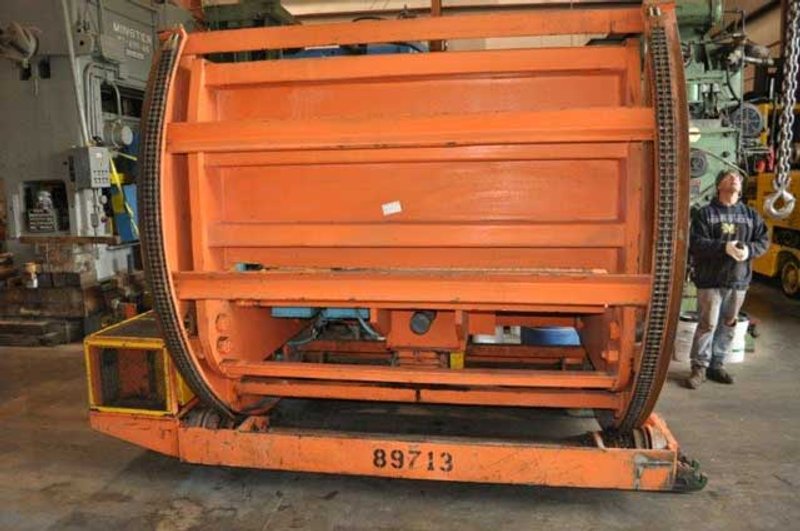

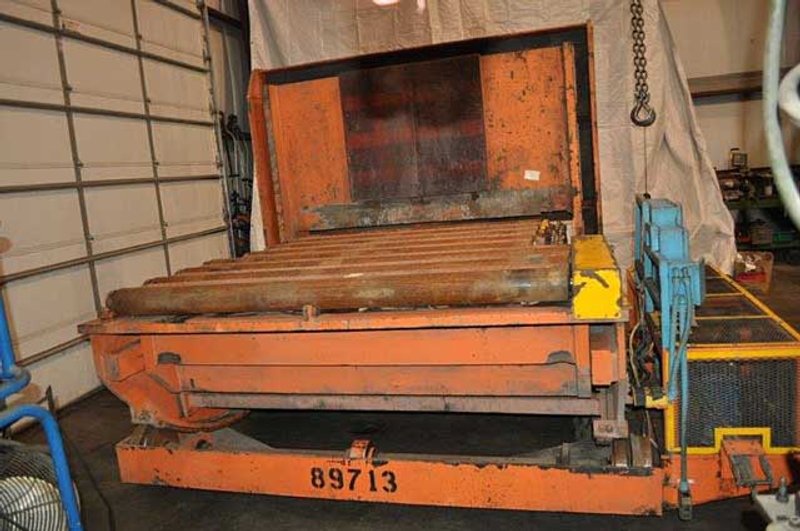

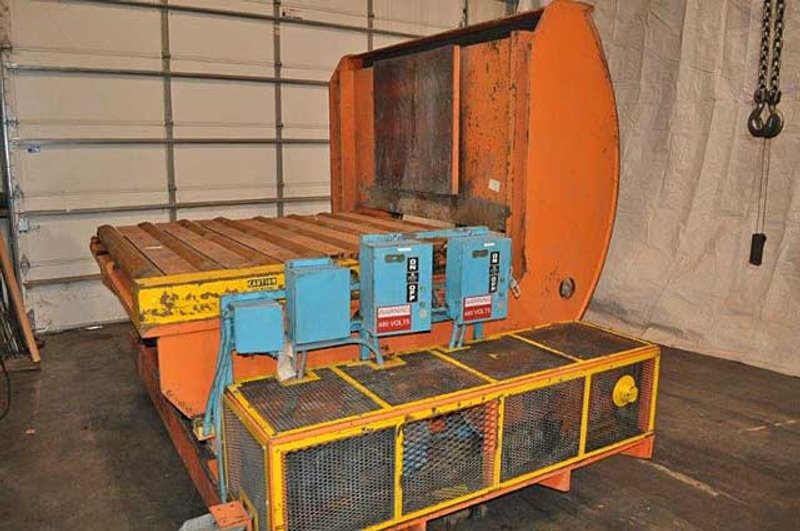

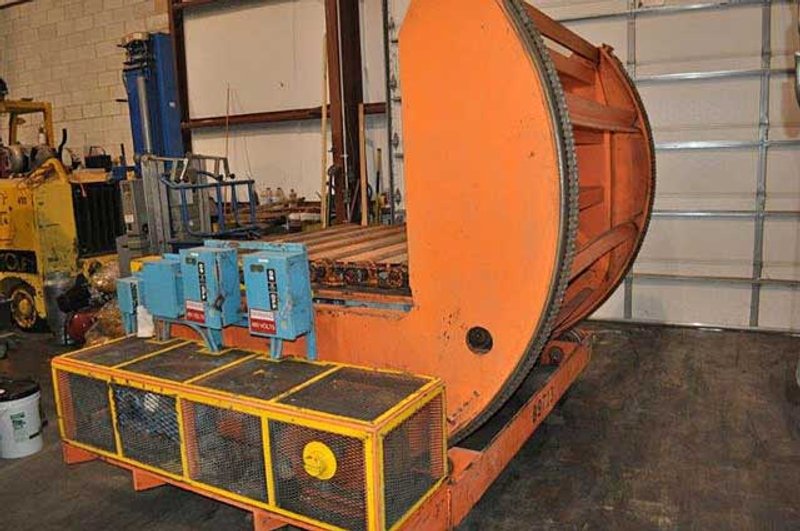

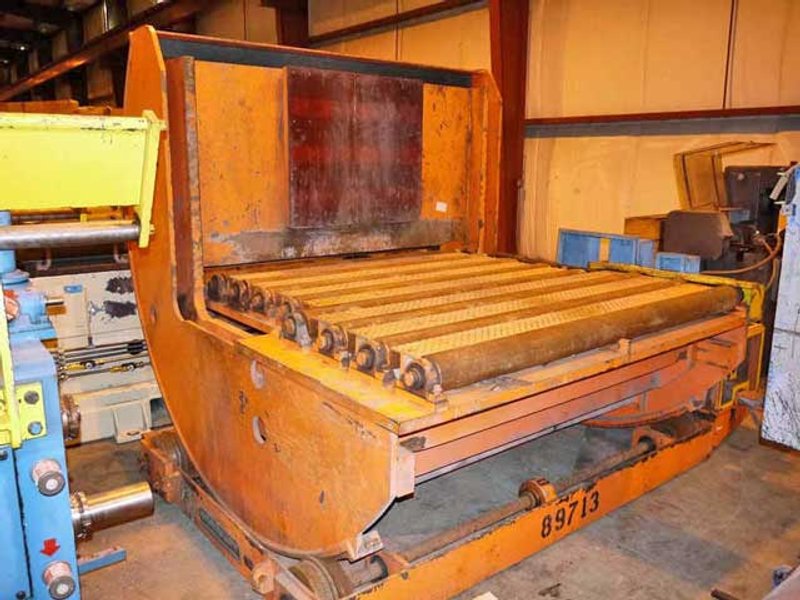

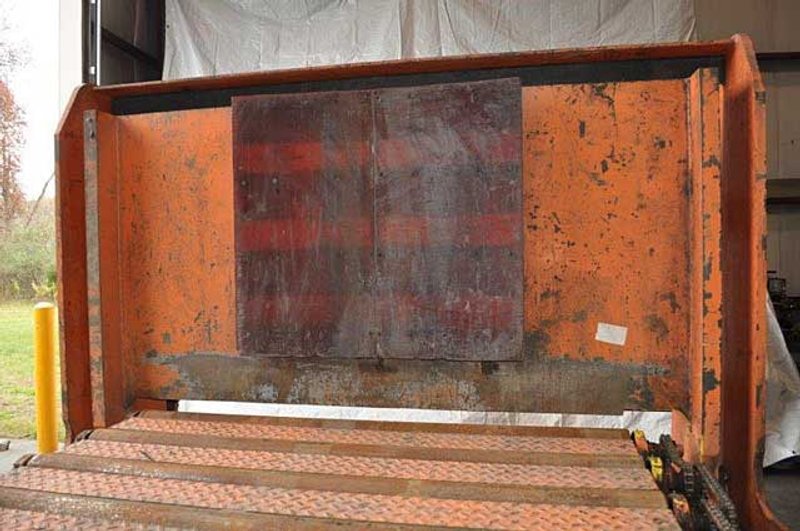

MACHINE# 13235

SPECIFICATIONS:

- 30,000 Lb. (13,600 Kg) Max. Coil Capacity

- 72" (1828mm) Max. Coil O.D.

- 48" (1220mm) Max. Coil Width

- 63" (1600mm) L x 72" (1828mm) Wide Flat Table with Powered Roller Conveyor

  4.5" (114mm) Dia. Conveyor Rolls

- 36" (915mm) Wide x 33.5" (851mm) L "V" Cradle

- Distance from floor to bottom of "V" Cradle:
  24.5" (622mm) in tipped position

- Hydraulic Cylinder for raising/lowering "V" cradle:
  Approx. 24" (610mm) Vertical Lift.

- Dual driven chains for tipping

- Driven wheels

- Passline: 41.5" (1055mm) from floor to top of Roller Conveyor

- Overall Size:  125" (3175mm) L x 97" (2464mm) W x 89" (2260mm) High

 ** SPECIFICATIONS SUBJECT TO REVISIONS **

 ** SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER **

 ** PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE **
