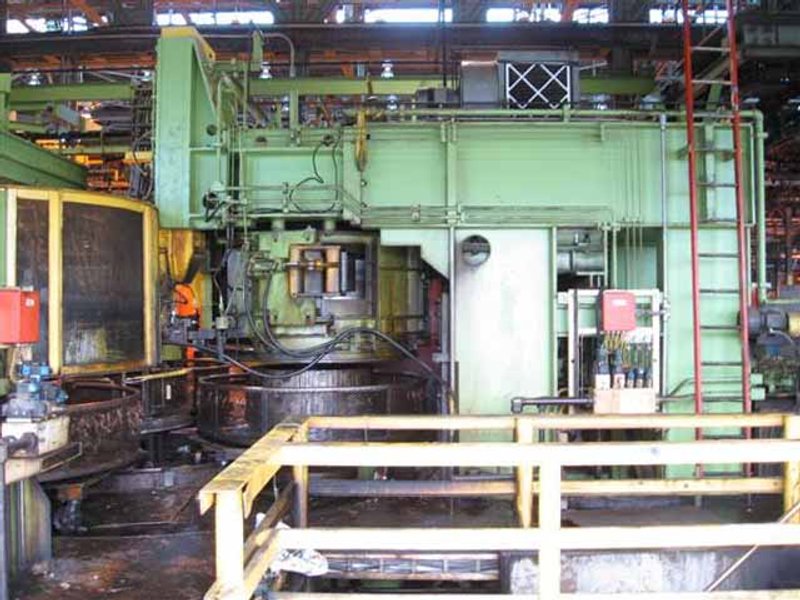

MACHINE # 10717

SPECIFICATIONS:

- MANUFACTURER: DEMAG SMS G.m.b.H. (GERMANY)

YEAR OF MANUFACTURE - 2000

- 60" (1524mm) BLOCK DIAMETER

- 1.125" (6.35mm) O.D. x 0.070" (1.8mm) WALL MAX TUBE CAPACITY

- 450 LB (205 KG) MAXIMUM COIL WEIGHT

- 4,000' PER MINUTE MAX DRAW SPEED (1220 M/Min.)

- THREAD SPEED 0 TO 1000 FPM (0-305 M/Min.)

- DRAW PULL & LINE SPEED: MAX PULL OF 10,400 LB UP TO 1000 FPM

- TAPERING TO 2600 LB AT 4000 FPM (1180 KG @ 1220 M/Min.)

- 300 HP DC MOTOR DRIVE 400/700 RPM

- MITCHELL POINTER

- 8 POSITION CARROUSEL AUTOMATIC LOAD AND UNLOAD SYSTEM

- 7'9" OUTSIDE DIA x 50" INSIDE DIA x 27" COIL TRAY SIZE

- OPERATOR CONTROL CONSOLE
w/ALLEN-BRADLEY MODEL 1000E PANEL VIEW MONITOR

- SCR AC CONVERTER

- ALLEN BRADLEY PLC 5/40 PROCESSOR

**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**

**ALL SPECIFICATIONS ARE SUBJECT TO VERIFICATION BY PURCHASER**
